CCTV Setup purchased & Home network setup

kuduku · February 3, 2026, 4:33pm

Now 2 more camera are left to order

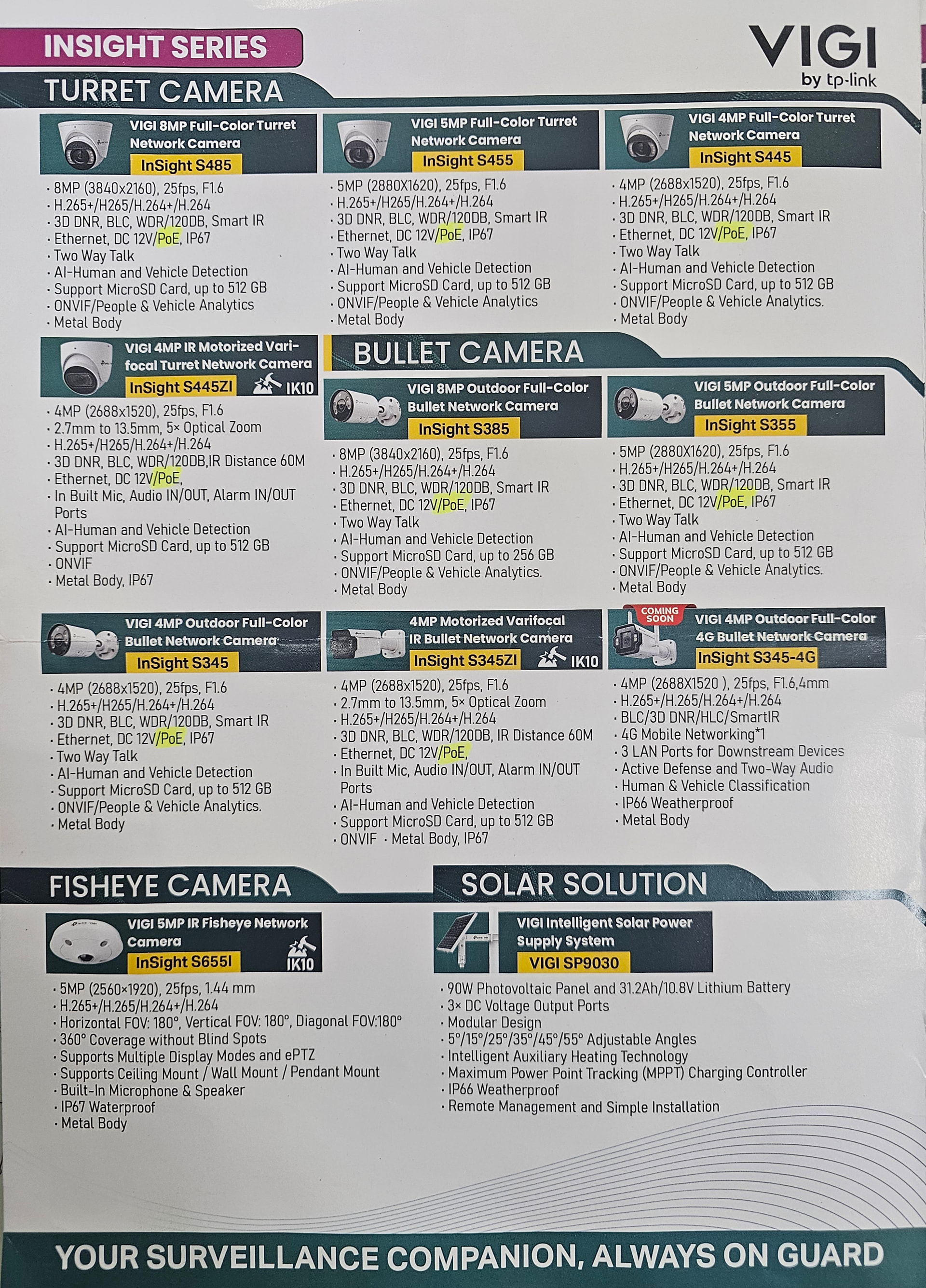

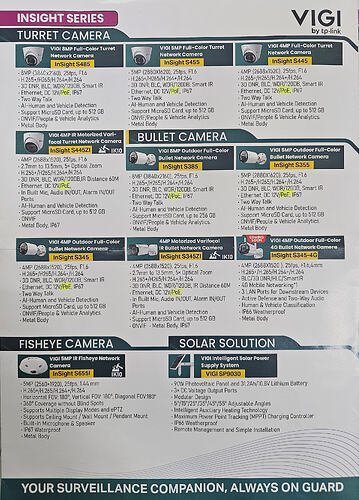

InSight S655I Tp-Link InSight S655I 1.4mm Fish Eye Camera - FGTECH STORE

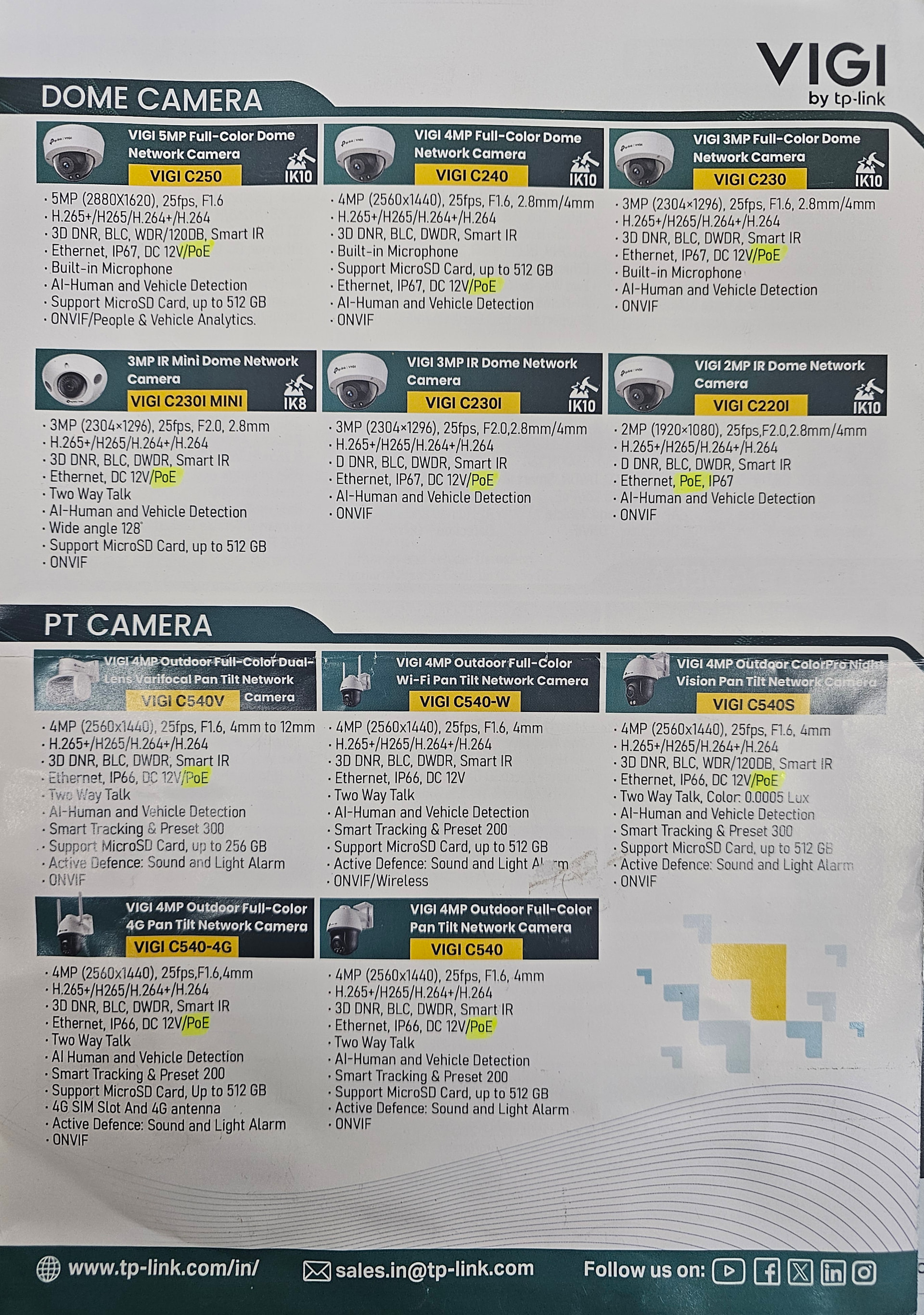

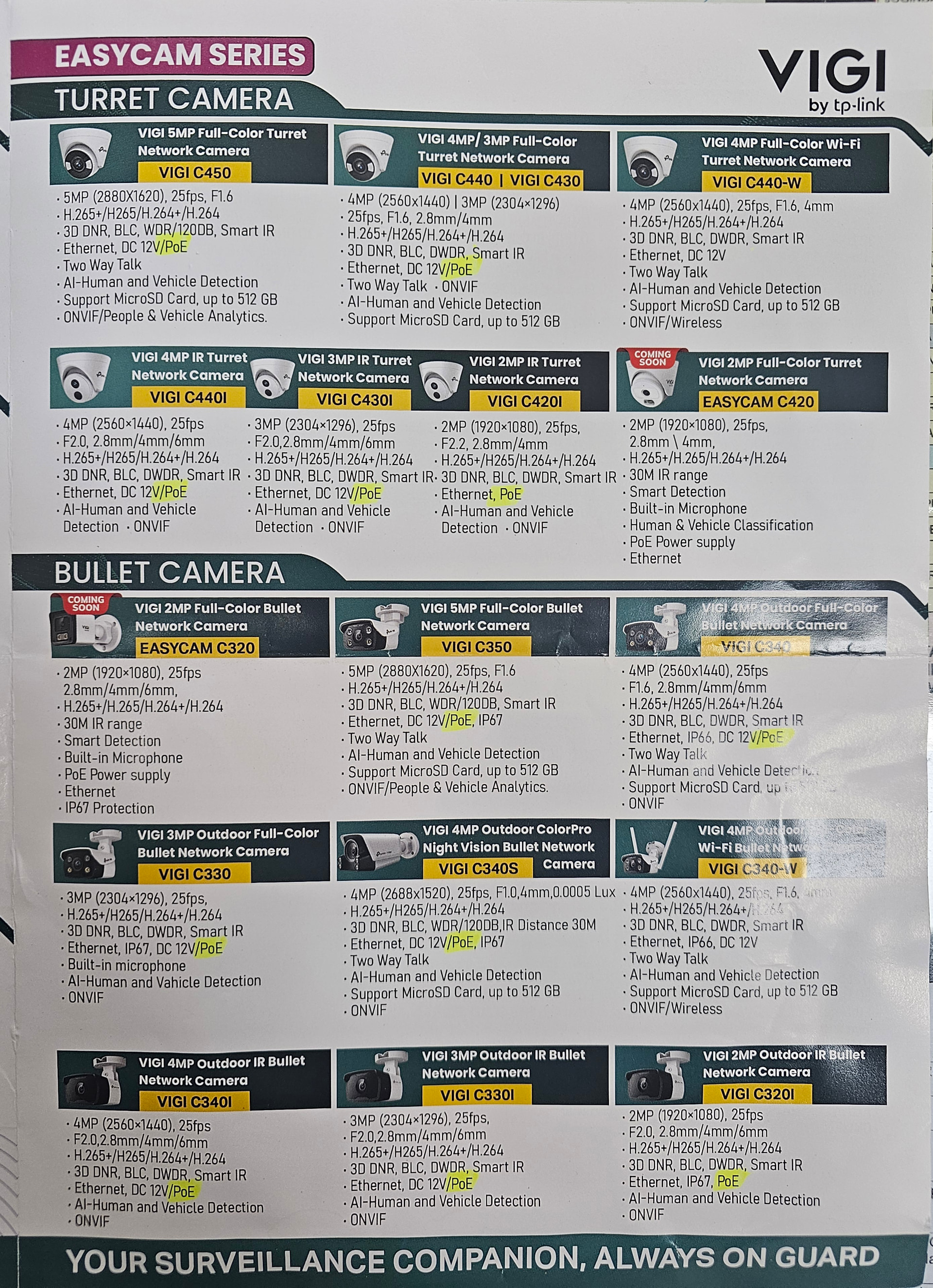

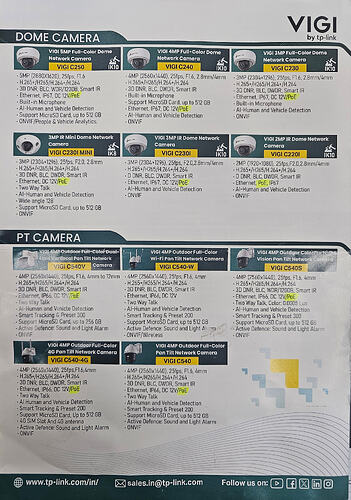

and VIGI C240I or VIGI C440-W

I require full colour . VIGI C440-W is full colour and WIFI but no POE

POE its low quality till 4k then straight away 10k ….Buy IP Cameras For Home And Business Security In India - FGTECH

Minimum full colour is at 5k . And for information of all nothing of Tp-link will be available soon as STQC is not cleared . They will never give source code

All the above purchases were done from fgtech

kuduku · February 4, 2026, 5:52am

Cameras in the setup need to be shifted from original plan and 1 more to be added . Total is 6 now . I forgot to check IP ratings

Original Plan

Facing Road - VIGI C540V IP66 with LED lights

Parking - and VIGI C330I (IP67)

Inside house - InSight S655I (IP67) To buy

Patio - VIGI C240I (IP67)

Main Terrace - VIGI C440-W (Not Waterproof ) So this cant be on terrace . WIFI but POE with LED

Second terrace - VIGI C240I (IP67) To buy , small place with overhead watertank and a room for installing all network equipment . Dont want fibre guys drilling any holes below

Amended Plan

Facing Road - VIGI C540V IP66 with LED lights

Parking - Plan to put VIGI C240I (IP67) instead of VIGI C330I (IP67) and shift VIGI C330I (IP67) in patio . VIGI C240I (IP67) is better quality so should be covering main gate and parking

Inside house - Not to buy InSight S655I and put VIGI C440-W (Not Waterproof ) WIFI, no POE with LED

Patio -VIGI C330I (IP67) Small place so this should do fine

Main terrace - VIGI C340-W 4MP (IP66, WIFI , full colour NO POE ) TO BUY

Second terrace - VIGI C330I (IP67) TO BUY

Any recommendation on the plan ?
