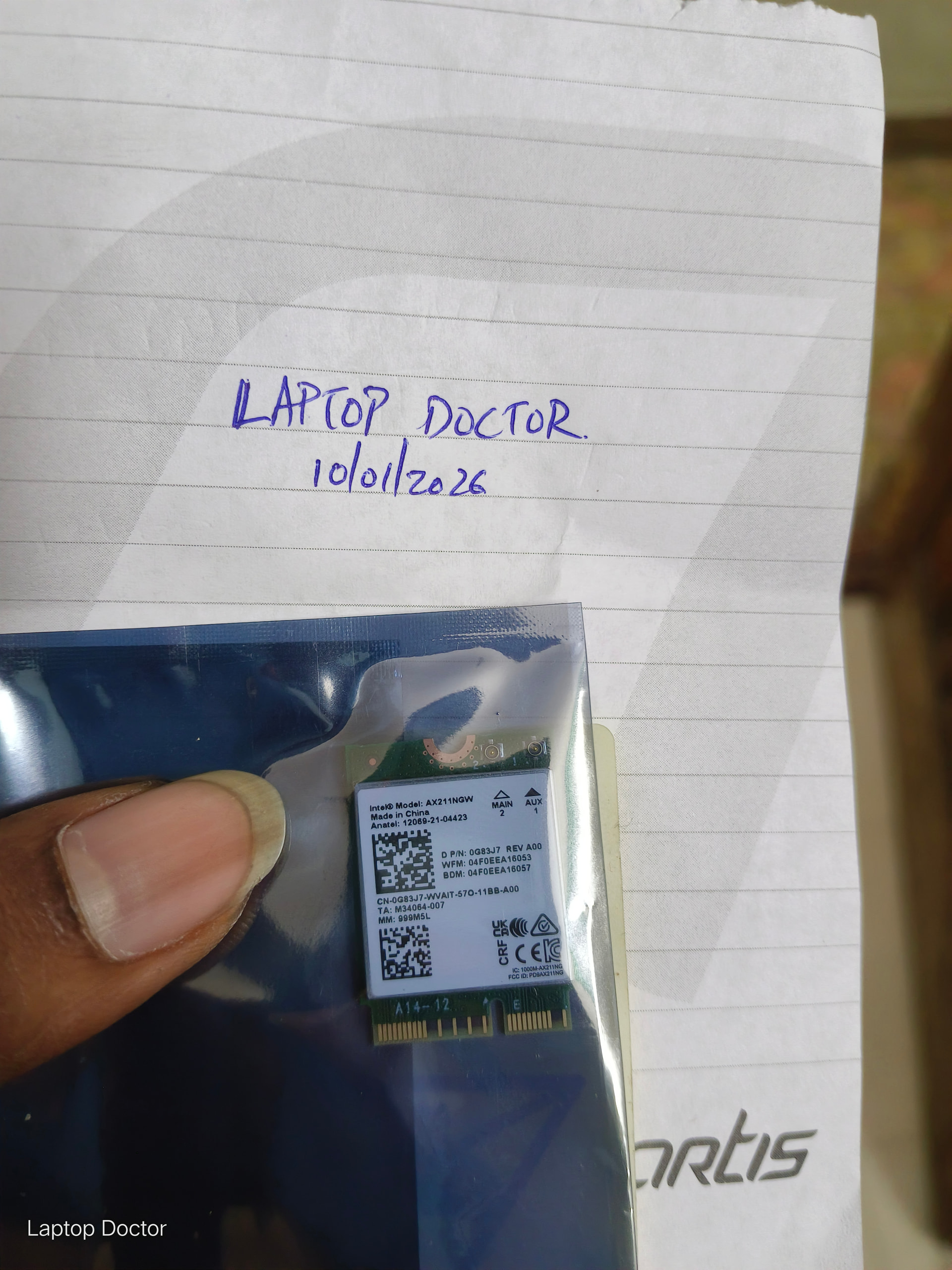

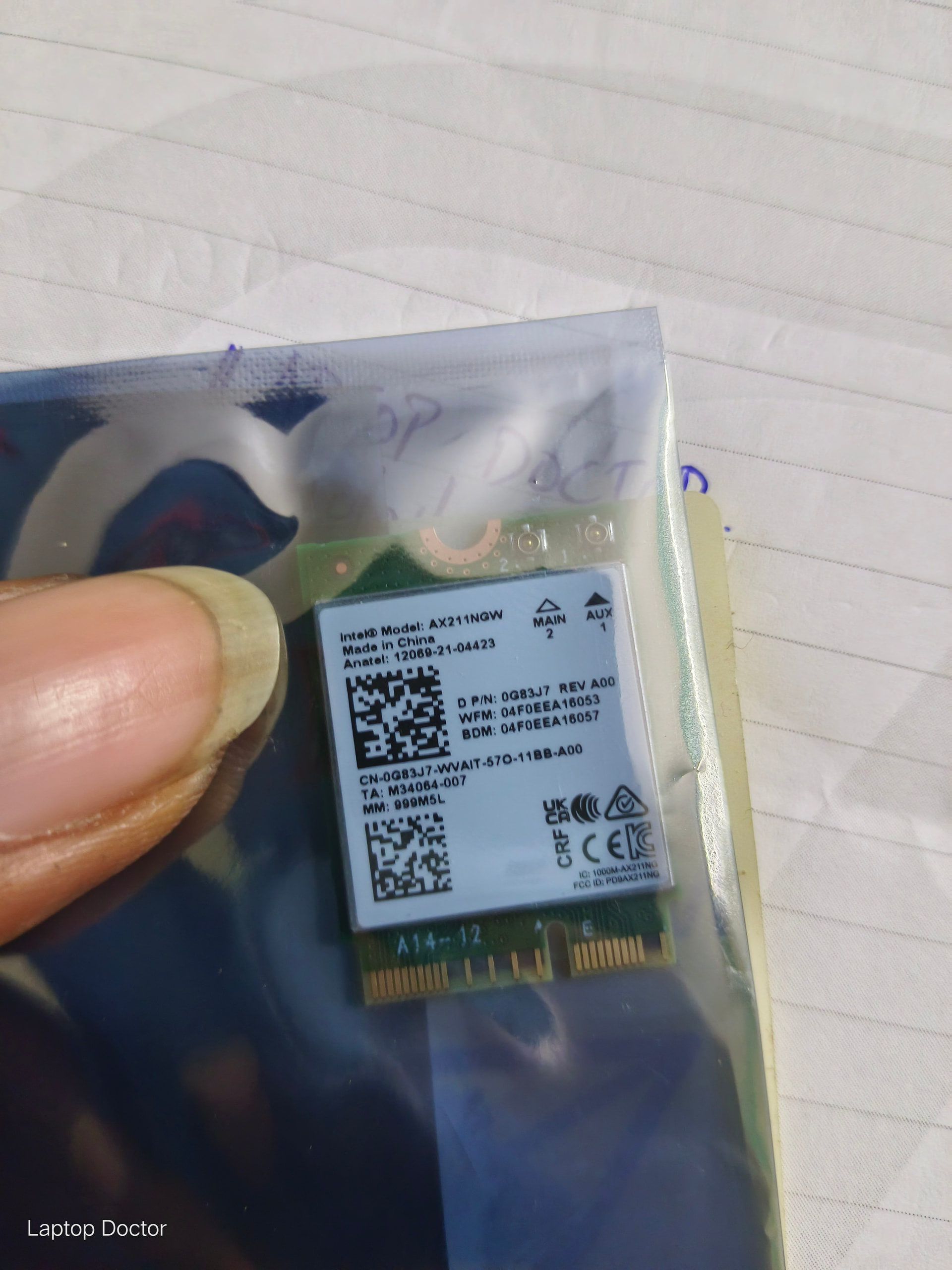

Intel AX211NGW:
Model Name: Intel® Wi-Fi 6E AX211 (Gig+)
Wireless Standard: Wi-Fi 6E (802.11ax)
Frequency Bands: Tri-Band (2.4 GHz, 5 GHz, and 6 GHz)
Max Speed: Up to 2.4 Gbps
Bluetooth Version: 5.3
Form Factor: M.2 2230 or M.2 1216 (requires CNVio2 interface)
Key Features: 2x2 TX/RX Streams, MU-MIMO, OFDMA support
Supported OS: Windows 11 (64-bit), Windows 10 (64-bit), Linux, Chrome OS
Supported Hardware: Intel 12th generation or newer CPU
Price 1500+Shipping
Is it Intel only or will work with AMD ?
Mostly works with AMD. I will check once n update you.
Won’t work = Key E CNViO2
work with 12th gen intel ++ only
is antenna kit included?
No. It’s not included
Not even 11 Gen i5 ?
I was looking to replace in that?
No, these are Intel only cards, if the last digit ia a 1 (ax211) it’s a cnvio2 card, if the last digit is a 0 (ax210), it’s normal pcie. CNVIO cards have just the RF circuit on the card, and the CPU handles pretty much everything about WiFi. You’ll need this https://sharvielectronics.com/product/ax210ngw-wifi-6e-intel-ax210ngw-5400mbps-bluetooth-5-3-802-11ax-wifi-6-6ghz-5ghz-2-4ghz-m-2-ngff-wireless-card/
It won’t work. Sadly.
I have will update details tomorrow
is there any adapter to use these on Desktop PCI slot?
We don’t have
Free bump to update that another member has given me the same card as a giveaway
Big thanks to him
So don’t want it now
No, I meant do such adapter exist? I tried searching but couldn’t find anything reliable.

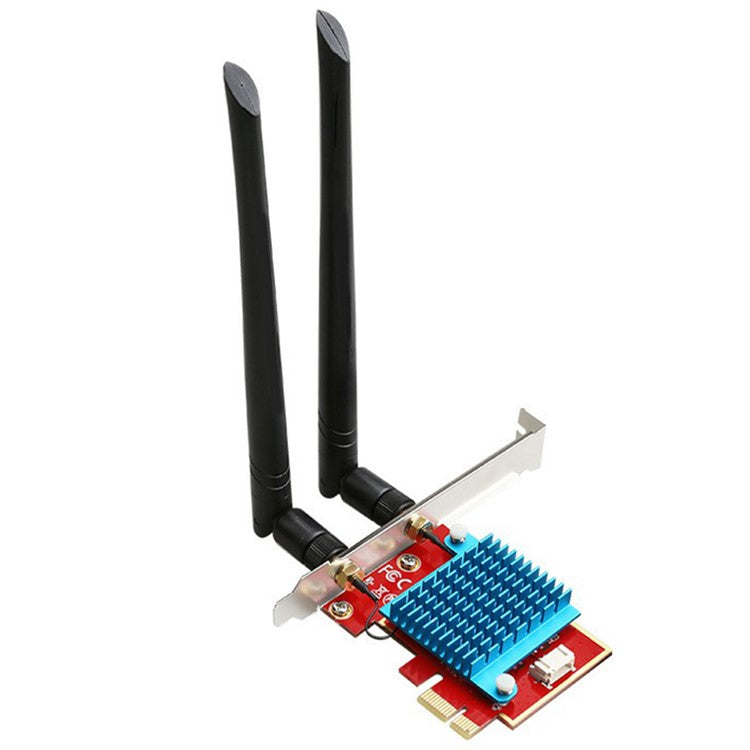

Here is the adapter:
Google search found these , no idea about reliability of stores
Unreliable. Don’t get those.
These wont work with those adapter either.
Cards like 9560NGW, AX201, AX211 are CNVio based and will not work in those adapters.
You can only use cards like 8260NGW, 8265NGW, 9260NGW, AX200, AX210 etc which are PCIe based, with those adapters.
