Asus was kind enough to send me an sample from their ROG line up this time.Presenting the Maximus V Formula.
This is the mid range board from their Z77 ROG lineup and being as such it got everything one would look for in an enthusiast board.
the important features worth mentioning are :
- Fusion Thermo - World’s first hybrid air and water cooling thermal design.
- SupremeFX IV – AMPed For Perfect Audio.
- GameFirst II/Intel Gb LAN
- mPCIe Combo + dual-band Wi-Fi/Bluetooth 4.0
- ROG Connect
- Extreme Engine Digi+ II
- ROG Extreme OC kit
Now lets carry on with the un-boxing and preview.
The box is typical Rog style box with huge naming and graphics in the front and important features printed at the backside.

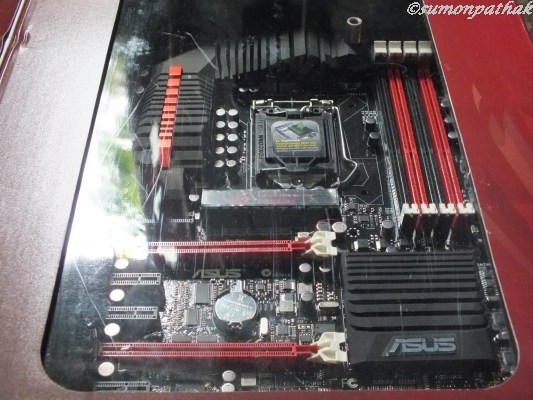

Opening the front flap give us a view of the board.

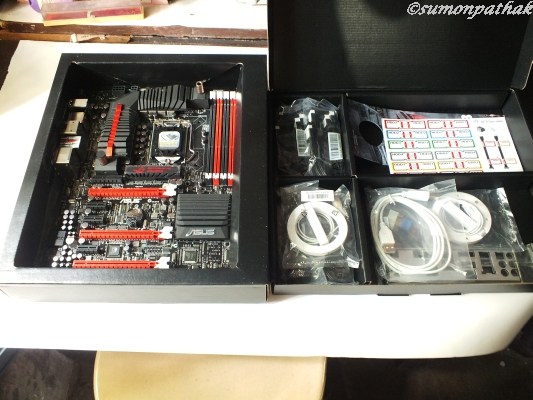

Rog motherboards typically comes in two box packages,one for the motherboard itself and other for the accessories.

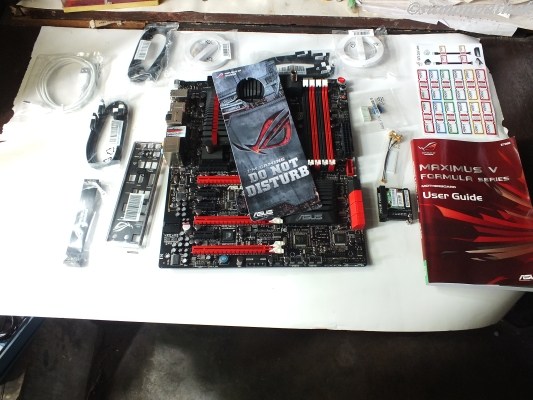

Box contents.
It got everything you will need to build up a multi gpu system with WiFi out of the box.
The box has SATA III Cables;mPCIe card for WiFi;Sli/Xfire cable etc.
Her's a full list for you guys:
- User's manual
- I/O Shield
- 2 x SATA 3Gb/s cable(s)
- 4 x SATA 6Gb/s cable(s)
- 1 x SLI bridge(s)
- 1 x Q-connector(s) (2 in 1)
- 1 x ROG Connect cable(s)
- 1 x 12 in 1 ROG Cable Label(s)
- 1 x mPCIe Combo card(s) with dual band WiFi 802.11 a/b/g/n module + Bluetooth v4.0/3.0+HS module
- 1 x 2-in-1 RF Cable(s)
- 2 x Wi-Fi Ring Moving Antenna(s)

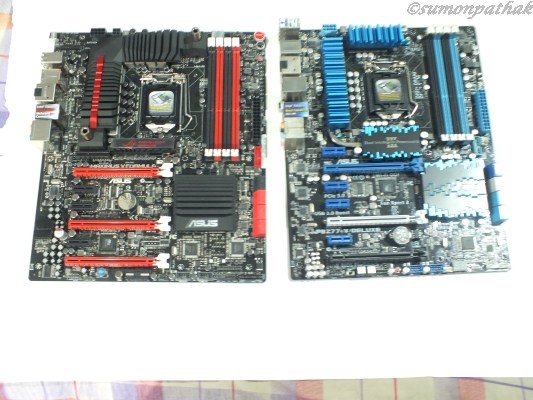

Up close

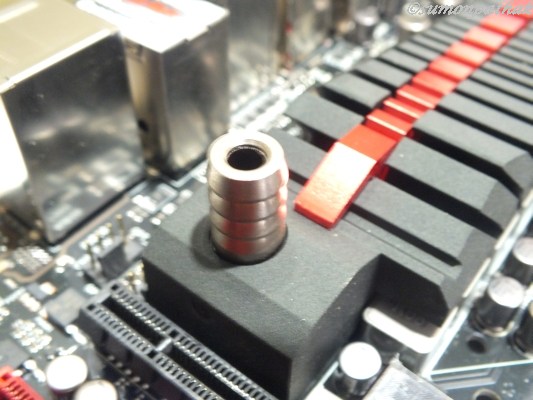

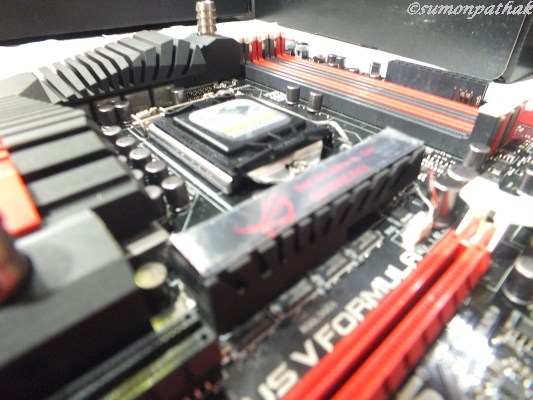

Typical ROG style board with black and red layout;the thing that strikes out most is the ceramic heatsinks on the VRM and PCH area.

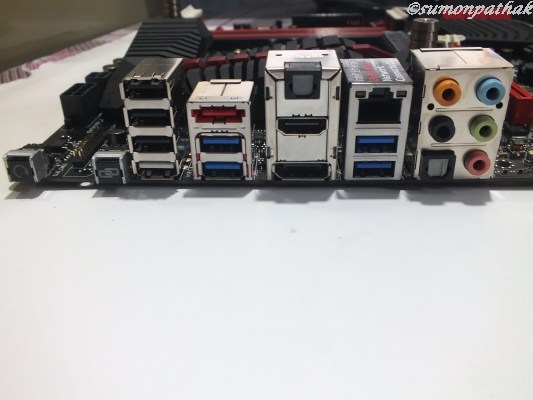

The I/O ports
The I/O port is brimming with stuff.
- 1 x DisplayPort
- 1 x HDMI
- 1 x eSATA 3Gb/s
- 1 x LAN (RJ45) port(s)
- 4 x USB 3.0
- 4 x USB 2.0
- 1 x Optical S/PDIF out
- 1 x Optical S/PDIF in
- 5 x Audio jack(s)
- 1 x Clear CMOS button(s)
- 1 x ROG Connect On/ Off switch(es)

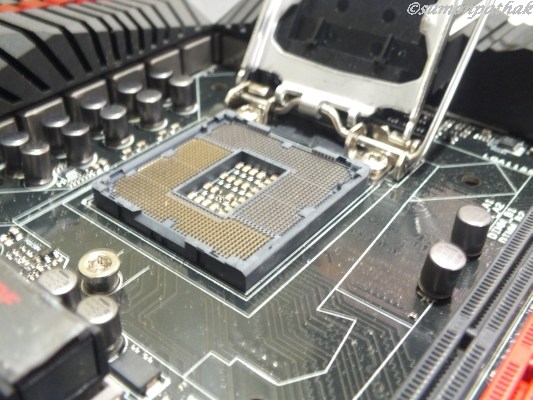

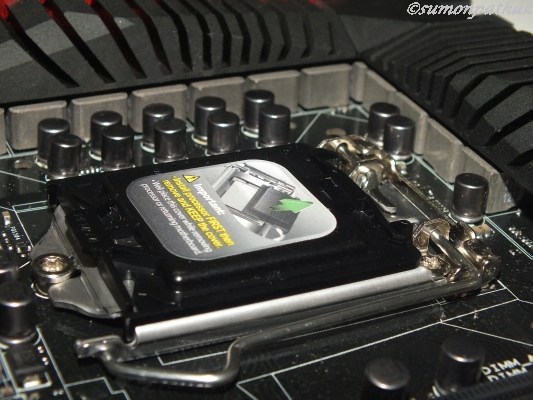

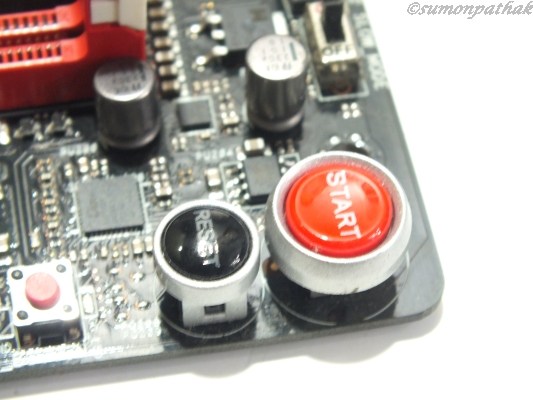

A few more shots:
Well,that all for today.i like a lot of stuff in this board..and i will talk about them in detail in the review;until then enjoy this preview and unboxing and post your comments,feedback's here.
signing out
Sumon Pathak
