Mini PCs
-
Intel N100 Mini PC [ DDR4 ] - [ 4 x 2.5G LAN ] [ Barebone ] - [ Rs 14399 ]
-
Intel N100 Mini PC [ DDR4 ] - [ 4 x 2.5G LAN ] [ 16G + 256G ] - [ Rs 17999 ]
-
Intel N150 Mini PC [ DDR4 ] - [ 4 x 2.5G LAN ] [ Barebone ] - [ Rs 14999 ]
-
Intel N150 Mini PC [ DDR4 ] - [ 4 x 2.5G LAN ] [ 16G + 256G ] - [ Rs 18599 ]
-
Intel N100 Mini PC [ DDR5 ] - [ 4 x 2.5G LAN ] [ Barebone ] - [ Rs 14699 ]
-
Intel N100 Mini PC [ DDR5 ] - [ 6 x 2.5G LAN ] [ Barebone ] - [ Rs 15299 ]
ITX Motherboards
- Intel N100 NAS motherboard - [ DDR5 ] - [ 4 x 2.5G LAN ] [ 6 SATA ] - [ Rs 13899 ]
- Intel N150 NAS motherboard - [ DDR5 ] - [ 4 x 2.5G LAN ] [ 6 SATA ] - [ Rs 14599 ]

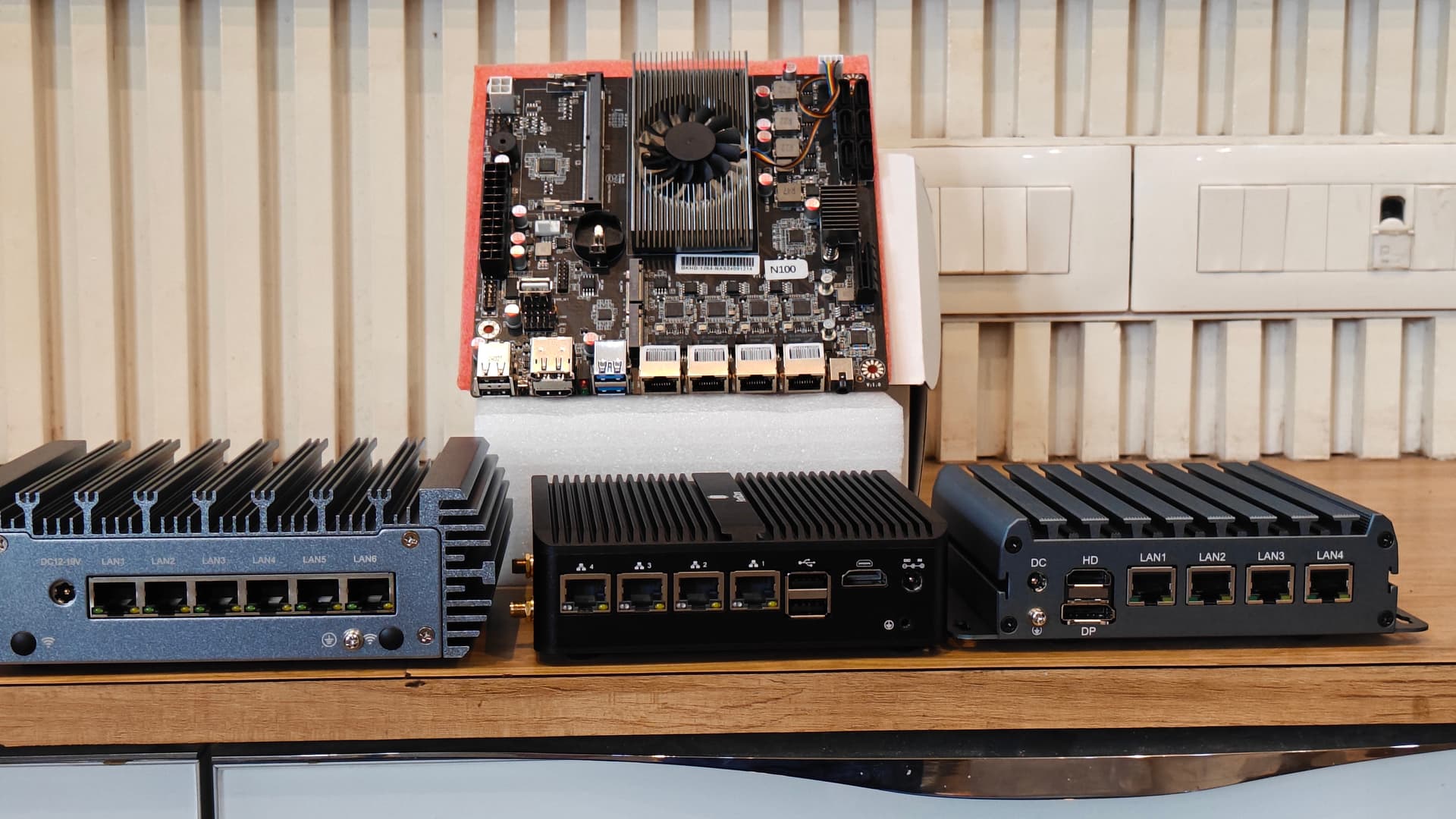

Video of all items : https://www.youtube.com/watch?v=iP0NWCATKTk
Shipping : Extra, as far as possible, I will ship through your preferred courier**
Specifications

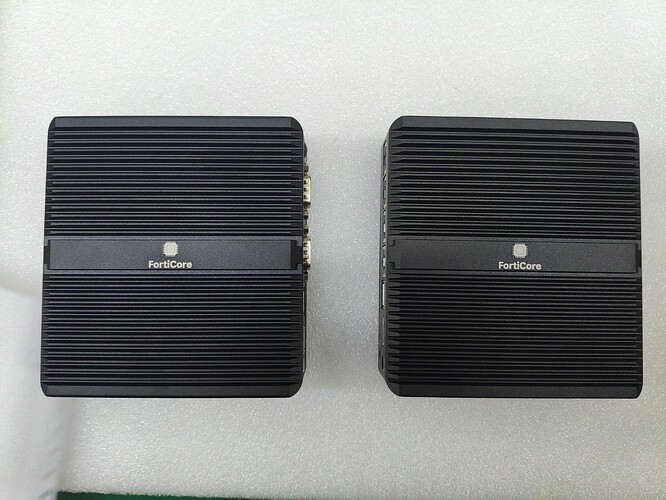

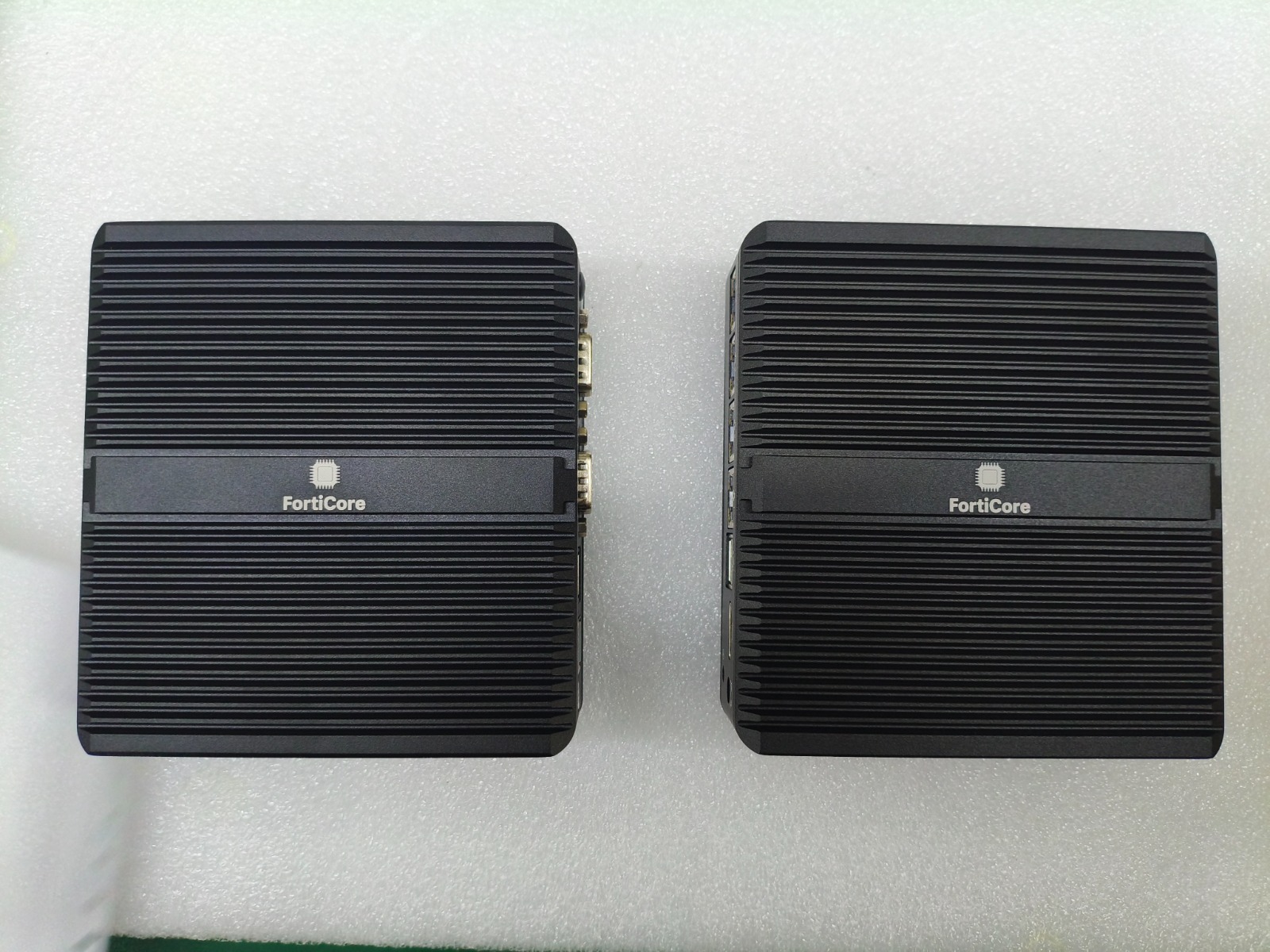

Intel N100/N150 Mini PC, - 4 LAN, DDR4 version
- Possessor: Integrated Intel®Alder Lake-N N100/N150 Processors
- Graphics: Integrated Intel®UHD Graphics
- Display : 1 x HDMI
- Memory : 2 x SODIMM, support dual-channel 3200 MHZ DDR4 memory
- Storage : 1 x SATA 6Gbps, 1 x M.2 Key-M 2280/2242 NVME/SATA SSD
- Expansion : 1 x Mini-PCIe, support 4G/WIFI module, 1 x SIM (Not included)
- Ethernet : 4 x intel i225/i226 2.5G network Card
- COM / Serial port : 2 x DB9 RS232 serial port
- USB : 2 x USB 3.0, 4 x USB 2.0
- Functions : Supports - Power on, network wake-up, PXE, watchdog
- Power supply : DC 12V (Included)
- Aluminum body
- Color : Black
Intel N100 Mini PC : 4 LAN - DDR-5 version
-
Possessor: Integrated Intel®Alder Lake-N N100 Processor
-
Graphics: Integrated Intel®UHD Graphics
-
Display : 1 x HDMI, support 4096x2160@60Hz, 1 x DP, support 7680x4320@60Hz, Type-C interface, support DP 7680x4320@60Hz & USB3.2 Gen2
-
Memory : 1 x SODIMM, DDR5, 4800 MHZ
-
Storage : 1 x SATA 6Gbps, 1 x M.2 M-Key 2280(NVMe PCIe3.0 x2 protocol)
-
Expansion :
- 1 x MiniPCIe (PCIe+USB2.0+SATA3.0 protocol, WIFI/BT/mSATA/4G module supported),Micro SIM card
- 5 x RS232/RS485 pin, pitch 2.0mm; 8 x GPIO
- 1 x 4Pin PWM CPU FAN; 1 x 4Pin PWM SYS FAN
-
Ethernet : 3 x intel i226 2.5G LAN ports, 1 x RTL 8156 LAN port
-
USB : 2 x USB 3.0, 2 x USB 2.0, 1 USB - C, TF card
-
Power supply : DC 12V (Included)
-
Aluminum body
-
Color : Gray

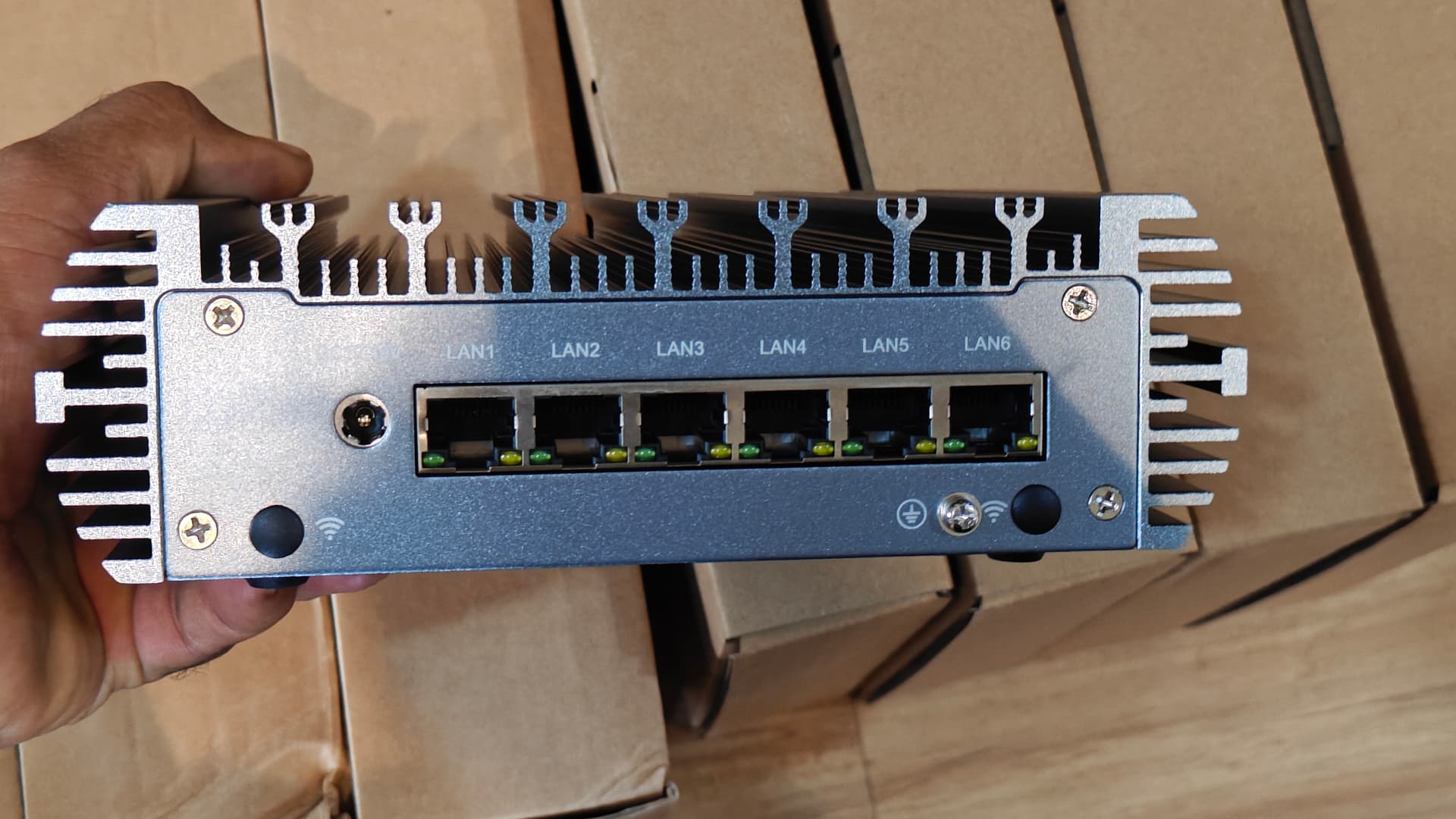

Intel N100 Mini PC : 6 LAN - DDR-5 version
- Possessor: Integrated Intel®Alder Lake-N N100 Processor
- Graphics: Integrated Intel®UHD Graphics
- Display : 1 x HDMI
- Memory : 1 x SODIMM, DDR5, 4800 MHZ
- Storage : 1 x SATA 3.0, 1 x M.2 2280 SATA
- Expansion : E-Key WIFI/BT and B-Key 4G/5G modules / external antenna, TPM2.0
- Ethernet : 6 x intel i226 2.5G LAN ports
- USB : 3 x USB 3.0 ports,1 x USB2.0
- Serial : 1 x RS232 RJ45
- Power supply : DC 12-19V (Included)
- Aluminum body
- 2 x antenna ports
- Color : Gray

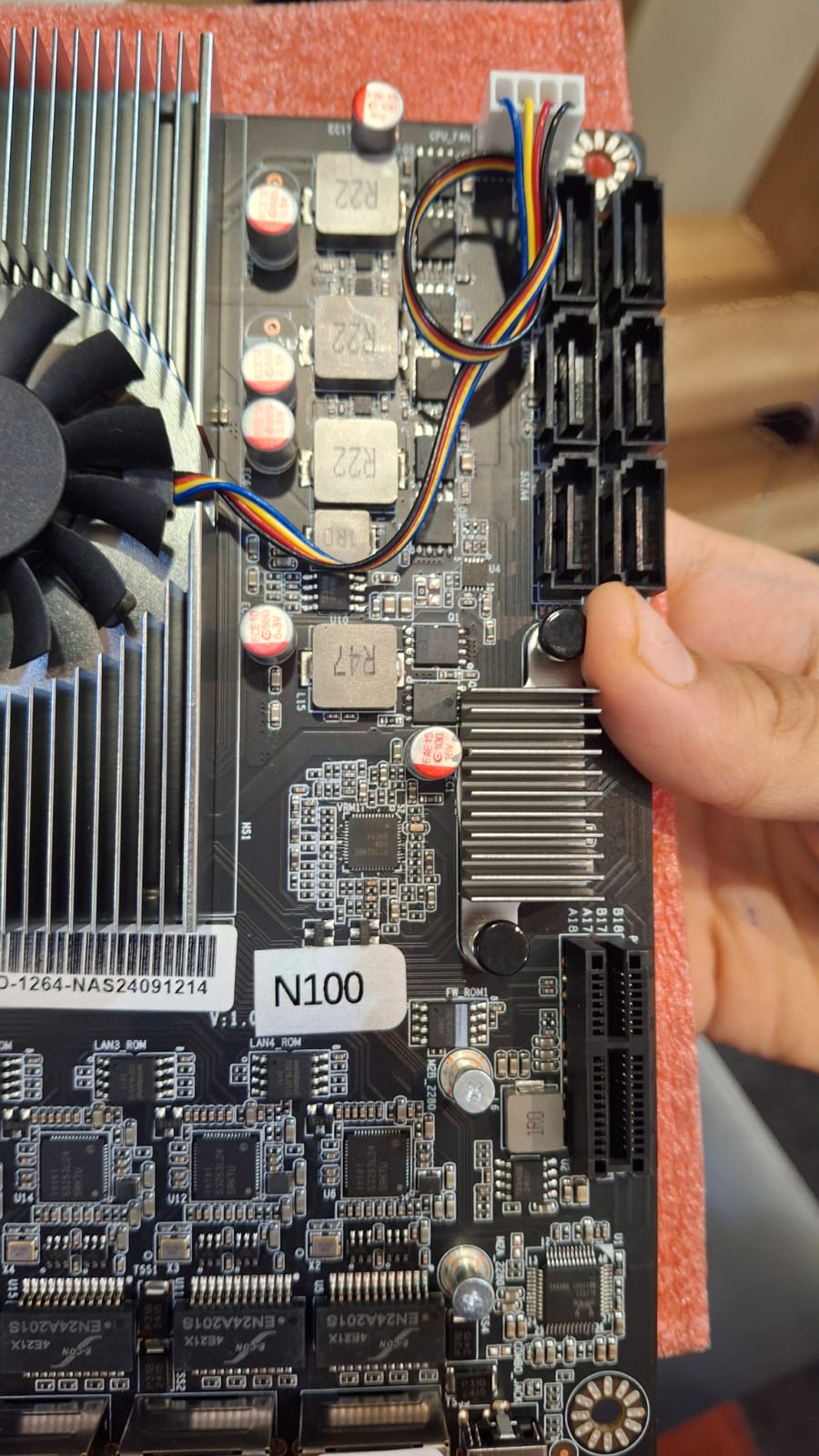

Intel N100/N150 ITX motherboards (Same specs except Processor & color)
-
Possessor: Integrated Intel®Alder Lake-N N100/N150 Processors
-
Graphics: Integrated Intel®UHD Graphics
-
Display : 1 x HDMI, 1 x DP
-
Memory : 1 x SODIMM, DDR5, 4800 MHZ
-
Storage : 6 x SATA 3.0 6Gbps, 1 x M.2 Key-M 2280, 1 x NVMe/NGFF 2280 (supports NVME & SATA)
-
Expansion : 1 x PCIe x1 slot
-
Backplane IO :
- 4 x Intel 2.5G ports
- 2 x USB 2.0 2 x USB 3.0
- 1 x Audio
- 1 x HDMI, 1 x DP
-
Onboard IO
- 1 x 24 PIN, 1 x 4 PIN - ATX PSU input
- 1 x USB2.0 pin (can be connected to 2 external USB2.0 ports)
- 1 x COM header 9pin
- 1 x CPU fan power header
- 6 x SATA 3.0
- Front panel header
- Front panel USB header
-
Size ITX
-
Color : Black (N100), Green (N150)
Why this Mini PCs / Mobos
- Low power consumption / Suitable for running 24x7 / Proxmox / Opensense
- 4+ Intel I226v 2.5G ports, Build your own router / Firewall / VLANs
- Intel LAN ports, Not the Realtek ports ( which are known to be unstable for Routers, firewall)
- Excellent linux / windows / Opensense supports - works out of the box
- Excellent performance in its category : Here’s Geekbench i just ran yesterday, the result is better thn 90%+ other N100 builds
N100 CPU Performance
-
Geeknech : https://browser.geekbench.com/v6/cpu/13822174 [ One of my hardware ]
-
Passmark: https://www.cpubenchmark.net/cpu.php?cpu=Intel+N100&id=5157
-
Low TDP, suitable for 24x7 running with minimum power consumption
-
Supports Intel QuickSync, Helps when running Jelly fin with hardware encoding
Note
- All items are new / unused
- Dead on arrival - Will replace it with new item
- Shipping : Extra, can ship through your preferred courier if [ if its possible for me ]
- Intel officially supports 16G memory for N100/N150
Video showcase of all items : https://www.youtube.com/watch?v=iP0NWCATKTk
