Hey guys... Today we have with us the new king of Socket 1150 motherboards!. This is the Asus Maximus VI Extreme Motherboard and it features stuff never seen or given with a motherboard till now !!
So lets get on with the pictures and the Unboxing
We Get the Standard ROG packaging..
Asus lists out all the features and specs on the reverse side of the box.
And there it is.. The beast sleeps !!

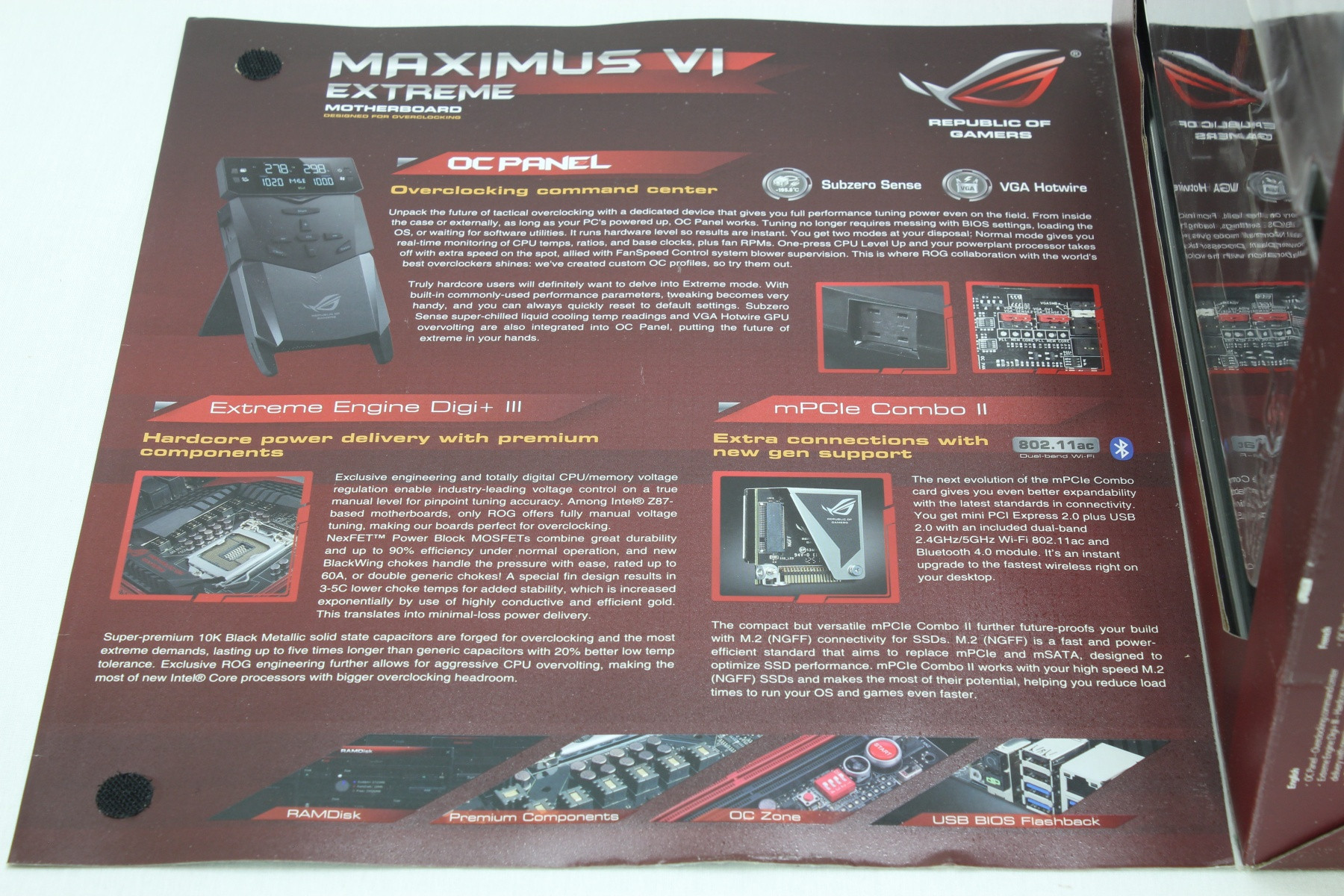

Asus lists out some of its most Innovative technology and features that come standard with this board .
The list of accessories is simply enormous with this motherboard.. truly expansive set of additional bits. They even give you a magnetic ROG badge which you can see above the Wi-Fi antenna.
The 5.25 inch Bay adapter for the OC-Panel. A very nice touch this is !

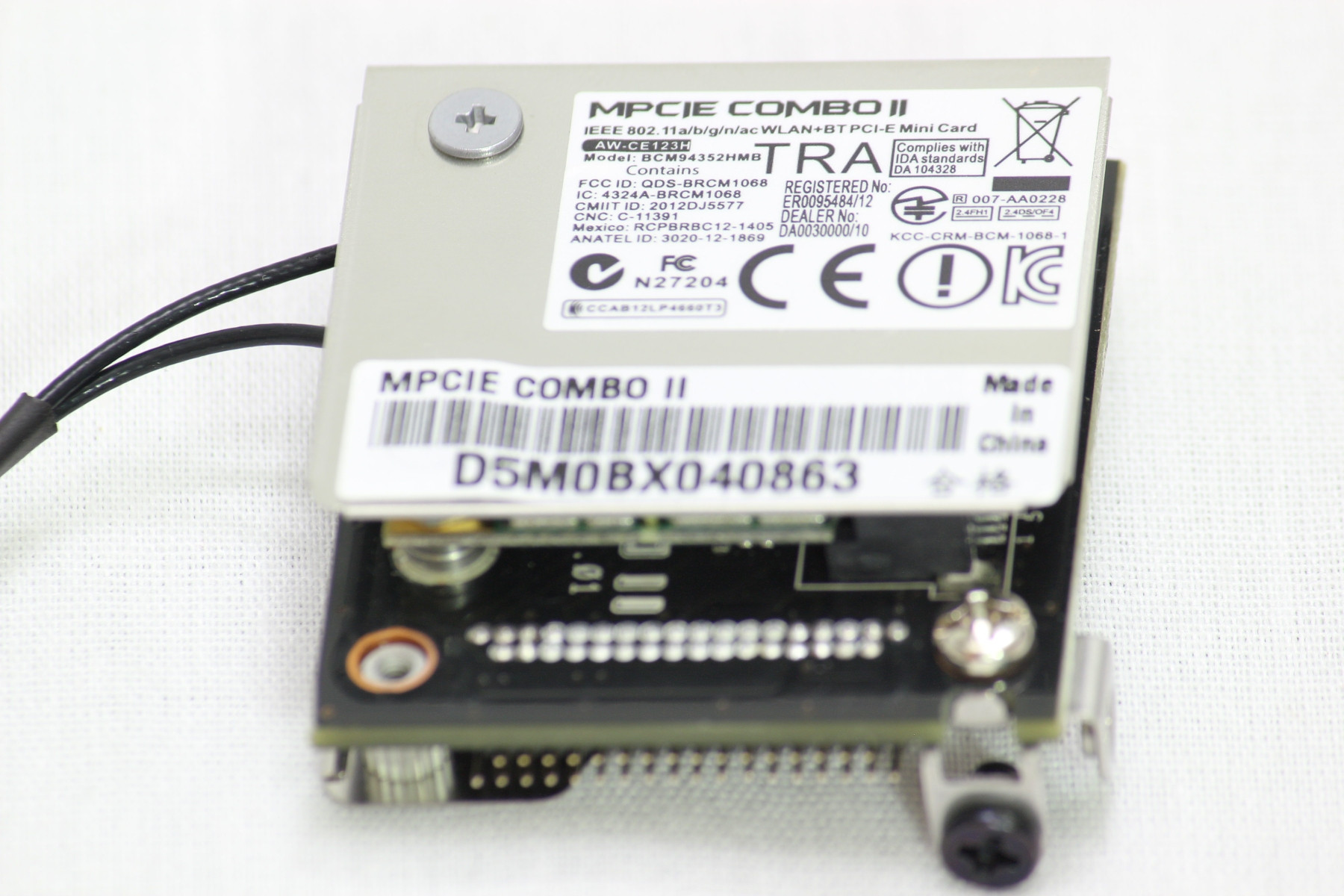

This is the Wifi+ Bluetooth as well as M.2 NGFF SSD Mini Pci-e Combo Card. The Wireless adapter sits on the reverse side and also supports wireless the new .AC Standard for 1 Gigabit Wifi. Simply Awesome !!!
Here we can see the Wifi + Bluetooth Adapter and also note the .ac support !

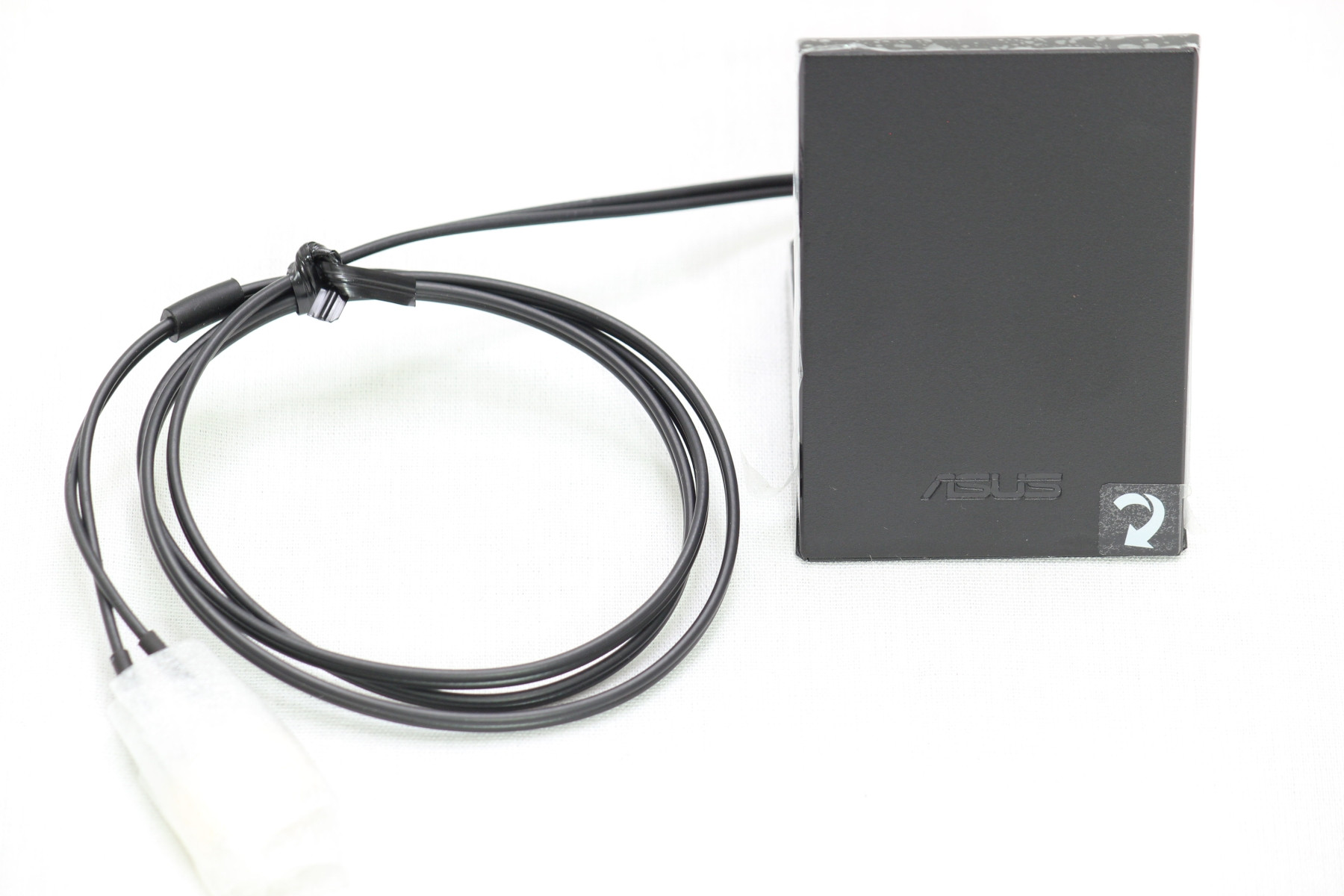

Asus also gives us a Dual Band adjustable Antenna !
And there it is.. the Beast and his sidekick.. the OC-Panel
The OC-Panel is packed very well and feels extremely well built. Even the buttons on the OC-Panel have a very nice premium feel to them !
Here we can see the cable required to connect the OC-Panel to the Motherboard. One end plugs into the OC-Panel while the other smaller end plugs into the a special port on the motherboard .
The Oc-Panel in all its glory.. this thing is huge !!!!

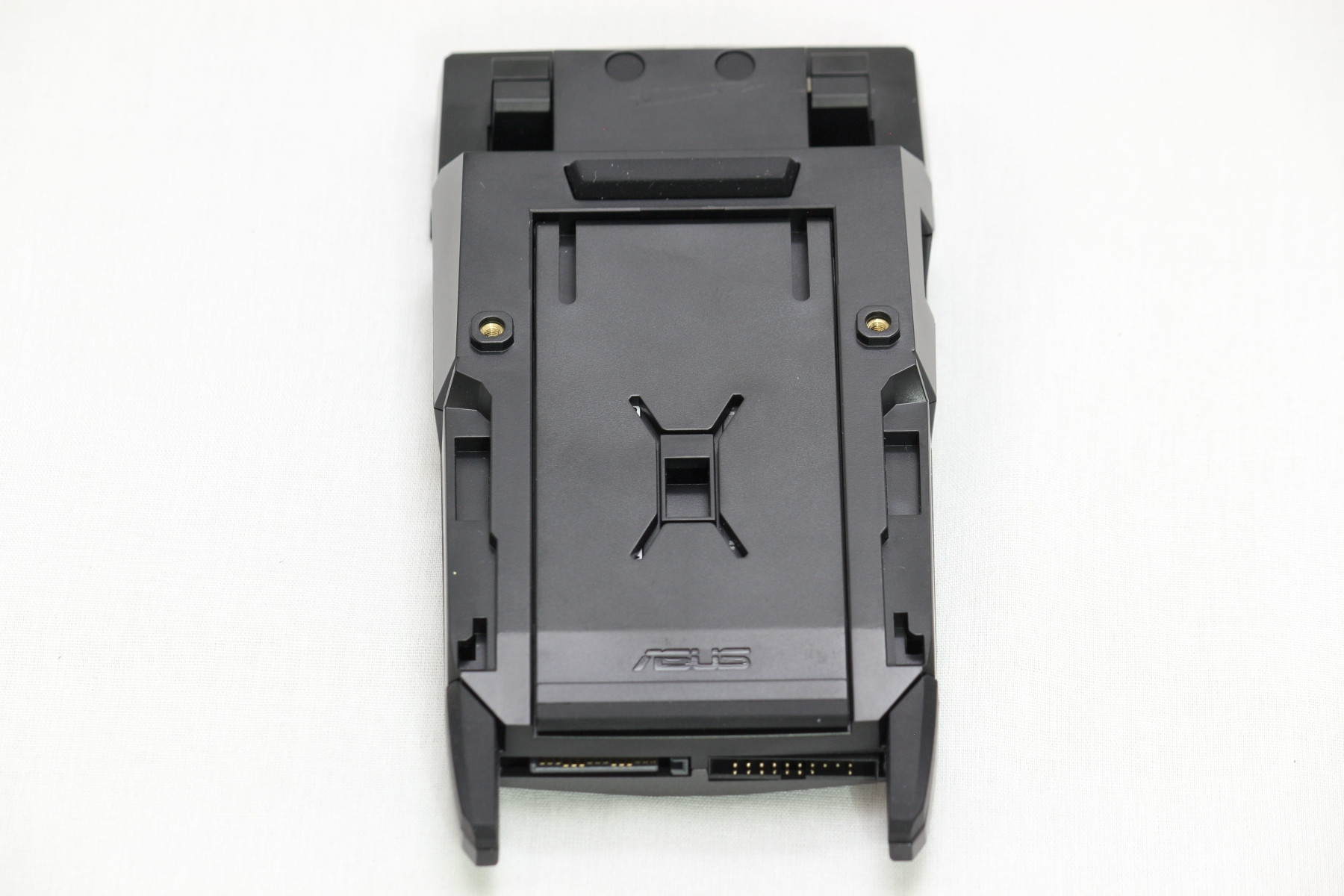

Here we can see the screw mounting holes for attaching the OC-Panel to the 5.25 inch Bay adapter so that we can set it up for everyday use to monitor and control fan's/overclocks/voltages etc.
This shows us the extendible flip out stand on the back of the OC-Panel. This is for use on a desk while doing extreme overclocking !
And here is the Oc-Panel all propped up on the stand !
Here we can see the 2x inputs for K-type Thermo-couples to monitor sub zero temps !

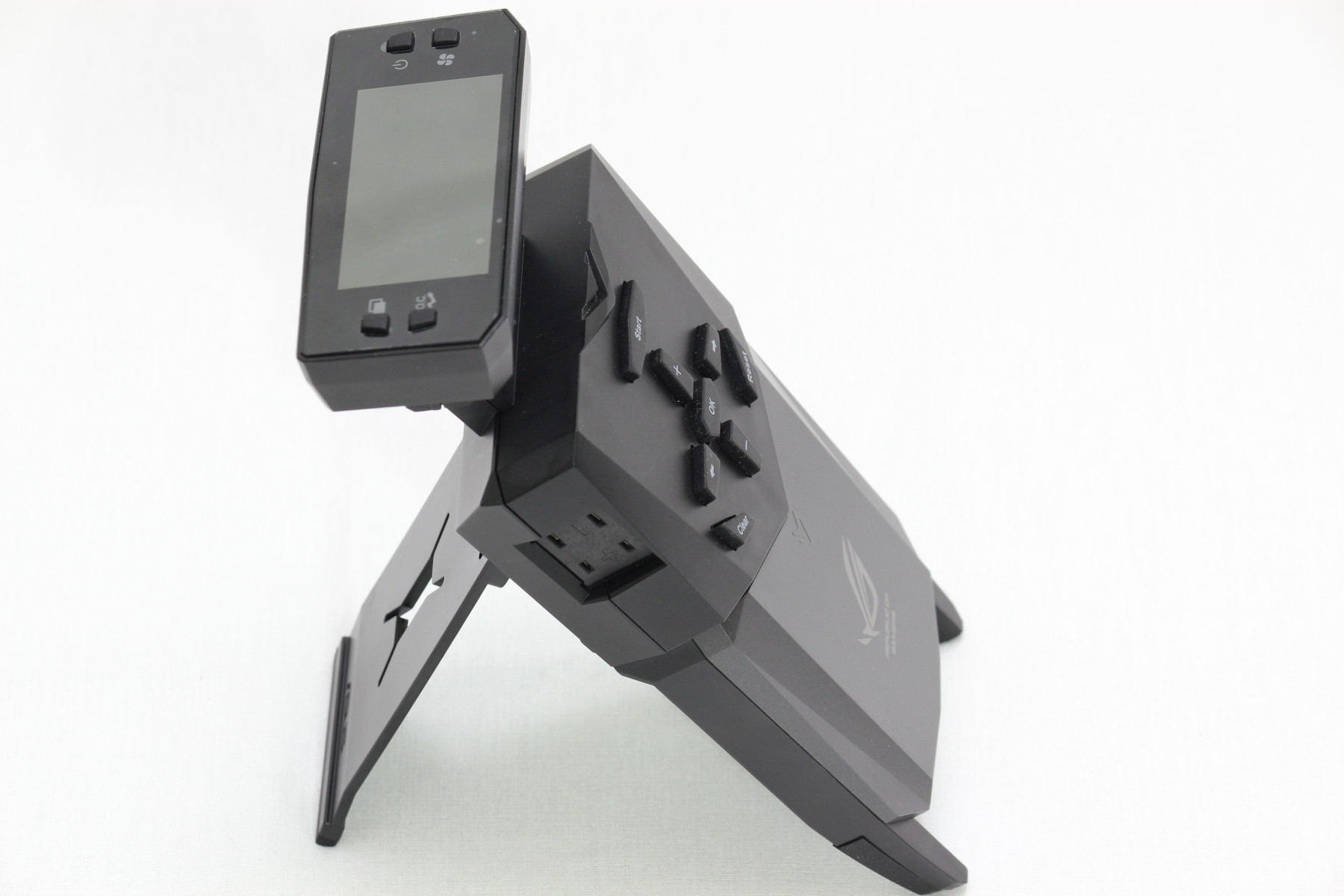

Ohhhh.. Flippy screen... This is so that you can flip the screen and attach it to the 5.25 inch drive bay adapter.
Undo the top cover and look whats inside.. This is how we can tell this thing means Business !!!! We get Slow mode , Pause Mode , Hdd activity LED , 4x Fan inputs , VGA Hotwire controls , and a whole ton of other extreme overclocking stiff !!! Hats off .. this is true innovation right here people

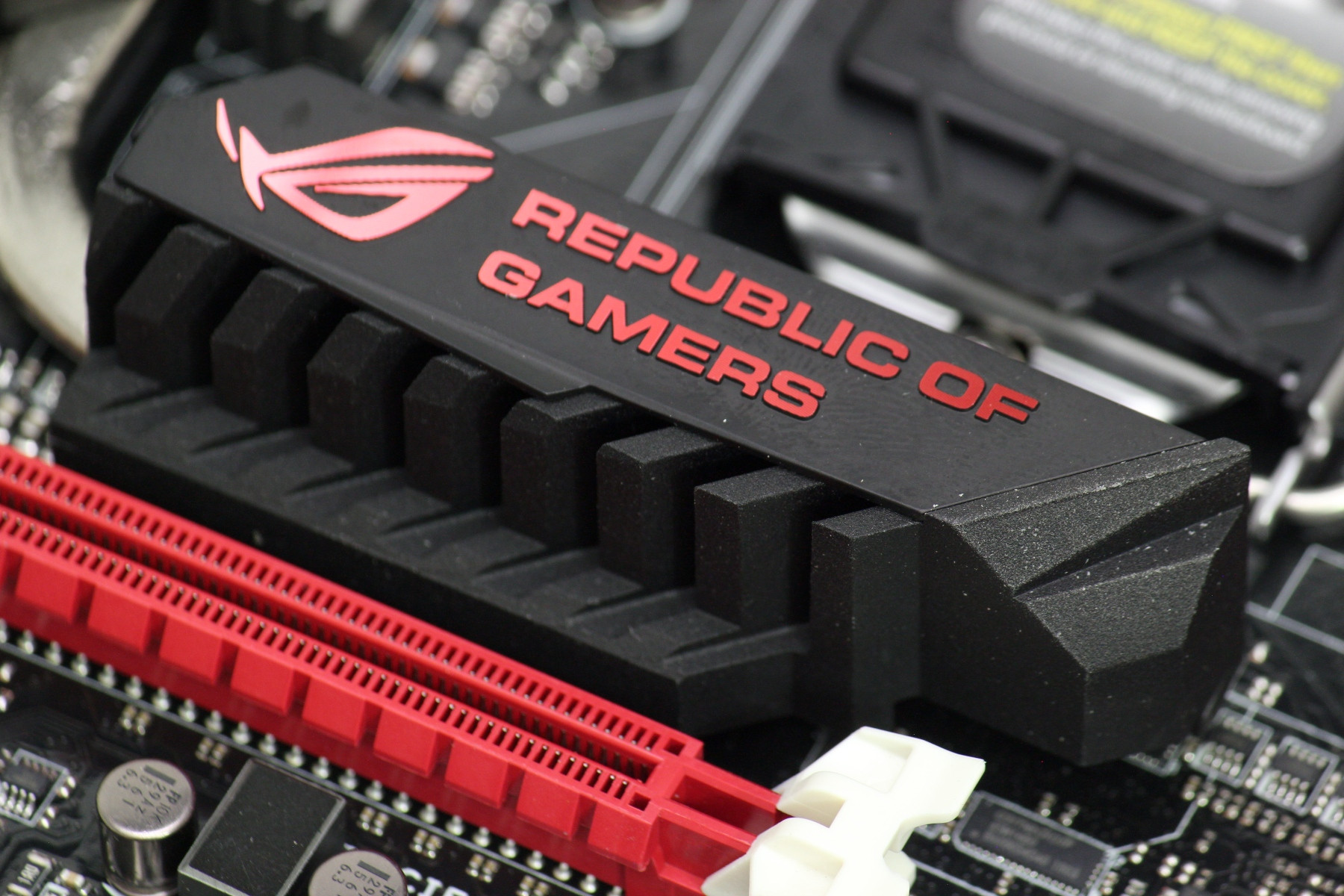

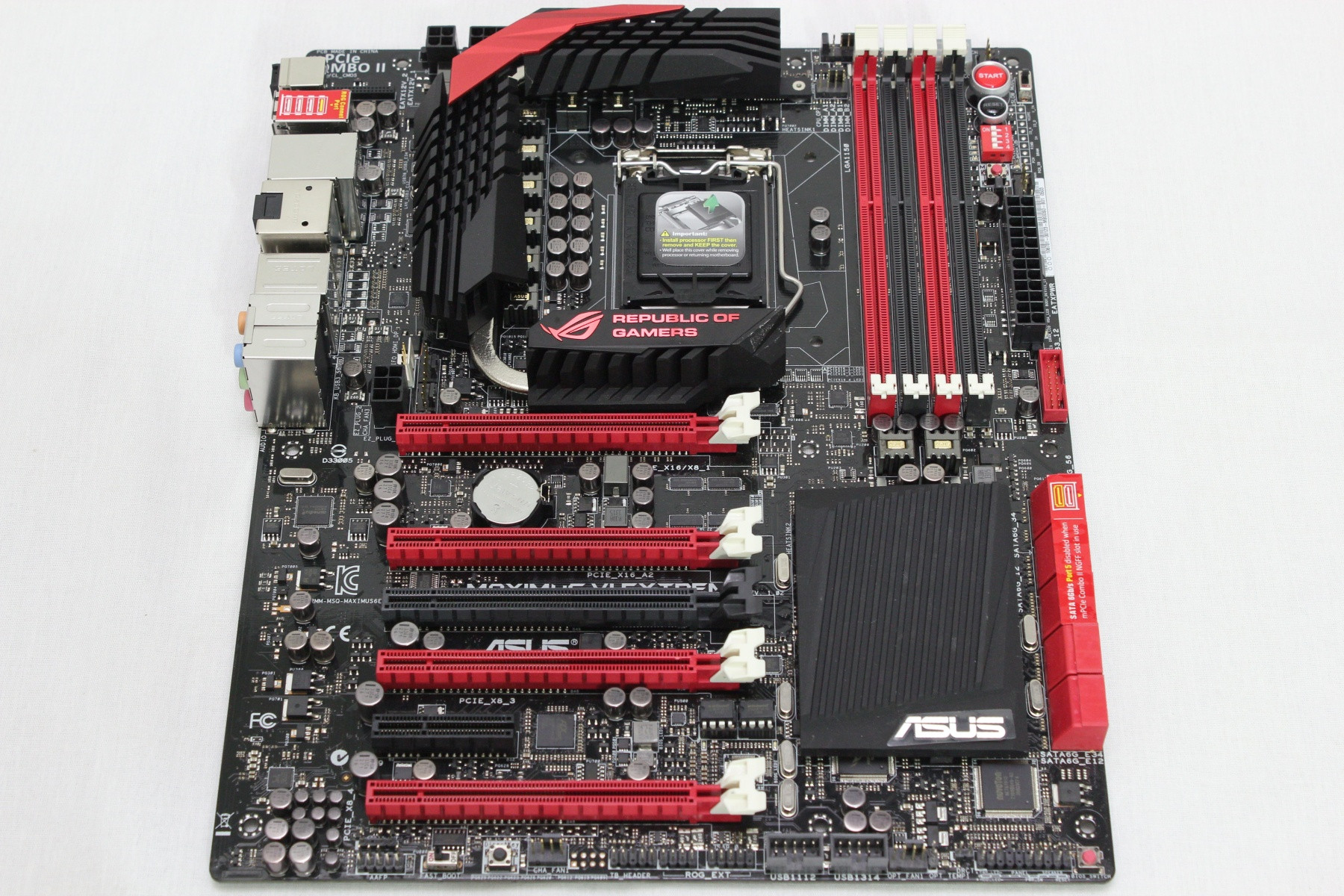

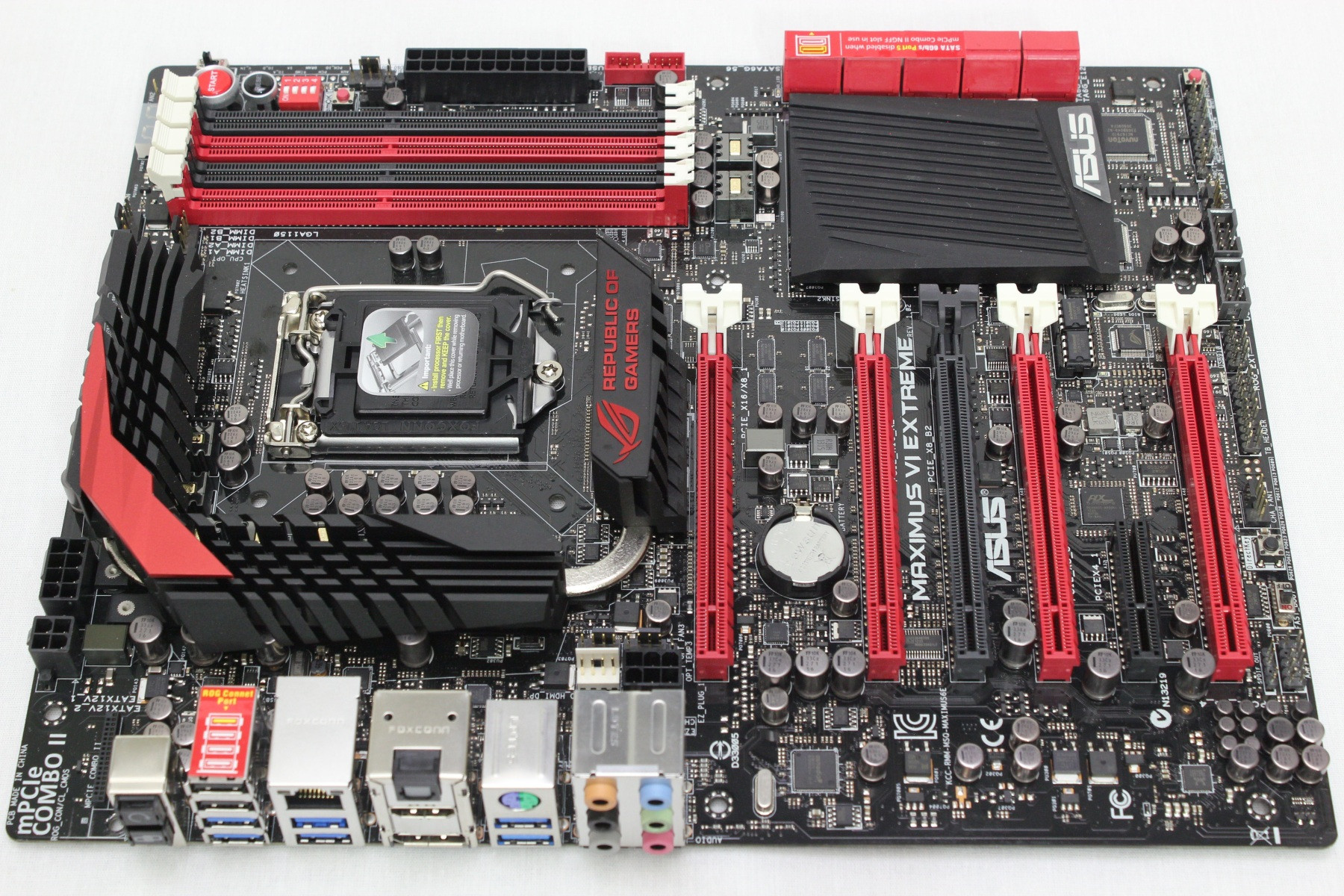

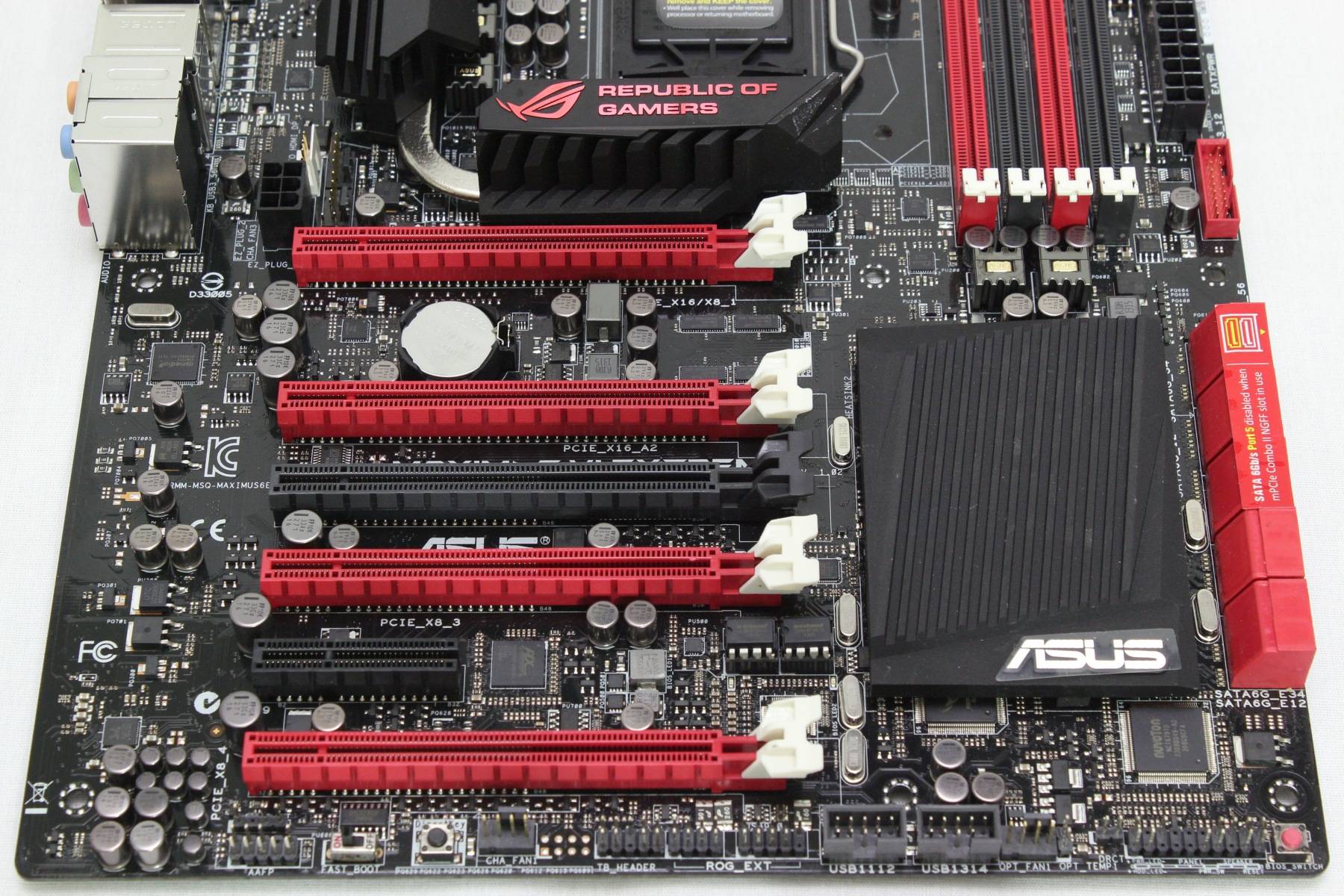

Now for the pictures of the board.... pretty self explanatory !
And i will leave you guys with the complete list of specifications for this awesome motherboard !
Cheers and kind regards always !!
Thanks for looking
So lets get on with the pictures and the Unboxing
We Get the Standard ROG packaging..
Asus lists out all the features and specs on the reverse side of the box.
And there it is.. The beast sleeps !!
Asus lists out some of its most Innovative technology and features that come standard with this board .
The list of accessories is simply enormous with this motherboard.. truly expansive set of additional bits. They even give you a magnetic ROG badge which you can see above the Wi-Fi antenna.
The 5.25 inch Bay adapter for the OC-Panel. A very nice touch this is !
This is the Wifi+ Bluetooth as well as M.2 NGFF SSD Mini Pci-e Combo Card. The Wireless adapter sits on the reverse side and also supports wireless the new .AC Standard for 1 Gigabit Wifi. Simply Awesome !!!
Here we can see the Wifi + Bluetooth Adapter and also note the .ac support !
Asus also gives us a Dual Band adjustable Antenna !
And there it is.. the Beast and his sidekick.. the OC-Panel
The OC-Panel is packed very well and feels extremely well built. Even the buttons on the OC-Panel have a very nice premium feel to them !
Here we can see the cable required to connect the OC-Panel to the Motherboard. One end plugs into the OC-Panel while the other smaller end plugs into the a special port on the motherboard .
The Oc-Panel in all its glory.. this thing is huge !!!!
Here we can see the screw mounting holes for attaching the OC-Panel to the 5.25 inch Bay adapter so that we can set it up for everyday use to monitor and control fan's/overclocks/voltages etc.
This shows us the extendible flip out stand on the back of the OC-Panel. This is for use on a desk while doing extreme overclocking !
And here is the Oc-Panel all propped up on the stand !
Here we can see the 2x inputs for K-type Thermo-couples to monitor sub zero temps !
Ohhhh.. Flippy screen
... This is so that you can flip the screen and attach it to the 5.25 inch drive bay adapter.Undo the top cover and look whats inside.. This is how we can tell this thing means Business !!!! We get Slow mode , Pause Mode , Hdd activity LED , 4x Fan inputs , VGA Hotwire controls , and a whole ton of other extreme overclocking stiff !!! Hats off .. this is true innovation right here people
Now for the pictures of the board.... pretty self explanatory !
And i will leave you guys with the complete list of specifications for this awesome motherboard !
Cheers and kind regards always !!
Thanks for looking
- CPUIntel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - ChipsetIntel® Z87
- Memory4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - GraphicIntegrated Graphics Processor
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ - Multi-GPU SupportSupports NVIDIA® 4-Way SLI™ Technology
Supports AMD CrossFireXâ„¢ Technology - Expansion Slots5 x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x16/x8 or x8/x16/x8/x8) *1
1 x PCIe 2.0 x4
1 x mini-PCIe 2.0 x1 *2 - StorageIntel® Z87 chipset : *3
6 x SATA 6Gb/s port(s), red
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *4
Intel® Z87 chipset :
1 x M.2 (NGFF) Socket 2 on mPCIe Combo II expansion card(s), black
Support M.2 (NGFF) Type 2242 SSD card (22mm x 42mm), Support PCI express 2.0 x1 and SATA 6Gb/s standards
ASMedia® ASM1061 controller : *5
4 x SATA 6Gb/s port(s), red - LANIntel® I217V, 1 x Gigabit LAN Controller(s)
- Wireless Data NetworkWi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz - BluetoothBluetooth V4.0
Bluetooth V3.0+HS - AudioRealtek® ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Blu-ray audio layer Content Protection
- Optical S/PDIF out port(s) at back panel - USB PortsIntel® Z87 chipset : *6
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
Intel® Z87 chipset : *7
8 x USB 2.0 port(s) (2 at back panel, black, 6 at mid-board)
ASMedia® USB 3.0 controller :
4 x USB 3.0 port(s) (4 at back panel, blue) - OC Panel2.6 " LCM display
EXTREME/NORMAL mode switch
EXTREME Mode for subzero OC benching:
- VGA Hotwire
- Subzero Sense
- Slow Mode
- Pause Switch
- VGA SMB header
- ProbeIt
- 4 x 4-pin extra fan connectors
NORMAL Mode for in-chassis usage:*8
- CPU Level Up OC button
- FanSpeed control button
- LCM backlight on/off button
I/O Ports:
- POWER：1 x SATA power connector
- ROG_EXT port：1 x 18-1 pin data connection port - ROG Exclusive FeaturesmPCIe Combo™ II (mPCIe/M.2 combo card)
ROG Connect :
- RC TweakIt
- RC Diagram
- RC Remote
- RC Poster
Extreme Engine Digi+ III :
- 8 + 2 phase power design
- NexFETâ„¢ Power Block MOSFET
- 60A BlackWing Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
- EZ Plug
ProbeIt
UEFI BIOS features :
- ROG BIOS Print
- GPU.DIMM Post
- Tweakers' Paradise
- ROG SSD Secure Erase
ROG RAMDisk
Extreme Tweaker - Special FeaturesASUS Dual Intelligent Processors 4 with 4-Way Optimization :
- The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration
CPU Level Up
ASUS Wi-Fi GO!
ASUS Exclusive Features :
- USB BIOS Flashback
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- USB 3.0 Boost
- Disk Unlocker
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall) - Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
2 x USB 2.0 (one port can be switched to ROG Connect)
1 x Optical S/PDIF out
6 x Audio jack(s)
1 x Clear CMOS button(s)
1 x ROG Connect On/ Off switch(es) - Internal I/O Ports1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
10 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
3 x Optional Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x 6-pin EZ_PLUG Power connector(s)
1 x 4-pin EZ_PLUG Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DirectKey Button(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Slow Mode switch(es)
10 x ProbeIt Measurement Points
3 x Thermal sensor connector(s)
1 x LN2 Mode header(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x BIOS Switch button(s)
1 x FastBoot switch(es)
1 x ROG extension (ROG_EXT) header(s)
1 x mPCIe Combo II connector(s) - AccessoriesUser's manual
I/O Shield
10 x SATA 6Gb/s cable(s)
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI bridge(s)
1 x CrossFire cable(s)
1 x Q-connector(s) (2 in 1)
1 x ROG Connect cable(s)
1 x 12 in 1 ROG Cable Label(s)
1 x mPCIe Combo II card(s) with dual-band WiFi 802.11 a/b/g/n/ac + Bluetooth v4.0/3.0+HS module
1 x ROG Magnet
OC Panel Kit:
- 1 x OC Panel(s)
- 1 x OC Panel 5.25-inch bay metal case
- 1 x OC Panel Cable(s) - BIOS64Mb UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI2.0a Multi-Language BIOS
- ManageabilityWfM2.0, DMI2.0, WOL by PME, PXE
- Support DiscDrivers
ROG RAMDisk
ROG CPU-Z
ROG Mem TweakIt
Kaspersky® Anti-Virus
DAEMON Tools Pro Standard
ASUS WebStorage
ASUS Utilities - Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) - Note*1: Native x8/x8 mode is available when only PCIE_X16/X8_1 and PCIE_X8_B2 slots are in used.
*2: The mini-PCIe slot is pre-installed with a Wi-Fi/Bluetooth module on mPCIe Combo II expansion card.
*3: SATA 6Gb/s port 5 will be disabled when M.2 slot on mPCIe Combo II is in use.
*4: The functions support depends on the CPU types.
*5: These SATA ports are for data hard drives only. ATAPI devices are not supported.
*6: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8.
*7: 2 x USB2.0 ports at mid-board shares with ROG extension (ROG_EXT) port.
*8: One 5.25" drive bay is required for NORMAL Mode installation.
