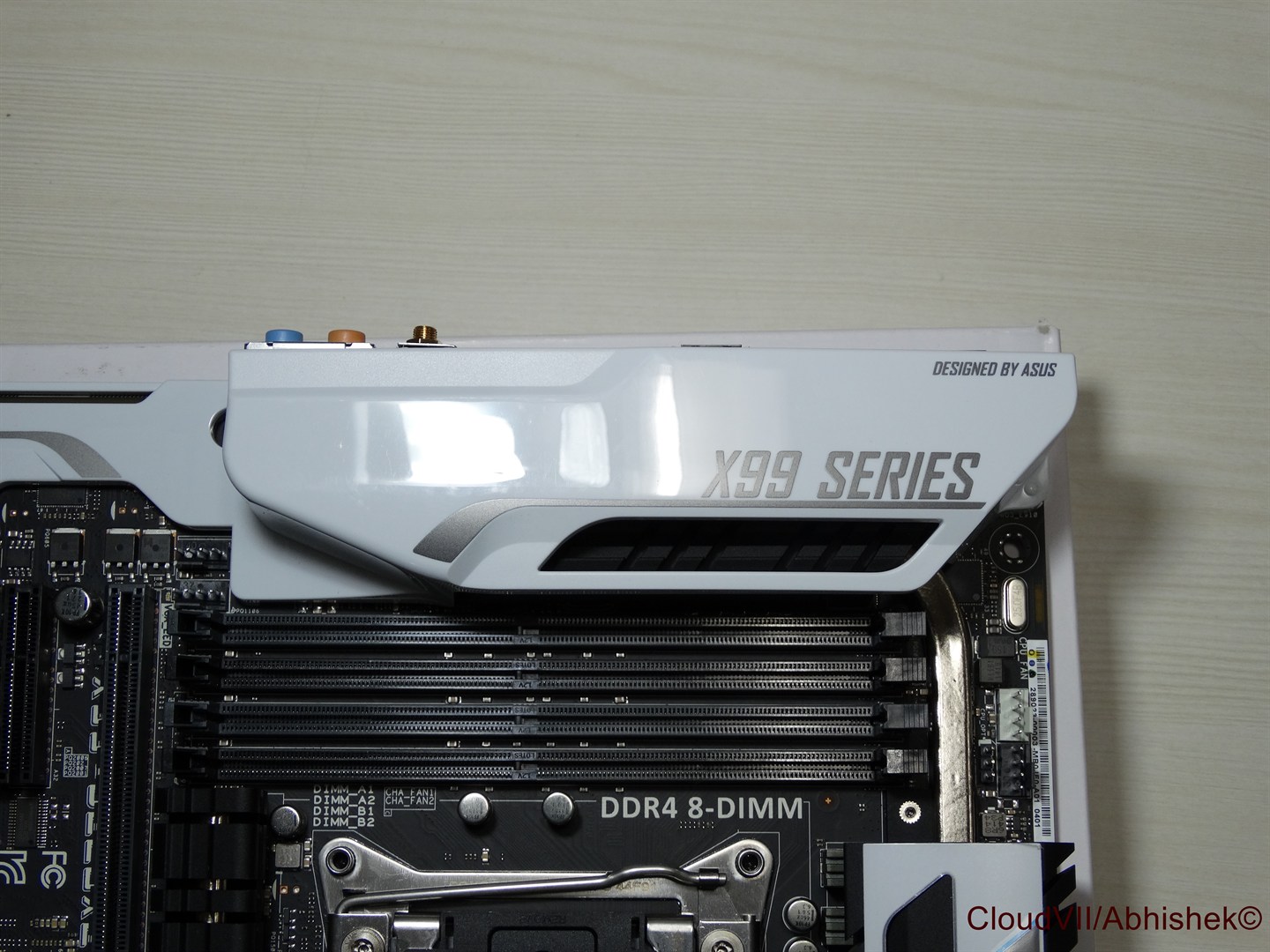

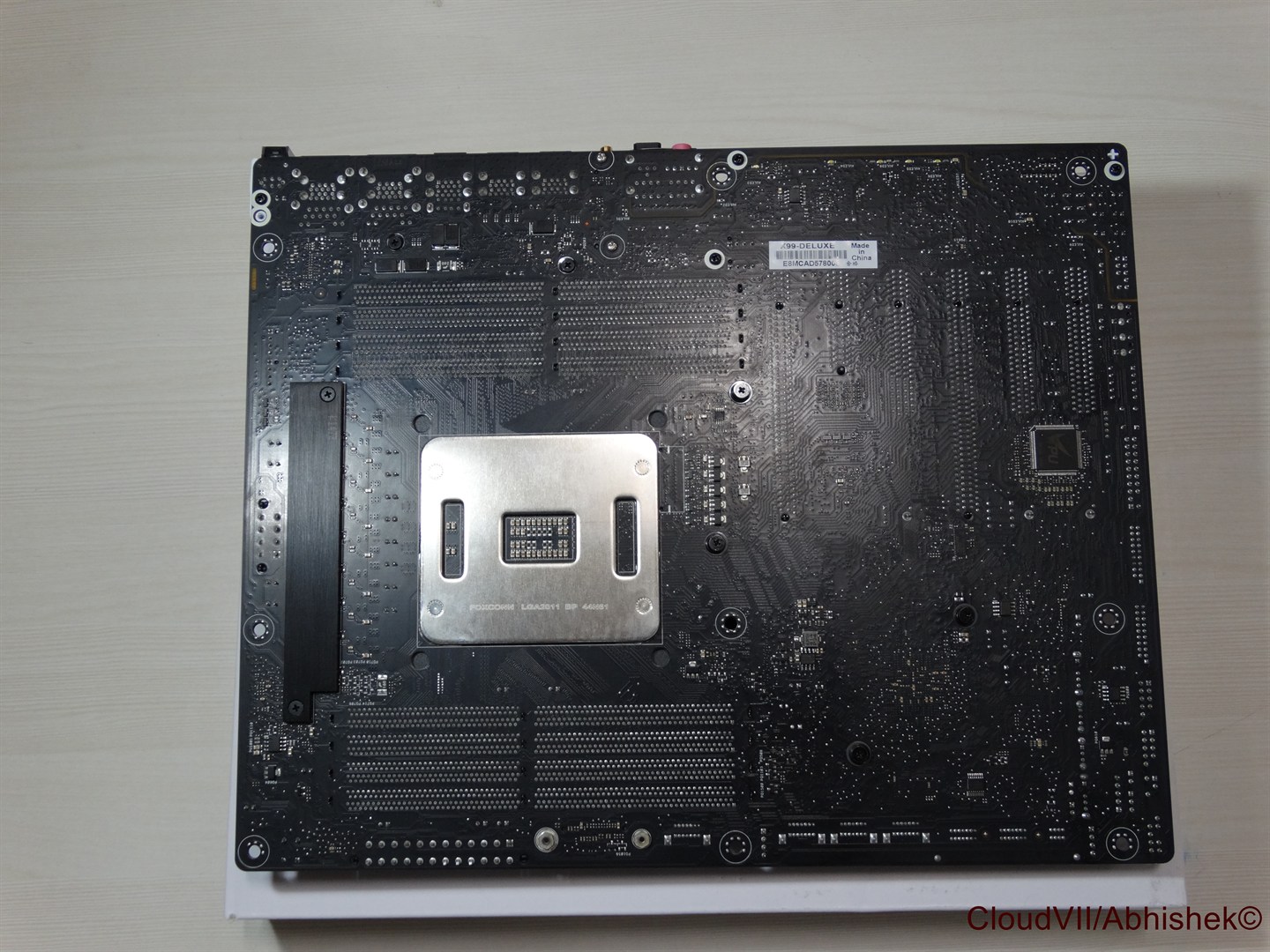

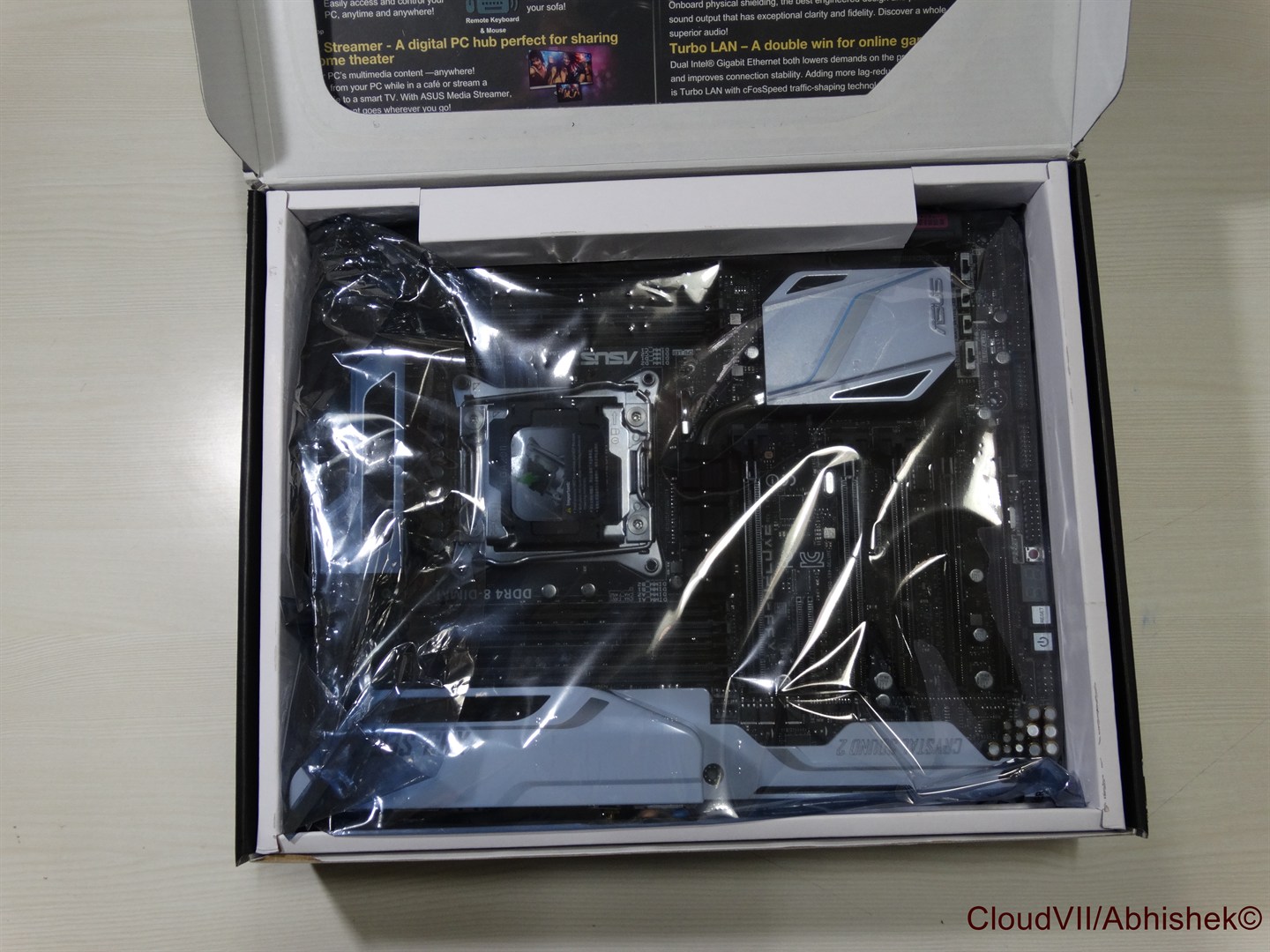

Here is my unboxing of Asus X99 Deluxe motherboard,
Here are the specs :-
I hope you enjoyed the picture,
Abhishek/CloudVII
Here are the specs :-
- CPU

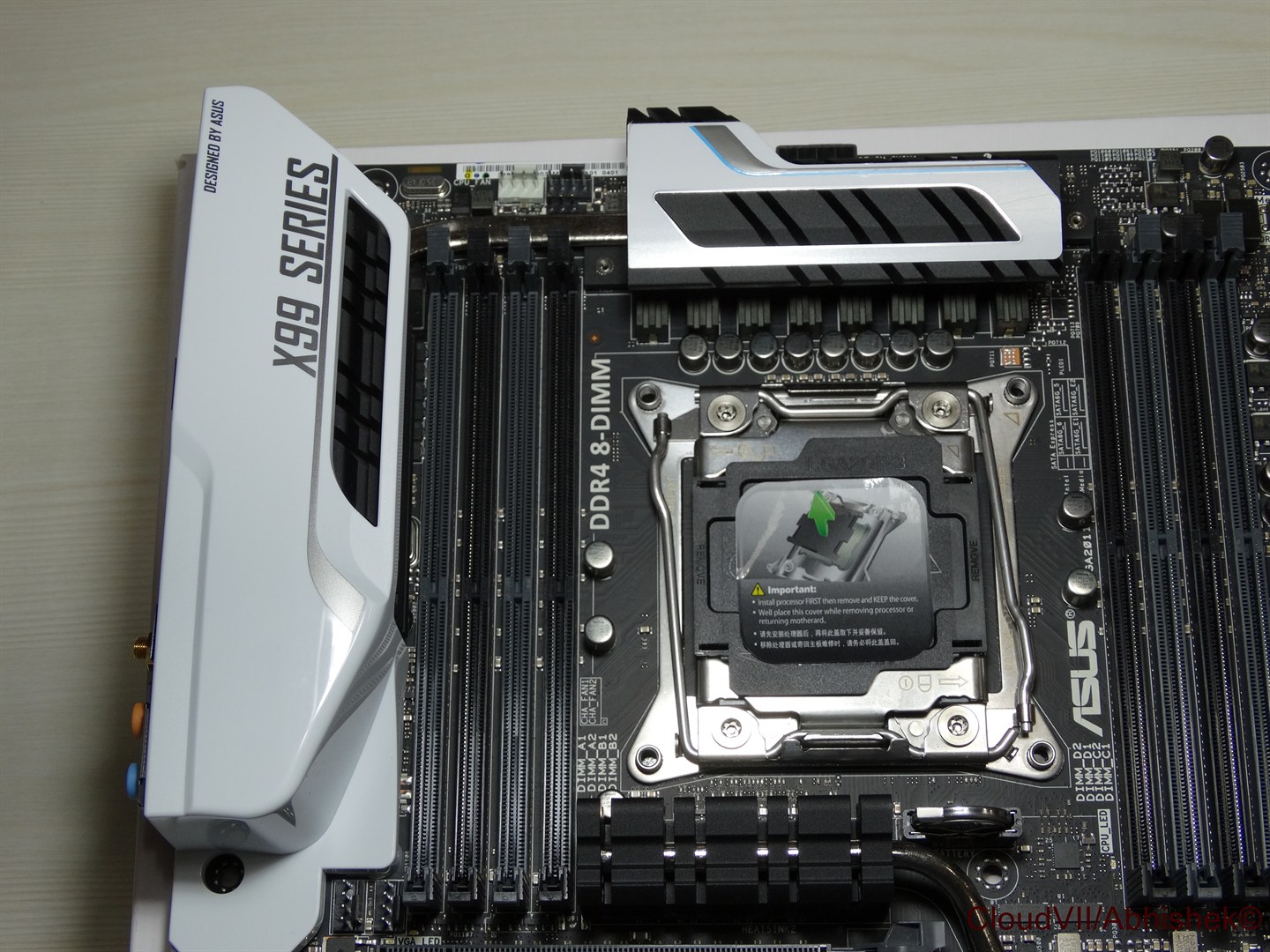

Intel® Socket 2011-v3 Core™ i7 Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. - Chipset
Intel® X99 - Memory
8 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Quad Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Multi-GPU Support
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology - Expansion Slots
40-Lane CPU-
5 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8, x8/x8/x16/x8, x8/x8/x8/x8/x8 mode) *1
1 x PCIe 2.0 x4 (max at x4 mode) *2
28-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8)
2 x PCIe 2.0 x16 (x1 mode)
1 x PCIe 2.0 x4 (max at x4 mode) *2 - Storage
New Intel® Core™ i7 Processors :
1 x M.2 Socket 3, , with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only)
Intel® X99 chipset :
1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports
8 x SATA 6Gb/s port(s), *3,
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Recovery Technology*4
ASMedia® SATA Express controller : *5
1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports - LAN
Intel® I218V, 1 x Gigabit LAN Controller(s)
Intel® I211-AT, 1 x Gigabit LAN
Dual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) appliance
Support Teaming Technology
ASUS Turbo LAN Utility - Wireless Data Network
Wi-Fi 802.11a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Support ASUS Wi-Fi Go! Utility
Up to 1300Mbps transfer speed - Bluetooth
Bluetooth V4.0 - Audio

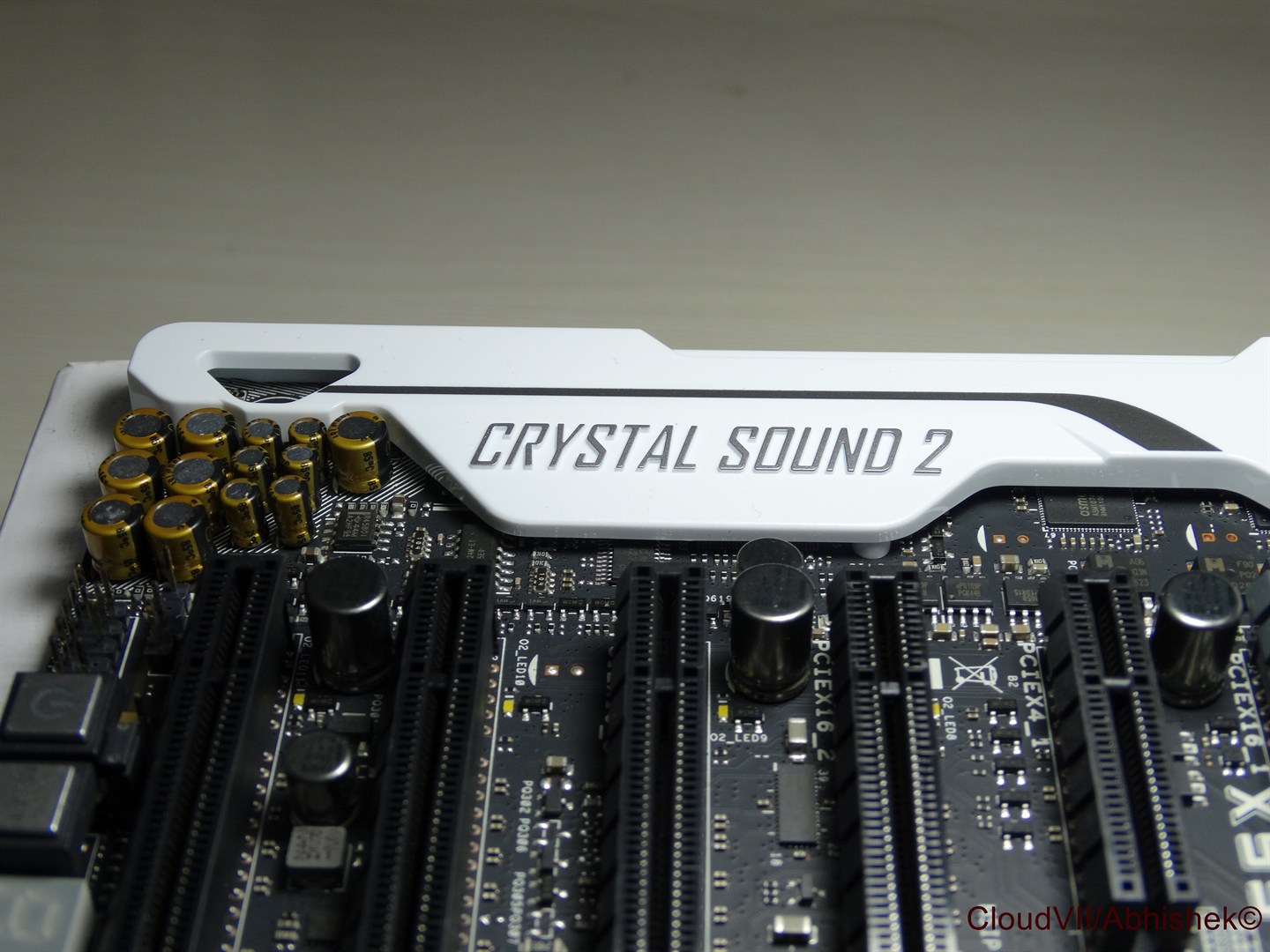

Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)
- High-fidelity audio OP AMP(s)
Audio Feature :
- DTS Ultra PC II
- DTS Connect
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- Top notch audio sensation delivers according to the audio configuration
- EMI protection cover to prevent electrical noise to affect the amplifier quality - USB Ports
Intel® X99 chipset :
4 x USB 3.0/2.0 port(s) (4 at mid-board)
Intel® X99 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
ASMedia® USB 3.0 controller :
10 x USB 3.0/2.0 port(s) (10 at back panel, blue) - Special Features

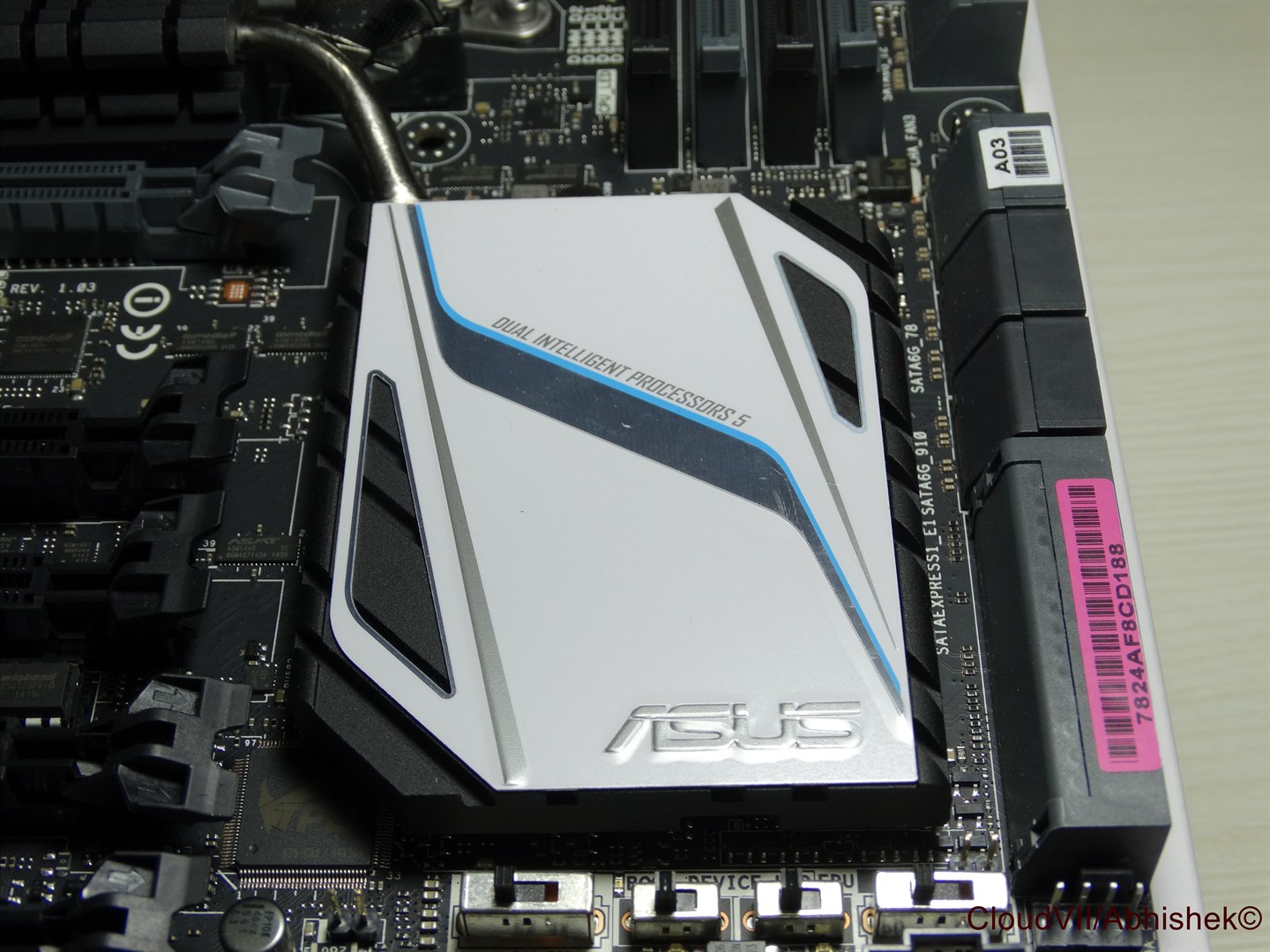

5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS 5X Protection :
- ASUS DIGI+ VRM - 8 Phase digital power design
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS TPU :
- Auto Tuning
- GPU Boost
- TPU switch
ASUS EPU :
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 8 Phase Power Design
- Industry leading Digital 4 Phase DRAM Power Design
- CPU Power Utility
- DRAM Power Utility
ASUS Wi-Fi GO!
- Wi-Fi GO! Function: Cloud GO!, Remote Desktop, Remote Keyboard & Mouse, File Transfer
- Wi-Fi GO! & NFC Remote app for portable smartphone/tablet, supporting iOS 7 & Android 4.0 systems
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- M.2 & SATA Express
- Anti-Surge
- Onboard Button : Power/Reset
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
- Crystal Sound 2
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Turbo App
Fan Xpert 3 - Operating System Support
Windows® 8.1 , 32bit/64bit
Windows® 8 , 32bit/64bit

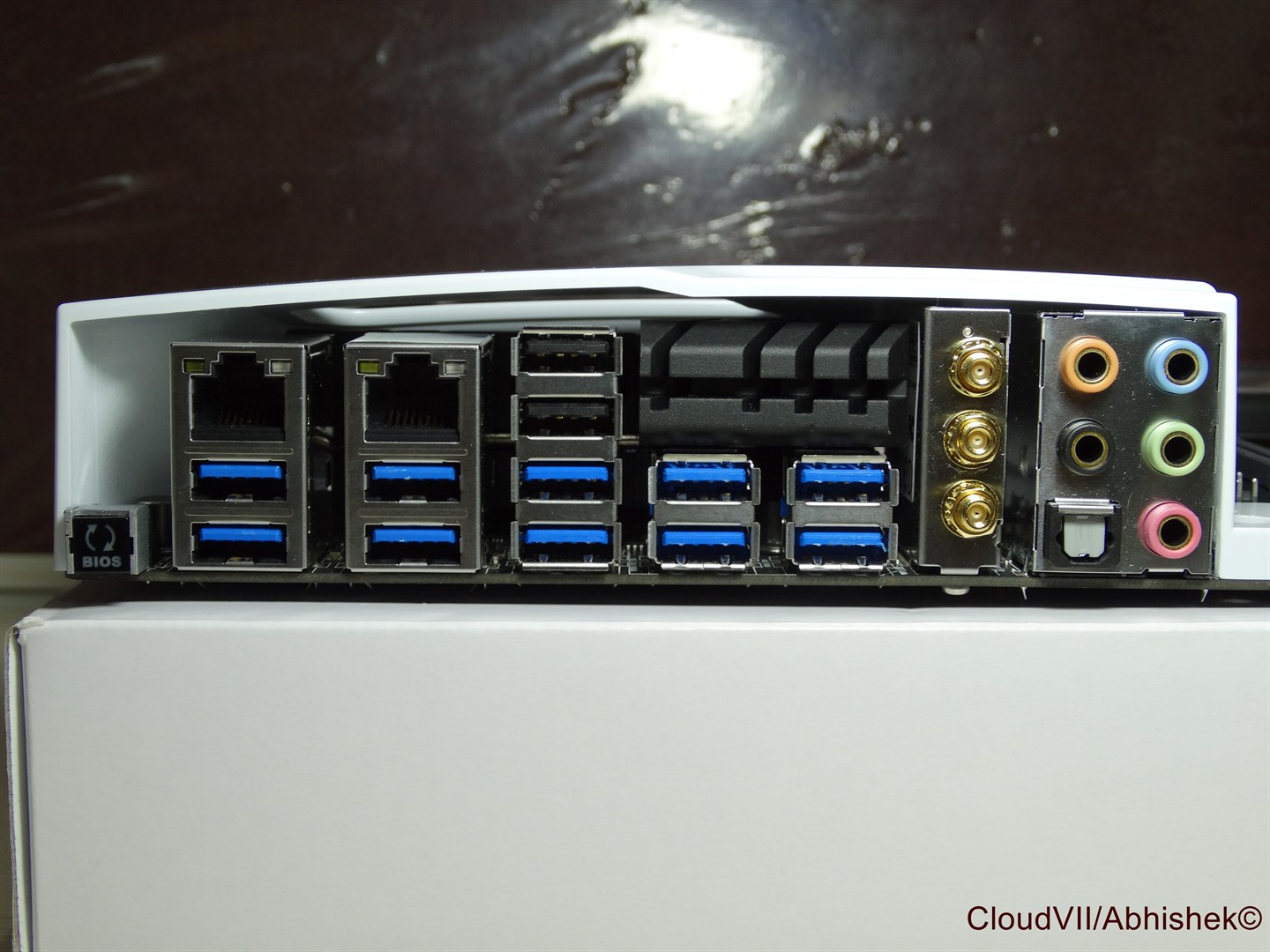

Windows® 7 , 32bit/64bit - Back I/O Ports
2 x LAN (RJ45) port(s)
10 x USB 3.0 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0 - Internal I/O Ports
1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x SATA Express connector: gray,

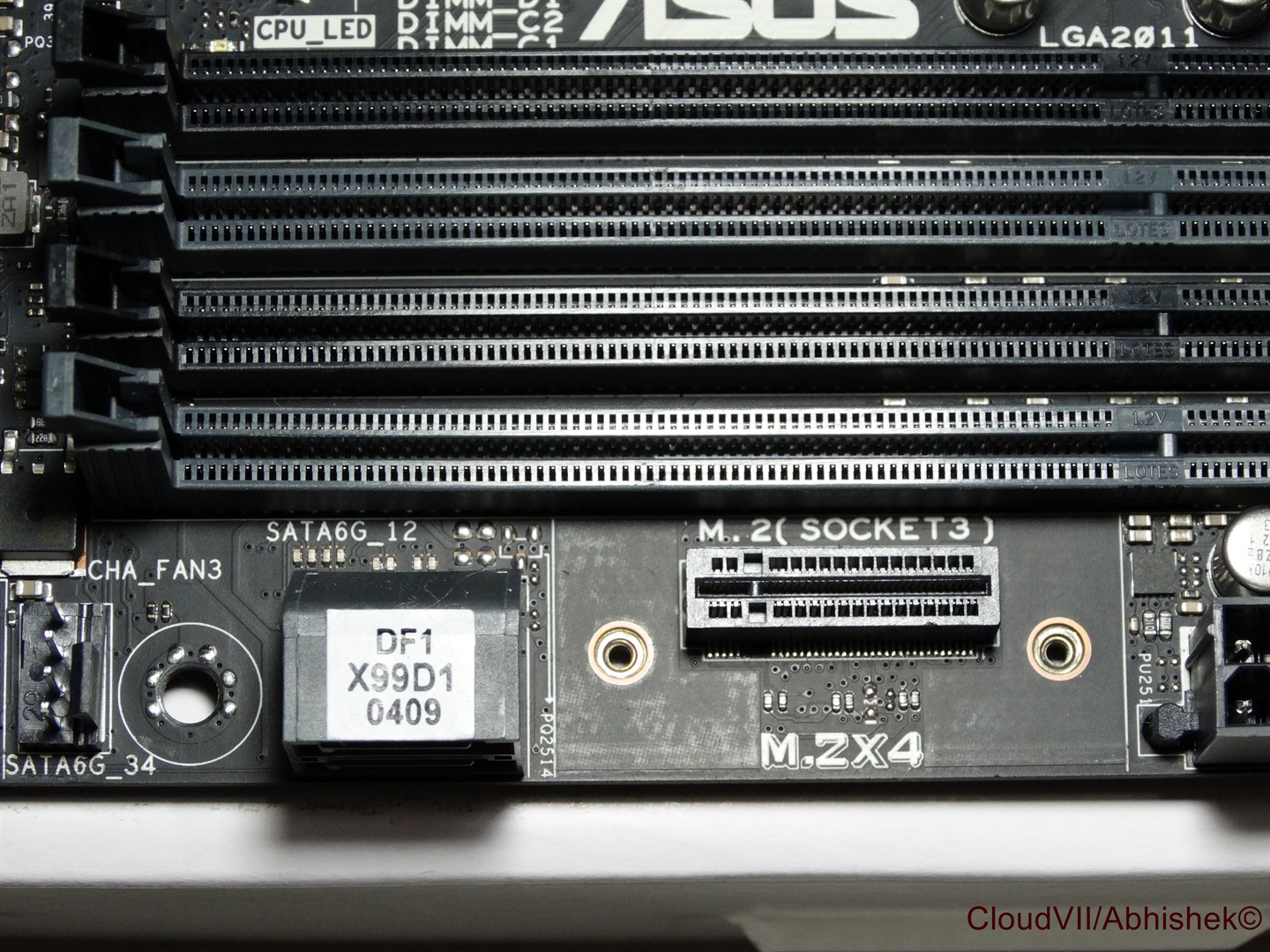

1 x M.2 Socket 3 with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only)
1 x TPM connector(s)

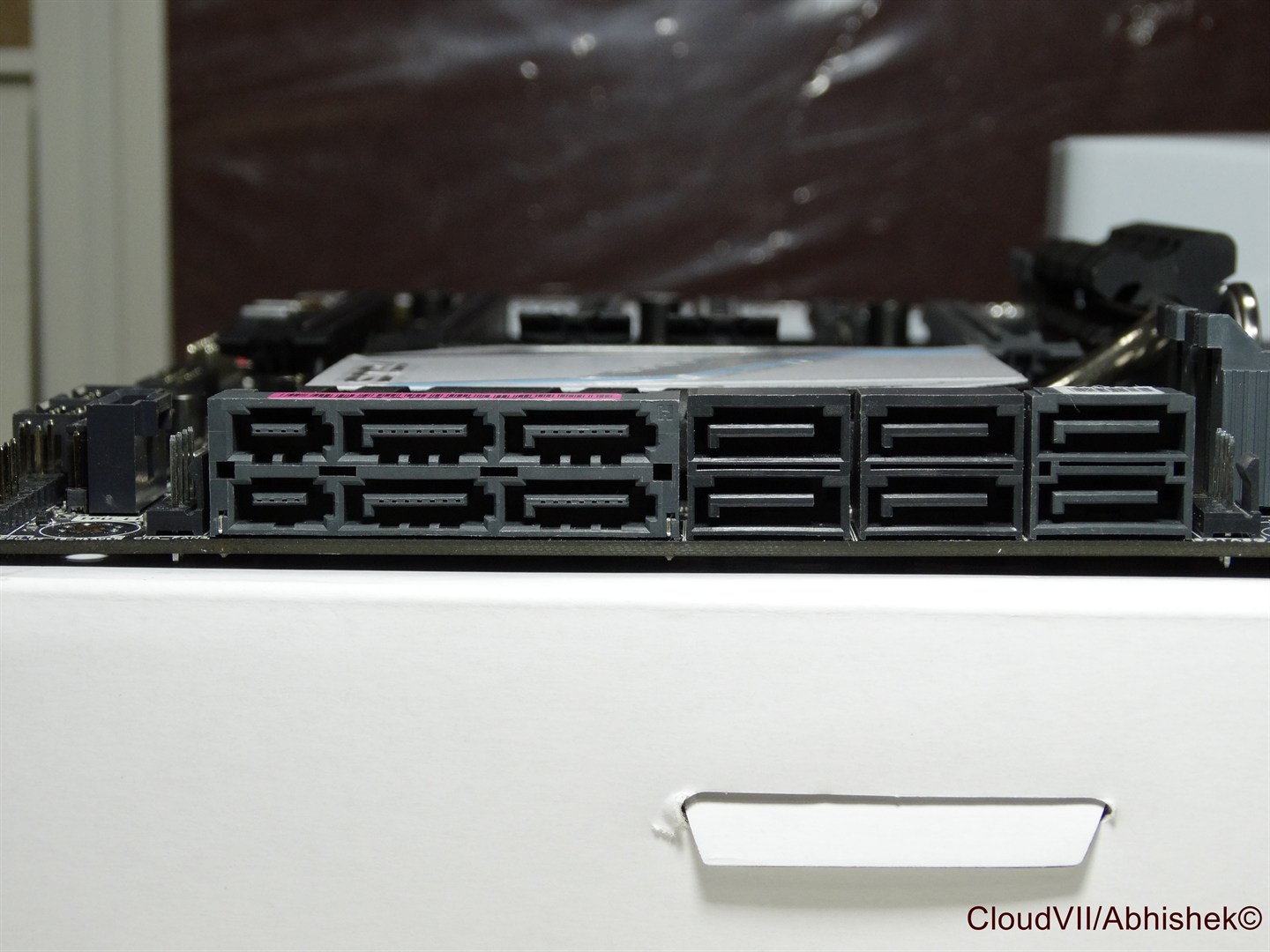

8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)

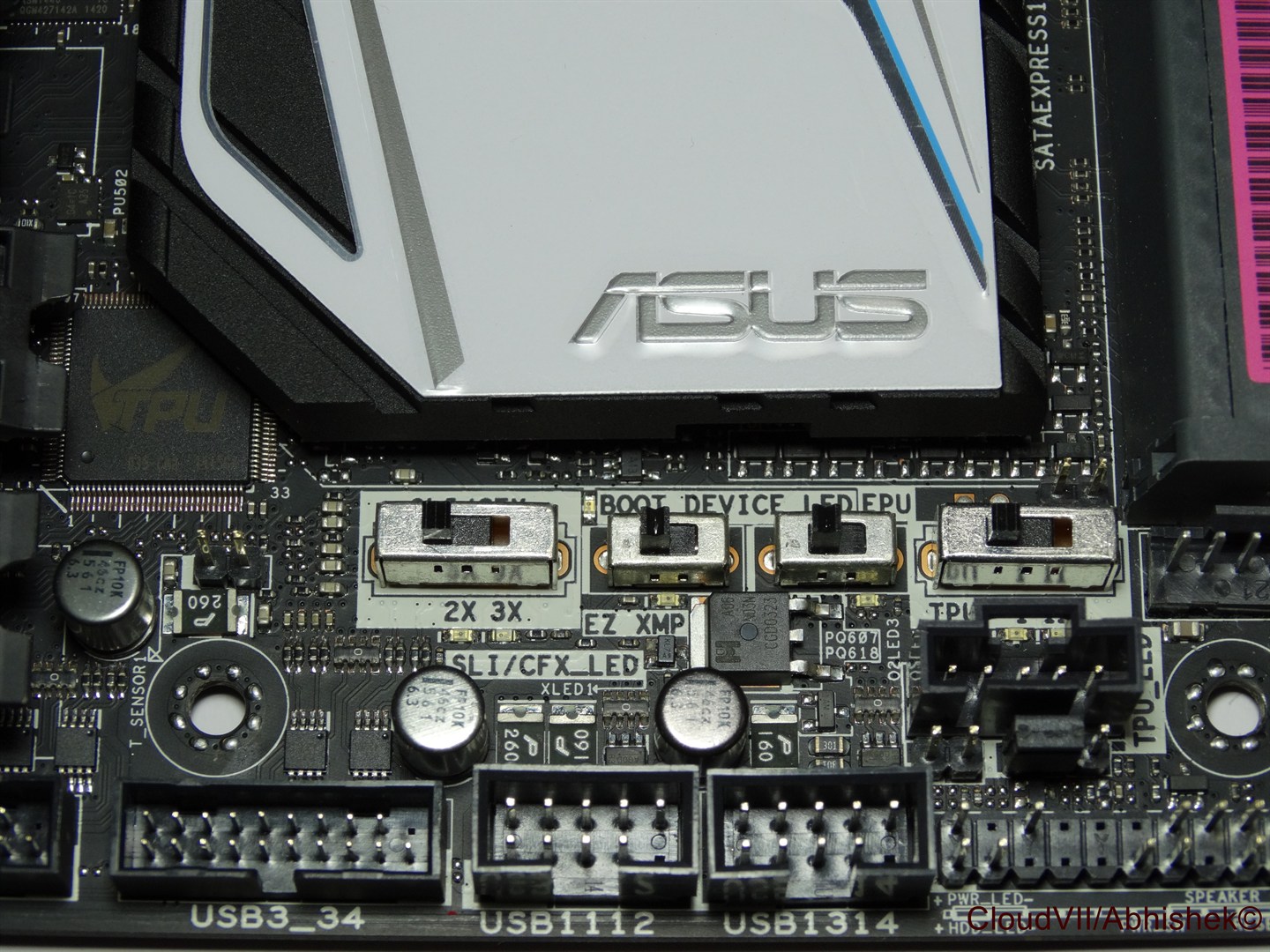

1 x EZ XMP switch
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x CPU/DRAM overvoltage jumper(s)

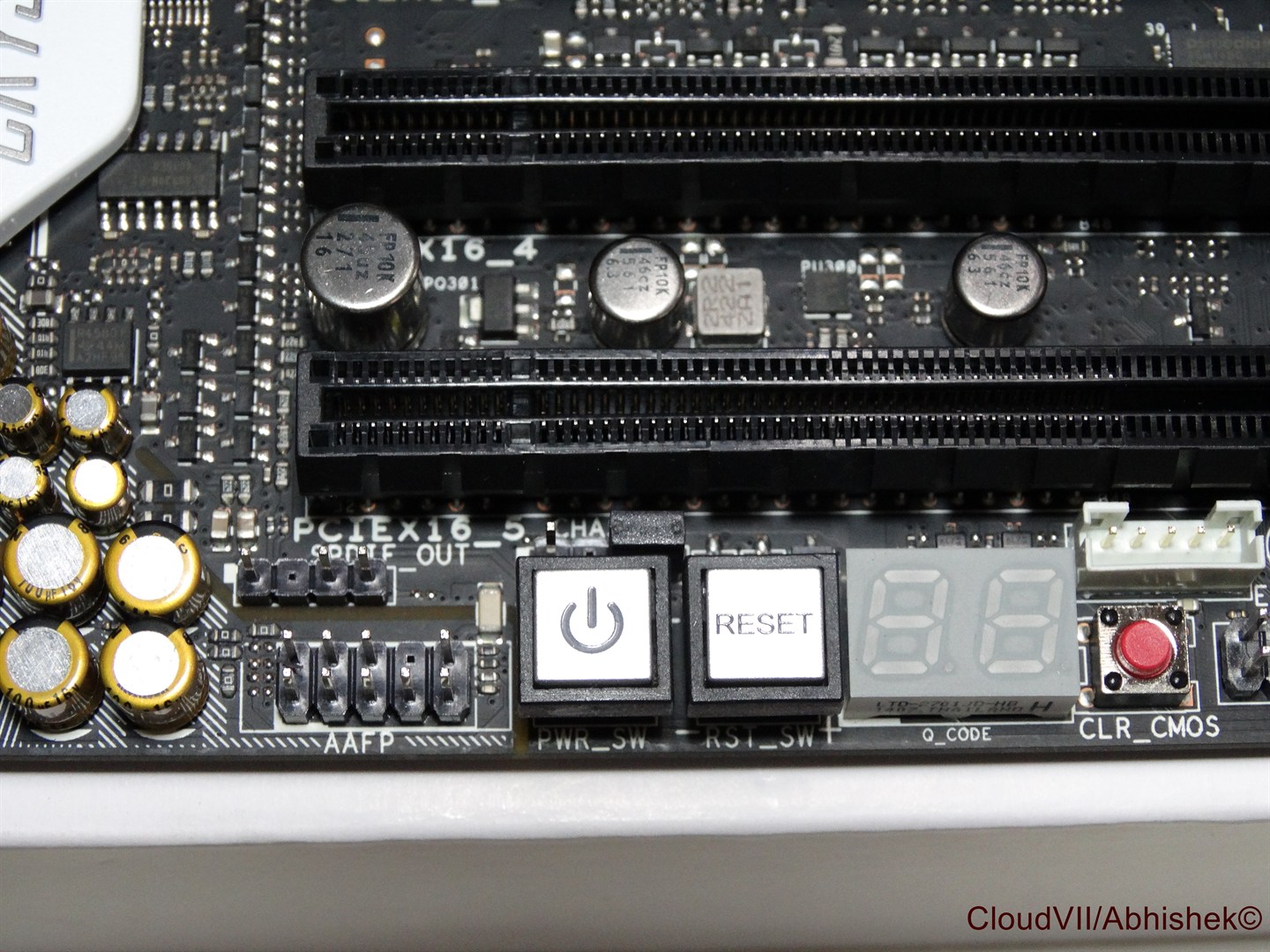

1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x SLI/CFX switch (2/3-WAY adjustments) - Accessories
User's manual
ASUS Q-Shield
8 x SATA 6Gb/s cable(s)
1 x ASUS 2-Way/3-Way SLI bridge

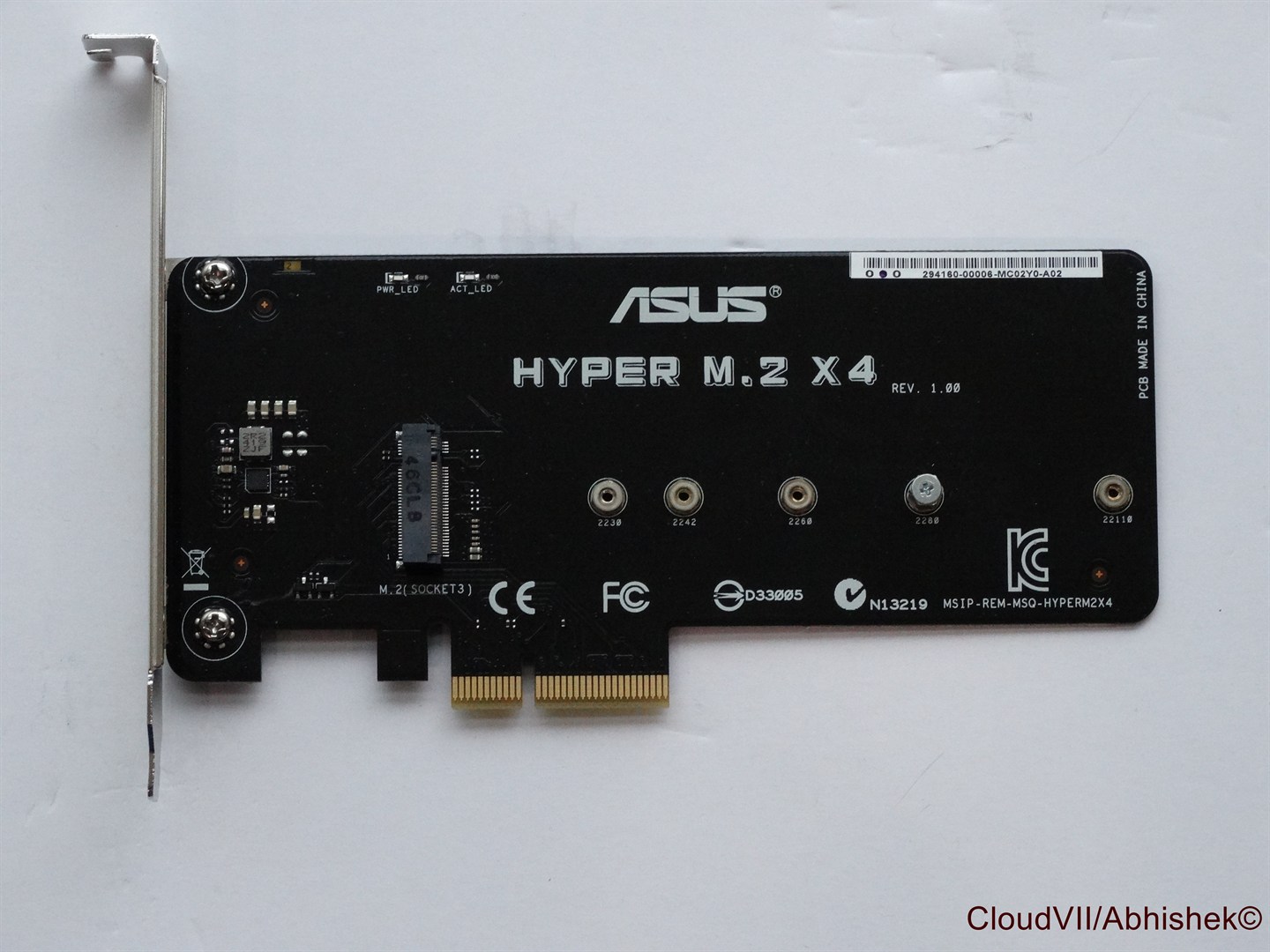

1 x M.2 X4 bracket
1 x ASUS 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)

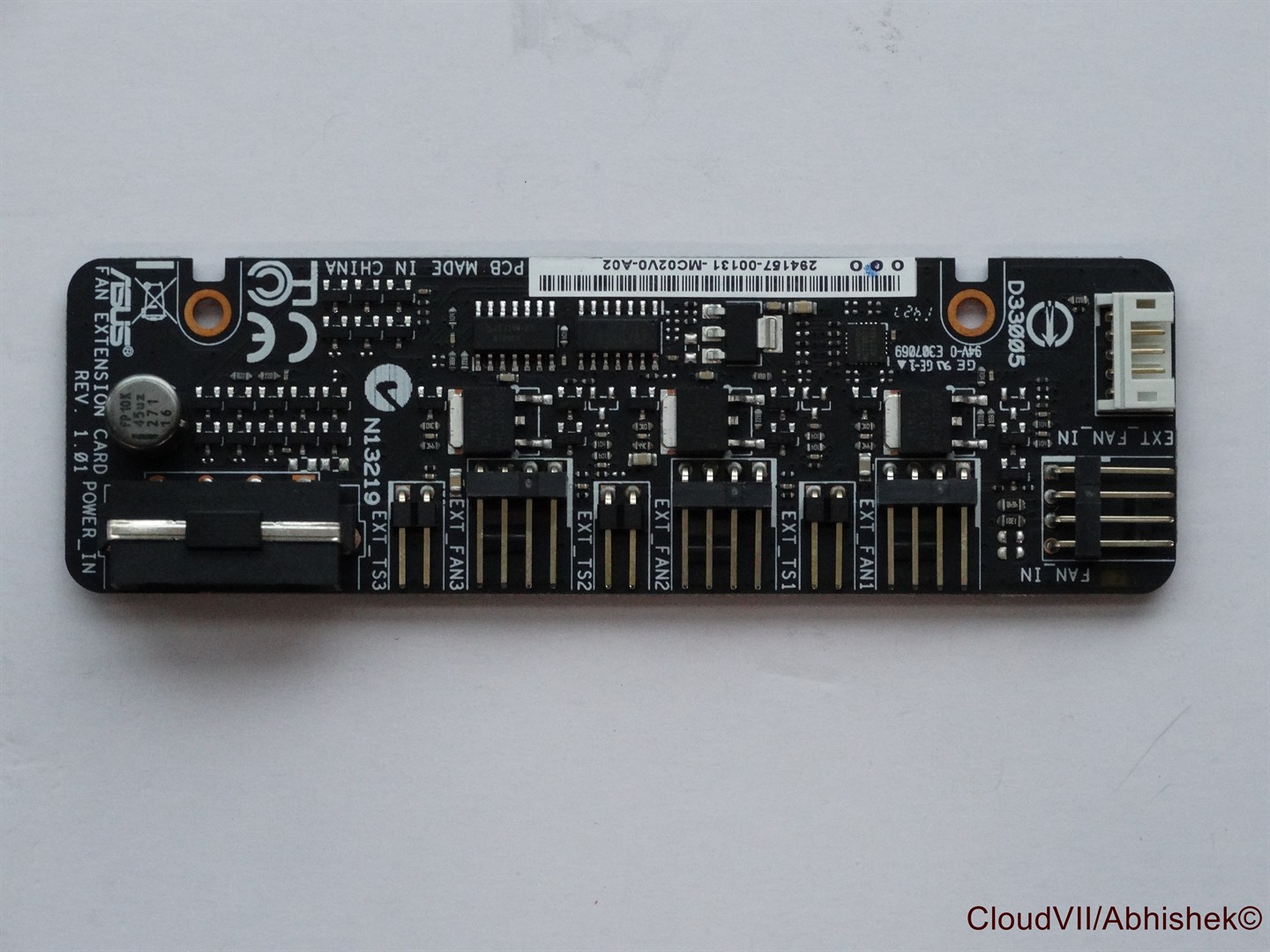

1 x Fan Extension Card (3 x 4-pin fan out)
1 x Q-connector(s) (2 in 1)
1 x 5-pin to 5-pin cable
- 1 x Thermistor cable(s) - BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information. - Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE - Support Disc
Drivers、ASUS Utilities、EZ Update 、Anti-virus software (OEM version) - Operating System
Windows® 8.1 32/64-bit
Windows® 8 32/64-bit
Windows® 7 32/64-bit - Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) - Note
*1: The PCIe x16_5 shares bandwidth with M.2 x4. Triple PCIe 3.0/2.0 configuration is default set at x8/x8/x8. Adjust PCIEX16_5 Slot Bandwidth in BIOS.
*2: The PCIex4_1, USB3_E12 and SATAEXPRESS_E1 connectors share the same bandwidth. The SATAEXPRESS_E1 will be disabled when there is a device installed on PCIEX4_1 slot. Set this option to X2 Mode or X4 Mode when the installed PCIe device is higher than X4 interface.
*3: Due to chipset behavior, The SATA6G_78, SATA6G_910 ports (black) do not support IRST including RAID configuration.
*4: These functions will work depending on the CPU installed.
*5: These SATA ports are for data hard drivers only. ATAPI devices are not supported.
I hope you enjoyed the picture,
Abhishek/CloudVII
