what should the settings be for D-Link 2750u (BSNL ADSL broadband) not connecting :(

[shirish]

Hi all,
A freak accident turned my D-Link to defaults and I don't remember what the router page should look like, can anybody help ?

VPI - 0
VCI - 35
Service Category - UBR With PCR
Peak Cell Rate - 0

Protocol - PPP over ATM
Encapsulation Mode - LLC

PPP Username - $someusername
PPP Password - $somepassword
Confirm Password - $somepassword
Authentication Method - AUTO
Dial-up mode - AlwaysOn
MRU Size - 1492
MTU Size - 1400
Keep Alive - checked
Lcp Echo Interval (sec): 30
Lcp Echo Failure :5
Use Static Address - Unchecked

Enable NAT - checked (dunno if this should be or not checked)
NAT Type - Full Cone Nat

The username and password I have confirmed and checked are correct, not sharing those for privacy concerns.

Look forward to guidance.



[Crazy_Eddy]

Protocol - PPP over ATM

Try PPP over Ethernet?

Service Category - UBR With PCR

UBR without PCR



[itspriyank]

Just change it to PPPOE and your done!



[shirish]

Try PPP over Ethernet?


UBR without PCR

Thank you. @Crazy_Eddy did the above, just to know what is UBR and PCR and what changes when you use one or the other option ?

Just change it to PPPOE and your done!

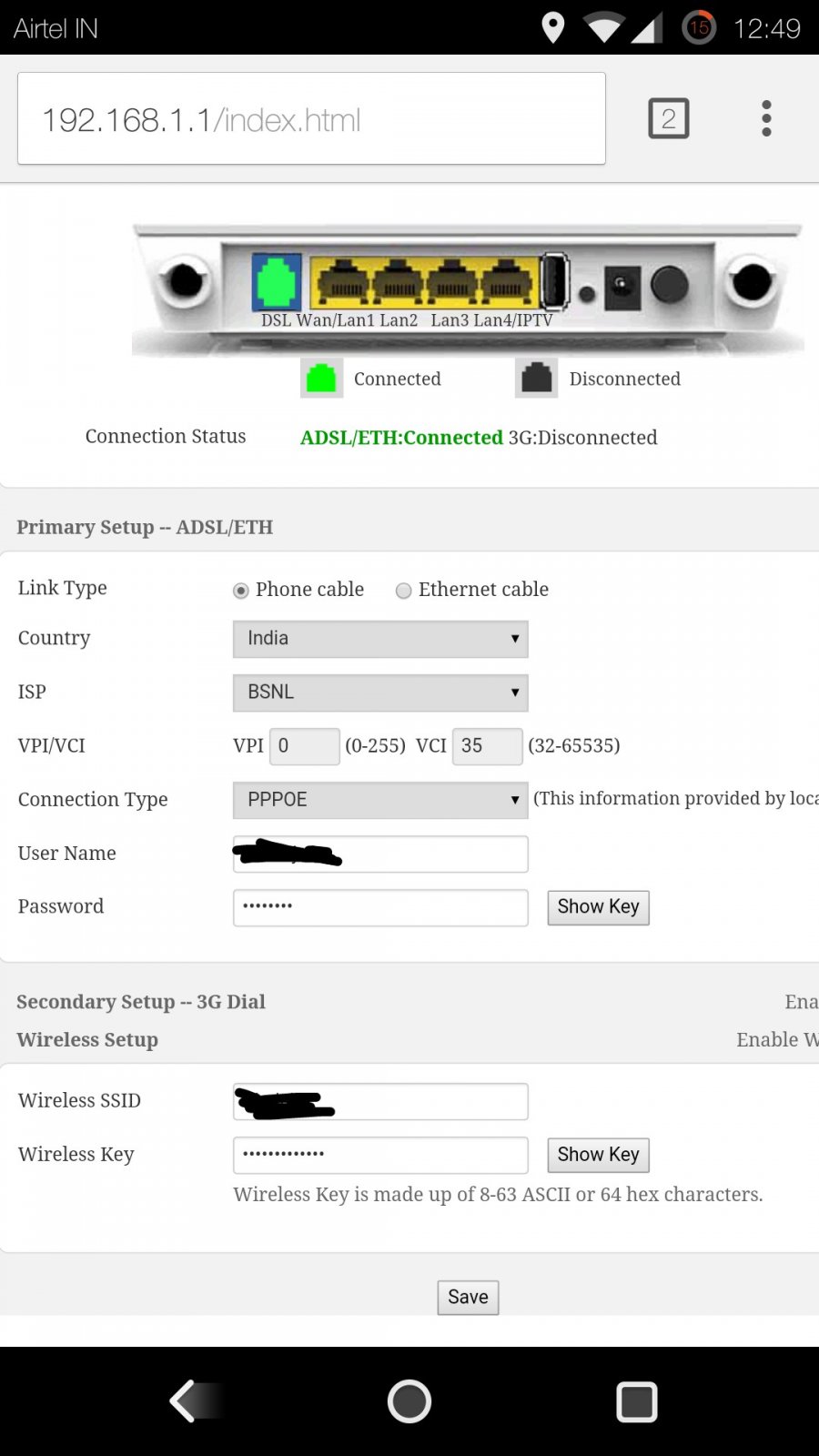

View attachment 59071

@itspriyank thank you for sharing your screenshot. May I ask which ADSL router is that, the graphics are pretty nice or are you running some custom firmware (a la OpenWRT thing or something) .
