Overclockable DDR4 RAM (Benchmarks at Various OC Frequencies Added)

Buying Advice Desktop & PC Buying Advice
1

This is inform all the DDR4 ram buyers that you don’t need any other ram greater than 2400 MHz even if you want DDR3000 RAM.
I bought Crucial Basic 8GB DDR4 2400Mhz x4 modules and using it with basic overclocking. Without any effort, I am able to overclock my RAM to 3000 Mhz, that is 600 MHz OC.

I have Ryzen 5 2600X, Gigabyte Aorus X470 Gaming Ultra board from this forum.
Edit:
I finally ran some benchmarks:

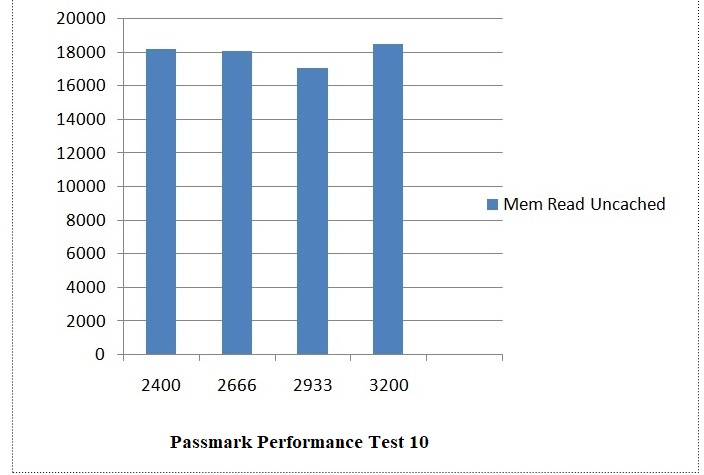

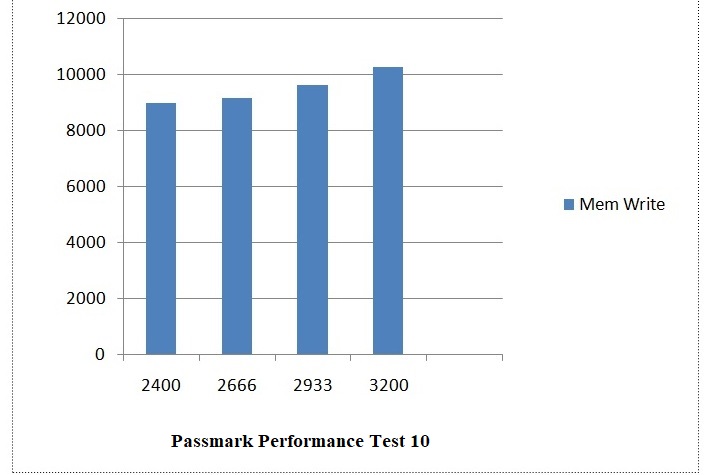

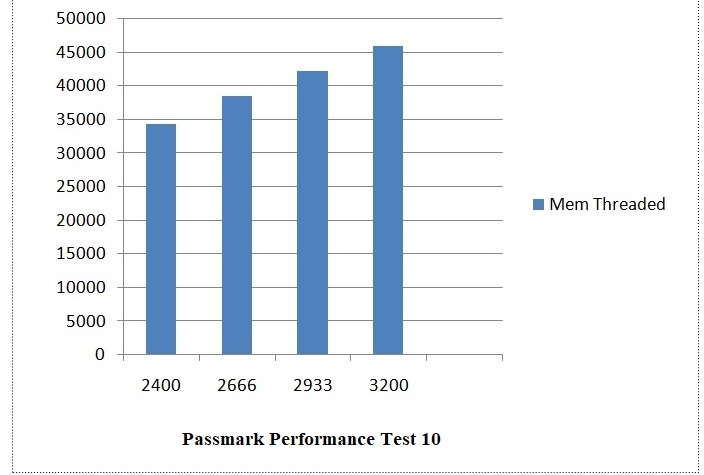

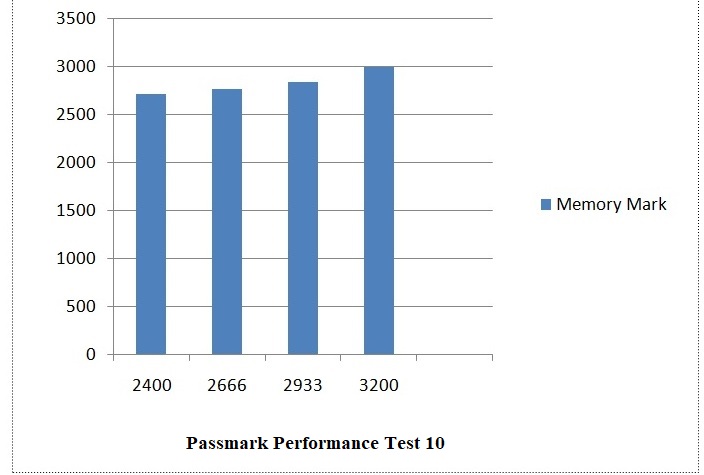

  1. Passmark Performance Test 10

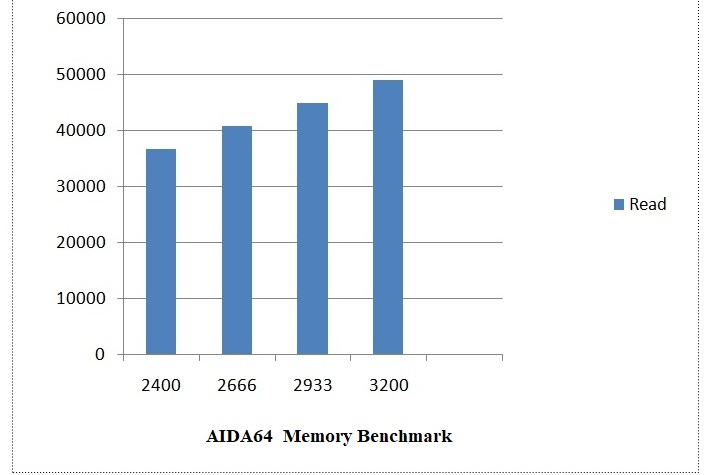

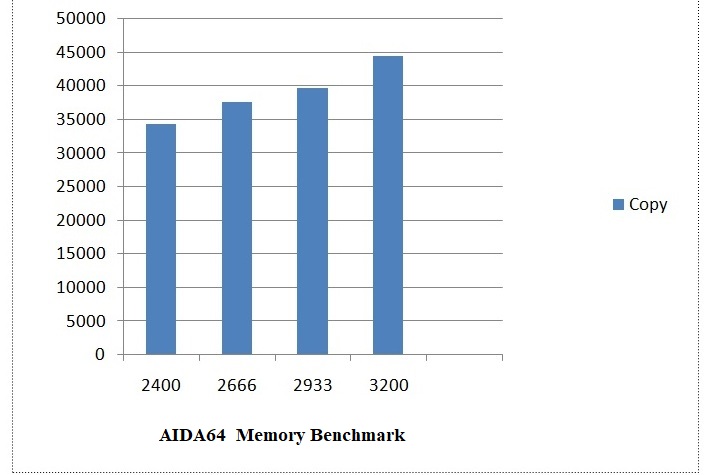

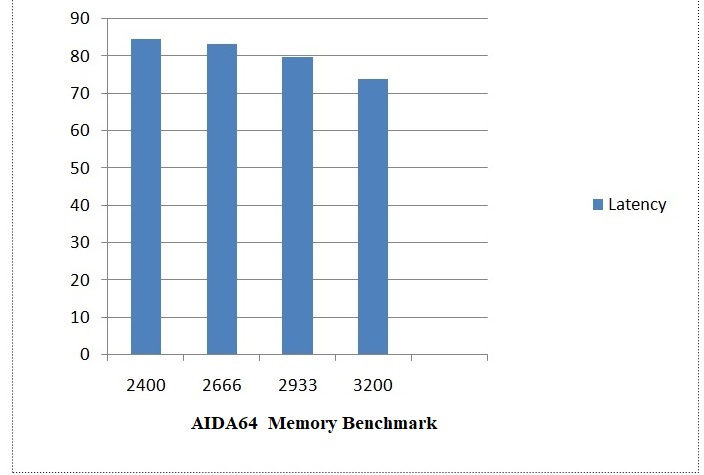

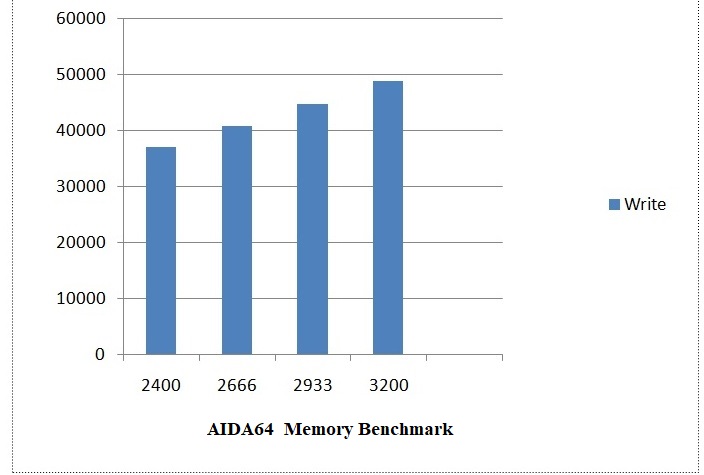

  2. AIDA64 Memory Benchmark

I tested RAM at 2400 Mhz Base Clock, 2666 Mhz, 2933 Mhz and 3200 Mhz. The relevant raw test data and charts are enclosed.

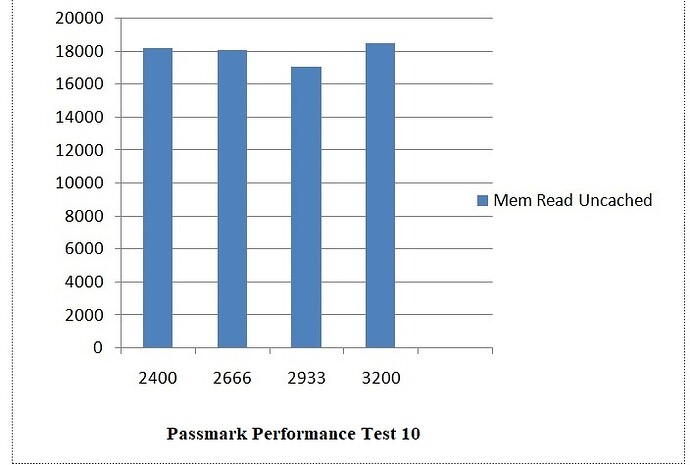

2.jpg704×475 47.6 KB

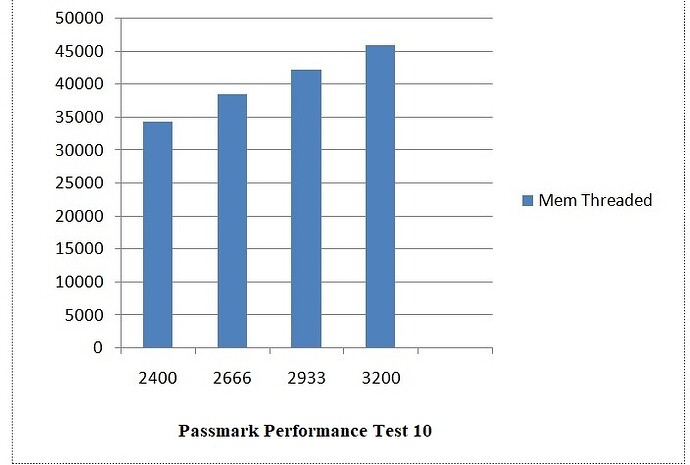

3.jpg704×475 46.9 KB

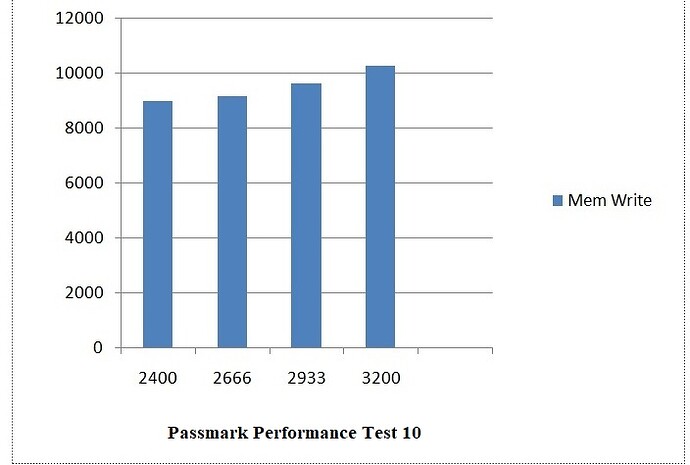

4.jpg704×475 39.1 KB
5.jpg704×475 40.3 KB
6.jpg704×475 38.4 KB
7.jpg704×475 38.9 KB
8.jpg704×475 45.7 KB
9.jpg704×475 41.4 KB

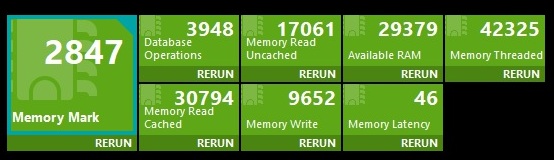

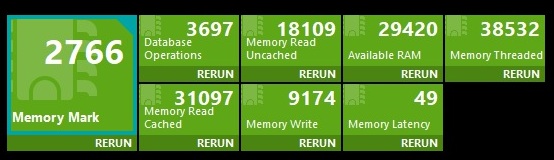

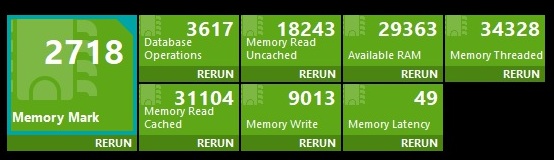

Passmark memory 2400.jpg
Passmark memory 2400.jpg554×160 32.7 KB
Passmark memory 2666.jpg
Passmark memory 2666.jpg554×160 32.9 KB
Passmark memory 2933.jpg
Passmark memory 2933.jpg554×160 32.8 KB

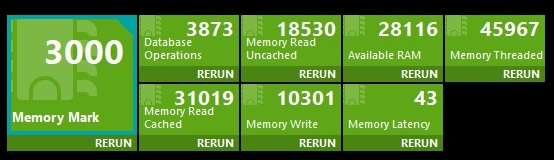

Passmark memory 3200.jpg
Passmark memory 3200.jpg554×160 32.9 KB

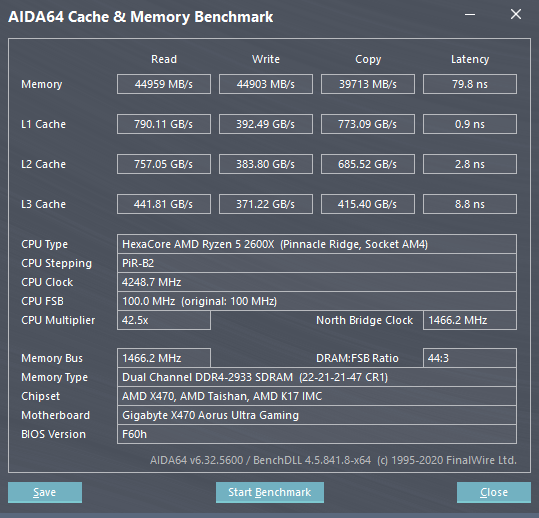

AIDA 2400.png
AIDA 2400.png539×518 58.2 KB
AIDA 2666.png
AIDA 2666.png539×518 58.4 KB
AIDA 2933.png
AIDA 2933.png539×518 58.2 KB

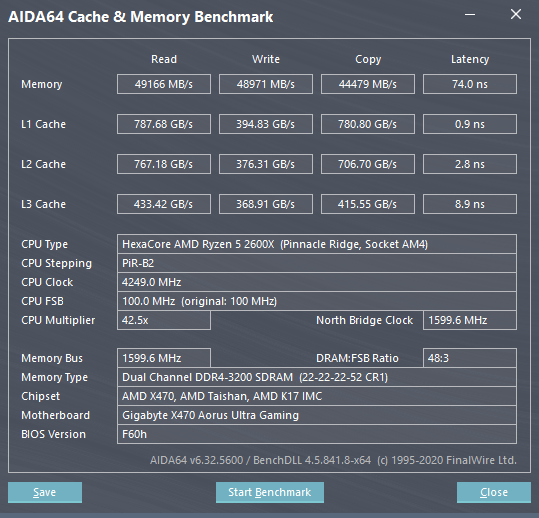

AIDA 3200.png
AIDA 3200.png539×518 58.4 KB

2 Likes
2

Yea but a 3000 can do 3600 . It can’t do the same.on 2nd gen ryzen. So YMMV.

3

I haven’t tested above 3000mhz . Will test tomorrow. BTW I downgraded from 3500x to 2600x.
Also there is huge price difference between Basic 2400 and premium 3000/3200 MHz ram.

4

Newer gen cpus support rams 3600mhz and above. So a person using 5xxx series of ryzen definitely wont be using 2400mhz cos it has its own limitations

5

CPU may support 4600mhz. That isn’t the point. Point is OC potential with minimum expenditure.

6

He is talking about vfm Oc potentials.

7

Yes, Crucial sticks overclock like a champ.
I’ve been running my 3200MHz CL16 at 3600MHz CL16 without any issues, and I’m pretty sure it can be OC’ed even further.

1 Like
8

I bought 4 units of Crucial Basics 8GB 2400 MHz sticks at 2200/unit. All working at 3000 MHz like charm. Not tried above 3000, will try further OC today. Best bang of buck.

9

Mind sharing the details? Your Ram kit, CPU, Board, timings and voltage? Thanks

10

I am with similar RAMs. Ryzen 3 3300X, MSI B450i Gaming Plus AC, Crucial Ballistix Sports LT - E die memory - 3000CL15. OC-ed to 3600CL16. Voltage is on auto but IIRC it’s 1.35-4V

11

Thanks for the info, mate. I have the same kit in 3200. I’m on a 5600x and MSI x570 MPG Gaming Plus. Seems like I too should be able to reach such speeds on auto?

12

MSI has a feature in BIOS - MemTry It! I am using that. It has various combinations of frequency and timings. I think, if spent more time, these can be either pushed to 3733 or tighten timings on 3600.

1 Like
13

thanks man..will give it a try! No pun intended :wink:

14

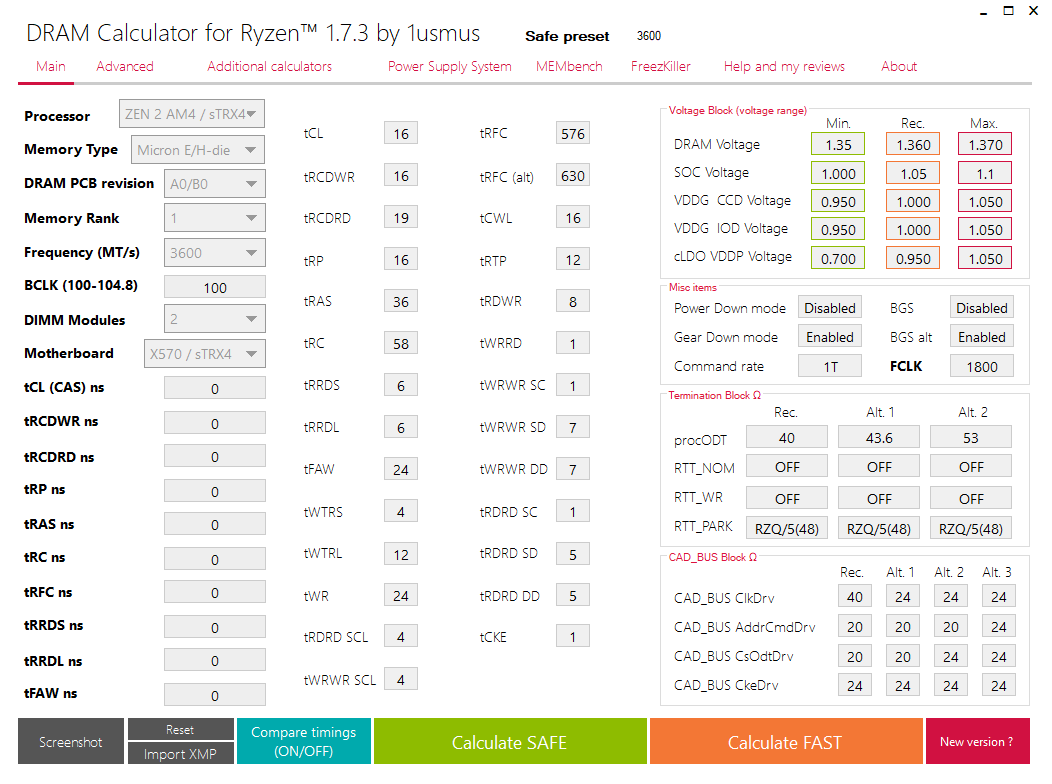

I’m using the SAFE preset of Ryzen DRAM Calculator at 3600MHz
Attaching a screenshot of my config -

1613803546226.png1052×784 42.7 KB

Attachments:

1613803546226.png1052×784 42.7 KB

4 Likes
15

Thanks mate..can u mention any real world improvements u have see post OC? Thanks

16

Honestly, I’ve noticed no real world improvements. It’s just the peace of mind I get knowing that Ryzen plays well with 3600+ MHz frequencies

17

I will post benchmarks tomorrow for 2400 base and 3200 OC ram. Let’s see the improvements if any…

Edit:
First post updated.

1 Like
18

AHOC (builzoid) have some videos in which he achieves great overclocks (more than 100% ) using some vddg voltage, chech his video, this voltage is specific to amd cpus.

Also, check with winrar’s benchmark too as it scales with memory performance so a great tool to see performance uplift from memory overclock.

3 Likes
19

We should actually maintain an online sheet for india specific products and our ambient temperatures and location ,why i say India specific is because we don’t have the exact part availability in Indian market as the US and European markets and just miss out good product due to ignorance

-Ram
-AIO
-Air coolers/pc case
-GPU

should be the ones that we should be targeting with failure rates

20

Nice info man.
But are there any downside of overclocking the ram like in case of CPU/GPU where thermals are of main concern.
