Repairing a Samsung Buds 3 Pro

Home Tech Electronics & DIY Projects
1

Recently my buds 3 pro case had died, had stopped accepting charge suddenly and this led to my buds being totally drained out.
I opened it out of desperation and could see green deposits around the wireless charger terminals and the indicator strip turned red leading to to believe it had somehow caused water damage.

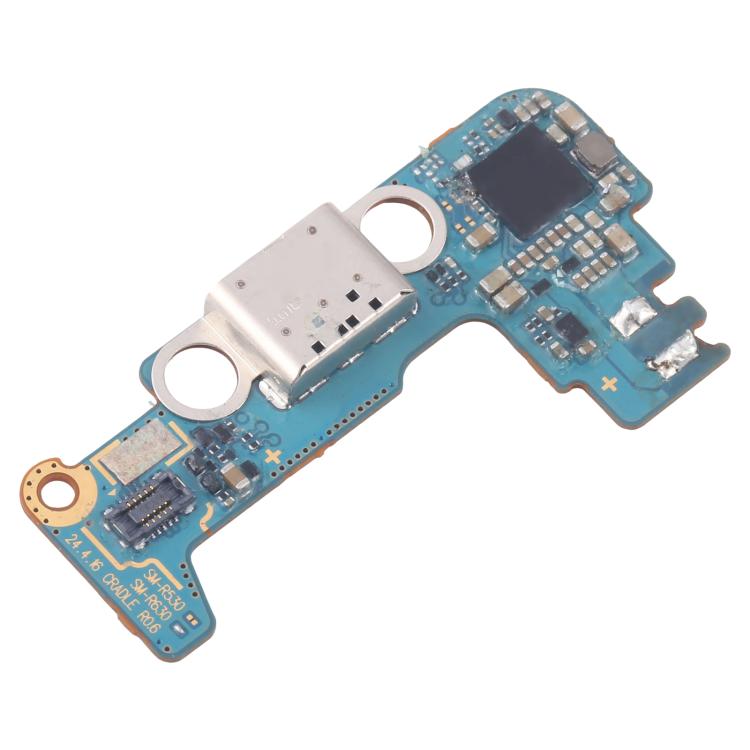

I have found its charging board online for very cheap but due to Chinese new year, shipping is delayed.
If someone can help me with any local spare part supplier or any recycler from where I can source it, would be amazing.

IMG_1398
IMG_1398750×750 37.2 KB

2

I have read somewhere you can go to authorised service centre and tell them you lost the case. They will order a new case. I think you pay 3 or 5,000 Rs. Im not 100% sure but you can try in case you want to go this route

1 Like
3

Why not use pcb cleaner liquid?

4

I’ve cleaned it with IPA

5

ipa is useful for cleaning flux, it wont help in cleaning green residue or corrosion. Pcb cleaner liquids are more strong and used for scrubbing away green residue or corrosion.

Give it a try, they are cheap

7

ive used ipa for pcb’s that had battery leakage on them and it worked quite well. but yeah if the board has shorted then no point in cleaning

8

Will keep as last resort. Since Ive moved to Apple been using AirPods Pro 3, this is a fun side project.

9

I am seeing many posts on fb pages, selling complete and new samsung buds 3 pro. Unboxed for 6k to 7k.

5k for a svc swap sounds expensive, considering above rate.

1 Like
10

The buds are IP rated but not the case :person_shrugging:

11

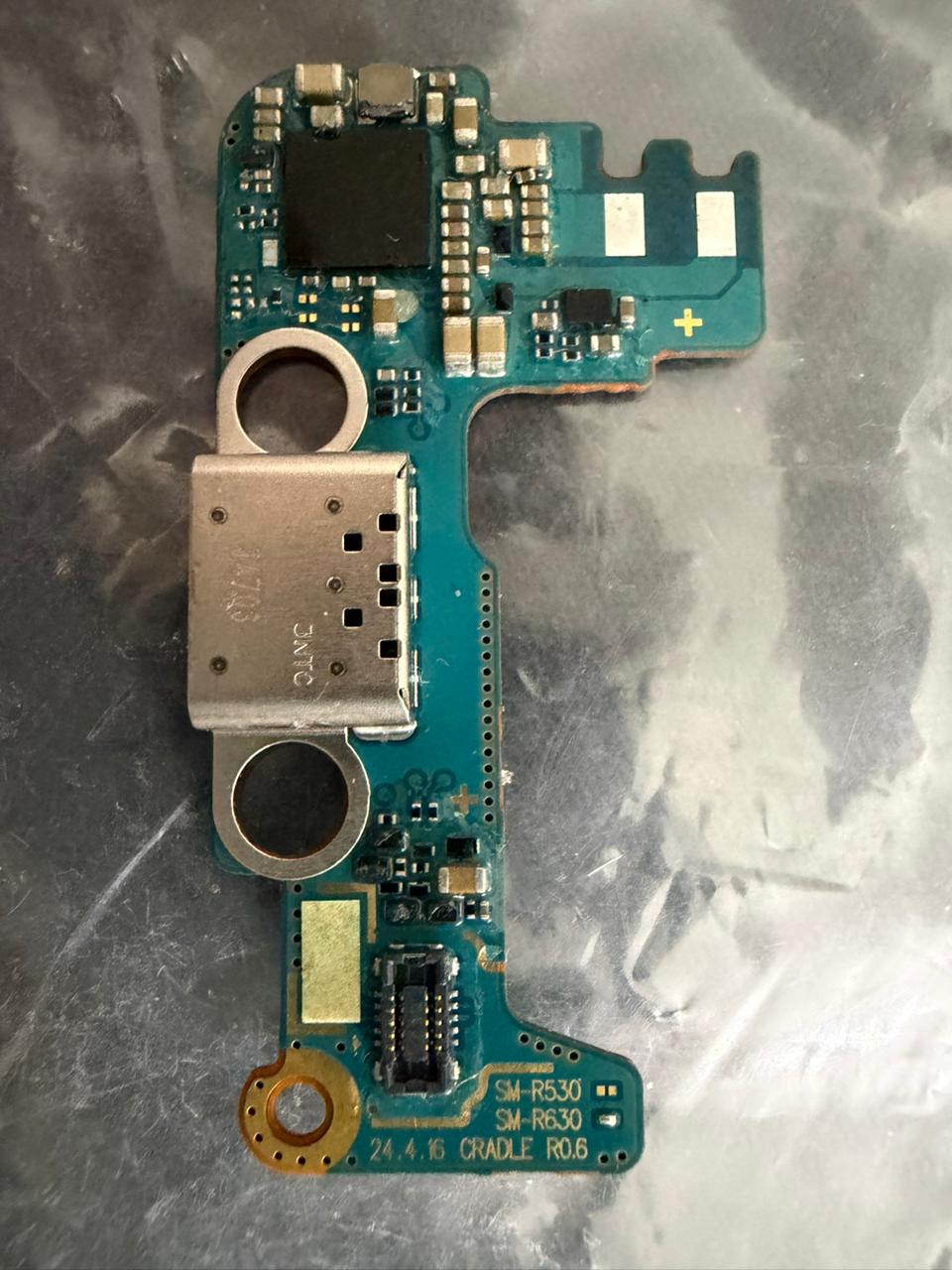

I am glad to inform that the replacement motherboard arrived today from China.
It cost me a total of 900Rs including shipping and taxes.

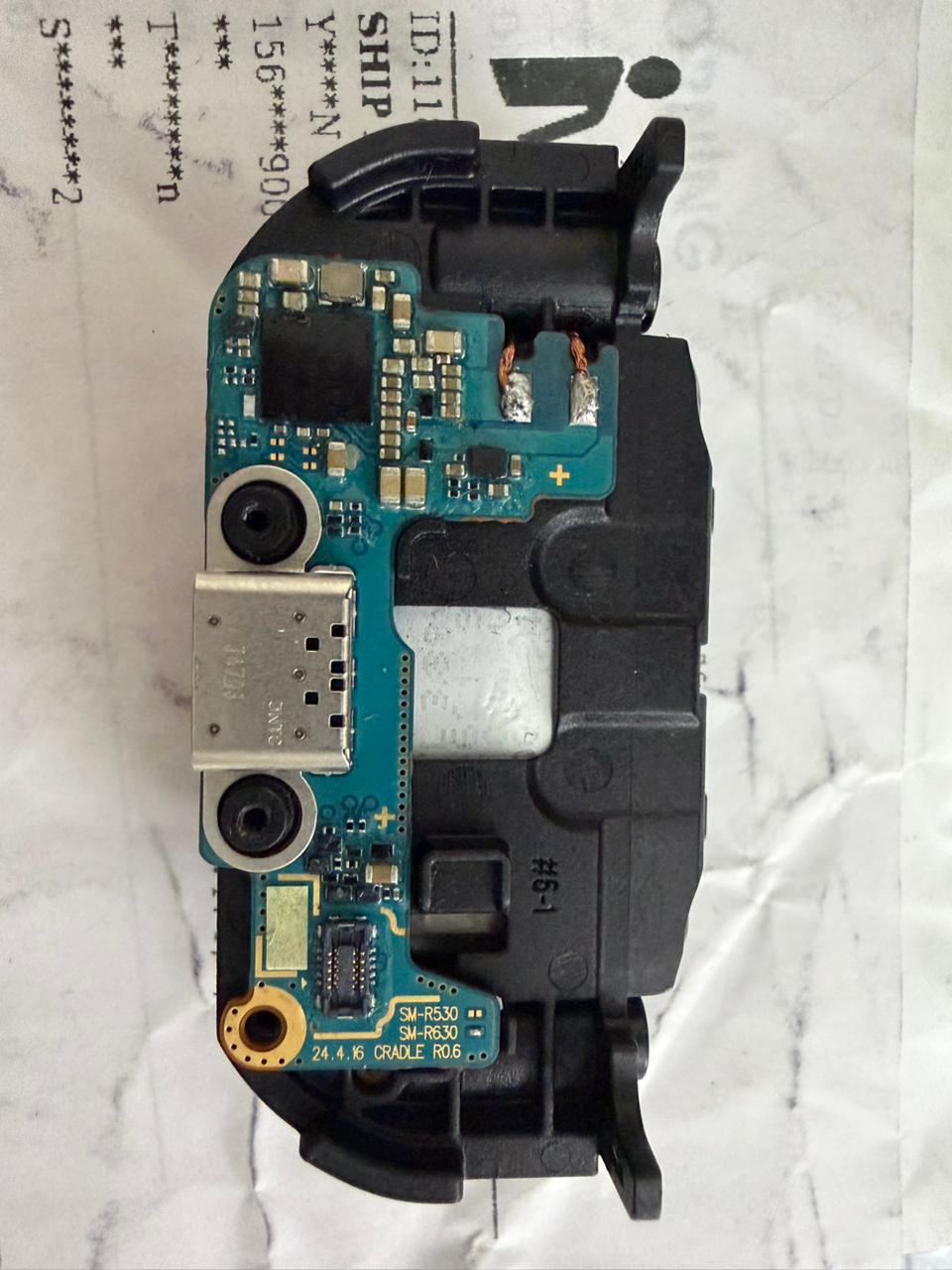

Soldered the wireless charging coil and it was up and working in 10 minutes.
Pictures attached for reference.

image960×1280 145 KB

image960×1280 123 KB

7 Likes
12

Please elaborate on this….where did u get it from? How much did it cost in shipping

13

Yes even I am interested, please share in detail and the links :folded_hands:

14

Guess he never tried the service centre and went with the direct purchase

15

Yes, and it’s costed cheaper as well.

Interested to know the sourcing and delivery of the part.

16

I selected yanwen as shipping partner, the board cost Rs.661 and shipping nearly Rs.250 including custom clearance.

2 Likes
17

I did go to the service centre but both of my buds have small cracks, they said I’d have to buy a whole new set and this was unrepairable.

1 Like
18

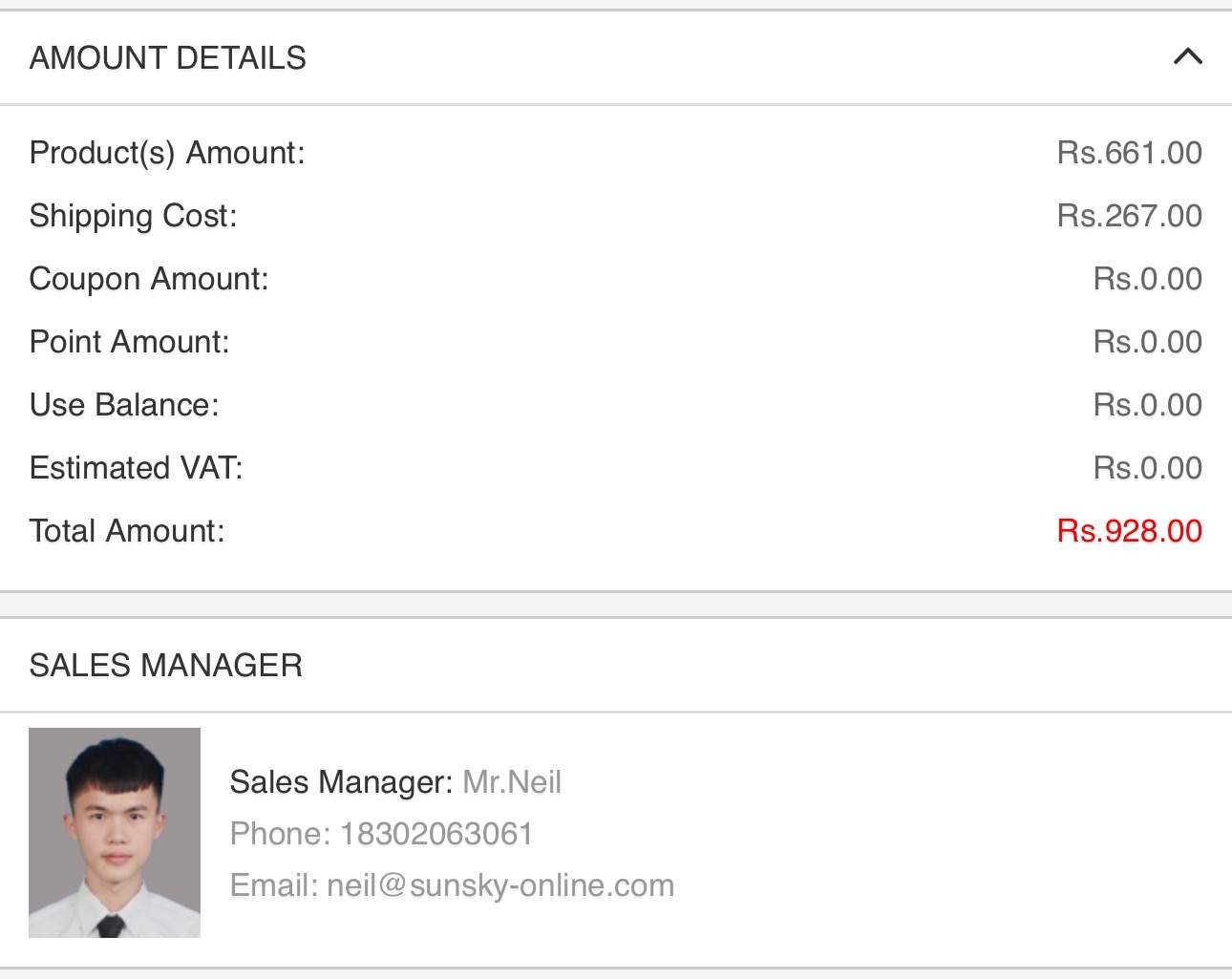

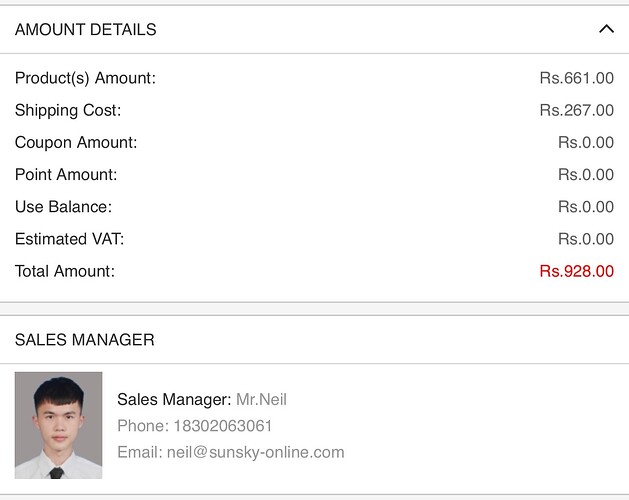

IMG_1483
IMG_14831290×1025 94 KB

Ordered it using the above mentioned link, Paid via PayPal and selected yanwen as shipping.

I had ordered early feb but due to new year over there it only got processed 10 days later, once shipped it reached me in about 13 days.

2 Likes
19

Sorry saw earlier post just now. Thank you
