Graphic Cards Graphic Card + PSU Suggestion -23K Strict Budget

[Shaleen]

@ALPHA17
I Have attached a pic of my PCI express slot..
The paper which you can see at the bottom of Cabinet is cut exactly the same Length X Breadth Dimension as HD 7870
And I will remove that wire above PCI Slot which is blocking it

- - - Updated - - -
@vivek.krishnan
@Sudarshan_SMD

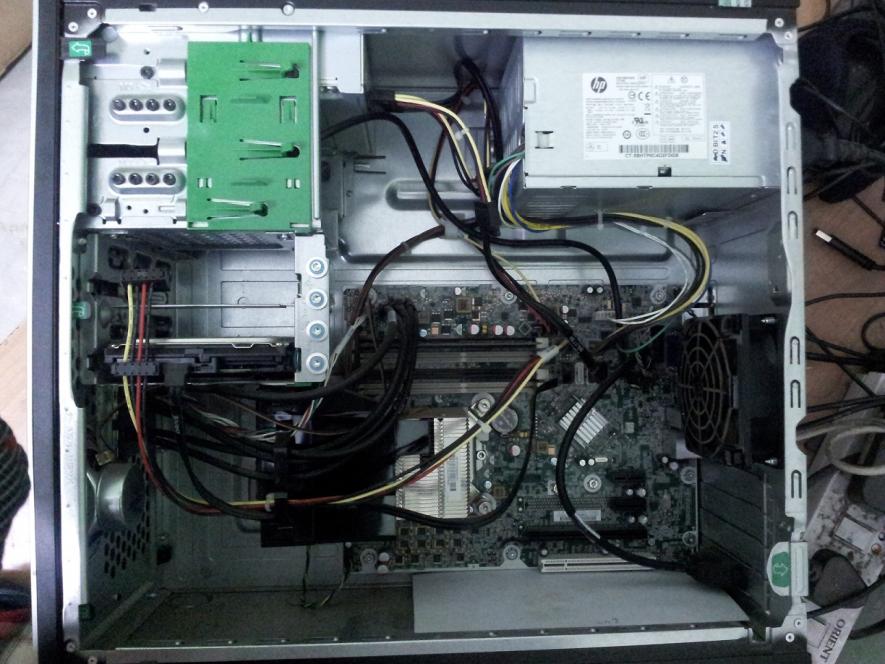

I have Attached a Pic Of my whole cabinet from right side
is this the BTX form factor you were talking about?:unsure:



[Sudarshan_SMD]

-is this the BTX form factor you were talking about?:unsure:

Yes, your motherboard is of BTX form factor.
You cabinet has got ample space. Some cable management and you are set to install your new GPU.

OT: Why did you opt for branded PC rather than getting a assembled one?



[ALPHA17]

@ALPHA17And I will remove that wire above PCI Slot which is blocking it

is this the BTX form factor you were talking about?:unsure:

Do a little bit of dusting and cleaning. Tidy up the power cables once you get the new SMPS and I doubt you will face any issues.

Yep, this is a BTX form-factor, the first time I am seeing it used practicably. In-fact now I want a cabinet like this. =]



[Shaleen]

Yes, your motherboard is of BTX form factor.
You cabinet has got ample space. Some cable management and you are set to install your new GPU.

OT: Why did you opt for branded PC rather than getting a assembled one?

I think that Answers all my Worries related to space Thank You very much!

Actually I Wanted assembled PC but As One of The HP dealers is My Father's Acquantaince He chose to go for branded one.:5da69969:

- - - Updated - - -

Do a little bit of dusting and cleaning. Tidy up the power cables once you get the new SMPS and I doubt you will face any issues.

Yep, this is a BTX form-factor, the first time I am seeing it used practicably. In-fact now I want a cabinet like this. =]

Yes I Have been Meaning to Clean it up from a long time But I am waiting to buy that static wrist strap before that,the last time It costed me a ram when i cleaned it

And That's Flattering I thought BTX Would be something bad.

Thanks For helping me so much and solving all my queries!



[rakesh_ic]

Thanks For helping me so much and solving all my queries!

welcome to TE



[surajspai]

the design seems to have changed(afaik).i hate OEM's for sneakily removing things like pcie slots.
@ALPHA17,one question.i may be silly/nitpicking,but,would that heatsink for the cpu interfere with the GPU?seeing that the GPU would be double slot,and incase of an AMD card.the 660Ti is a small pcb,but would a 7870 be possible to seat there?i dont have an idea of long these new cards are,so,just curious.because of the issues i faced back then,no troll.



[vivek.krishnan]

I dont think there will be any issues with any GPU as the heatsink AFAIK should point downwards.



[ALPHA17]

one question.i may be silly/nitpicking,but,would that heatsink for the cpu interfere with the GPU?seeing that the GPU would be double slot,and incase of an AMD card.the 660Ti is a small pcb,but would a 7870 be possible to seat there?i dont have an idea of long these new cards are,so,just curious.because of the issues i faced back then,no troll.

Read earlier posts before posting queries.

The paper which you can see at the bottom of Cabinet is cut exactly the same Length X Breadth Dimension as HD 7870
And I will remove that wire above PCI Slot which is blocking it

View attachment 17440

Does it answer your query.

He has to clean and rewire the area to allow the card to have breathing room as well as making sure that the nothing gets in anything's ways.

Wish you and your family a Happy, Prosperous and Healthy 2013. Cheerio!



[surajspai]

gratis!my mistake
