PC Peripherals Help needed regarding Front Panel Audio : P5n-e SLI +Zebronics Antibiotic

[A11B1ack]

Can any one using ASUS P5N-E Sli mobo with Zebronics Antibiotic cabinet guide me how to connect the front audio ports to the mother board? :huh:
The label of the connectors from the front panel are different from those pins in the mother board...its confusing.:S



[Crazy_Eddy]

Can you perhaps post a pic of the front panel cables ? Or the labelling on the wires?



[A11B1ack]

thanks Crazy_Eddy for your response... I have already solved the problem after alittle bit of googling.:cool2:



[Deepak]

^^ if its ok with you, post the solution here, may help some one in the future



[A11B1ack]

^^ if its ok with you, post the solution here, may help some one in the future

ok..here it is..

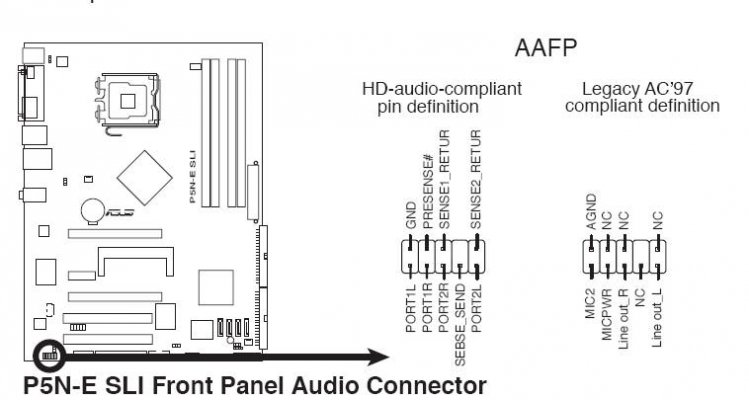

Motherboard pinout is a follows:

BLINE_OUT_L(NC)-o o-Line out_L
o-NC
BLINE_OUT_R(NC)-o o-Line out_R
(NC)-o o-MICPWR
AGND-o o-MIC2

In my motherboard there are only 'NC's in place of BLINE_OUT_L and BLINE_OUT_R ; that was causing the confusion.

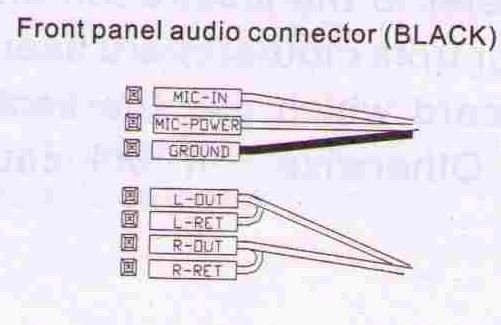

Available connectors are (on two separated lines)
1. L-out
2. R-out
3. RET-L

1. Ground
2. MICPWR
3. RET-R
4. MICIN

The connection is as follows
Case Motherboard
---- -----------

L-out to Line_out_L
R-out to Line_out_R
RET-L to BLINE_OUT_L
RET-R to BLINE_OUT_R
MICPWR to MICPWR
MICIN to MIC2
Ground to AGND
