Mouse Switch Replacement - Solder Advice

[INTL_akash]

What about the mouse shoes? Are these reusable on your mouse?

The mouse feet need to be removed very carefully or else they lose their plain shape and end up becoming scratchy due to not being reattached probably. In almost all cases the stock mouse feets are destroyed when they are removed the very first time. Replacements are hard to find but there are circular ones on amazon called Maxskates ( https://www.amazon.in/dp/B0BJ9JZPZX?ref_=cm_sw_r_apan_dp_KX8BPH6BFQYD5YAX3KV8 ) which were super good for my g102 after i destroyed the feet when i replaced its switches.



[INTL_akash]

What clicks are they rated for ? I have a g502 hero with double click issue

These are cheap switches and are not rated worth anything. These will have mushy click feeling like the side buttons on mice. I would strongly suggest you go for Kailh GM 8.0, rated 80m clicks. (https://www.genesispc.in/product/kailh-gm-micro-switch/). I replaced the faulty left click on my g102 with these and they click and feel just like the default omrons which were in the mouse. The soldering iron link by OP costs 100rs in offline market and it 20-25W only, so it gets the job done and poses no burning threat to the pcb.



[kvn95ss]

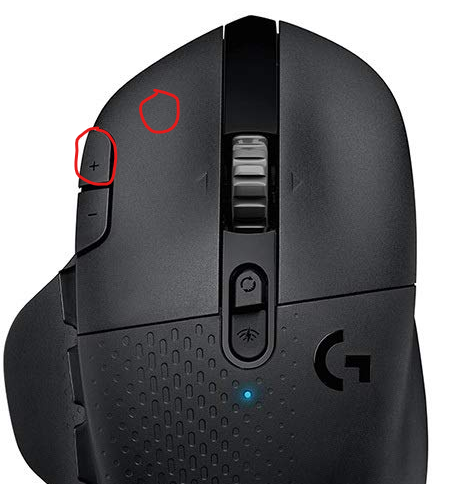

My Logitech G604 has developed double clicking in the left click, intermittently on right click and on the plus button (See reference picture below)

Are kailh black good option - https://www.genesispc.in/product/kailh-gm-micro-switch/ or should I opt for these - https://www.sunrom.com/p/replacement-switch-for-mouse

Also, where can I buy skates for my G604, in case the feet removal gets botched?



[SunnyBoi]

Are kailh black good option - https://www.genesispc.in/product/kailh-gm-micro-switch/ or should I opt for these - https://www.sunrom.com/p/replacement-switch-for-mouse

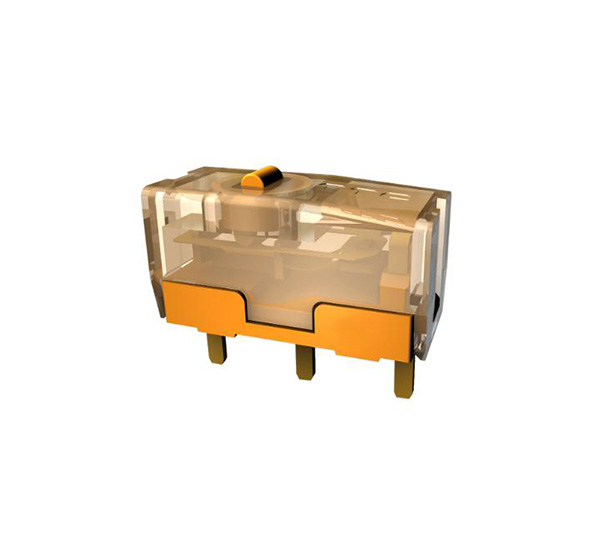

my favorite is the TTC golden switch. highly recommended from optimum too

TTC Gold Dustproof Mouse Switch 80M

stackskb.com



[ascalon]

Are all of the above listed switches compatible with any Logitech mouse? Is it just a difference of click rating and operating force?
For context, I have an old G102 1st gen whose switch I'd like to replace as well.



[INTL_akash]

Are all of the above listed switches compatible with any Logitech mouse? Is it just a difference of click rating and operating force?
For context, I have an old G102 1st gen whose switch I'd like to replace as well

Ttc and kailh as provided above are compatible with g102. As for click and force rating, i changed switches in my g102 and the kailh 8.0 are exactly the same as the default omron in g102.

Are kailh black good option

I recommend the kailh black as i have replaced my logitech switches with the same and the click like omrons. I would not recommend the sunrom.com ones as they have no rated life and can go bad quick, or they can have mushy click like the side buttons of mouse. However i havent used them so its your choice.

Also, where can I buy skates for my G604, in case the feet removal gets botched?

Maxskates mouse feet on amazon are compatible for every mouse, serve the same purpose as expensive mouse feet as they are made of same material as expensive ones. I have tiger gaming ones for my g304 and compared to the maxskates on my g102 they are both same. However, kushcables.com should have some mouse feet for your mouse but they are expensive with shipping costs.
