Network Switch (2.5GbE/10GbE)

can one do load balancing or dual/tripple lan with primary secondary switching on these along with vlan and stuff.
attached specs sheet of what the managed switches can do.
documentation: https://drive.google.com/file/d/1otKCeQ_yQiMeCmv77IhFu-BnJX0vAuOh/view?usp=sharing
One with 2*10g sfp+ ports
220mm x 112mm x 28mm
This is 8 Port x 2.5G and 2 x 10G SFP+ port, these are not managed, but unmanaged so they don't have the features you


Attachments

  • specification.pdf
    155.9 KB · Views: 42
As far as i know Load Balancing functions are switch independent. unless you are talking about a different type of load balancing?
e.g., this is what specifies load balancing in Linux in general, as far as i know the 802.3ad is the only mode that requires a switch supporting link aggregation but not for others.

Those are enterprise class features, this is typical consumer class stuff.
Mikrotik 1 gig router with 5 ports has it...obviously this spec wud be costlier.
As far as i know Load Balancing functions are switch independent. unless you are talking about a different type of load balancing?
e.g., this is what specifies load balancing in Linux in general, as far as i know the 802.3ad is the only mode that requires a switch supporting link aggregation but not for others.

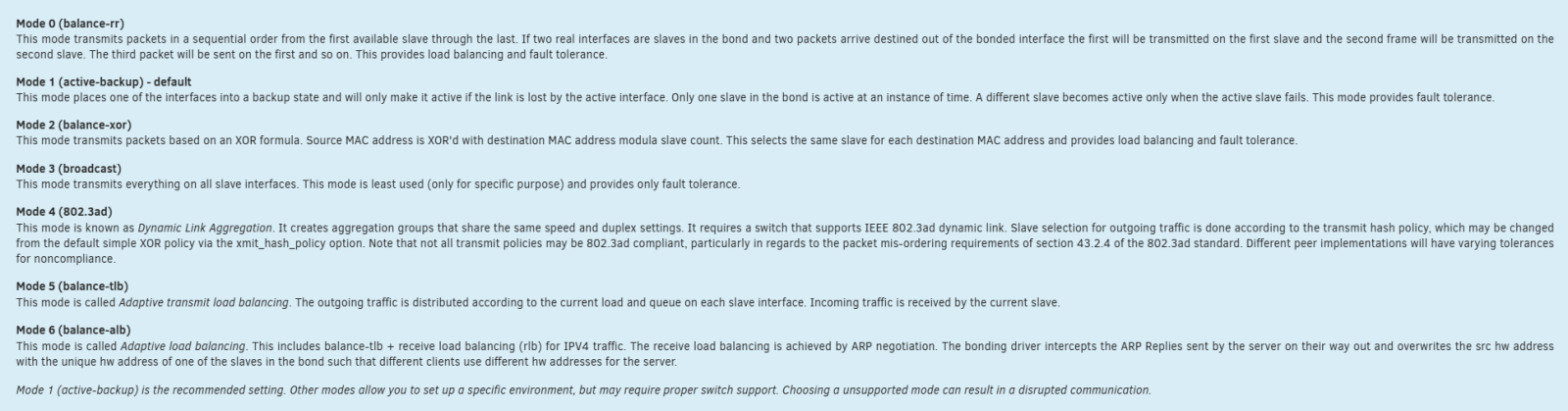

View attachment 198021
Yes, can be source based, mac based, flow based. In common terms if networking.
How good can this be for 41usd.?

Last edited:
@pika420 what is your feedback on NethSec? Any benefits and drawbacks over stock OpenWRT?

I just tried it after seeing your comment, was able to setup a quick failover (with some command line editing required) using an FTTH (PPPoE with a VLAN and service name) and a Jio AirFiber (plain DHCP) with not much hassle.

Only 1 issue I see is automatic updates requires a paid subscription?

Anything else you can comment? Thanks!

@pika420 can you tell me the cost of that setup there in the screenshot with the zimaboard? And any reason you went with that instead of a p330/m920x setup?
Honestly, I was just influenced by the marketing and the YouTubers I follow.
I purchased Zimaboard back in June 2022, LAN Card July 2023
And I wasn't in TE or any FB groups that sold stuff back then, and Amazon listing for used Mini-PC were bad in specs or price.

Zimaboard 8 GB RAM Model207$
Import Tax~1-3k INR (honestly don't remember now)
4Port 2.5G LAN Card91.92$
Import Tax Post Office Guy didn't ask

@pika420 what is your feedback on NethSec? Any benefits and drawbacks over stock OpenWRT?

I just tried it after seeing your comment, was able to setup a quick failover (with some command line editing required) using an FTTH (PPPoE with a VLAN and service name) and a Jio AirFiber (plain DHCP) with not much hassle.

Only 1 issue I see is automatic updates requires a paid subscription?

Anything else you can comment? Thanks!
Well I was not getting full speed in pfSesnse or OPNsense, but i do get full speed in OpenWRT (this was even before purchasing the switch from @aasimenator)
But I hated the Luci UI that OpenWRT comes with. NethSec looks very modern, but it does lack a lot of features as compared to OpenWRT.


Issues that I have seen so far
  • Self-hosted AdGuard lists the router instead of individual devices.
  • Bug when rebooting my router, it takes IP from my downstream AP instead of upstream router (asked in community, working on troubleshooting it, seems to only be happening to me)
  • Cant seem to be able to install packages from CLI, also lacks a ton of CLI packages.
Things that I like
  • Deep Packet Inspection
  • Threat Shield
Not many complaints TBH, I don't have an overcomplicated network.
I keep track of their GitHub project/milestone, so I know when the new version would be released, plus they put that in their community forum too
