Suggest 3.5mm to usb converter for PC

blr_p said:
If it was just about audio then anything will work. But you want mic to work too, yes?
Click to expand...
Correct.
And if I have to keep using 3 connectors the costs crosses 1.2k mark so makes sense to buy a usb headphone investing few more bucks.
USB C is there at rear end/backpanel of my mobo which again isnt feasible for my usage. My cabinet front panel got no usb c (old cabinet)

So it should be 3.5mm to usb type-A with mic working flawlessly.

nRiTeCh said:
Correct.
And if I have to keep using 3 connectors the costs crosses 1.2k mark so makes sense to buy a usb headphone investing few more bucks.
USB C is there at rear end/backpanel of my mobo which again isnt feasible for my usage. My cabinet front panel got no usb c (old cabinet)

So it should be 3.5mm to usb type-A with mic working flawlessly.
Click to expand...
I can't promise working flawlessly unless you confirm what the headset is by the way I mentioned earlier using a multimeter. Unless there is another simpler way to distinguish between the two standards (CTIA or OMTP) without it.

I figured you'd want a type A converter. You're going to have to gamble. Does not work, eat the loss and try another.

A to C Adapters just add an extra layer of complication for no reason. It will work though if you use that apple dongle as then the DAC is contained in the apple dongle so the a to c adapter just has to pass data. Charge only won't work. The adapter has to support data because that is what is being passed through to be converted to analogue. IN theory that should work.
t3chg33k said:
Not all adapters are equal. Most cheap ones can only transmit power, some data, few audio signals. The Type C DAC will not work with just any USB-A adapter. It makes sense to only get a USB-A DAC.

In the past also had issues with DACs that supported only OMTP controls while Sennheiser always supported CTIA, which generally meant microphones don't work along with the skip controls.
Click to expand...
Those buttons is another open question. What do you need to make those work?

Or are you saying once we get this CTIA/OMTP crap correct then the skip controls work as well.


This guy does not address the mic part in the video its only in the comments he says that zoom works hence mic too.


Last edited:
Just going by title. I have these and they work flawlessly. From DELL

blr_p said:
What headset are you using? does it have a name? Post a photo

Since you have not tested it i figure you don't have access to a multimeter
Click to expand...
No I dont have a multimeter or any such instruments or tools.
Headphones/earphones are JBL, Philips and BOAT!
No model no as they are at least 3yrs old but working awesome.

blr_p said:
Its not by Dell its by Jabra and it ain't available in India


You can get the evolve 40 link though

Jabra Evolve 40 Link

www.jabra.in www.jabra.in

Price is going to be a few thousands I bet
Click to expand...

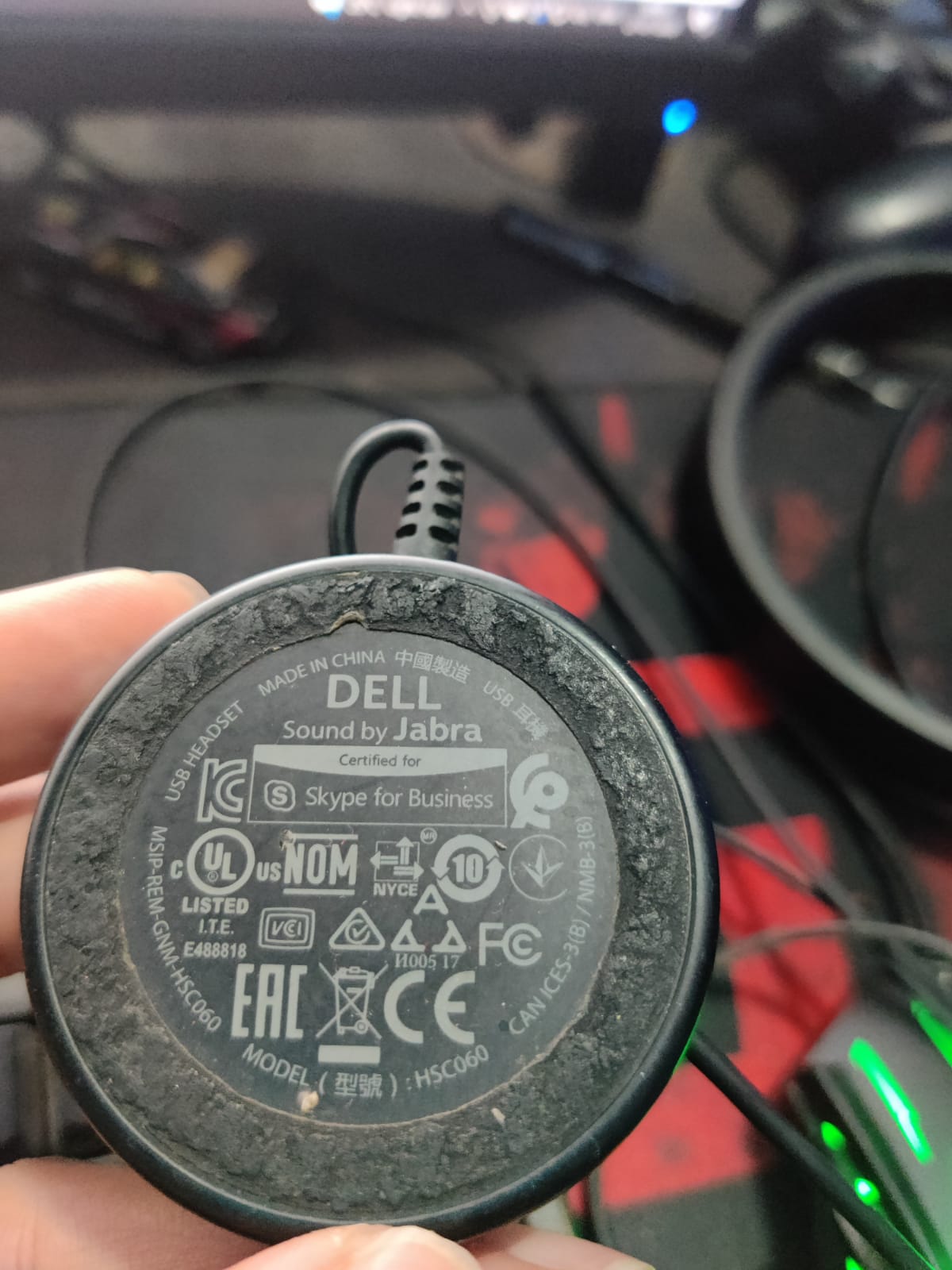

It's by Dell only. It says "sound by Jabra"

WhatsApp Image 2022-07-27 at 12.04.15 AM.jpeg


nRiTeCh said:
Can you use any 3.5mm headphones through this and be able to use mic as well?

Can you et know if theres any model no for this connector thing or with which dell product it came bundled?
Click to expand...
I've only used the Dell headphone it came bundled with and yes mic works through it.
The model of connector is HSC060. The model of headphones it came bundled with is UC350 https://www.amazon.in/Dell-Pro-Ster...ro+stereo+headset+uc350&qid=1658860696&sr=8-3

thugz_doge said:
It's by Dell only. It says "sound by Jabra"

View attachment 140876
Click to expand...
Do you see the code HSC060?

It's a Dell rebrand of the Jabra Evolve 30

I'm sure it works great with everything on a PC.
nRiTeCh said:
No I dont have a multimeter or any such instruments or tools.
Headphones/earphones are JBL, Philips and BOAT!
Click to expand...
Ah, it's not headset but headset(s) :woot:

I guess the JBL & Phillips are CTIA and the BOAT is likely OMTP

Seems only options remaining is about gamble and risk!
Click to expand...

Get an OMTP to CTIA converter

Phenovo 3.5mm Audio Plug CTIA to OMTP/OMTP to CTIA Converter Adapter for Phones Earphone: Buy Phenovo 3.5mm Audio Plug CTIA to OMTP/OMTP to CTIA Converter Adapter for Phones Earphone Online at Low Price in India - Amazon.in

Amazon.in: Buy Phenovo 3.5mm Audio Plug CTIA to OMTP/OMTP to CTIA Converter Adapter for Phones Earphone online at low price in India. Check out Phenovo 3.5mm Audio Plug CTIA to OMTP/OMTP to CTIA Converter Adapter for Phones Earphone features, specifications, reviews, ratings and more at...
www.amazon.in

An adapter with a pigtail would be better because there is no strain relief otherwise. Something like this but it requires an OMTP USB adapter. Will NOT work with the USB adapter below (!)






And the CTIA USB a to 3.5mm
puns said:
mic not working is an issue with these usb converters
what @prime has posted should work. https://www.amazon.in/INICIO-External-Headphone-Microphone-Desktops/dp/B07W3D3P5W/
Click to expand...

@nRiTeCh If your headsets are CTIA they will work by default. If not use the OMTP converter to make them CTIA

Just get the adapter puns recommended. See how many of your headsets work. Maybe all will in which case closed. If not THEN get the omtp-ctia adapter.

How about that

Last edited:
blr_p said:
Do you see the code HSC060?

It's a Dell rebrand of the Jabra Evolve 30

I'm sure it works great with everything on a PC.

Ah, it's not headset but headset(s) :woot:

I guess the JBL & Phillips are CTIA and the BOAT is likely OMTP



Get an OMTP to CTIA converter

Phenovo 3.5mm Audio Plug CTIA to OMTP/OMTP to CTIA Converter Adapter for Phones Earphone: Buy Phenovo 3.5mm Audio Plug CTIA to OMTP/OMTP to CTIA Converter Adapter for Phones Earphone Online at Low Price in India - Amazon.in

Amazon.in: Buy Phenovo 3.5mm Audio Plug CTIA to OMTP/OMTP to CTIA Converter Adapter for Phones Earphone online at low price in India. Check out Phenovo 3.5mm Audio Plug CTIA to OMTP/OMTP to CTIA Converter Adapter for Phones Earphone features, specifications, reviews, ratings and more at...
www.amazon.in

An adapter with a pigtail would be better because there is no strain relief otherwise. Something like this but it requires an OMTP USB adapter. Will NOT work with the USB adapter below (!)






And the CTIA USB a to 3.5mm


@nRiTeCh If your headsets are CTIA they will work by default. If not use the OMTP converter to make them CTIA

Just get the adapter puns recommended. See how many of your headsets work. Maybe all will in which case closed. If not THEN get the omtp-ctia adapter.

How about that
Click to expand...
Arey!!!

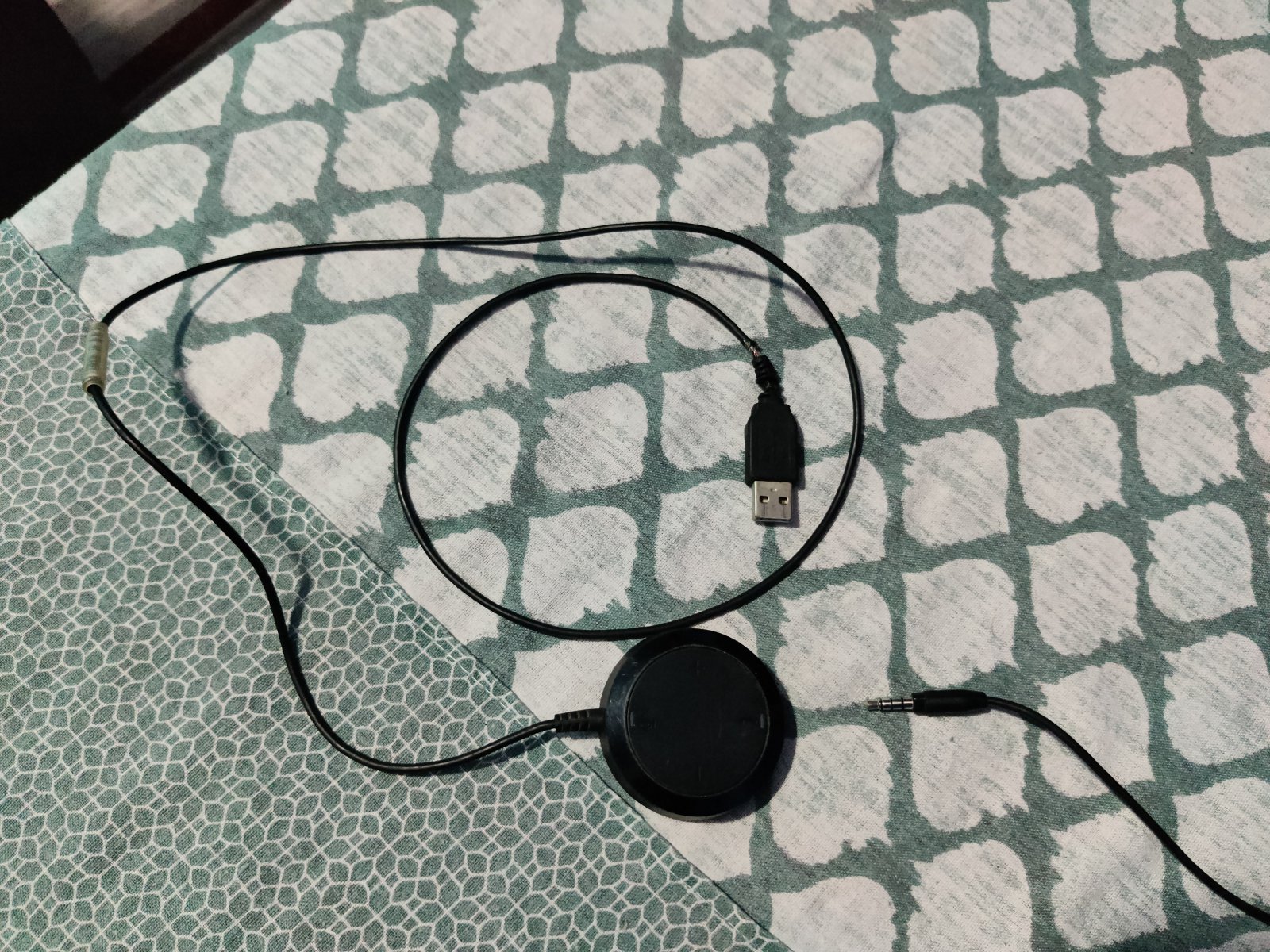

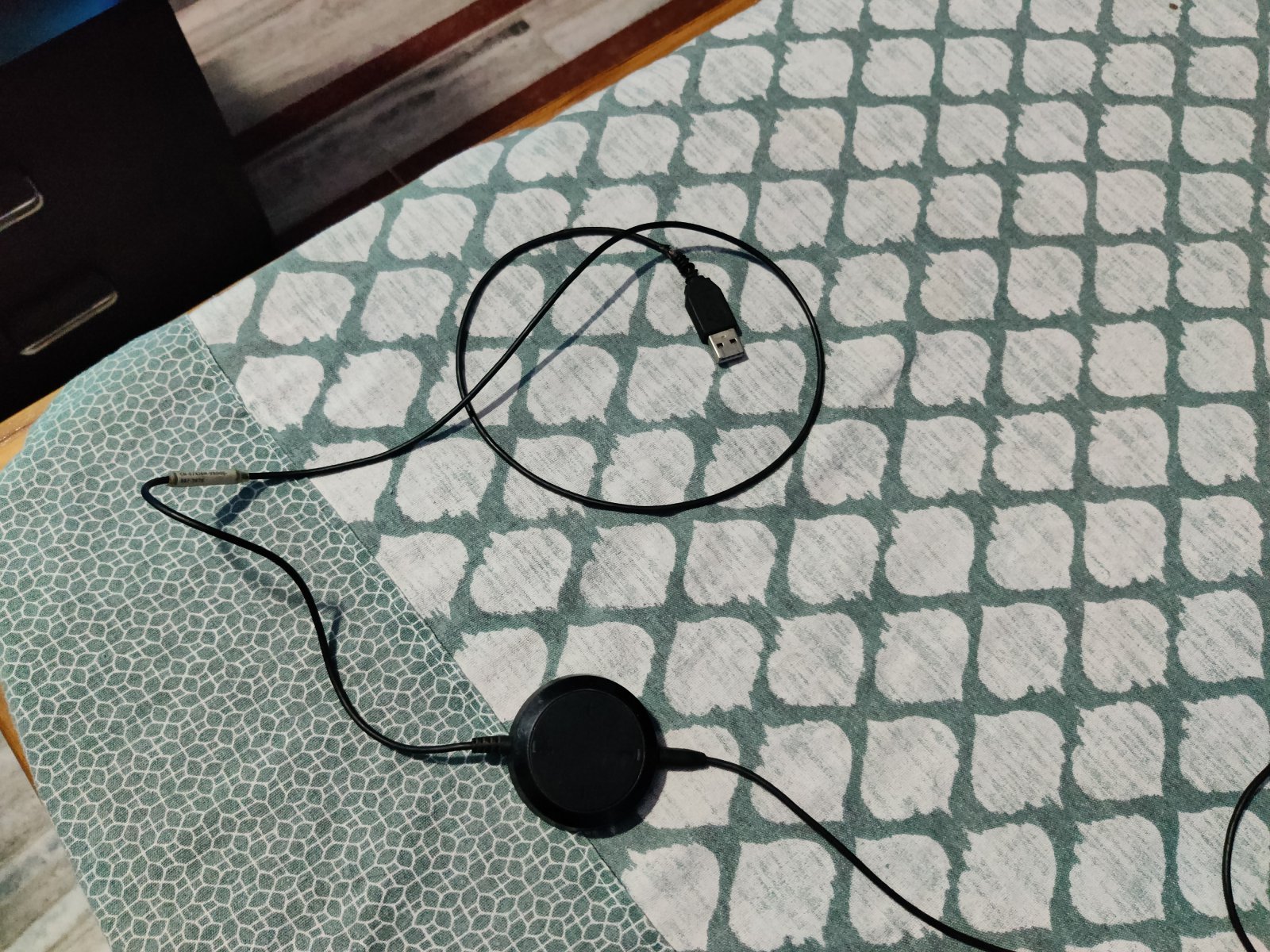

I have already mentioned with pics 3 those headphones (they are TRSS) and the cable puns recommended.
If any 2 of those work will do as in if boat one is omtp I'm least bothered I wont use it.
