dez
Disciple
Thanks, glad you liked it.
dez
Disciple
Update #9
So, as promised by Nils, I received the MD-PC sleeves in exactly 14 days. (German precision at work
).
As promised, a custom Easter bunny sketch for me.
Also came with a spiffin' good set of stamps! (Not a collector or anything of those sorts, but damn, these a beautiful).
Sleeves in all their glory. Oh look! Some colored ones snuck themselves in there without Nils knowing
Quick mention about quality: the OKGear ones shit themselves in front of the MD-PC ones. So do the Paracord ones. To be very honest, the quality of these is probably the best out there! No wonder everyone uses them. Absolutely worth the 14-day wait and excitement build up! (oh, Anxiety too)
Nonetheless, since I get an extra 9-12m of sleeve, I was able to experiment a little today, and get things moving. Ohk, now before you bring out the critics, please do note, this is my very first time, sleeving any cables. Thus, the extra sleeves help in this case.
Here are the results.
This is the GPU's power connector. As you can probably tell, I couldn't get the heat shrinks to line up properly, but that isn't a problem. I later figured out how to do it absolutely right! That said, the cables that come with the RM 750 have connectors which are slightly longer, so Lutr0's or Nils' tutorials on getting the heat-shrink on didn't quite work well for me. So I had to come up with my own. Now that I have a better understanding, and a good 2-3m from the extras left, I can experiment on another cable once more I suppose, before I go all out on the 24-pin cable.
Now just to compare the MD-PC ones with the (oh, hell NAW!) OKGear ones, here are some shots of the SATA cables I did.
Yep, that's some UV Red sleeving I got. They accidentally shipped that instead of the standard one. Huzzah! (Damn it! I still can't get those heat shrinks right, but these were done a week ago. I'll do a spiffin' job next time). The Red one goes to my OS SDD, while the black ones are for the storage and backup drives. I still need to do 2 more of these, before I can call it day on the SATA cables. However, now that I have the MD-PC ones, it should be more fun.
Tomorrow's a Sunday. These MD-PC sleeves couldn't have come at a better time. I'll be taking a shot at the 24-pin ones. The GPU's 8x2 took me approximately 2 hours to complete (wow, that's quite a lot now that I think of it). It probably took long due to how Corsair loops various wires to reduce manufacturing costs. But the 24-pin cables are fairly straight-forward. 1 cable per pin, however, the heads that go in to the PSU itself are split into 2, with various loops. So I'm planning to go with a wider sleeve from the PSU end unto 3/4th of the cable, and from there onwards, do single cable sleeves. I hope I can pull that one off with finesse. Wish me luck!
So, as promised by Nils, I received the MD-PC sleeves in exactly 14 days. (German precision at work
).As promised, a custom Easter bunny sketch for me.
Also came with a spiffin' good set of stamps! (Not a collector or anything of those sorts, but damn, these a beautiful).
Sleeves in all their glory. Oh look! Some colored ones snuck themselves in there without Nils knowing
Quick mention about quality: the OKGear ones shit themselves in front of the MD-PC ones. So do the Paracord ones. To be very honest, the quality of these is probably the best out there! No wonder everyone uses them. Absolutely worth the 14-day wait and excitement build up! (oh, Anxiety too
)Nonetheless, since I get an extra 9-12m of sleeve, I was able to experiment a little today, and get things moving. Ohk, now before you bring out the critics, please do note, this is my very first time, sleeving any cables. Thus, the extra sleeves help in this case.
Here are the results.
This is the GPU's power connector. As you can probably tell, I couldn't get the heat shrinks to line up properly, but that isn't a problem. I later figured out how to do it absolutely right! That said, the cables that come with the RM 750 have connectors which are slightly longer, so Lutr0's or Nils' tutorials on getting the heat-shrink on didn't quite work well for me. So I had to come up with my own. Now that I have a better understanding, and a good 2-3m from the extras left, I can experiment on another cable once more I suppose, before I go all out on the 24-pin cable.
Now just to compare the MD-PC ones with the (oh, hell NAW!) OKGear ones, here are some shots of the SATA cables I did.
Yep, that's some UV Red sleeving I got. They accidentally shipped that instead of the standard one. Huzzah!
(Damn it! I still can't get those heat shrinks right, but these were done a week ago. I'll do a spiffin' job next time). The Red one goes to my OS SDD, while the black ones are for the storage and backup drives. I still need to do 2 more of these, before I can call it day on the SATA cables. However, now that I have the MD-PC ones, it should be more fun.Tomorrow's a Sunday. These MD-PC sleeves couldn't have come at a better time. I'll be taking a shot at the 24-pin ones. The GPU's 8x2 took me approximately 2 hours to complete (wow, that's quite a lot now that I think of it). It probably took long due to how Corsair loops various wires to reduce manufacturing costs. But the 24-pin cables are fairly straight-forward. 1 cable per pin, however, the heads that go in to the PSU itself are split into 2, with various loops. So I'm planning to go with a wider sleeve from the PSU end unto 3/4th of the cable, and from there onwards, do single cable sleeves. I hope I can pull that one off with finesse. Wish me luck!
dez
Disciple
Looks awesome and great job with the sleeving
BEST OF LUCK .
Thanks guys.
#Update 10
I've been waiting to make this update since #3
I finished sleeving the 24-pin cable on Sunday. Took me 4 hours from start to finish, and tidying up messy heat-shrinks. I also sleeved the custom (terrible looking) cables which are connected to the LED lights. In the process, I managed to create smoke after turning the system on. Lesson learnt: don't always rely on the damn electrical tape. Solder things when in doubt!
Anyhow, after all was good, I was able to grab these shots.
And now pending at the 8-pin MoBo cable, and the Fan cables. But I suppose I'm mostly done with the build for now. Next up will be the 8XX series GPUs from Nvidia so I can go for an SLI build as well as a custom WC. Thanks for entertaining my non-sense and some awesome build shots for so long.
With
, D3Z!
mrnikhilsudo
Disciple
Am gonna watch this thread. What bootloader are you using for OSX ? Chammy or Clover EFI? Would like to know. Am gonna build one soon for a Logicpro setup.
Also did you have to do an Applehda kext edit or did it just work?
Also did you have to do an Applehda kext edit or did it just work?
dez
Disciple
Sorry for incredibly late reply. Was away for work. I'm using Chimera for now. Plan to migrate to Clover EFI. I'm using the 1150 patch from Multibeast to get the audio working (Confirmed for Yosemite and Mavericks). PM me if you have any questions. Cheers.
dez
Disciple
Thanks man! Appreciate it. Although, I know I can do better. So I'm waiting for a couple of bundles from MDPCNicely done. Great work
...You really worked hard on this.
SATA cable sleeves look super !!
dez
Disciple
UPDATE #11
So glad to be back on this thread with updates. Before I begin, I'd like to thank toolius for helping me sort questions regarding my WC loops. Also to dovakhiin for clearing me doubts about ordering parts.
So, I'll keep the parts out of this post for now, since they haven't arrived yet (hell, they aren't even on the Indian soil yet, which probably explains my excitement). And also because the list has changed quite a bit.
But, some other stuff has arrived viz, some more fans and a hub to connect all the fans.
I wish I could get some SP120s in there, since my experience with them has been super, but budget constraints for now. So i'll be upgrading these later on, until then, these'll fill in the role.
So glad to be back on this thread with updates. Before I begin, I'd like to thank toolius for helping me sort questions regarding my WC loops. Also to dovakhiin for clearing me doubts about ordering parts.
So, I'll keep the parts out of this post for now, since they haven't arrived yet (hell, they aren't even on the Indian soil yet, which probably explains my excitement). And also because the list has changed quite a bit.
But, some other stuff has arrived viz, some more fans and a hub to connect all the fans.
I wish I could get some SP120s in there, since my experience with them has been super, but budget constraints for now. So i'll be upgrading these later on, until then, these'll fill in the role.
dez
Disciple
UPDATE #12
Since the last time I posted something substantial here (apart from Update #11), a couple of things were updated in the build.

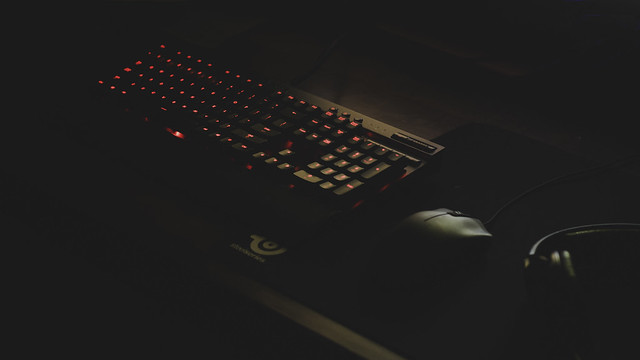

1. Corsair K70 CherryMX Red and Razer Deathadder 3.0 Black edition.

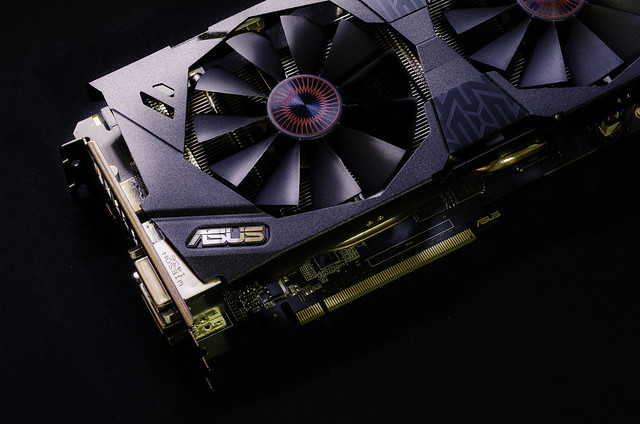

2. The the GTX 970 Strix was added to power the massive Asus PB278Q

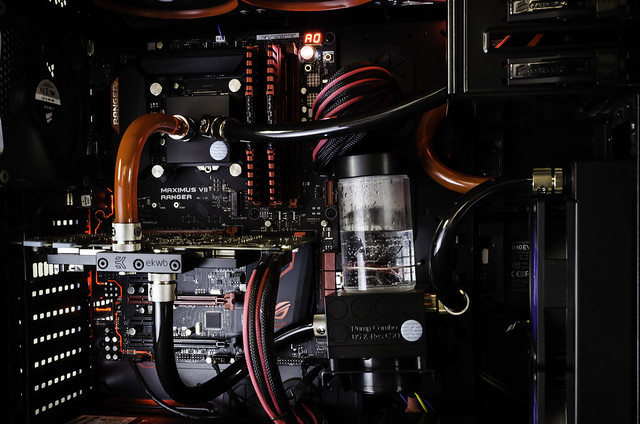

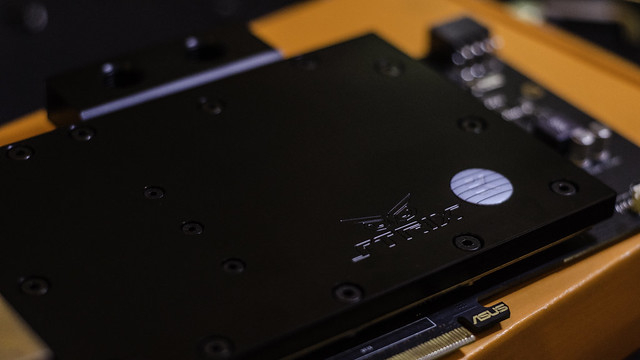

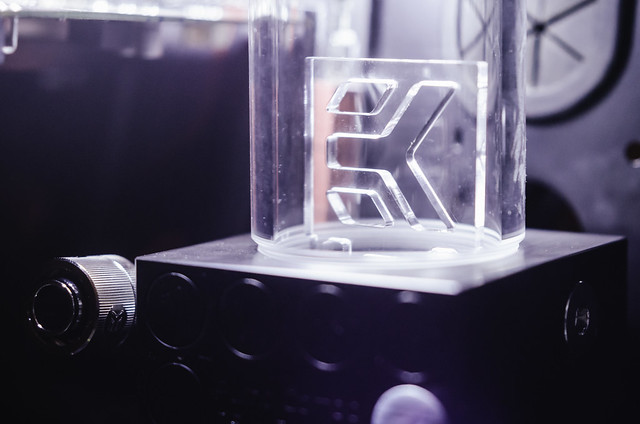

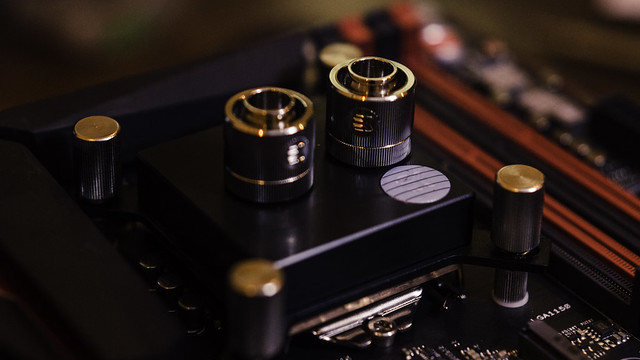

Then, came the EKWB parts. Oh boy, what a rush that was. Took me 2 straight days to unbuild and rebuild the system. In all honesty, the 750D looks like shit without anything inside it. (I suppose that's the case with any case )

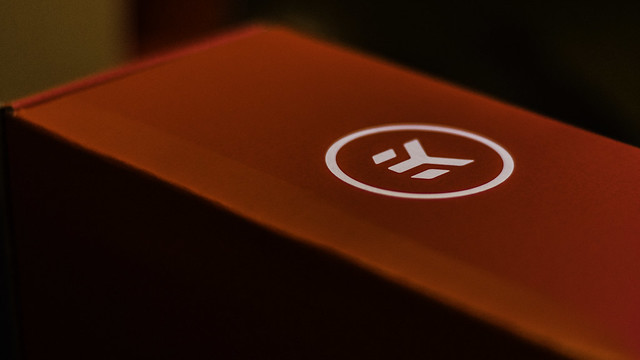

Digg the new packaging. Absolutely gorgeous.

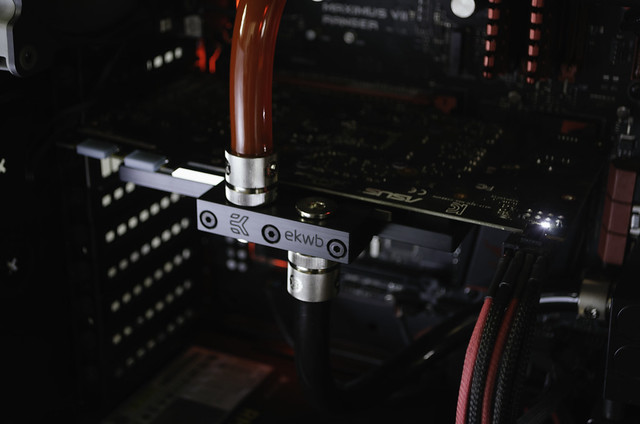

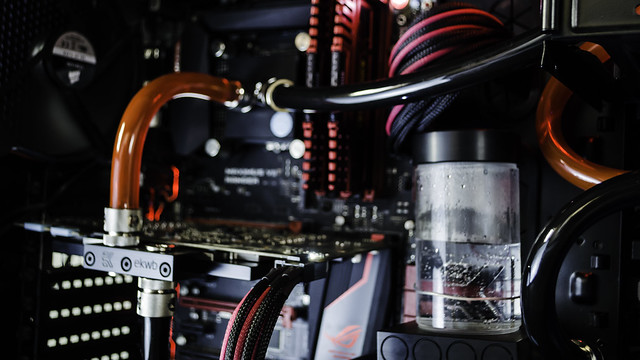

Shot when doing a trial run for the lights (still not setup, not entirely sure how I want to be. Managing highlights on these pipes is proving to be rather tricky)

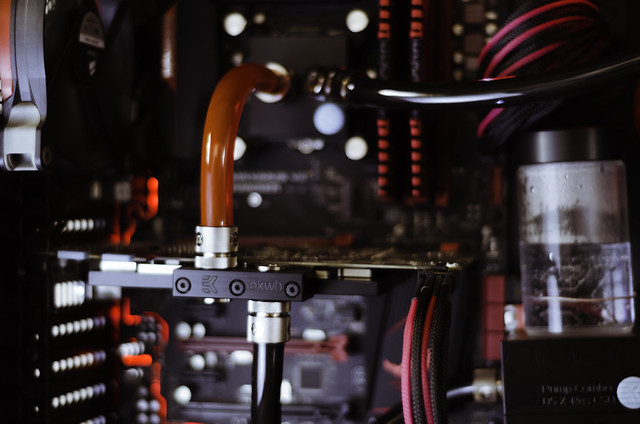

Ah crap! I screwed up one of the red sleeves. Will probably redo this without the heat shrink this time round.

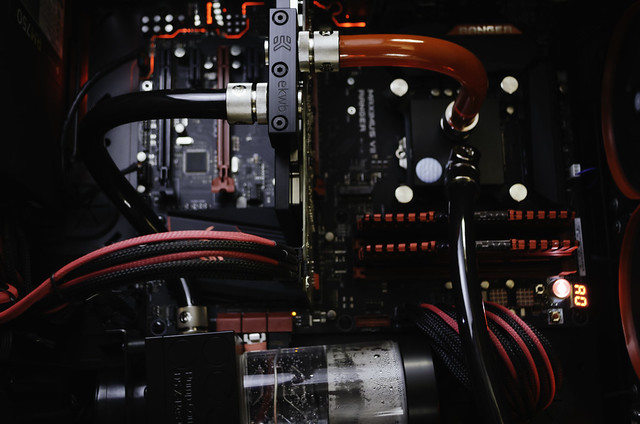

This one's just to mess with you. *excuse me*

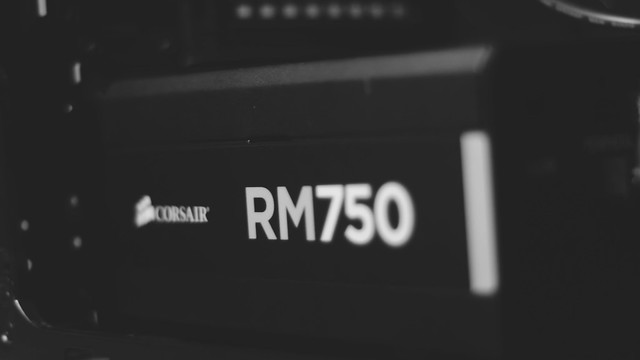

Finally, the beast powering it all (I'm a little worried about this guy now. It never seems to run it's massive fan. Maybe I'm not drawing enough power from it, which is a good thing).
The results:
IDLE - Day time (noon):
Ambient Room: 30ºC
Ambient Case: 31ºC
CPU: 29-30ºC (varied between that range over a period of 5min)
GPU: 29-31ºC (varied between that range over a period of 15min)
IDLE - Night time
Ambient Room: 22ºC
Ambient Case: 21ºC
CPU: 24-26ºC (varied between that range over a period of 5min)
GPU: 28-30ºC (varied between that range over a period of 15min)
The load tests were done running DotA2, Tomb Raider (2013) and NSF Most Wanted (newer, and I know, this is a silly game to test with since it isn't demanding, but that's the only one I had installed at the time). The average temperature is posted.
LOAD - Day time (noon):
Ambient Room: 30ºC
Ambient Case: 33ºC
CPU: 34ºC (varied between that range over a period of 5min)
GPU: 34ºC (varied between that range over a period of 15min)
LOAD - Night time
Ambient Room: 22ºC
Ambient Case: 23ºC
CPU: 29ºC (varied between that range over a period of 5min)
GPU: 31ºC (varied between that range over a period of 15min)
So, you wonderfulcommunists community folks, thank you for riding with me on this one. It's been some solid 6 months, and another 2 for planning this build out. I appreciate all your feedback, criticism and love.
This is the last update to this build log. Until next time. (Oh! And I'll make sure there's a next time )
Since the last time I posted something substantial here (apart from Update #11), a couple of things were updated in the build.
1. Corsair K70 CherryMX Red and Razer Deathadder 3.0 Black edition.
2. The the GTX 970 Strix was added to power the massive Asus PB278Q
Then, came the EKWB parts. Oh boy, what a rush that was. Took me 2 straight days to unbuild and rebuild the system. In all honesty, the 750D looks like shit without anything inside it.
(I suppose that's the case with any case )Digg the new packaging. Absolutely gorgeous.
Shot when doing a trial run for the lights (still not setup, not entirely sure how I want to be. Managing highlights on these pipes is proving to be rather tricky)
Ah crap! I screwed up one of the red sleeves. Will probably redo this without the heat shrink this time round.
This one's just to mess with you. *excuse me*
Finally, the beast powering it all (I'm a little worried about this guy now. It never seems to run it's massive fan. Maybe I'm not drawing enough power from it, which is a good thing).
The results:
IDLE - Day time (noon):
Ambient Room: 30ºC
Ambient Case: 31ºC
CPU: 29-30ºC (varied between that range over a period of 5min)
GPU: 29-31ºC (varied between that range over a period of 15min)
IDLE - Night time
Ambient Room: 22ºC
Ambient Case: 21ºC
CPU: 24-26ºC (varied between that range over a period of 5min)
GPU: 28-30ºC (varied between that range over a period of 15min)
The load tests were done running DotA2, Tomb Raider (2013) and NSF Most Wanted (newer, and I know, this is a silly game to test with since it isn't demanding, but that's the only one I had installed at the time). The average temperature is posted.
LOAD - Day time (noon):
Ambient Room: 30ºC
Ambient Case: 33ºC
CPU: 34ºC (varied between that range over a period of 5min)
GPU: 34ºC (varied between that range over a period of 15min)
LOAD - Night time
Ambient Room: 22ºC
Ambient Case: 23ºC
CPU: 29ºC (varied between that range over a period of 5min)
GPU: 31ºC (varied between that range over a period of 15min)
So, you wonderful
This is the last update to this build log. Until next time. (Oh! And I'll make sure there's a next time
)
goDofWar_skr
Adept
Awesome pics
What camera was used to click the pics?
What camera was used to click the pics?
dez
Disciple
The modest D7000 and the 50mm f/1.4 lens.Awesome pics
What camera was used to click the pics?
dez
Disciple
Thanks, man. Yeah, please account my bills for the anxiety meds too.You're being too modest when you say D7000
