Project White Knight : Air Cooling at it's Best..

[NAV33N]

Thank you for appreciating .

i haven't cut the case yet,but all the markings are done & i will soon cut it.

the problem is that i don't have access to power tools like a dremel except a drill machine.

unfortunately i will have to cut the case old school style using saw blade.



[mav2000]

You can get a good B&D cutting tool for less than 3k shipped...



[NAV33N]

UPDATE - 21/12/2010

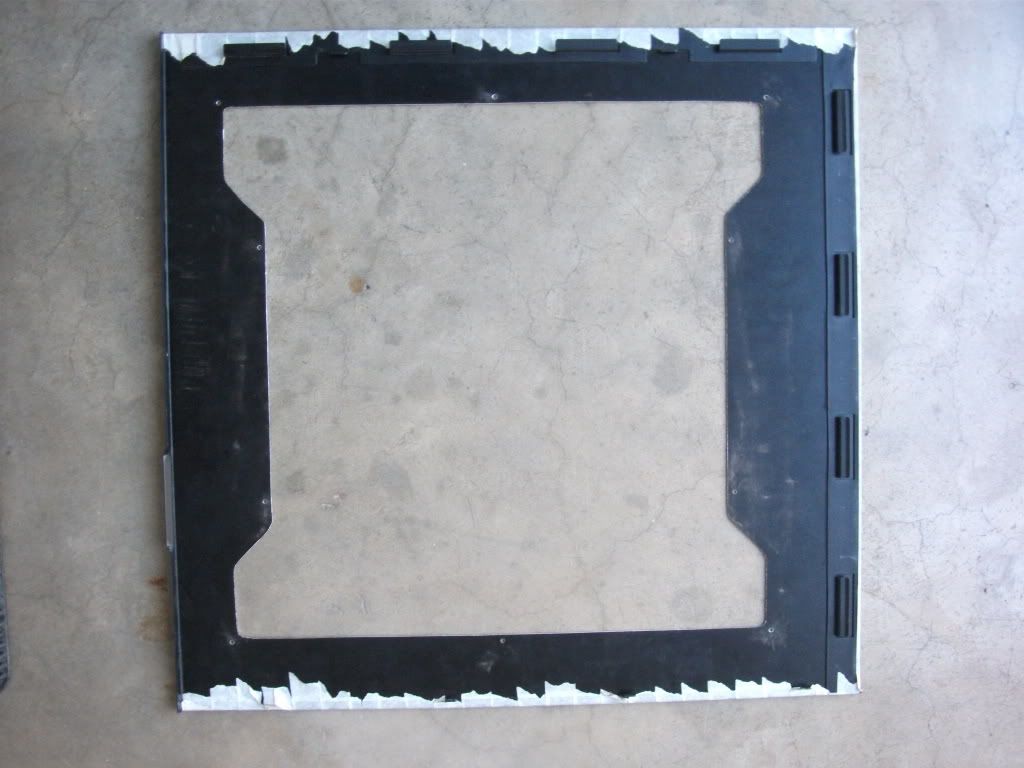

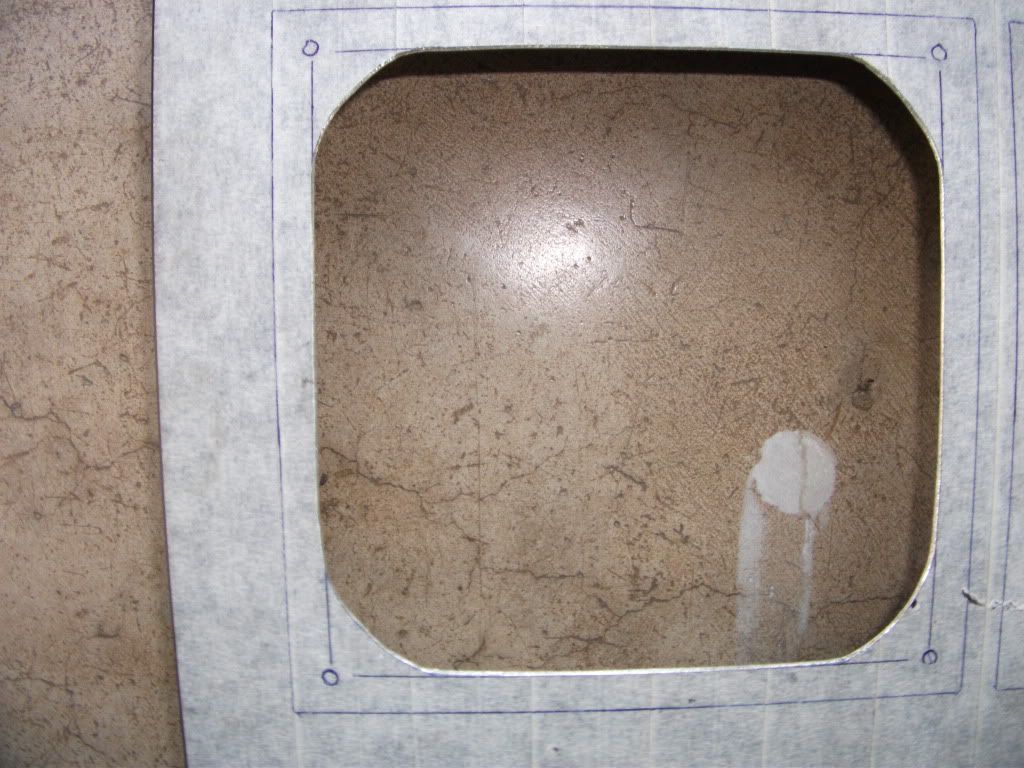

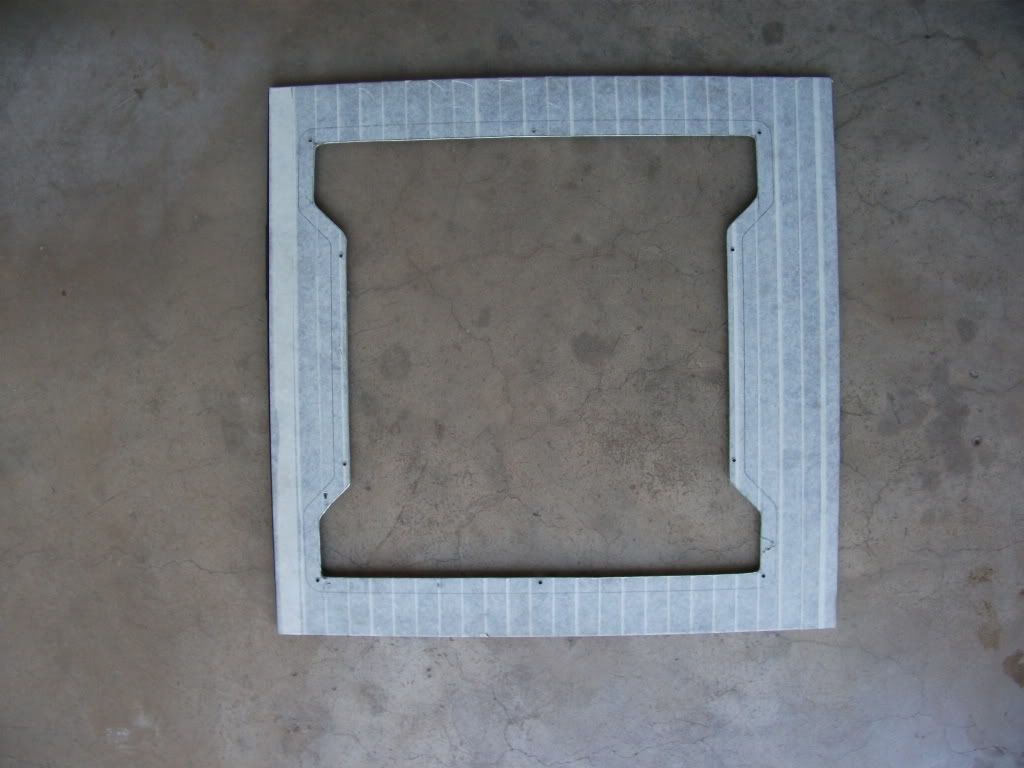

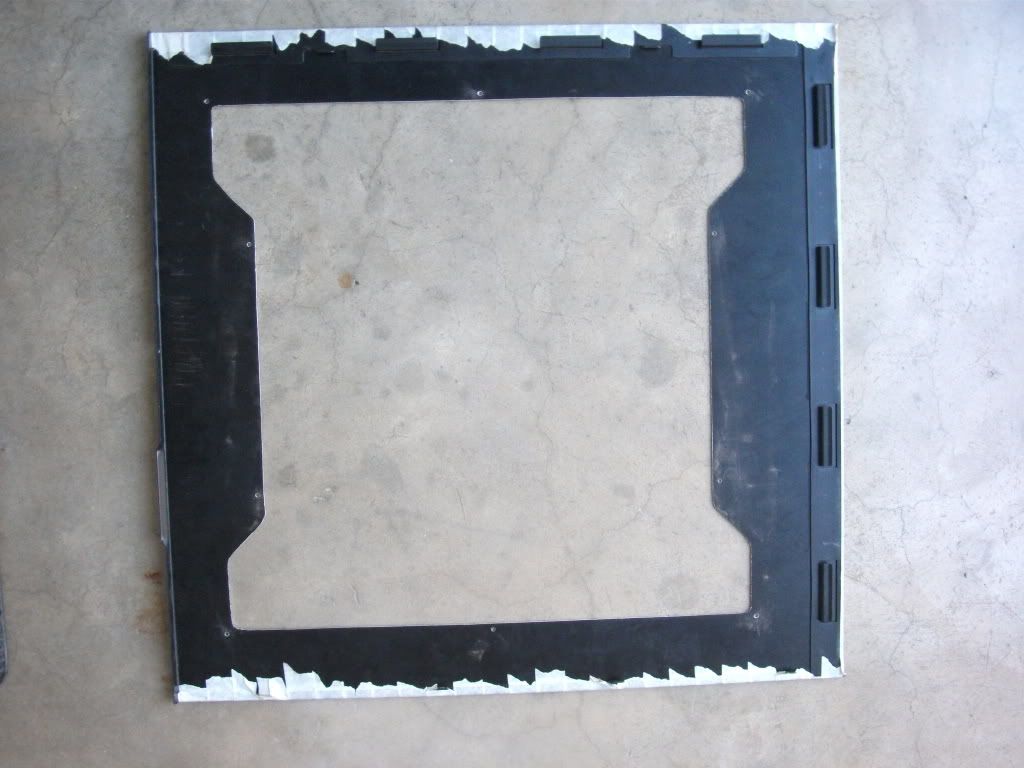

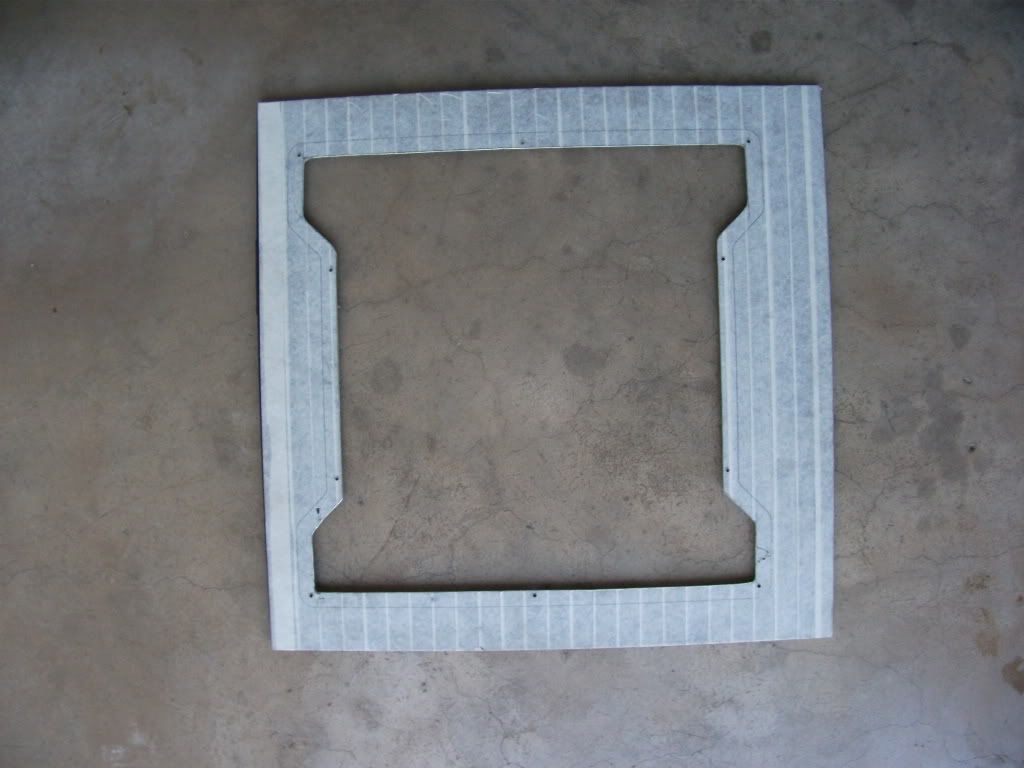

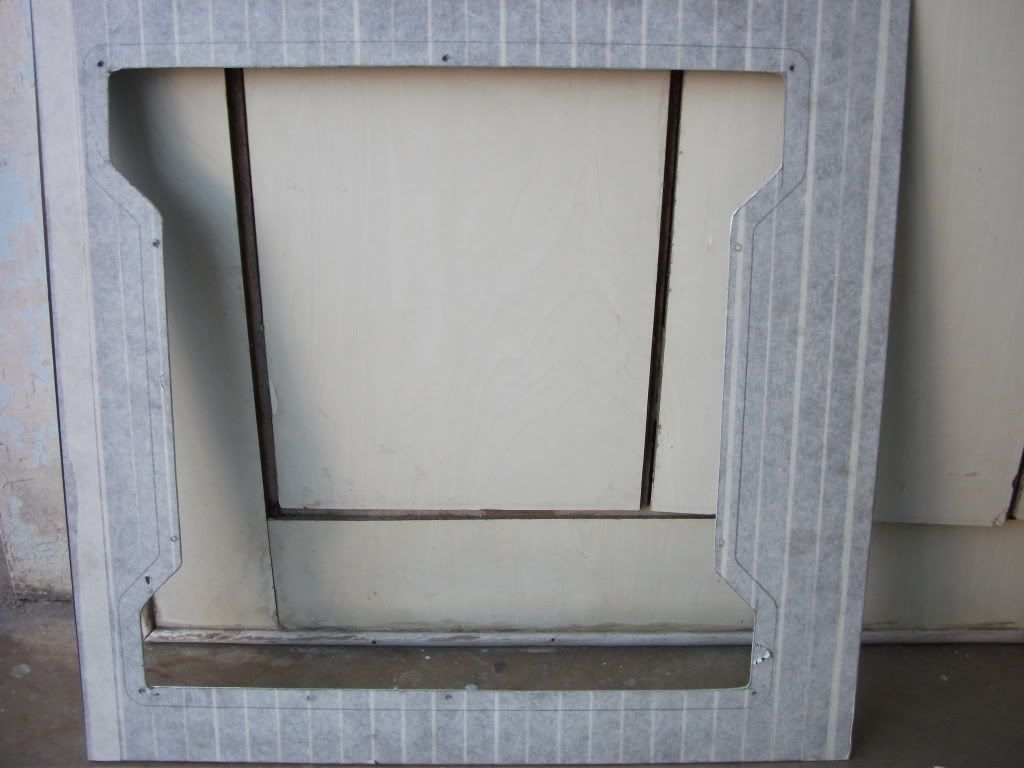

Finally i was able to cut the side panel.

it took me about 5 hours to cut it & file it.

i used a 1/8" drill bit & drilled some holes out then i used a saw blade to cut it & after filing it here's the result.

i think it's almost perfect.

what do you guyz think??



[cyberwarfare]

this my friend is truly awesome

cheers bro and keep it up and keep us posted



[NAV33N]

this my fried is truly awesome

cheers bro and keep it up and keep us posted

Thanks Man.

even i'm more than satisfied with the results..



[princeoo7]

thats pretty ooooooooooooooooooooooooosome :0



[NAV33N]

thats pretty ooooooooooooooooooooooooosome :0

Thanks Man



[NAV33N]

UPDATE - 26/12/2010

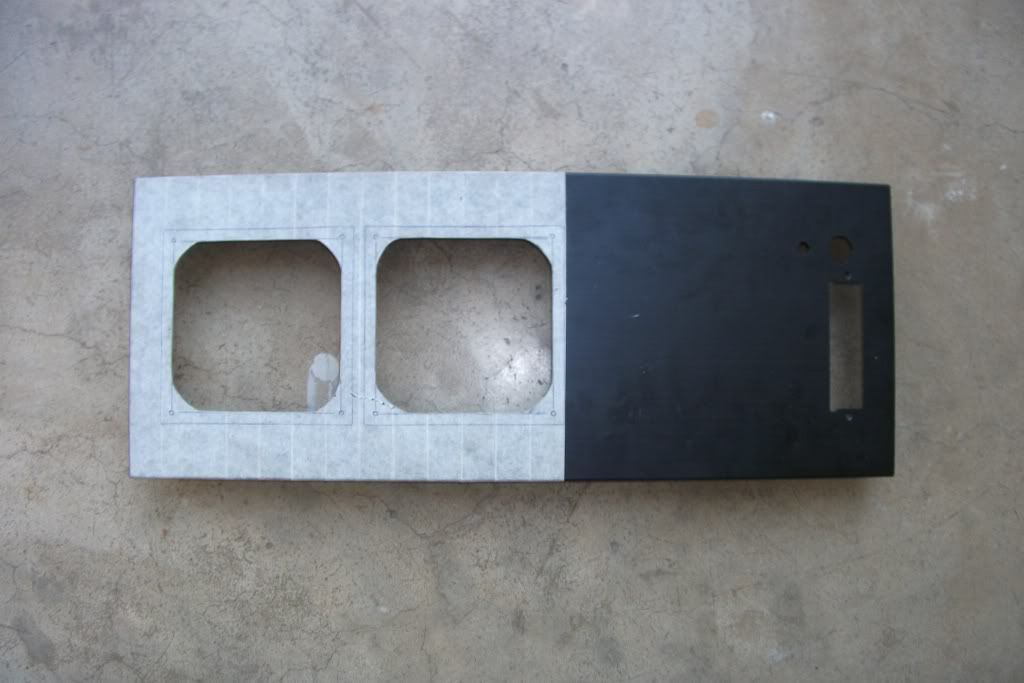

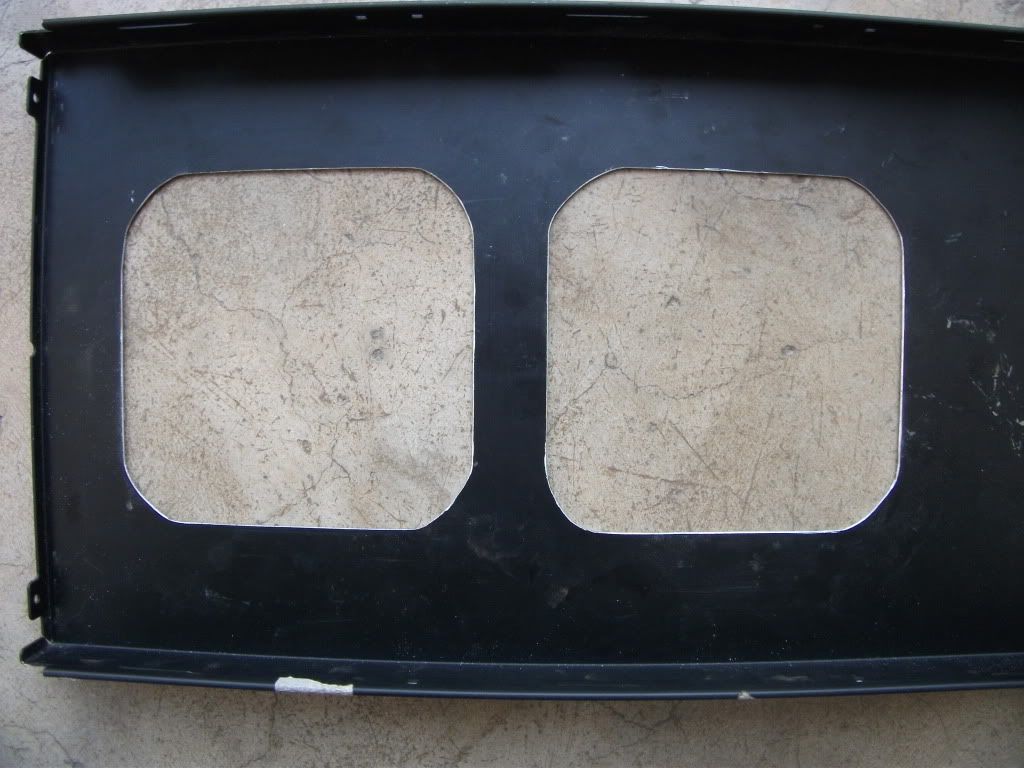

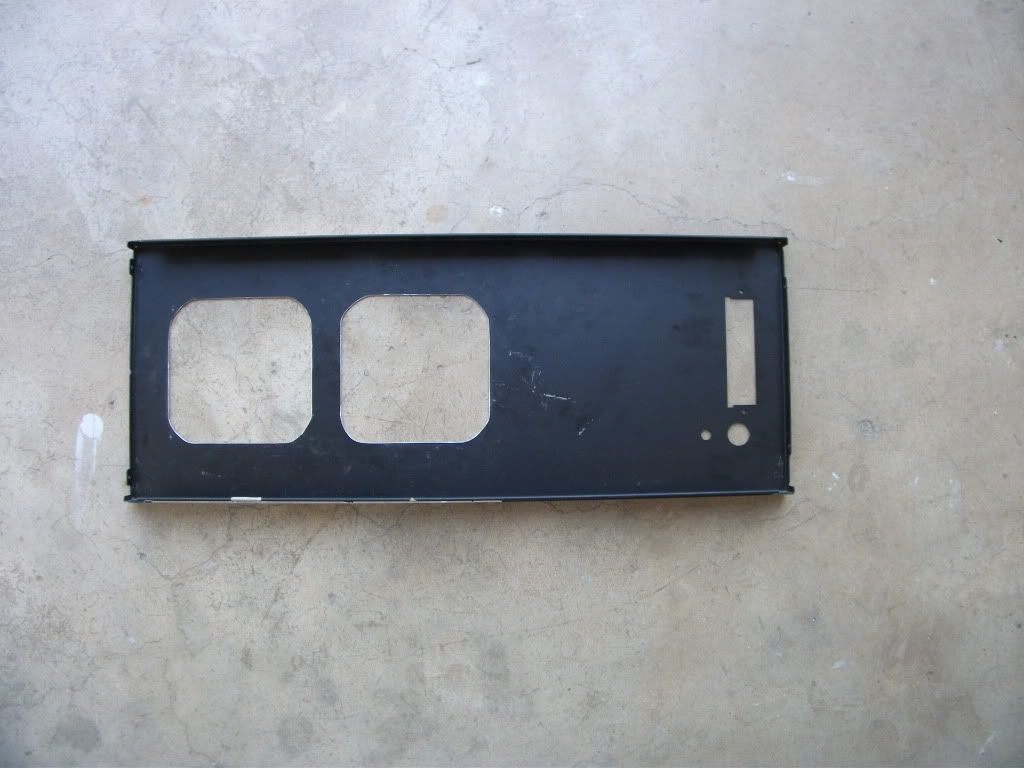

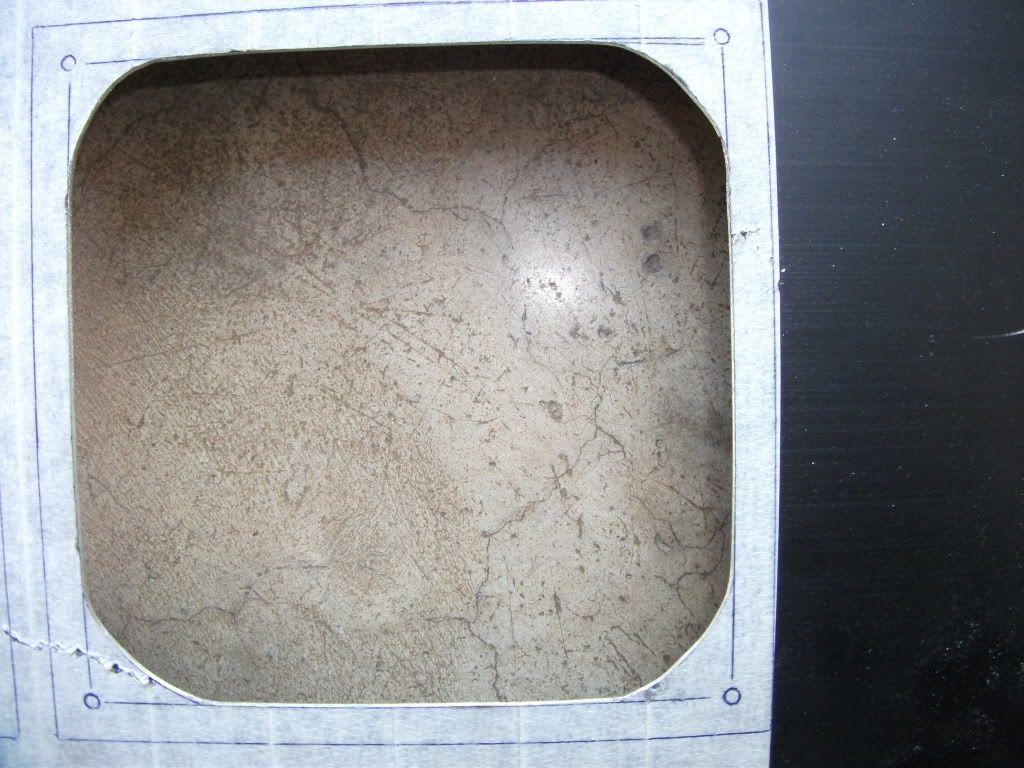

Got some free time to work & completed the top panel.

i used a 1/8" drill bit to drill a series of holes inside the line,filed it & then sanded it to make it look professional.

here's how it looks like -

so,what do you guyz think??

will start preparing the outer panels for the case for paint from now on



[hunt3r]

I must say, you are a man of extreme patience Great work, would love to see the final result



[NAV33N]

^ Thanks



[princeoo7]

thats preety accurate cutting dude



[NAV33N]

thats preety accurate cutting dude

i like doing things slowly,but with perfection



[NAV33N]

UPDATE - 30/12/2010

I Searched for a Professional Painter in my city & came across one.

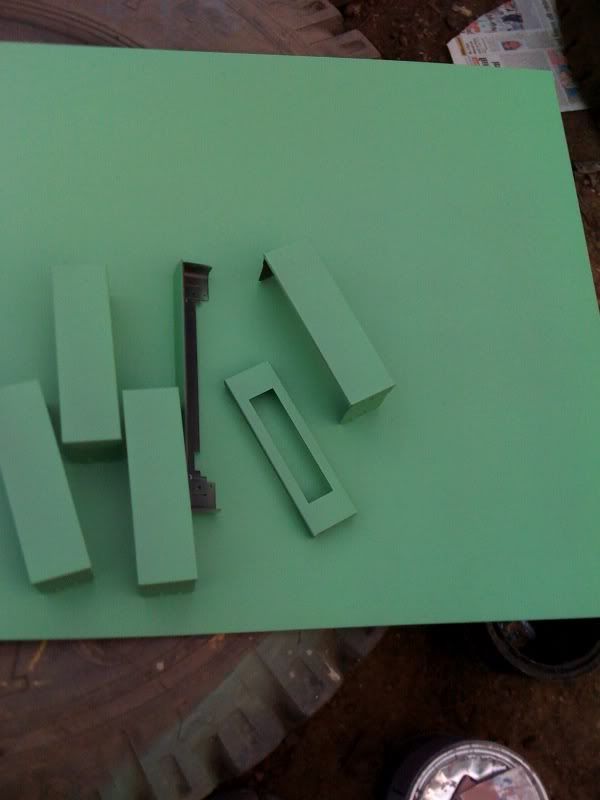

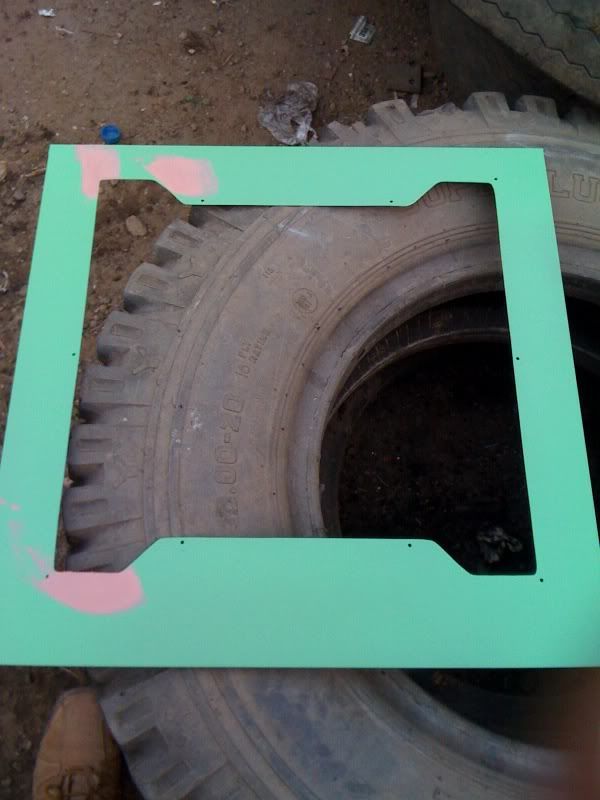

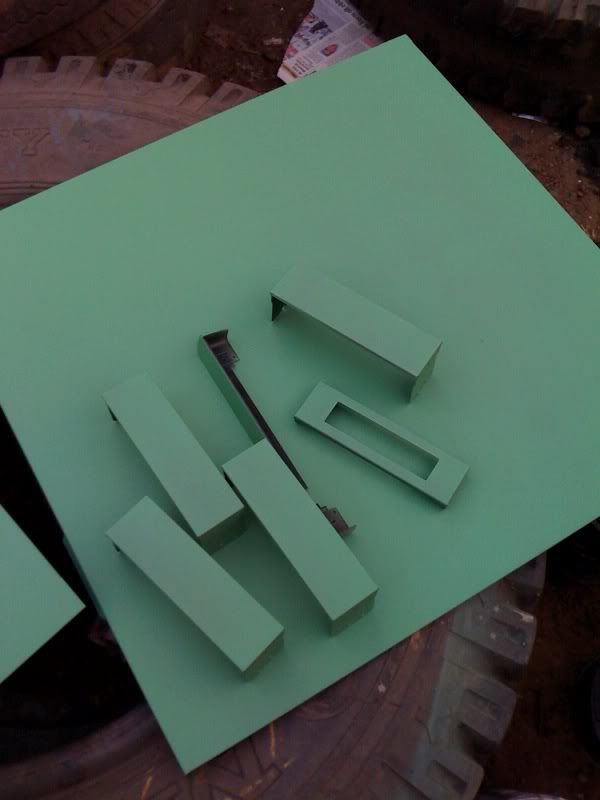

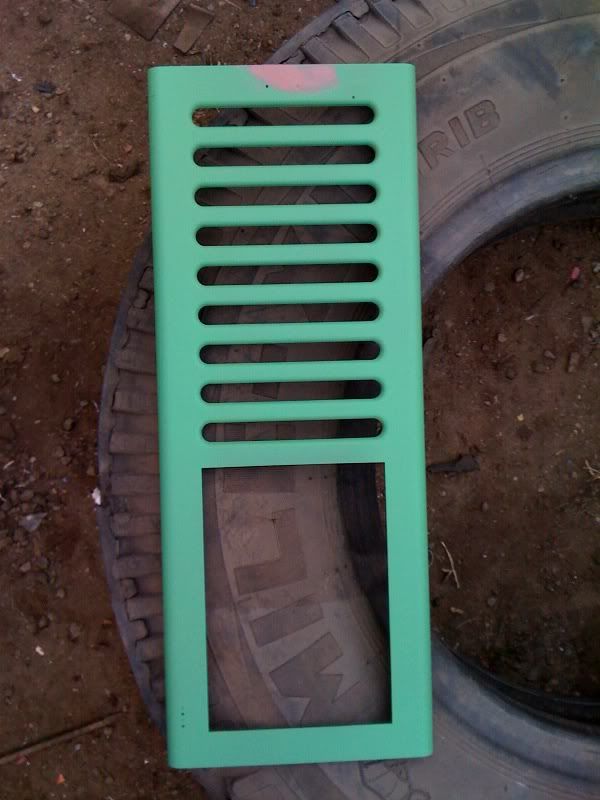

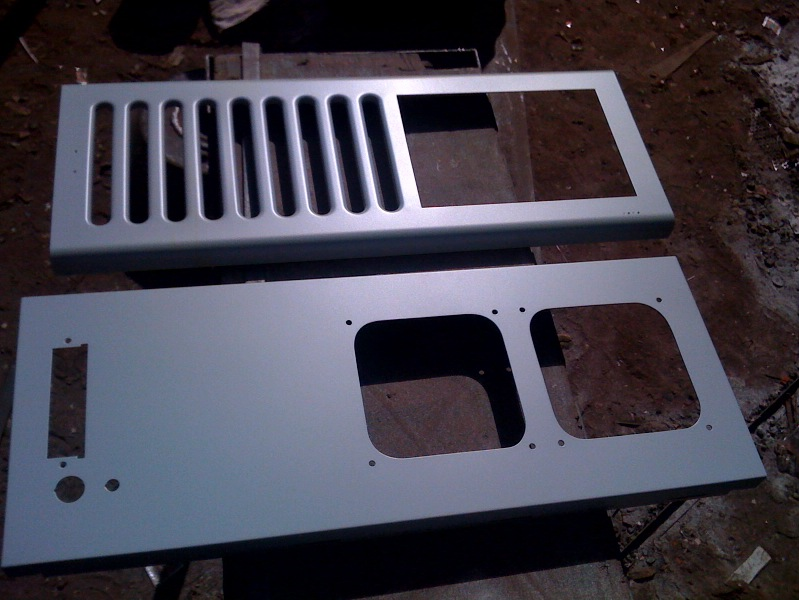

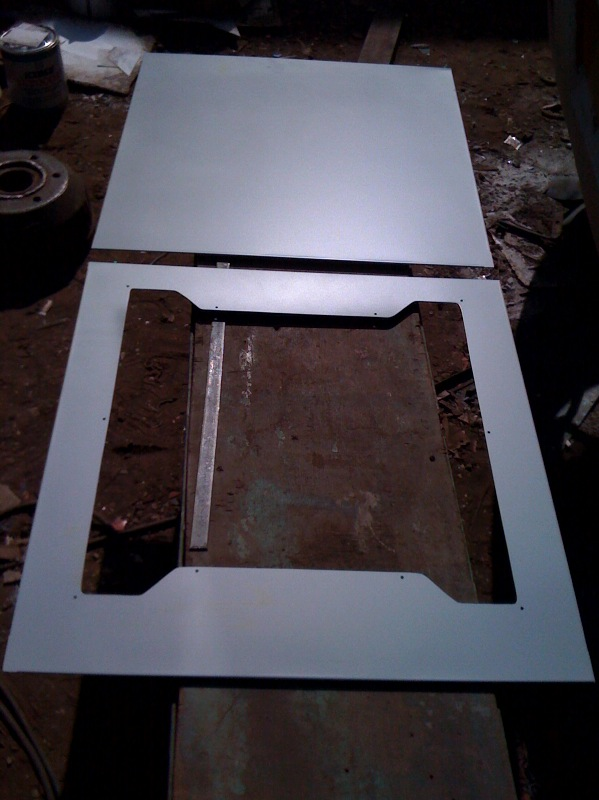

the outer panels are now sanded & primed using Self Etching Primer

here are some pics (two to be precise )

apologies for bad pic quality :ashamed:



[surajspai]

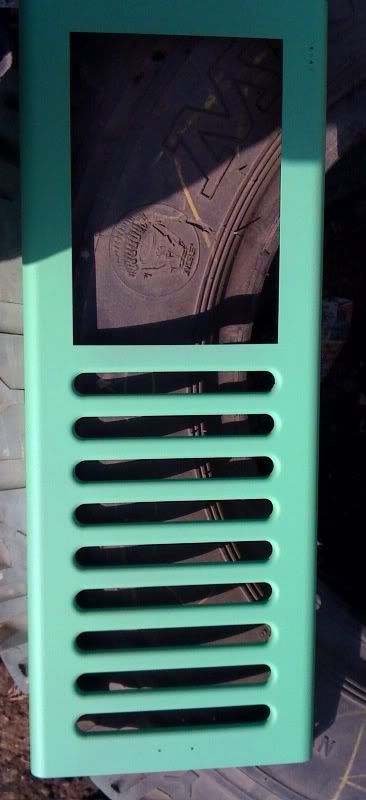

why a green colour?



[mav2000]

Superb work hats off to you. The cutting job is excellent....so u actually just drilled a couple of holes and then used a band saw? Wow, hats off buddy. And I hope thats the primer coat.



[V!bU]

Man that's really cool



[NAV33N]

@ surajspai - i don't know buddy.i suppose different brand primer are of different color.

@mav2000 - Thanks,it's an honor being appreciated by you. yes,it took me some time to make holes in top panel but i did it with patience & filing was comparatively easy as it's aluminum not steel.

@Vibu - Thanks



[NAV33N]

NEW YEAR BRINGS NEW UPDATES

I WISH ALL MY FELLOW TEians A VERY HAPPY & PROSPEROUS NEW YEAR

UPDATE - 01/01/2011

Before modding i used to see others projects on sites all over the world & i found one thing common in them.

can you guess what was it?

PETS

people said that they are always there when you are modding something but i didn't believed it, UNTIL NOW

This is a very small update to be honest,anyways here it goes

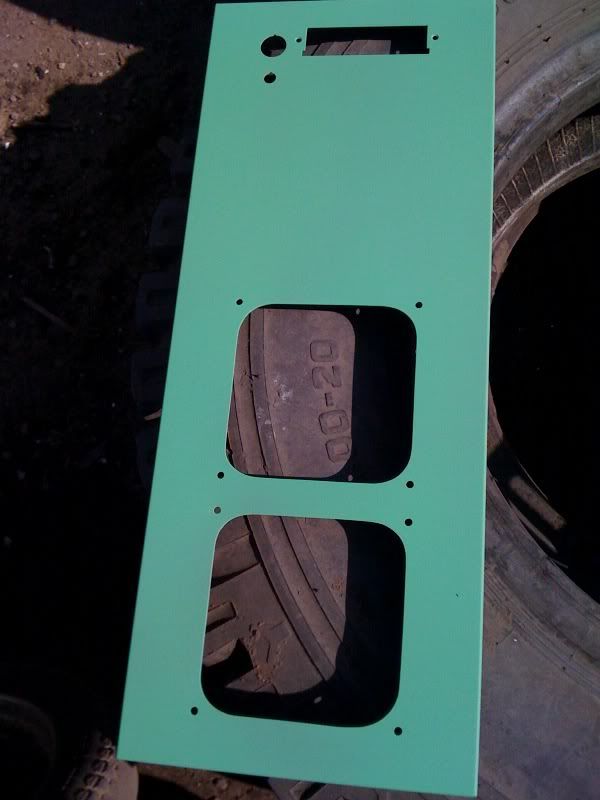

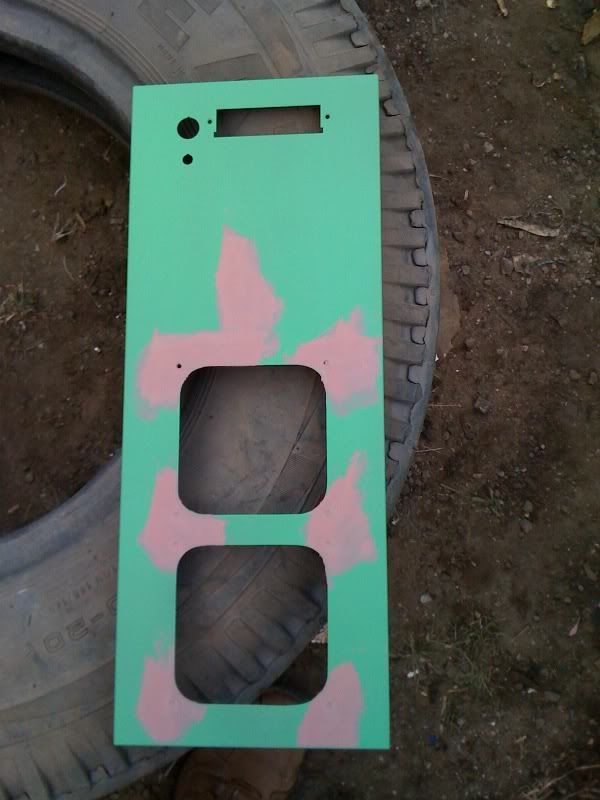

after priming the panels,he used a soft kinda filler to level the surface which i screwed using drill bit.

hope you all guyz like it



[NAV33N]

UPDATE - 04/01/2011

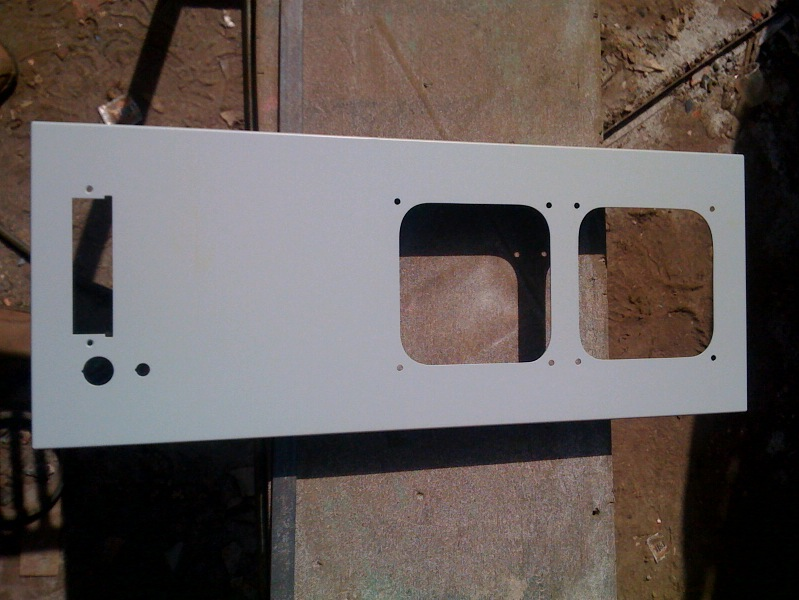

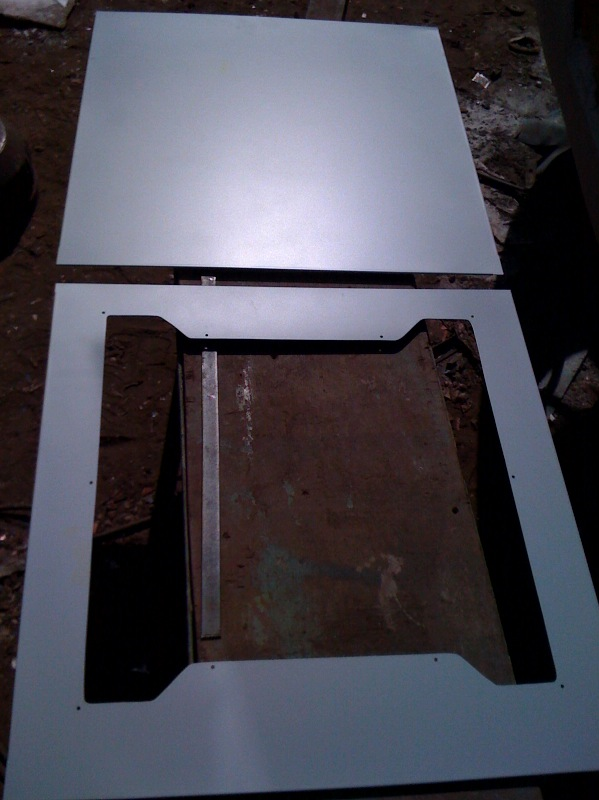

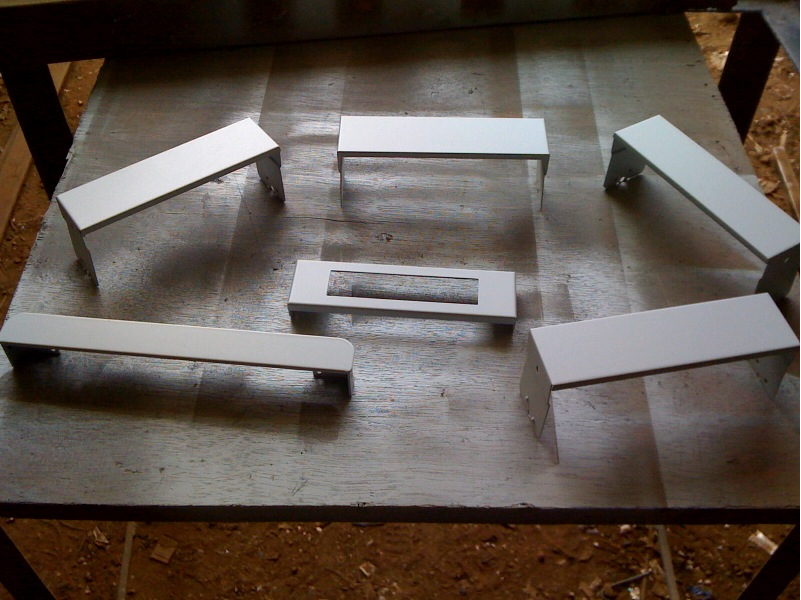

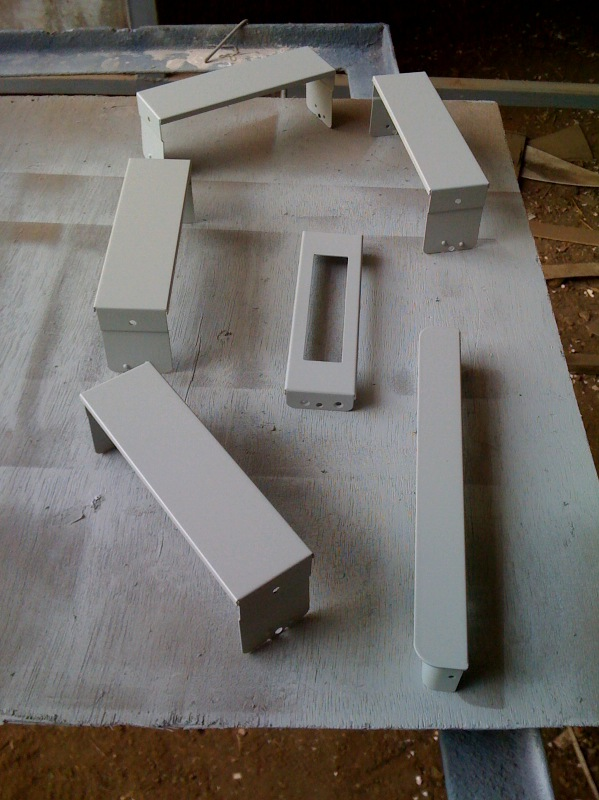

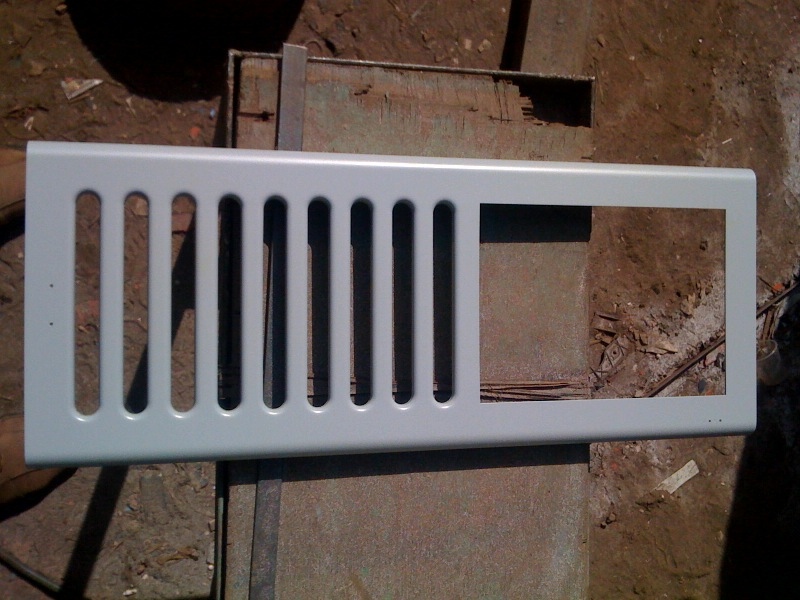

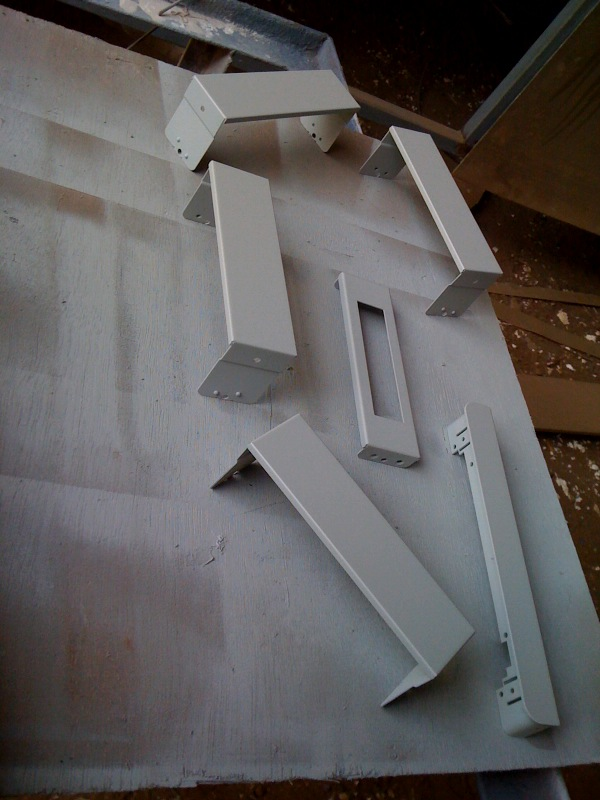

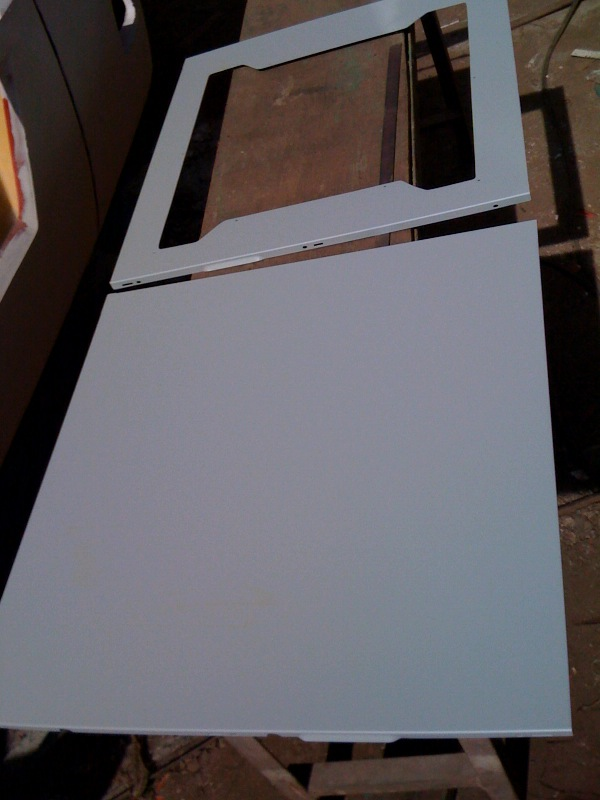

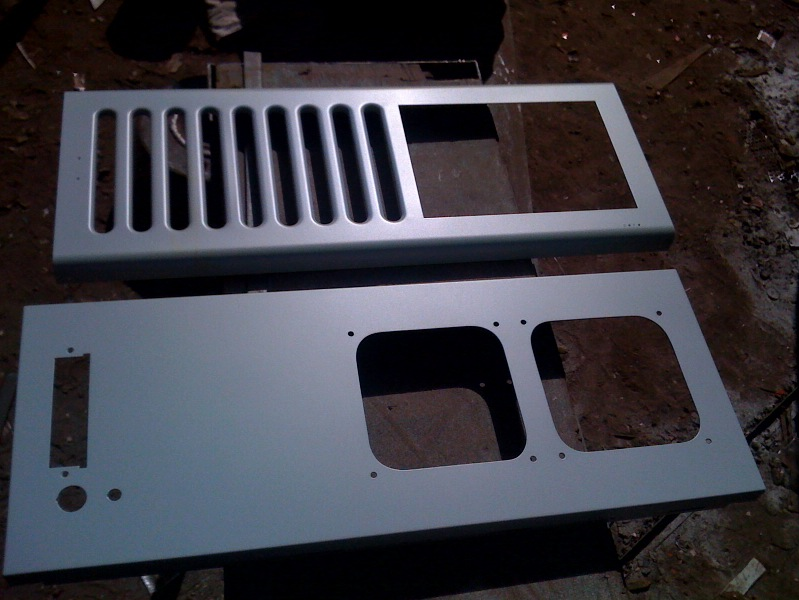

After sanding the filler a bit he applied Surface Primer to all the panels.

here's how it looks after the job



[NAV33N]

UPDATE - 09/01/2011

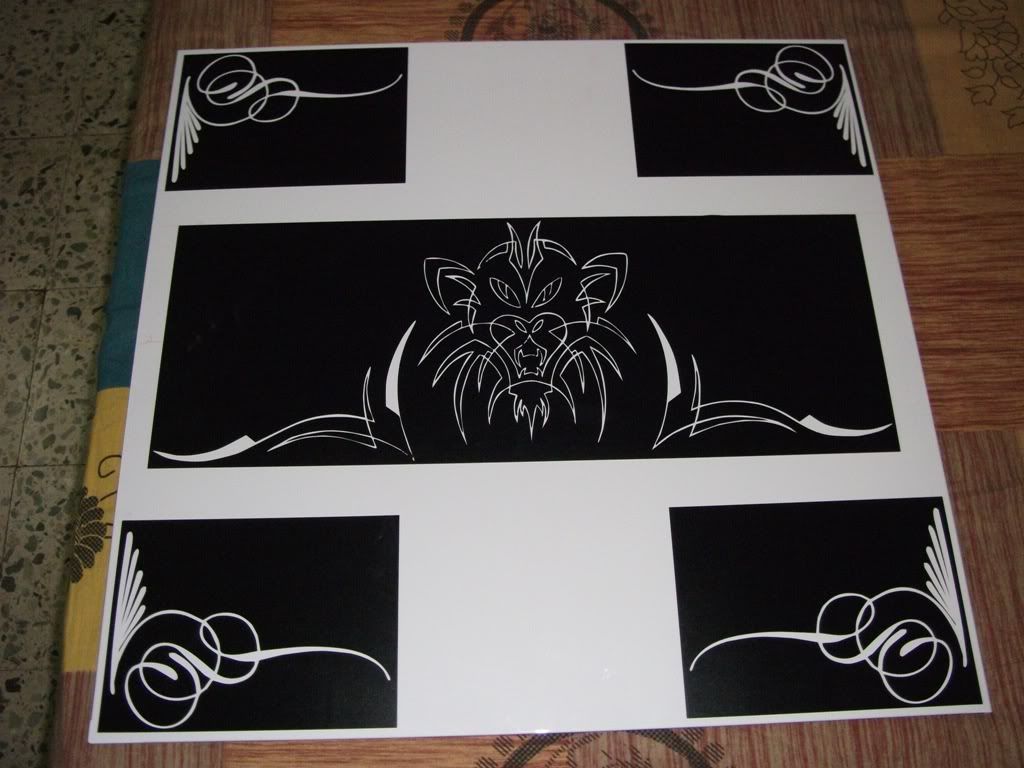

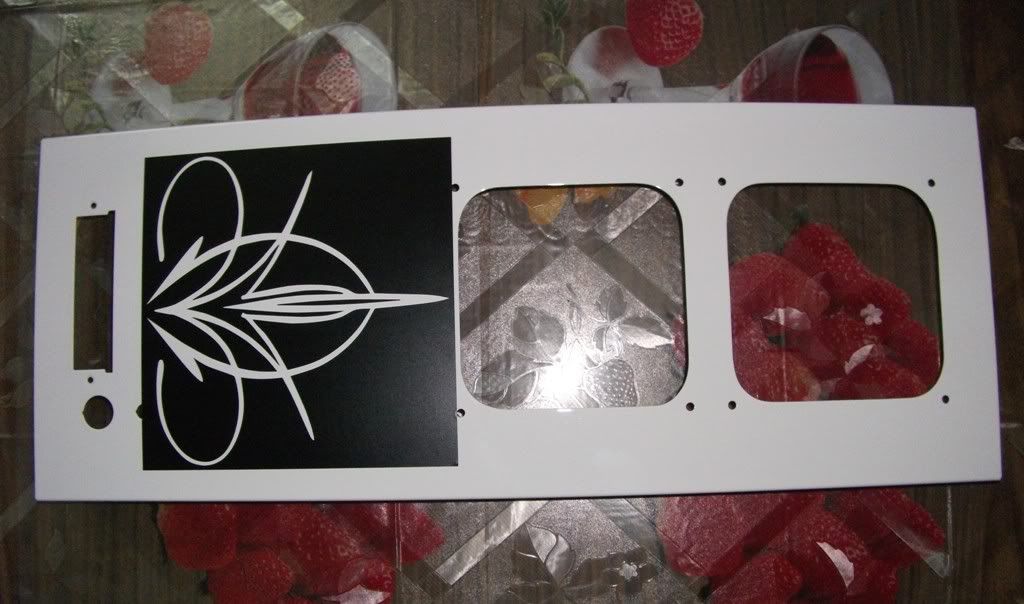

THE CASE HAS BEEN PAINTED WHITE,HERE ARE SOME TEASER PICS
I'M A HUGE FAN OF PINSTRIPING ART BUT SINCE THIS BEING MY CITY WHICH IS MORE OF A VILLAGE I DECIDED TO USE PLOTTER INSTEAD OF PINSTRIPER

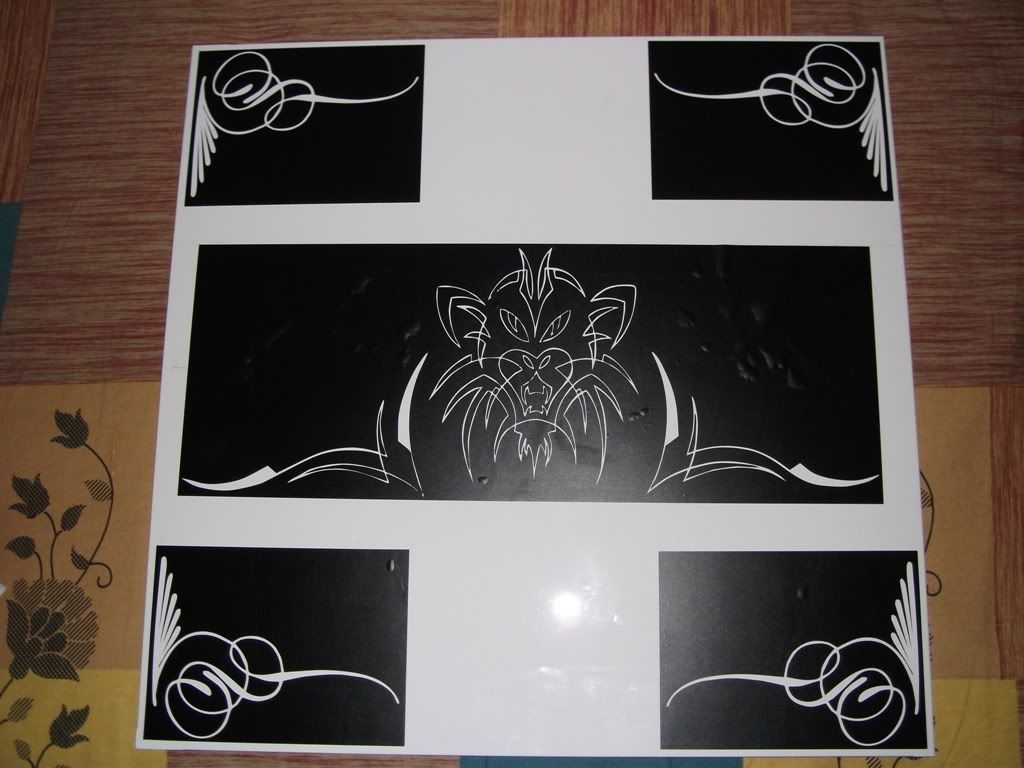

The black part is Stencil on which i'll be painting up tomorrow.
BEHOLD THE BABBAR SHER :clap:
