Good job with the stencil and applying work, but I'm not really sure if I like the choice of uh .. design. Still I'll reserve judgement till I see the final result ... :D

pretttt said:
/thread subscribed

Amazing work there OP. Eagerly waiting for updates!
Click to expand...
Thanks :)

--- Updated Post - Automerged ---

UPDATE - 12/01/2011

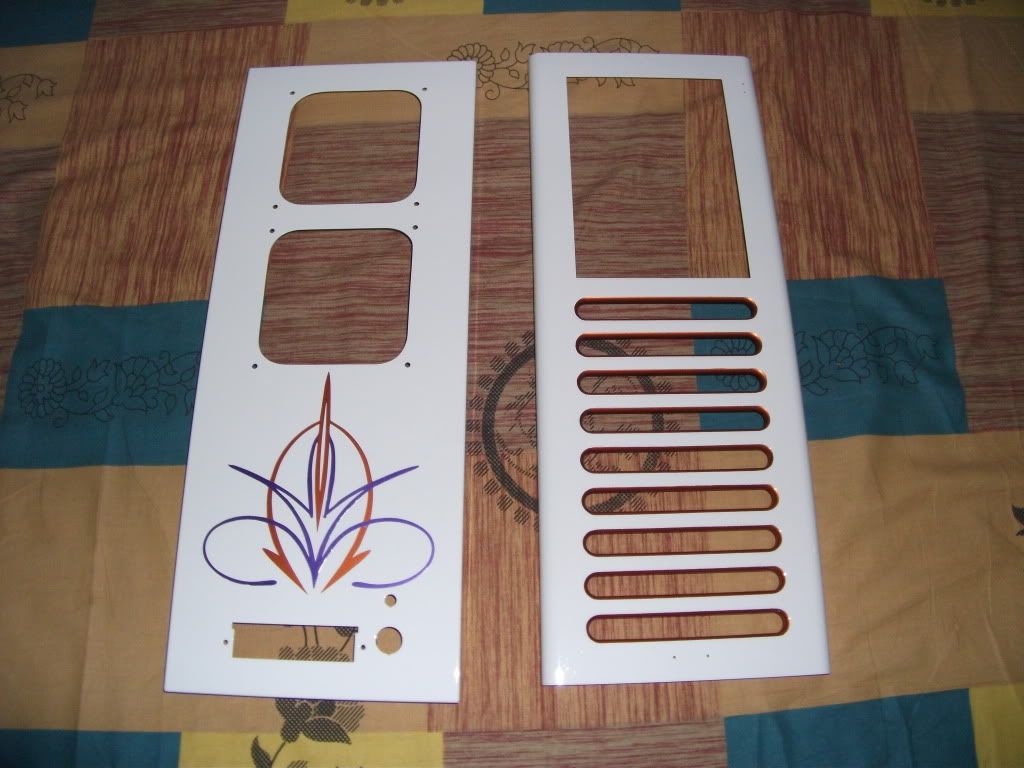

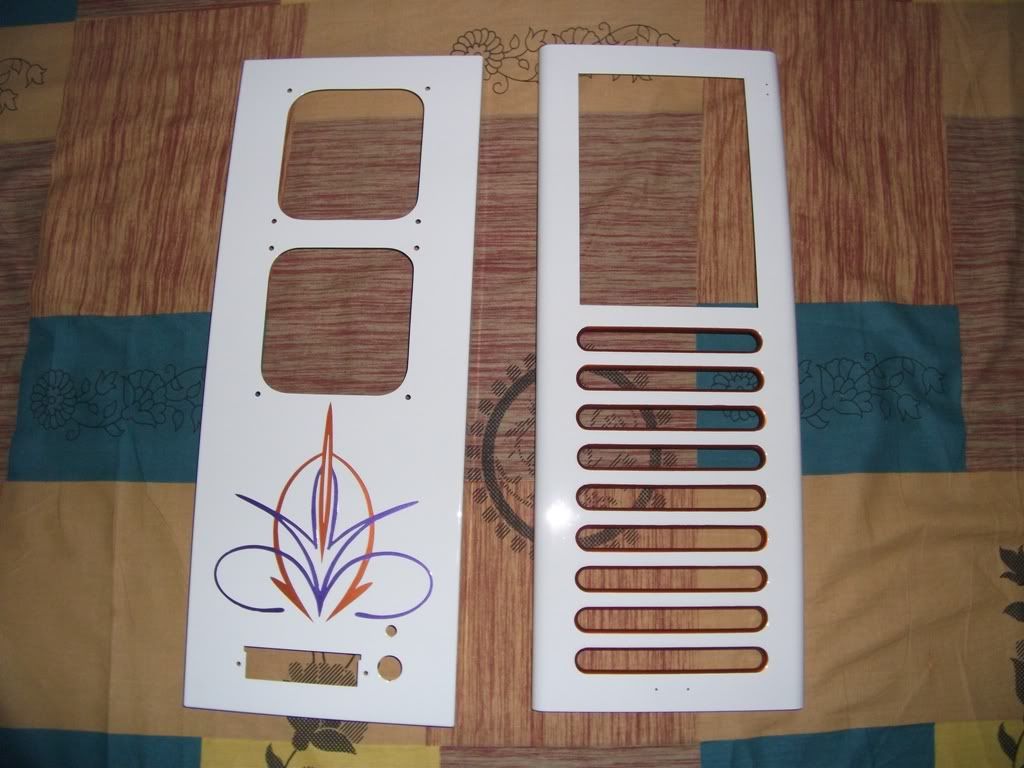

Got the Front & Top Panel Completely painted & Cleared today.

this is how it looks like -







i think it looks amazing :)

THANKS ALL :)

UPDATE - 15/01/2011

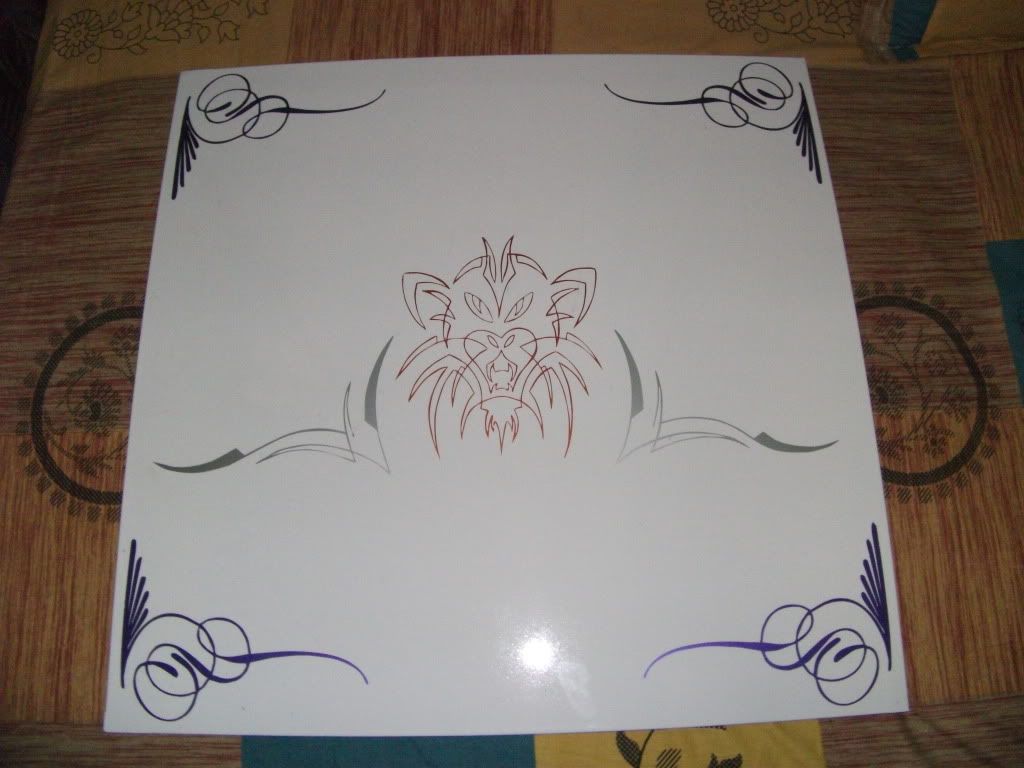

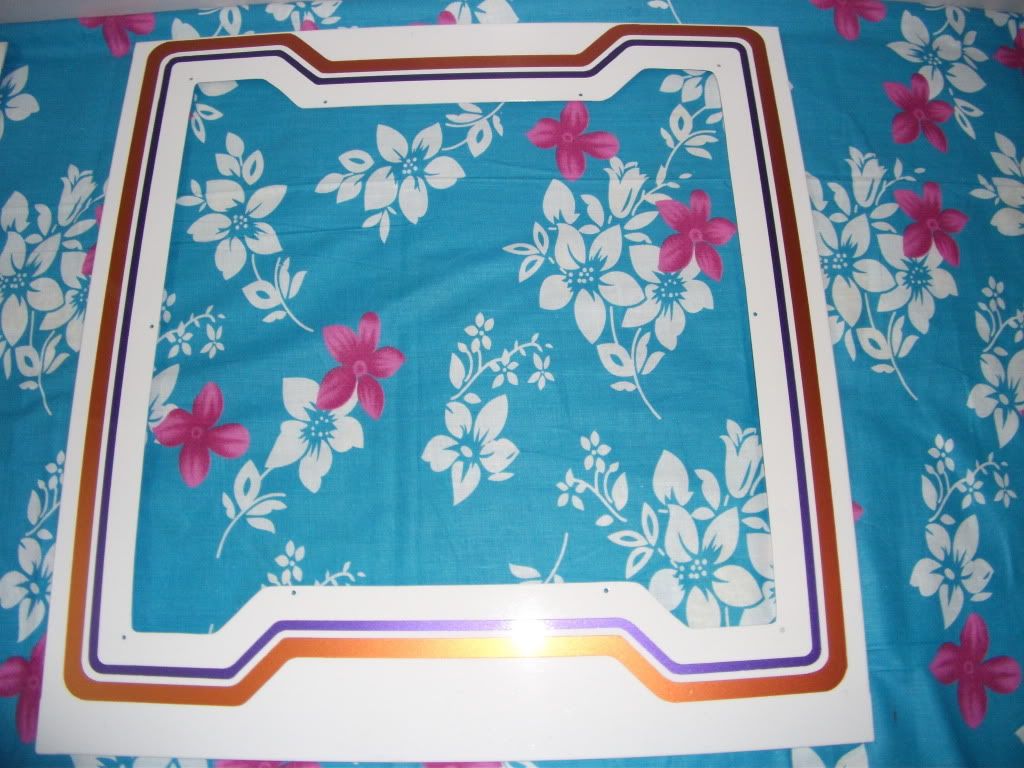

Got the other two panels from the painter today here's how they look..

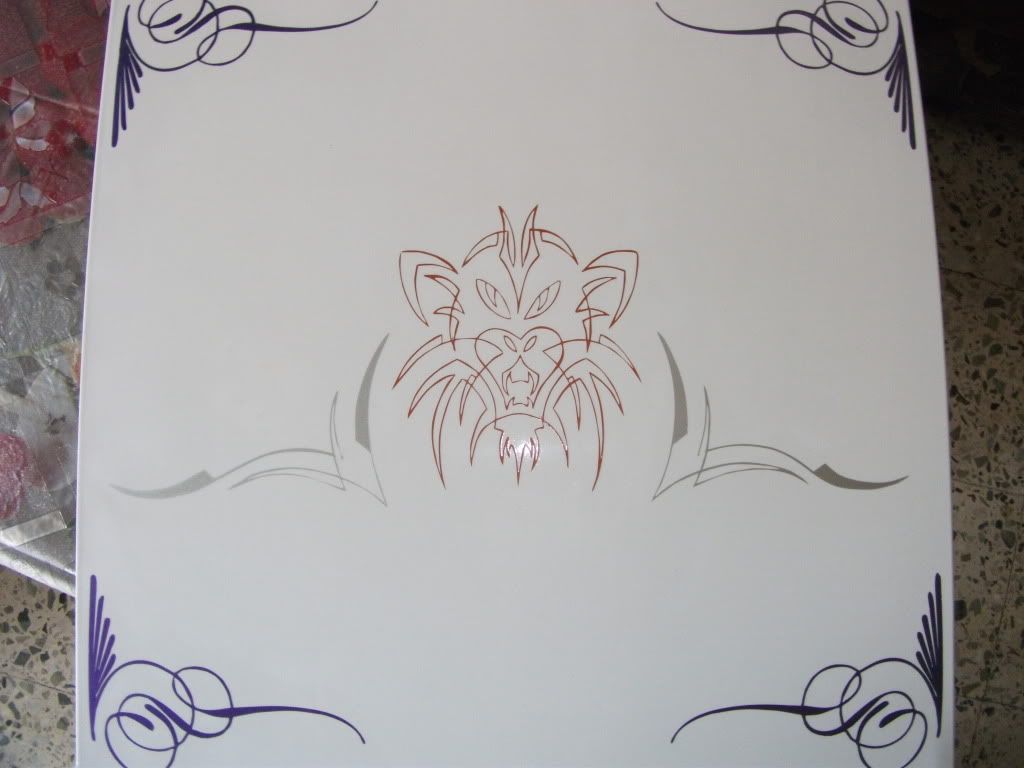

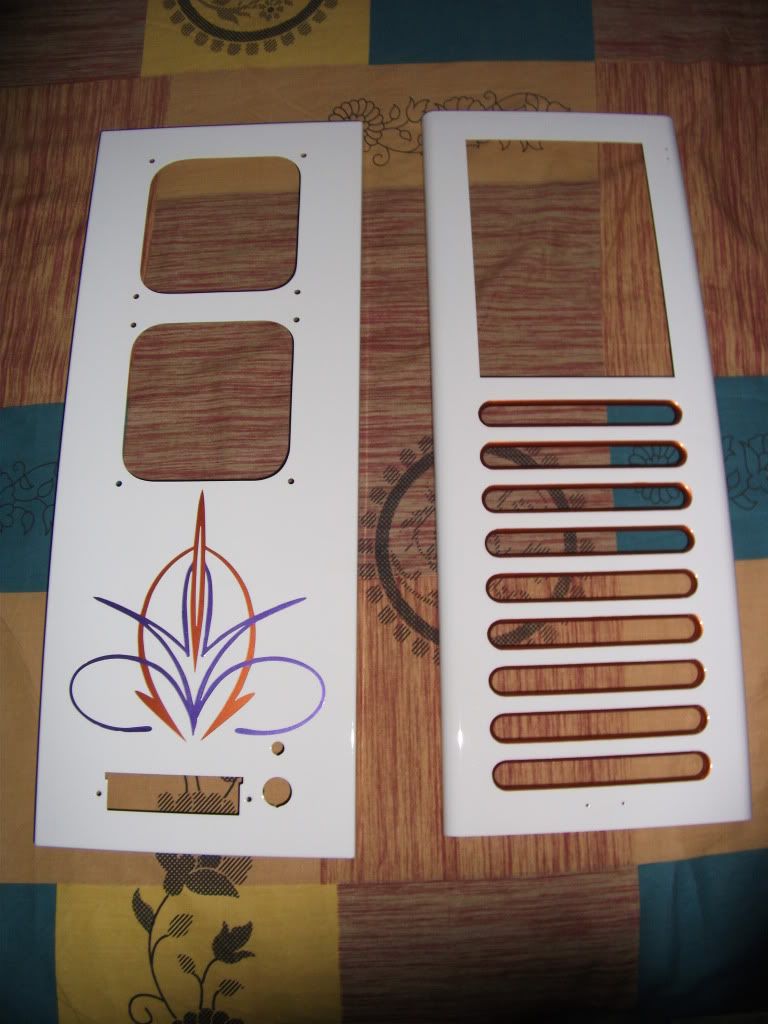

all the panels together

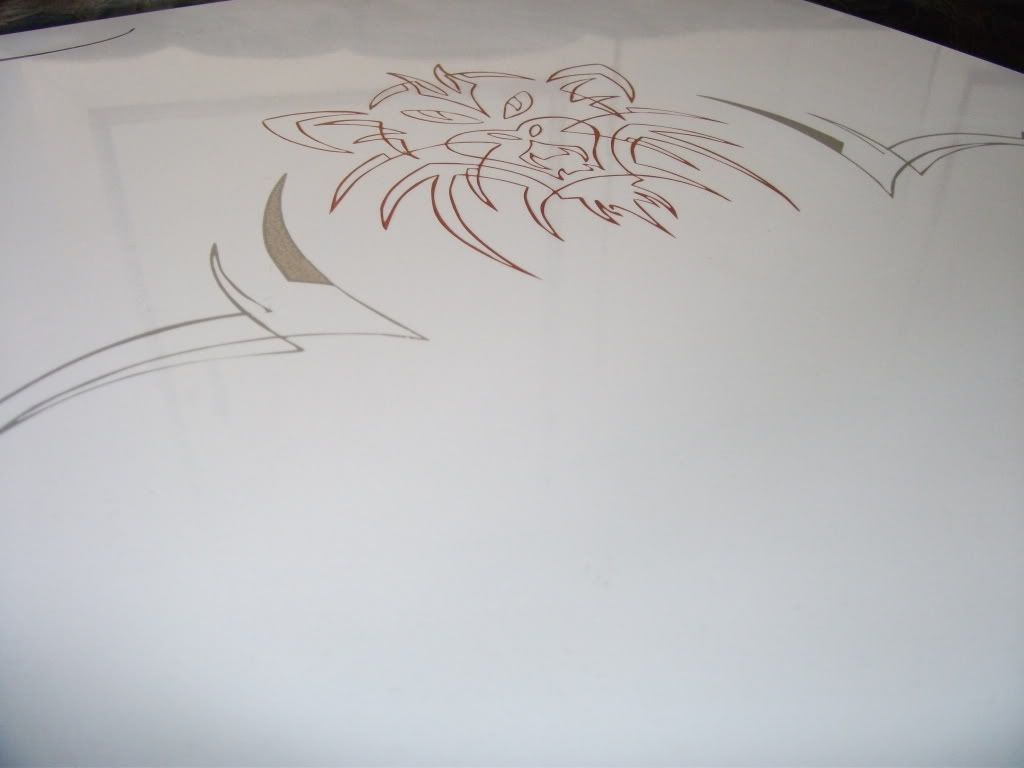

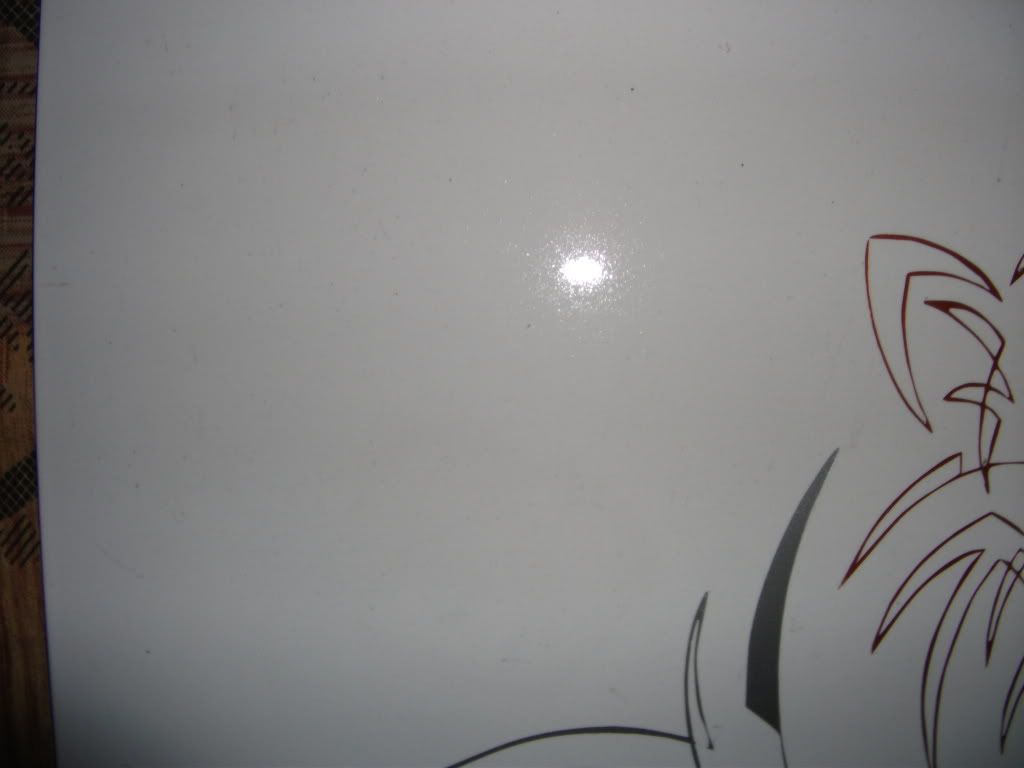

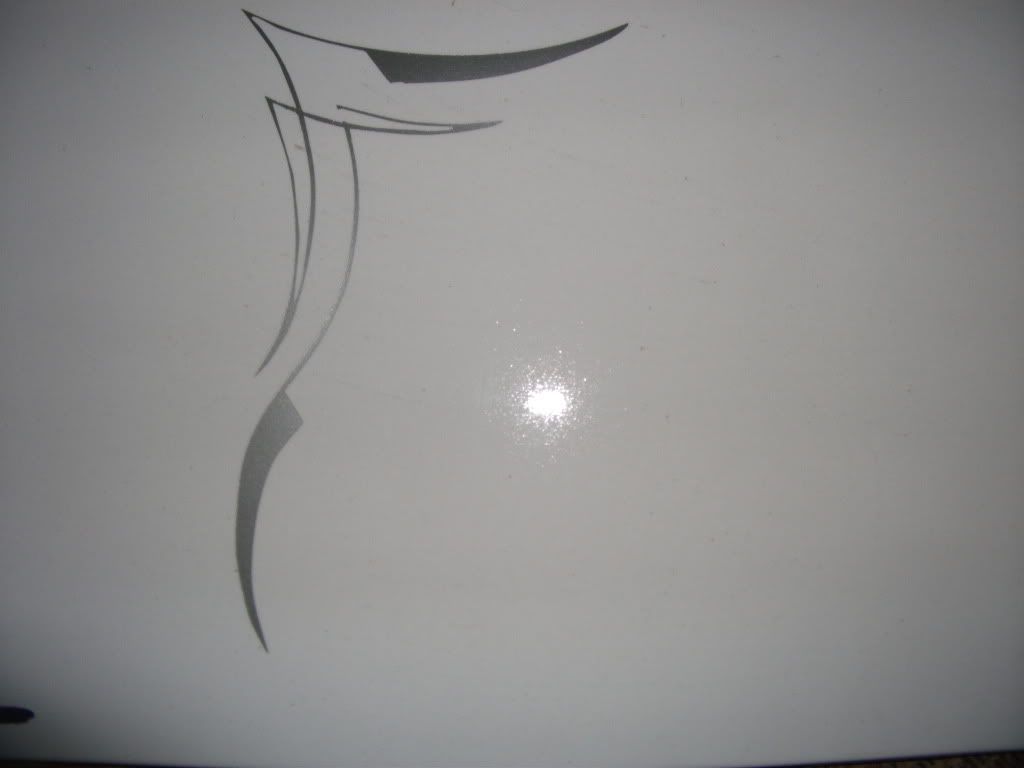

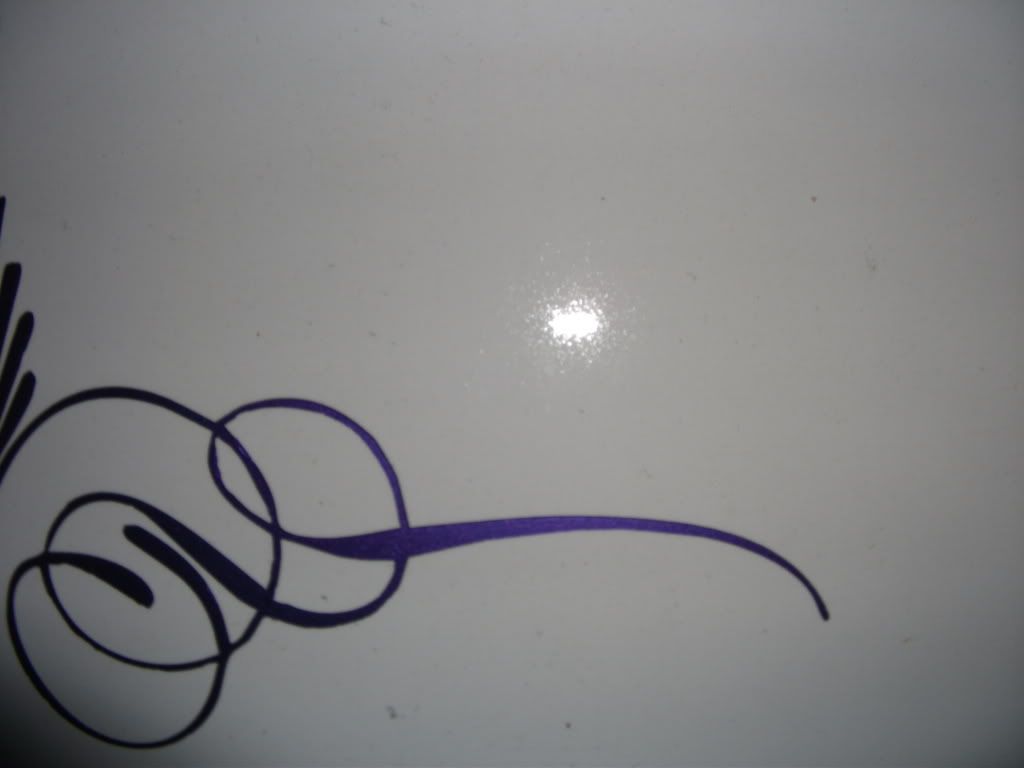

unfortunately today was kinda windy day which screwed the panels,loads of dust was accumulated on the panels

here are few pics







i'm not satisfied with the way it looks so i'm going to sand it & get it cleared again.

Hope this time god will be with me & they'll be good :)

Wait a second, you are going to sand it? You are going to start from the beginning? :O

RD274 said:
Wait a second, you are going to sand it? You are going to start from the beginning? :O
Click to expand...
Na,i'm going to sand just the clear coat by using 2000 Grit Paper & get it recleared.

since the dust particles settled after applying the clear coat.

UPDATE - 21/01/2011

Finished Sanding Using Wet 1500 Grit Paper by mixing shampoo in water for less friction between sand paper & the color.

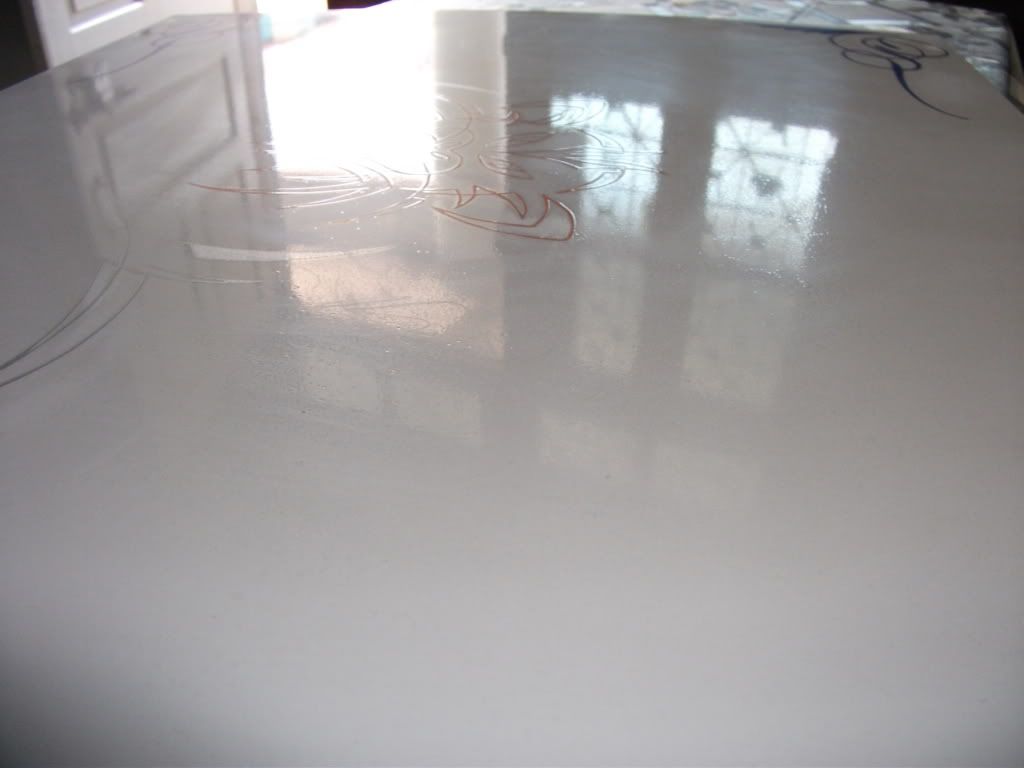

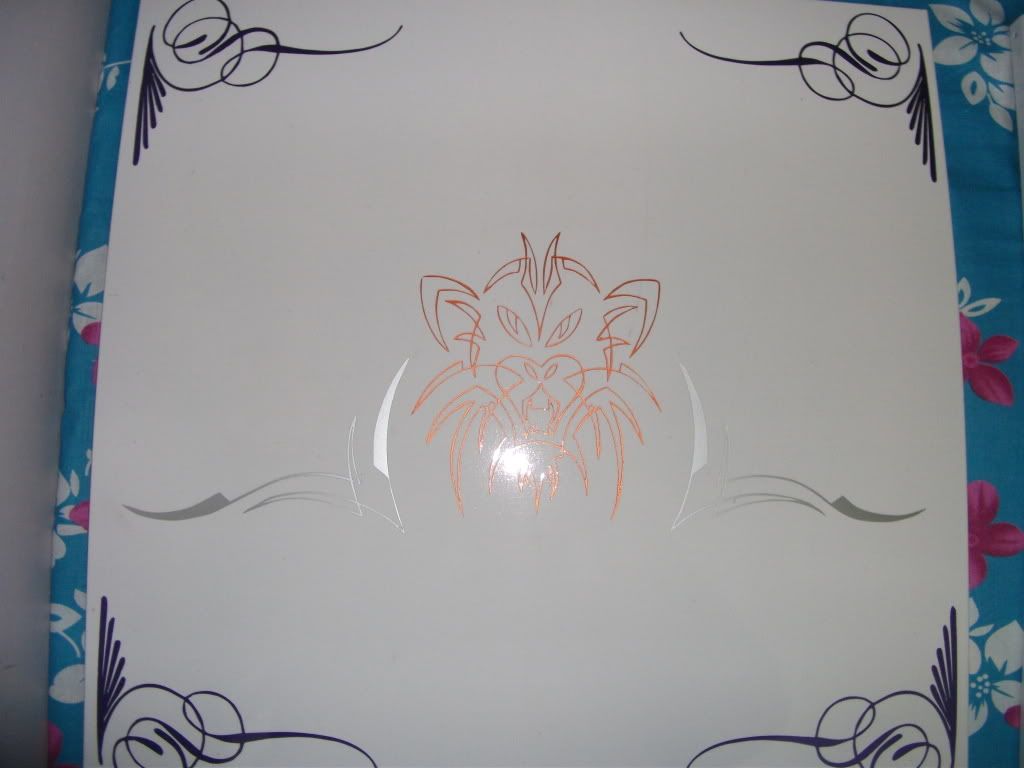

here's the result.









all the dust that was settled after the clear coat was completely removed,now it's ready for one more clear coat.

UPDATE - 08/04/2011

sorry for keeping the thread dead for 2 months,will try to finish the mod this time.

since my TX650 was going strong enough & still had more than 3 years of warranty on it,i didn't want to void it's warranty by sleeving the PSU.

instead bought some extension cables + a LED light kit.

here are the pics.


UPDATE - 09/04/2011

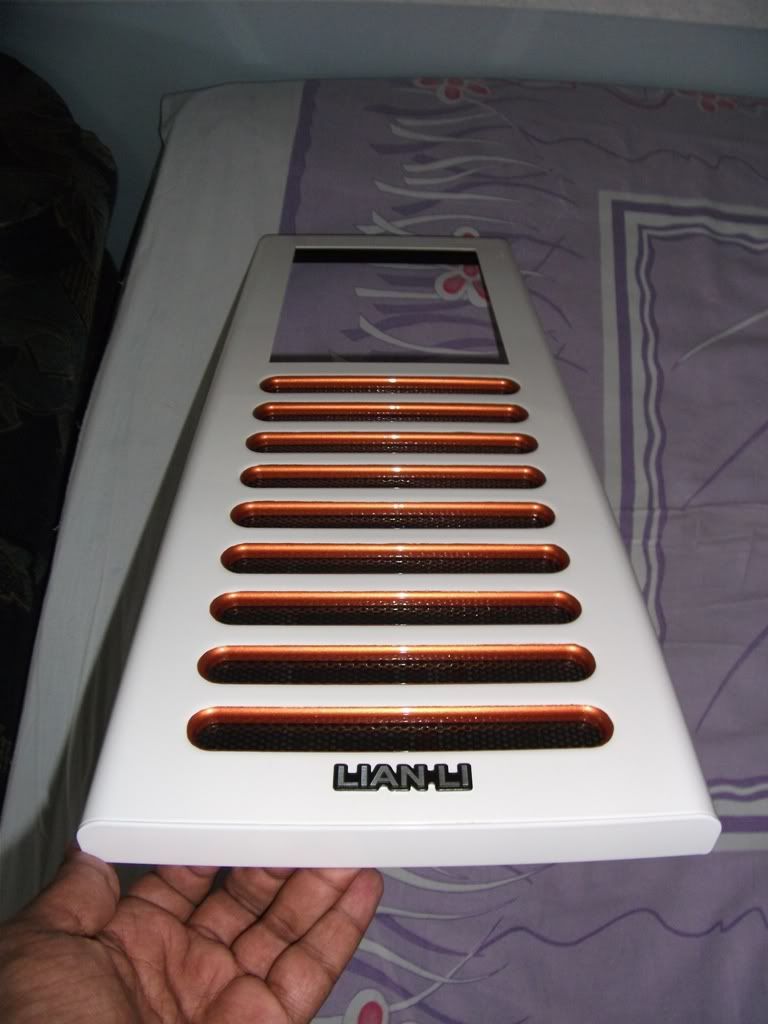

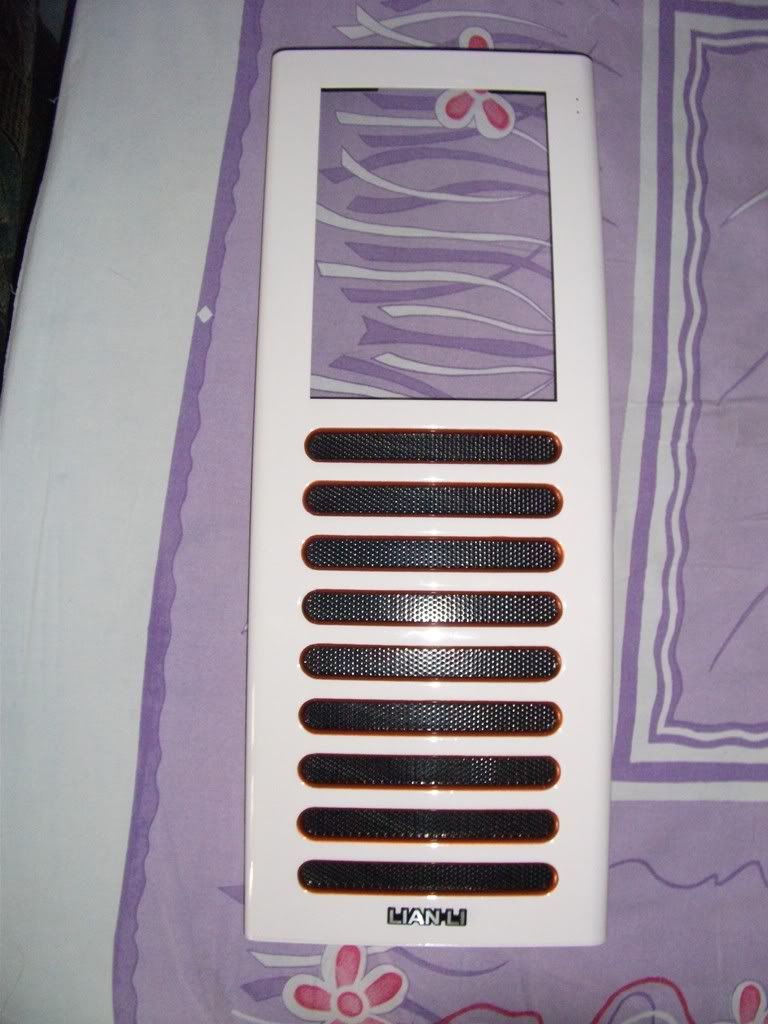

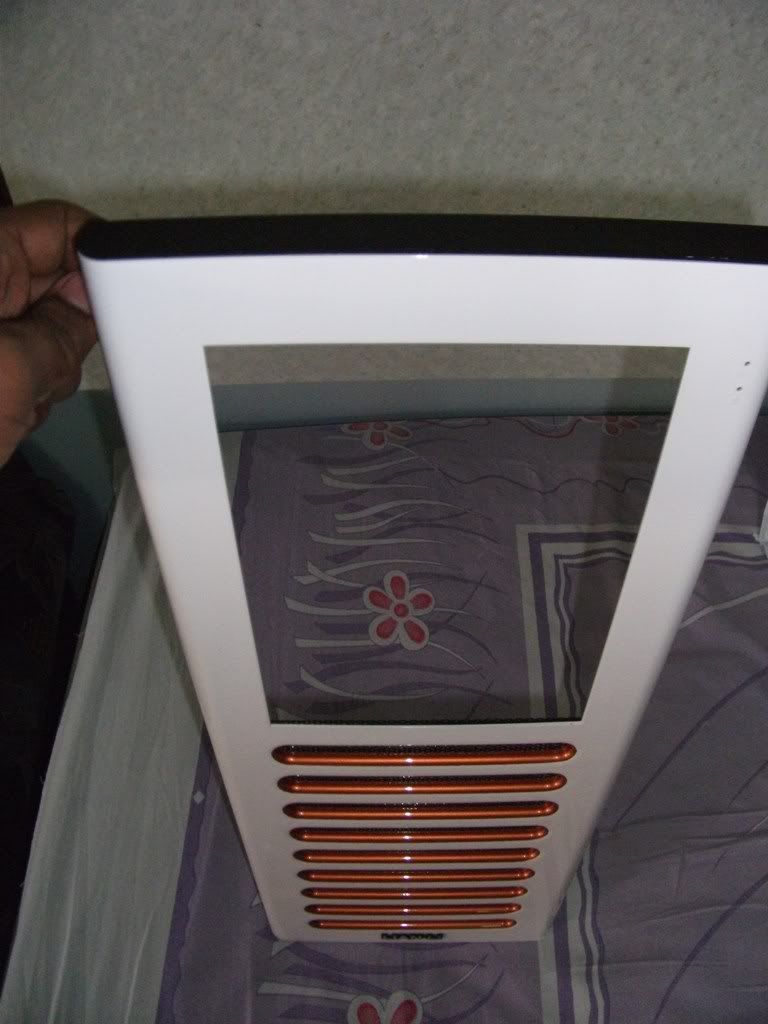

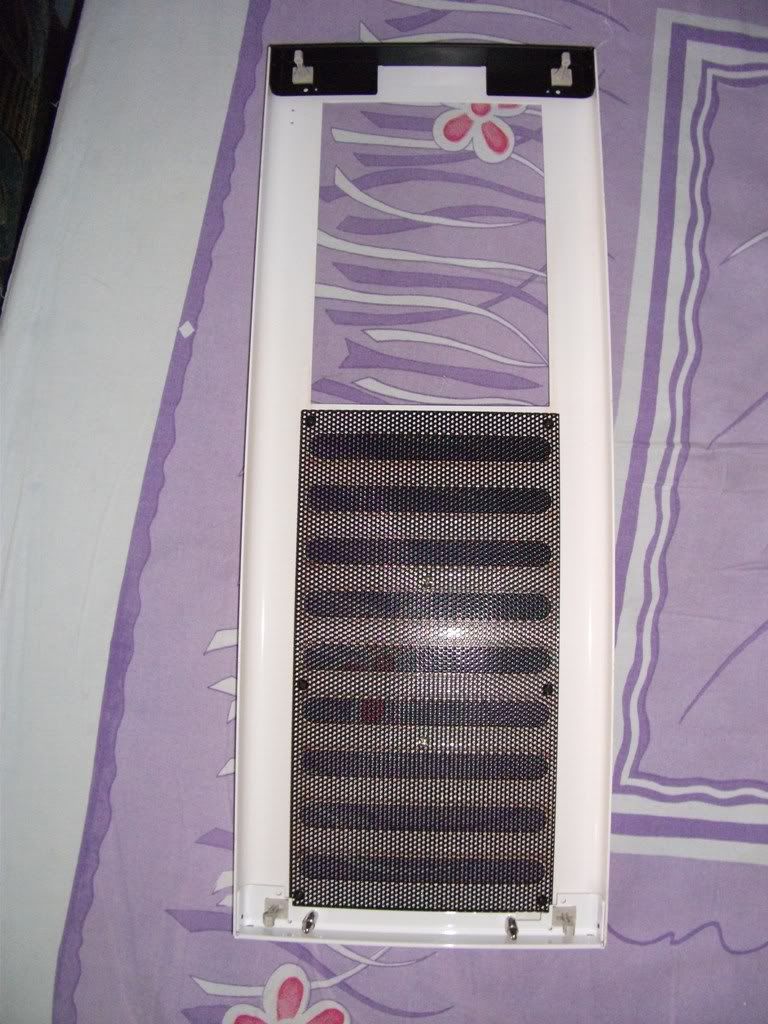

Took Some time today to finish off the front panel assembly.

here's how it looks









what do you think?

UPDATE - 10/04/2011

Today i Modded something that i didn't planned.

i'll let the pics talk & see if you can find out.








Gannu said:
^Anodizing?
Click to expand...

:lol: Nice Try

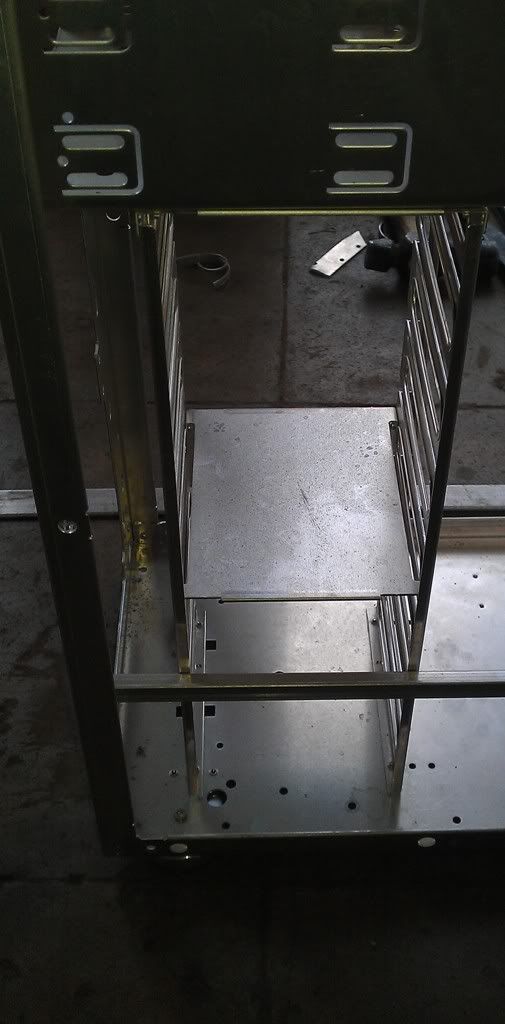

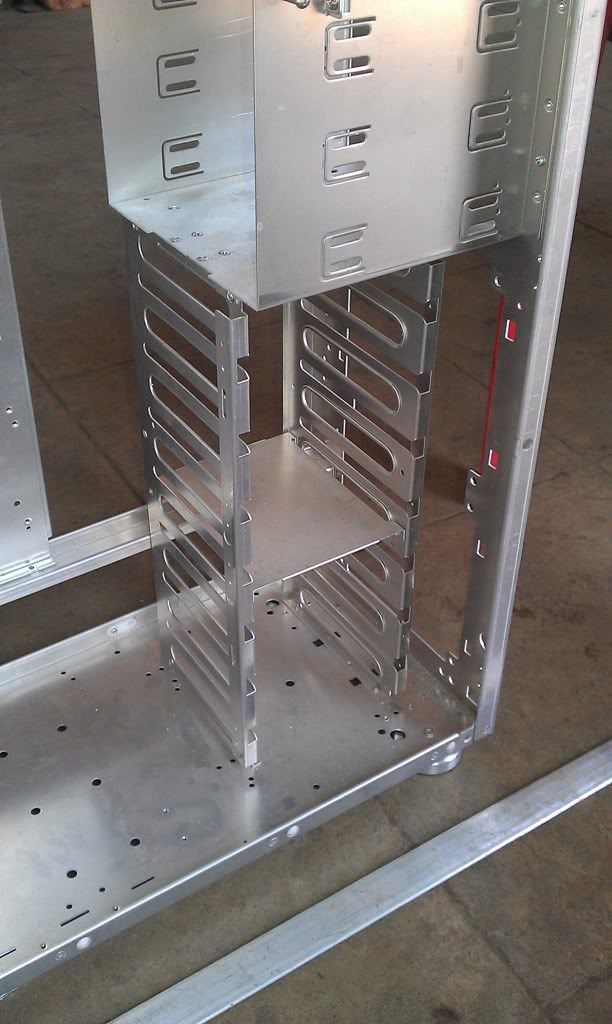

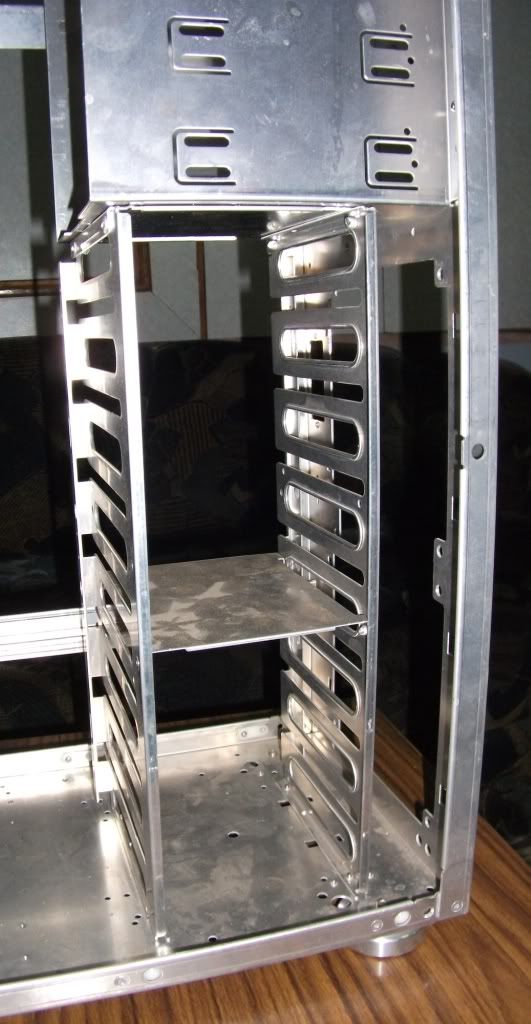

the HDD bay orientation.

from factory it was designed to install HDD's from the front side,now it's the opposite way to hide some more cables. :)

^The PC-A71 F I have here have the same HDD bay orientation as you've posted. With those glazing interiors from the snaps and the level of modding you have attempted by far, I thought you'd have went further ahead and got the case anodized.

I thought wrong. :P

Gannu said:
^The PC-A71 F I have here have the same HDD bay orientation as you've posted. With those glazing interiors from the snaps and the level of modding you have attempted by far, I thought you'd have went further ahead and got the case anodized.

I thought wrong. :P
Click to expand...
was planning to get the interiors done that way but even after searching a lot i was unable to find anyone :(

will get it painted though n i hope you all will love it. :)
