Project White Knight : Air Cooling at it's Best..

[NAV33N]

UPDATE - 12/04/2011

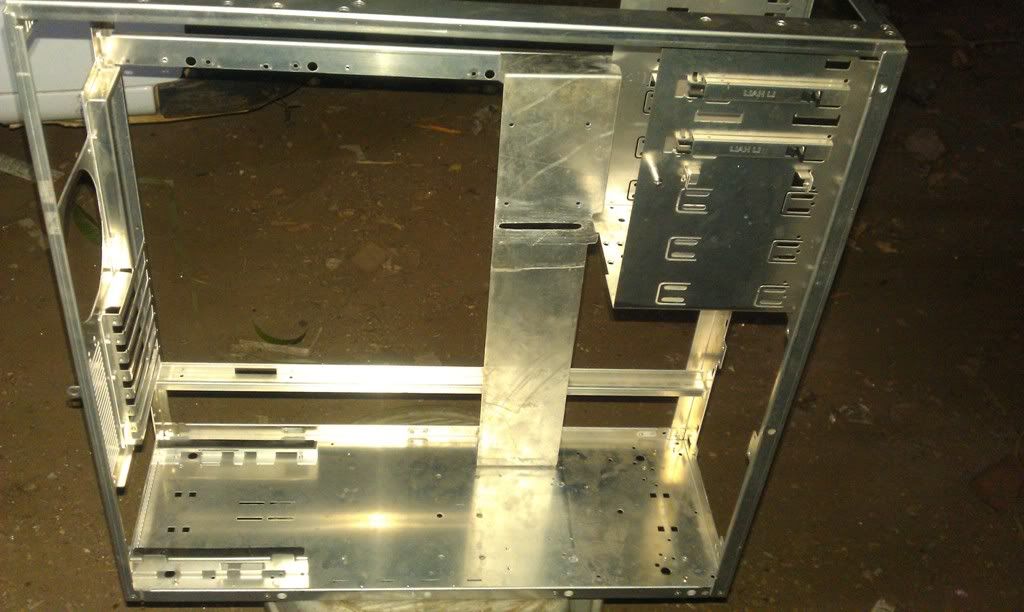

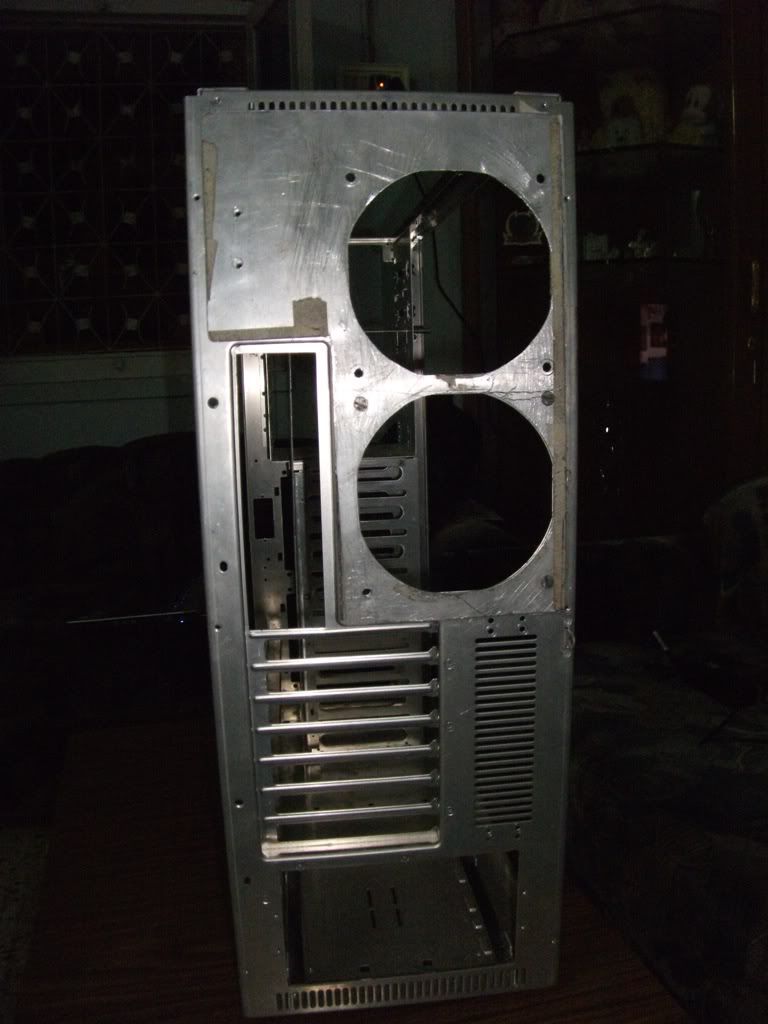

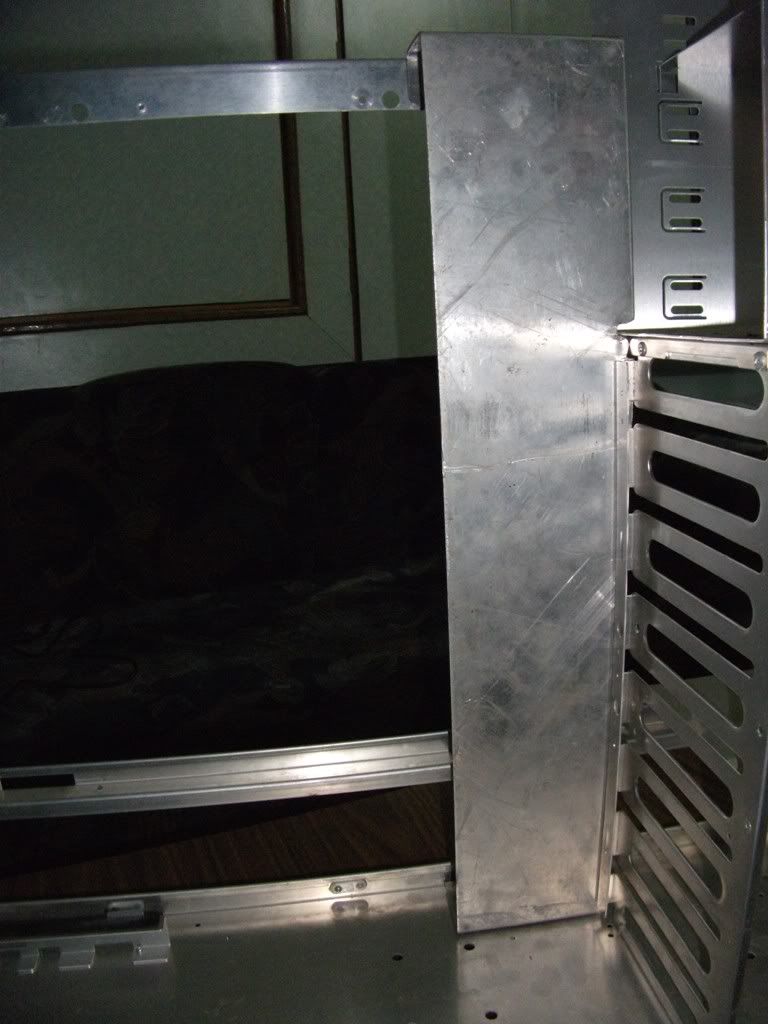

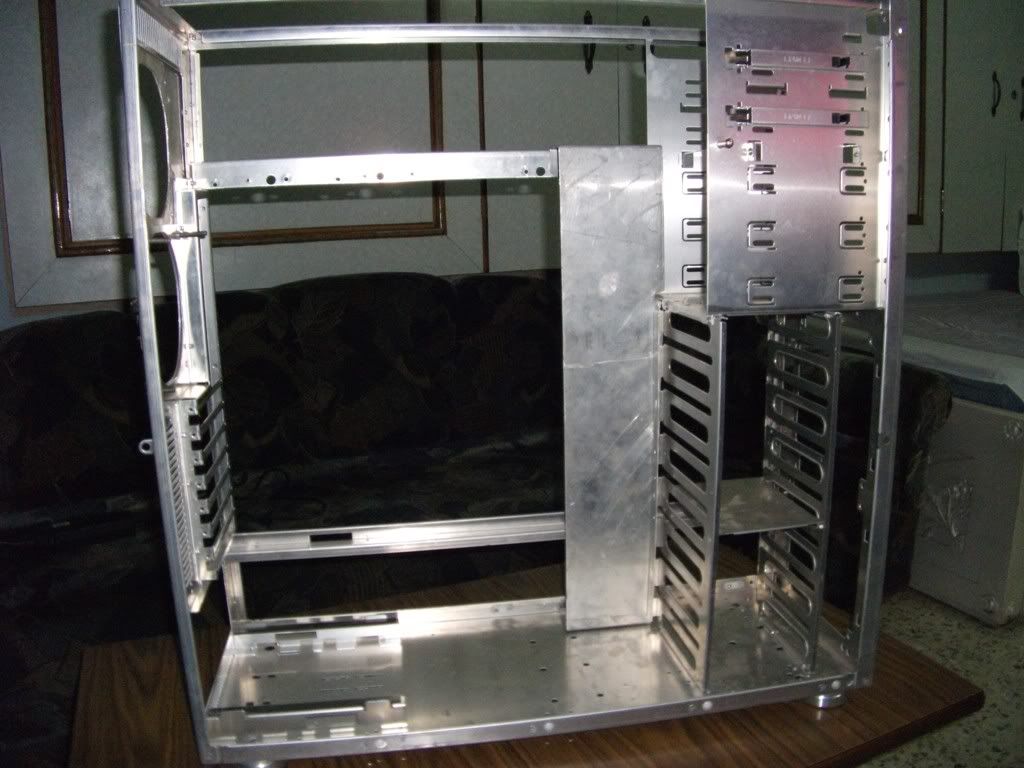

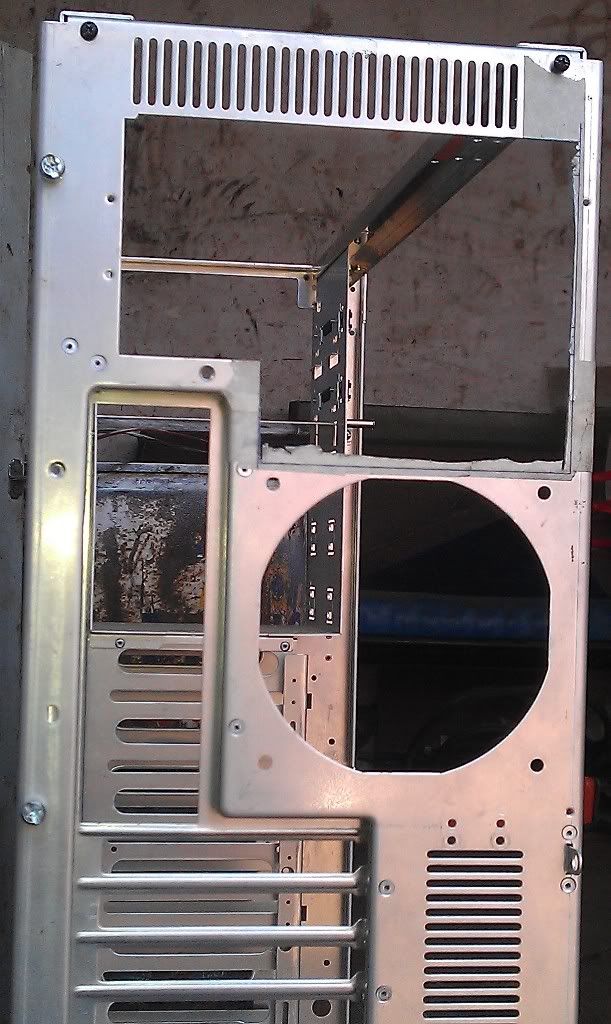

did some actual cutting on the chassis itself yesterday.

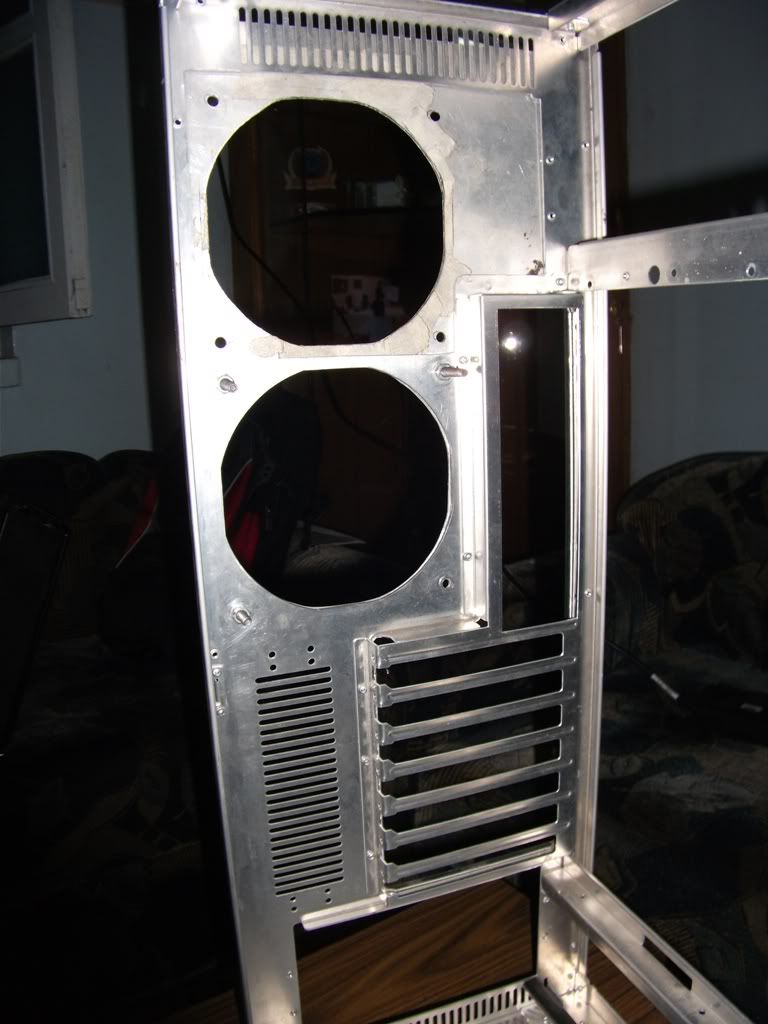

tested the location by placing the custom frame that i made earlier.

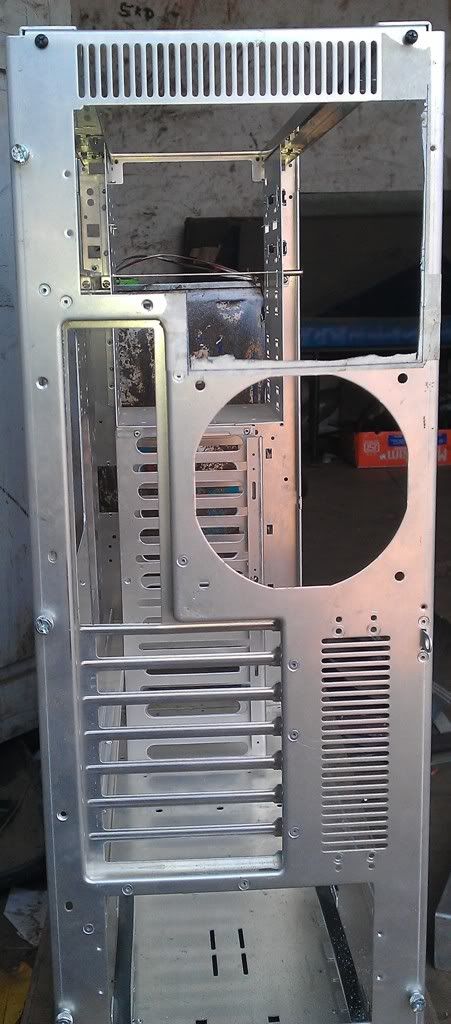

the back now looks more like antec 1200, isn't it?

also,visited the painter yesterday evening to get some more work done.

all primed.

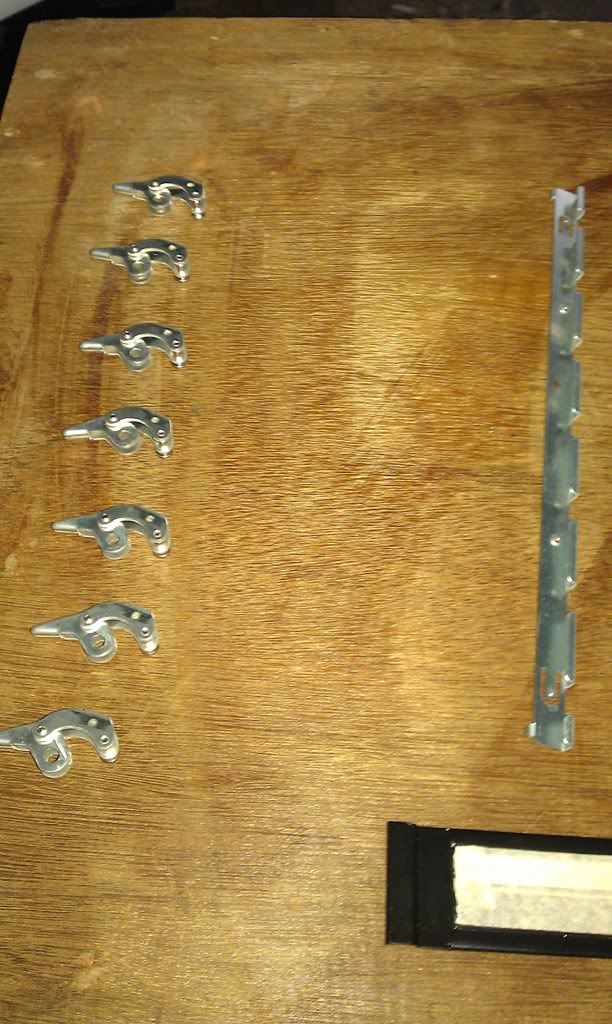

the aluminum is so light that it was making it very hard for the painter to paint on,even by using little amount of air,the aluminum clips were flying here and there as you can see in the last pic.



[NAV33N]

UPDATE - 14/04/2011

it's raining here every afternoon from the past 3-4 days,so it's very hard to get the paint work done on the case

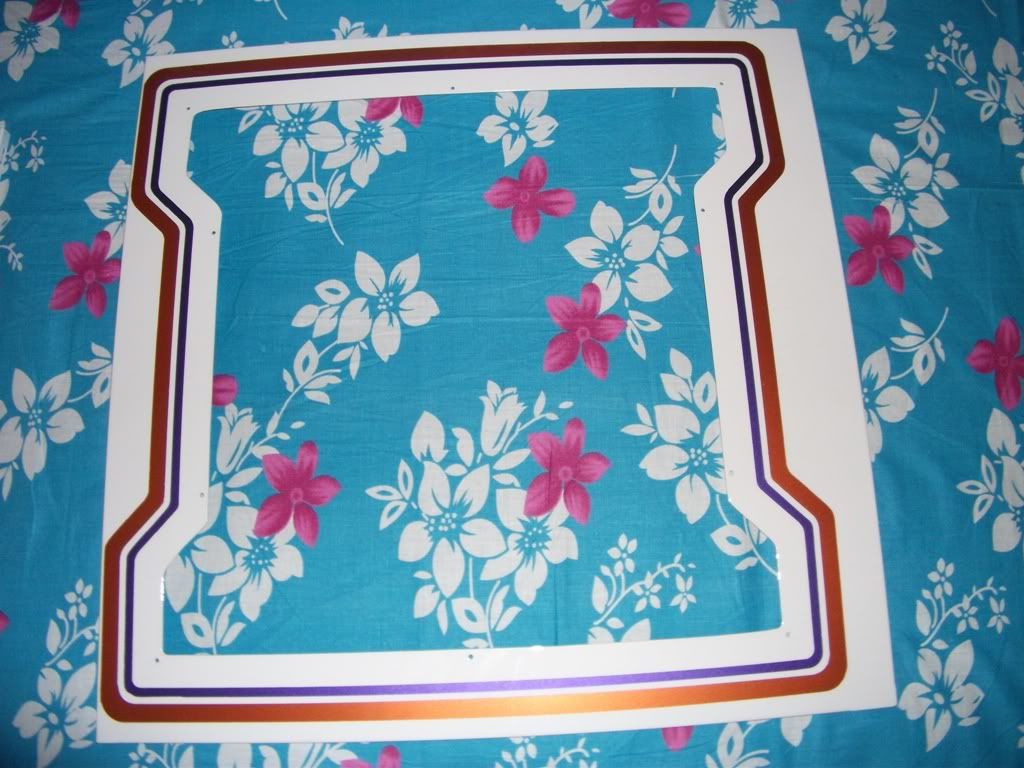

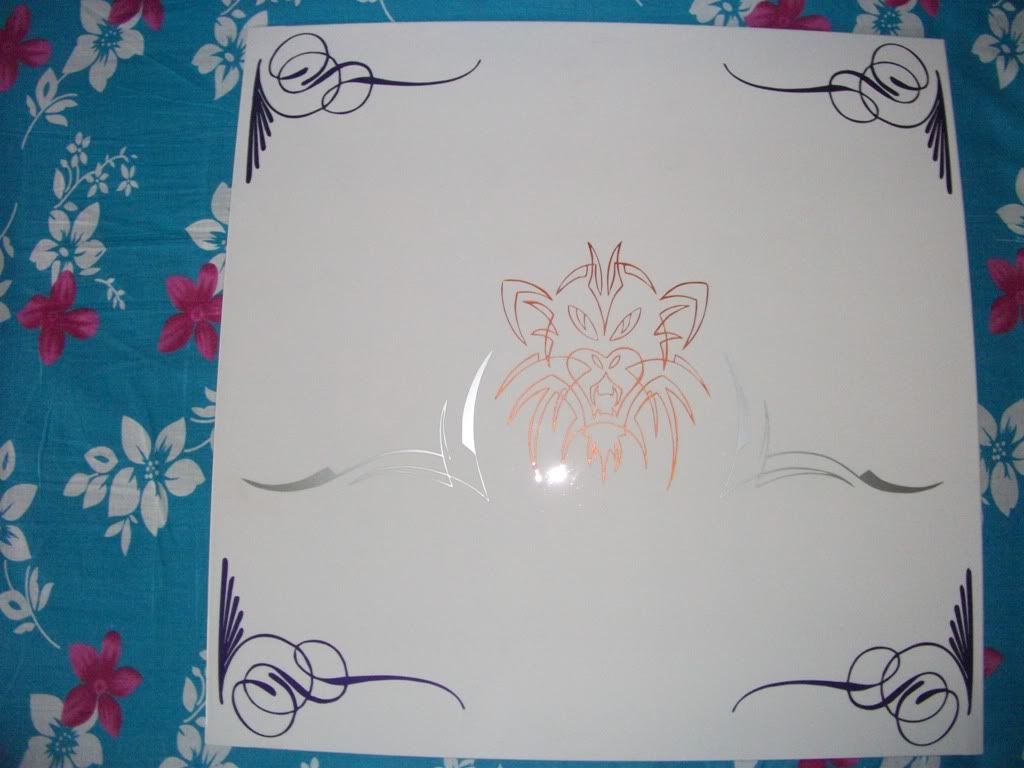

Finally got the other two panels from the painter today,both the panels are Recleared.

Efforts Worth Spent

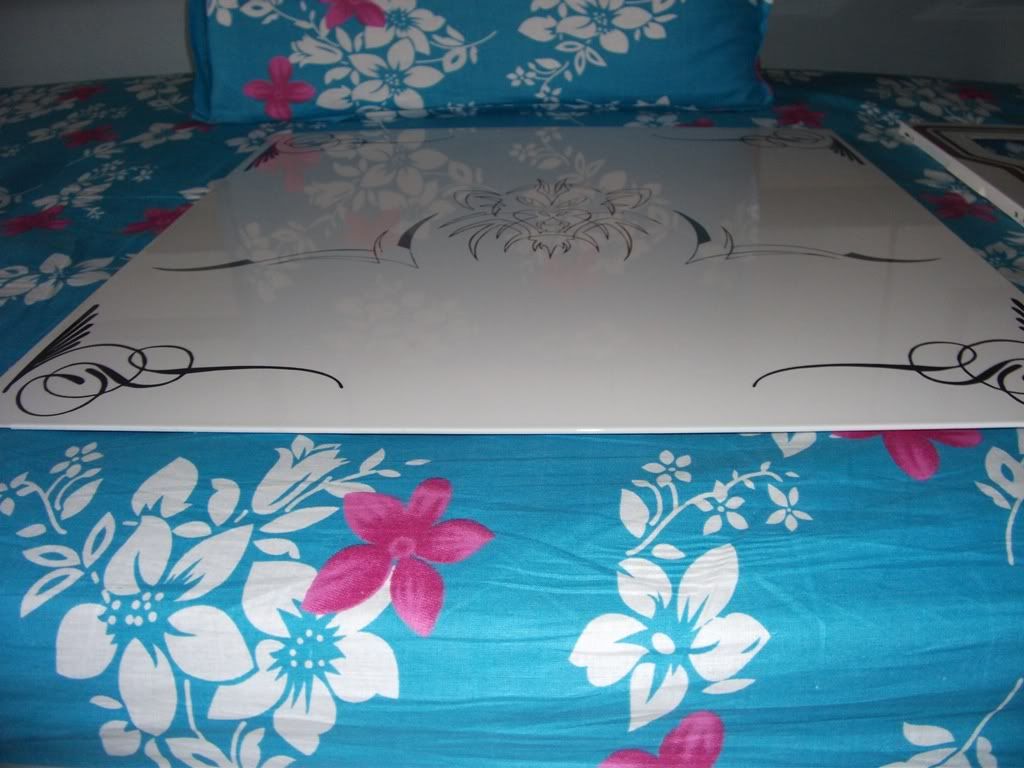

Just have a Look at the Reflection

Comments & Suggestions are Welcomed



[thatsashok]

nice designs.. you made them



[NAV33N]

nice designs.. you made them

well,i downloaded designs from the net then took it to the the person who make vehicle registration plates & asked him to plot them using the plotter.

then took it to the painter & got them painted.

BTW you haven't gone through the entire thread have you?



[thatsashok]

BTW you haven't gone through the entire thread have you?

Well not all of it, just the pics and the hardware you bought.

This is not my area of interest.

But guys like you have sometimes amazed we with modding rigs and stuff.

I didn't understand how u made that design at home on that metal plate, so perfect.



[NAV33N]

Well not all of it, just the pics and the hardware you bought.

This is not my area of interest.

But guys like you have sometimes amazed we with modding rigs and stuff.

I didn't understand how u made that design at home on that metal plate, so perfect.

i think you should go through entire thread & i'm pretty much sure you won't have any question when you are done.



[sarang]

Pure awesomeness! I must be an idiot to ignore this thread for so long after getting a dekko when it was started. Kudos to you buddy!



[NAV33N]

Thanks Man.



[NAV33N]

UPDATE - 16/04/2011

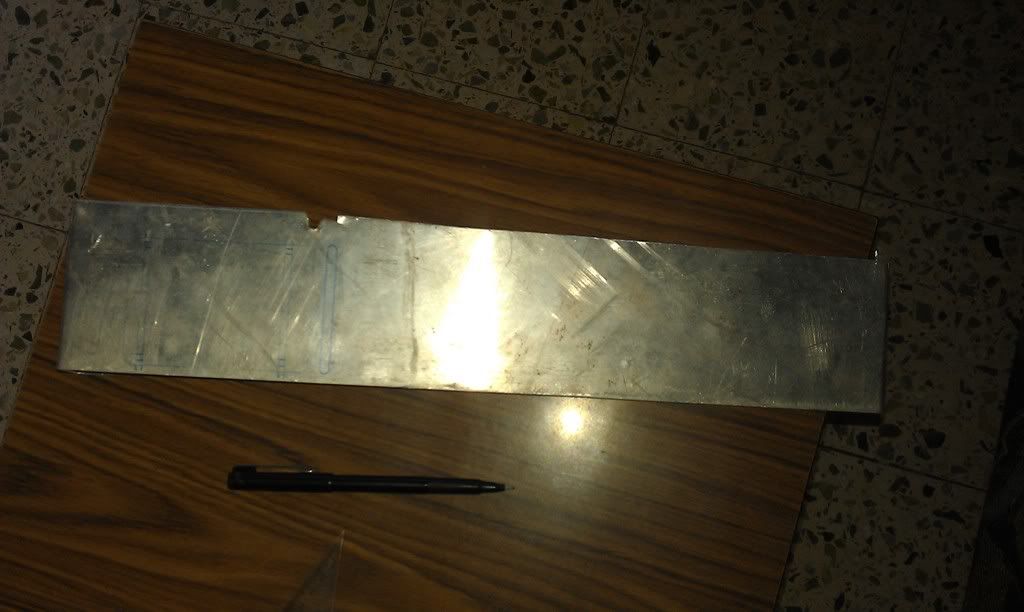

Made a Custom Aluminum Panel Yesterday for two Purposes -

1) Better Cable Management

2) Vertical Mounting of 2.5" SSD Drive

here's the pic

marked it for SSD mounting holes & hole for cables to pass through

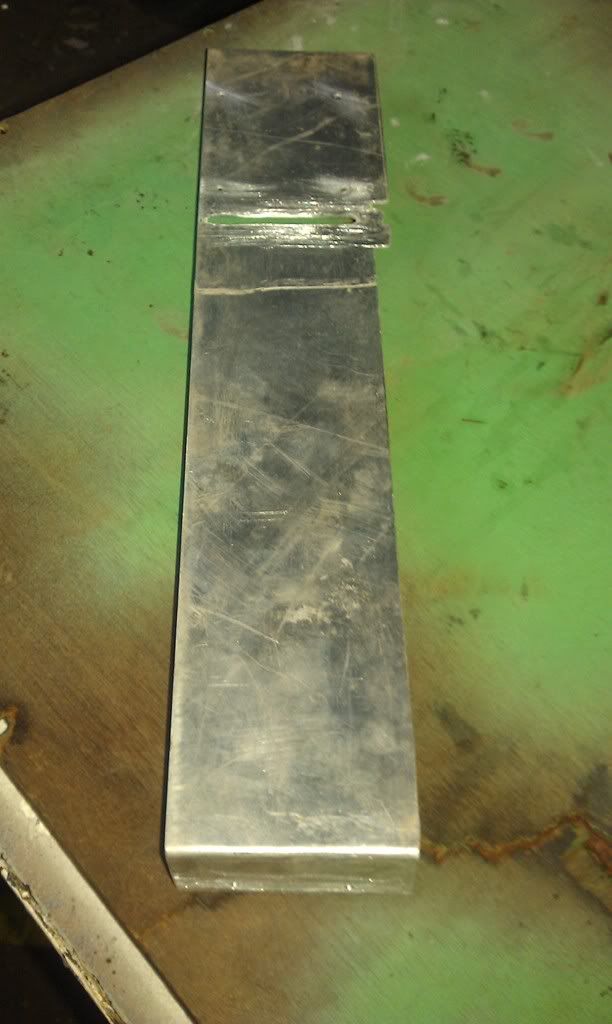

test fit after cutting & bit of sanding as i wasn't able to get the file in there

finished product

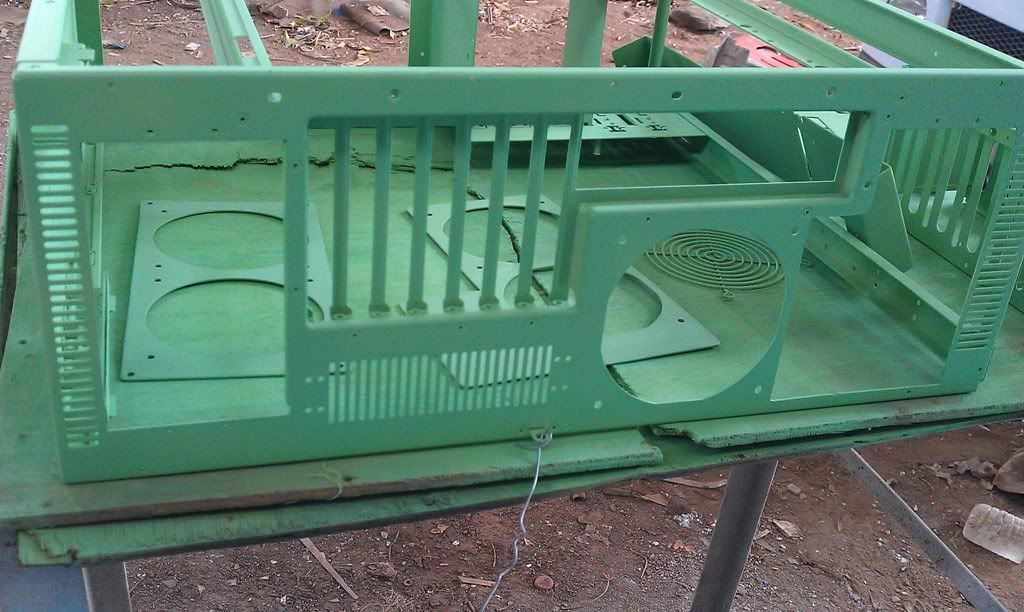

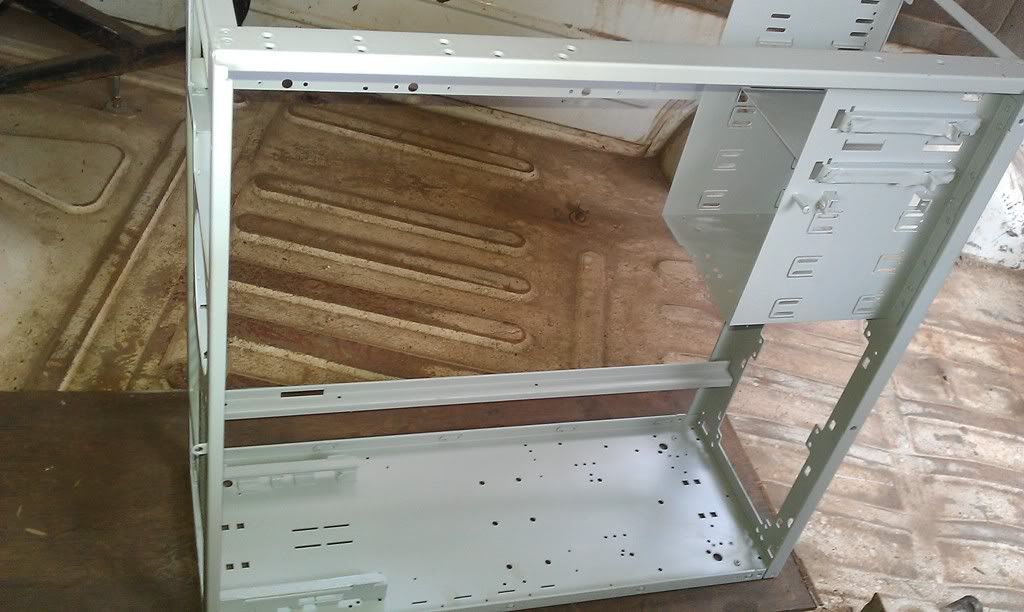

then it was painters turn for the primer

he primed it today by 11:30AM IST

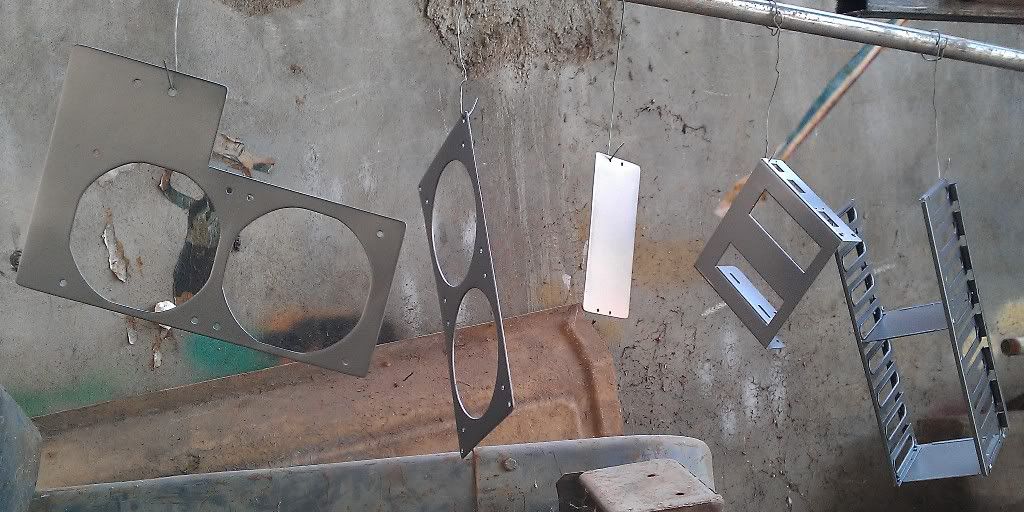

some pics

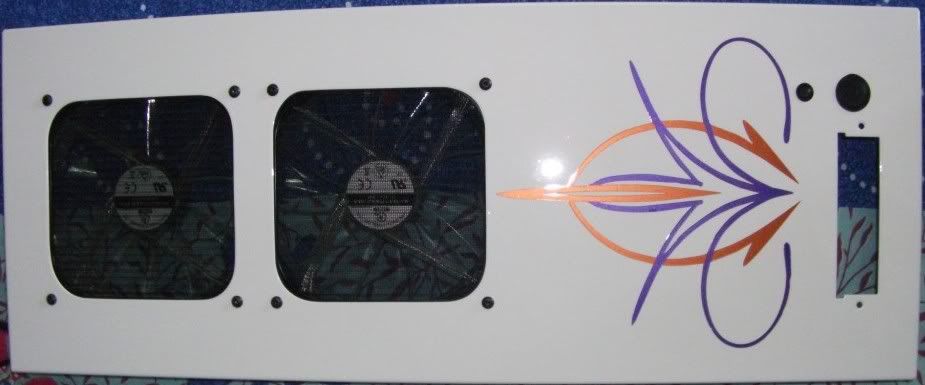

the front 140mm to 120mm conversion panel

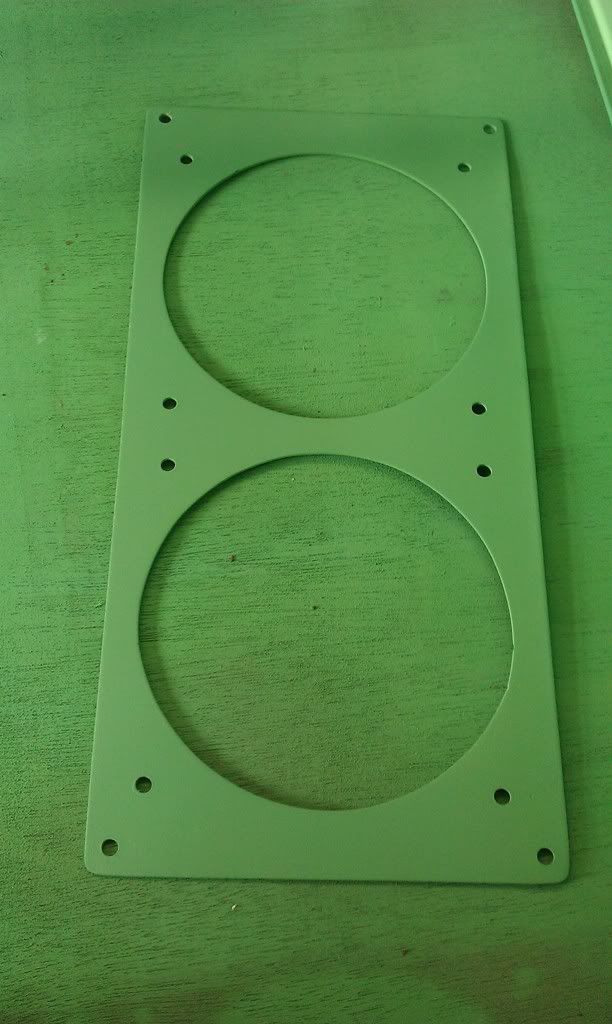

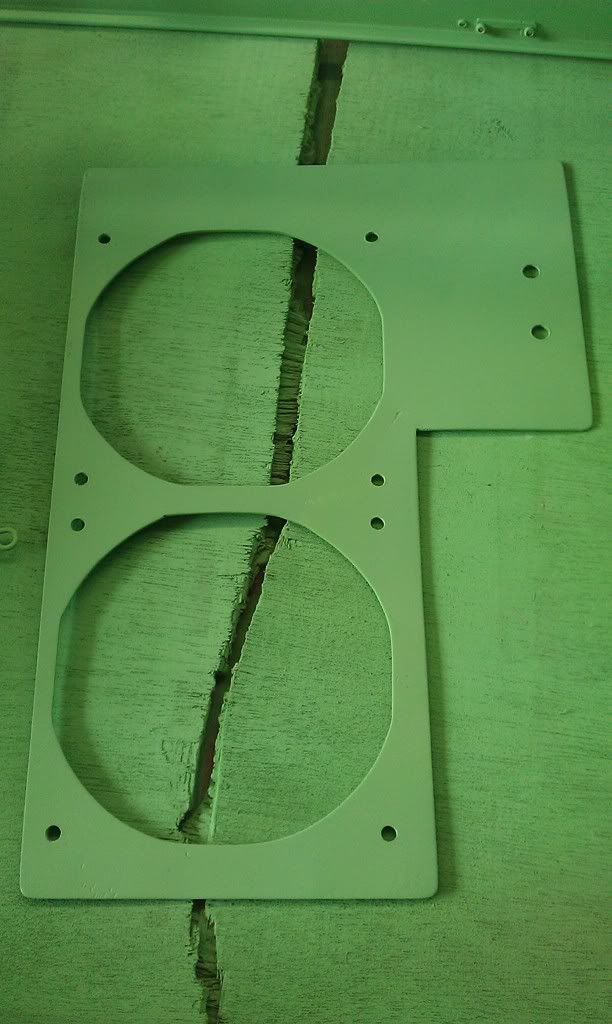

the rear panel for housing 2x120mm fans

till now it's seems to be going great but then Disaster.

it rained like hell today & there was snowfall,the weather was very windy as well.

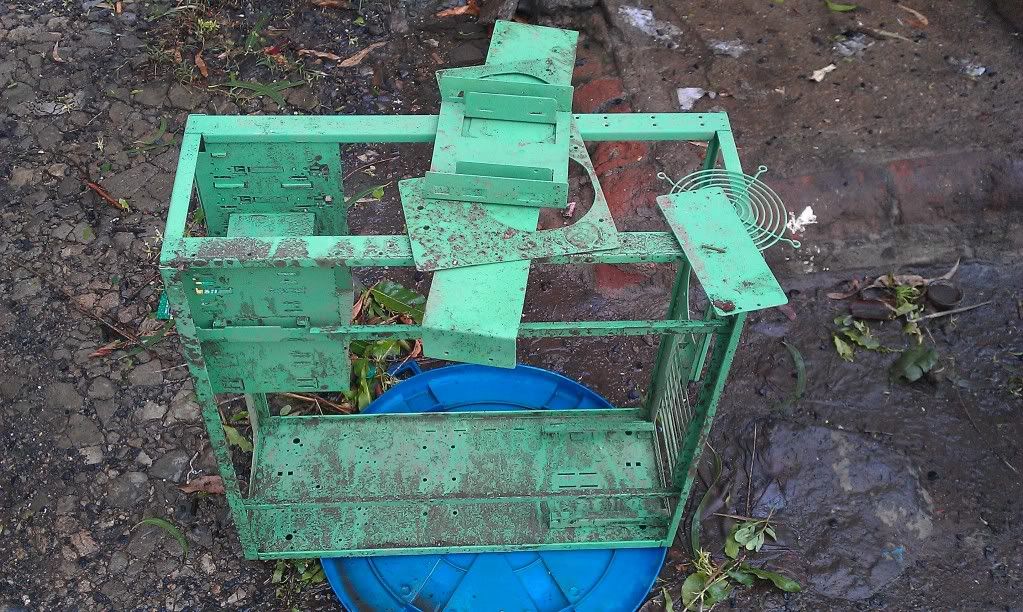

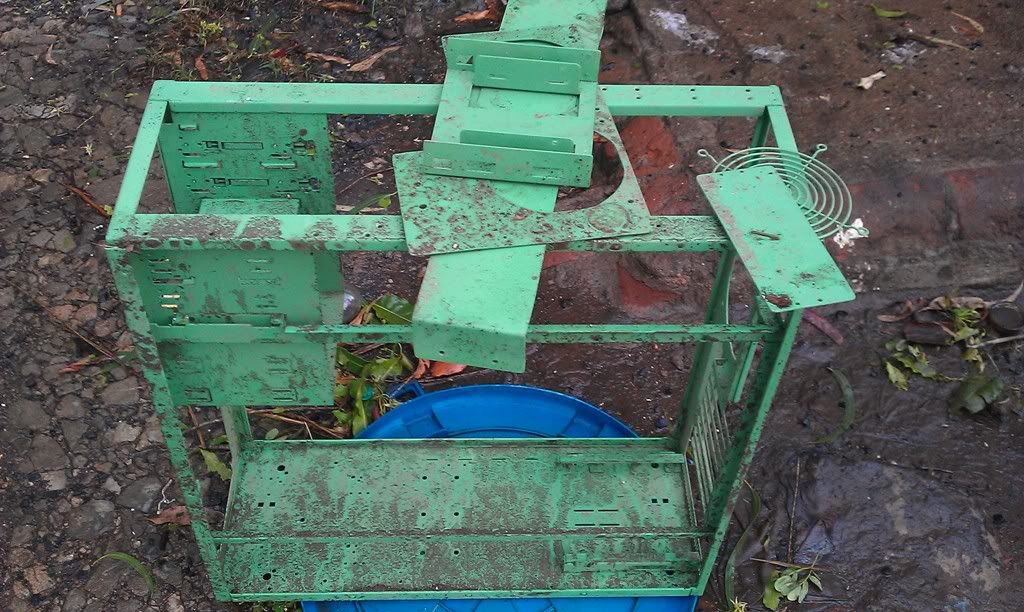

so the bench on which all the parts were placed was blown away & all the parts including chassis were eating mud

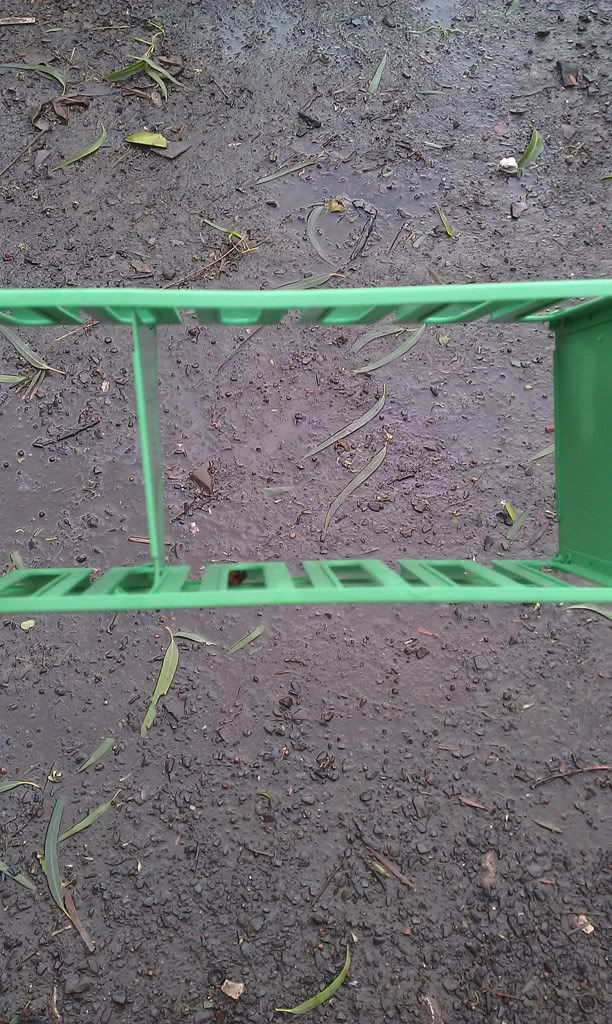

have a look

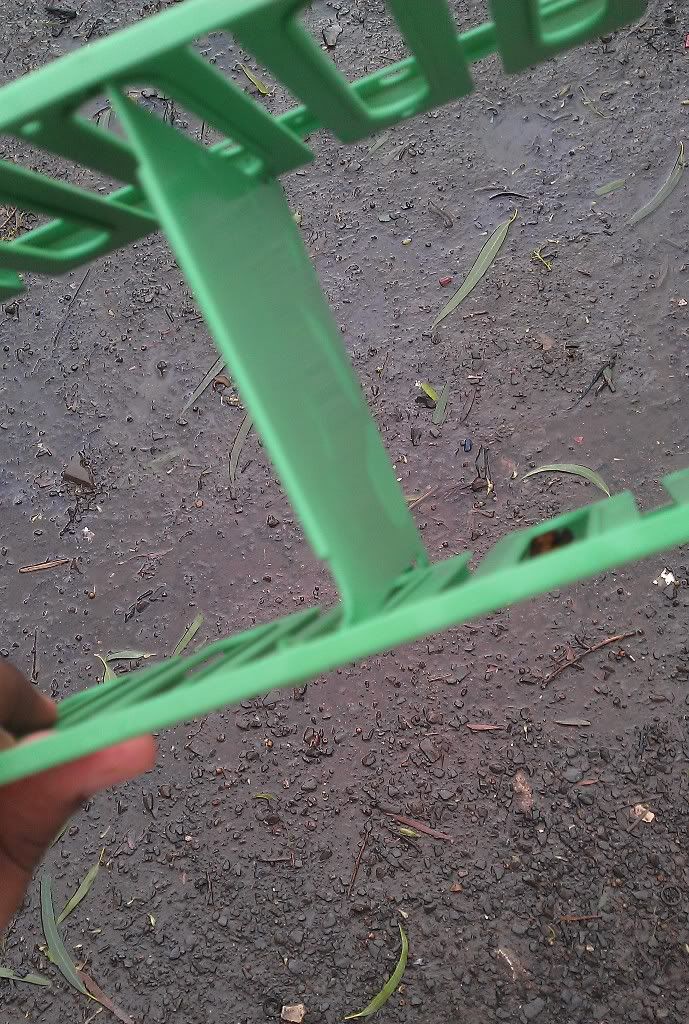

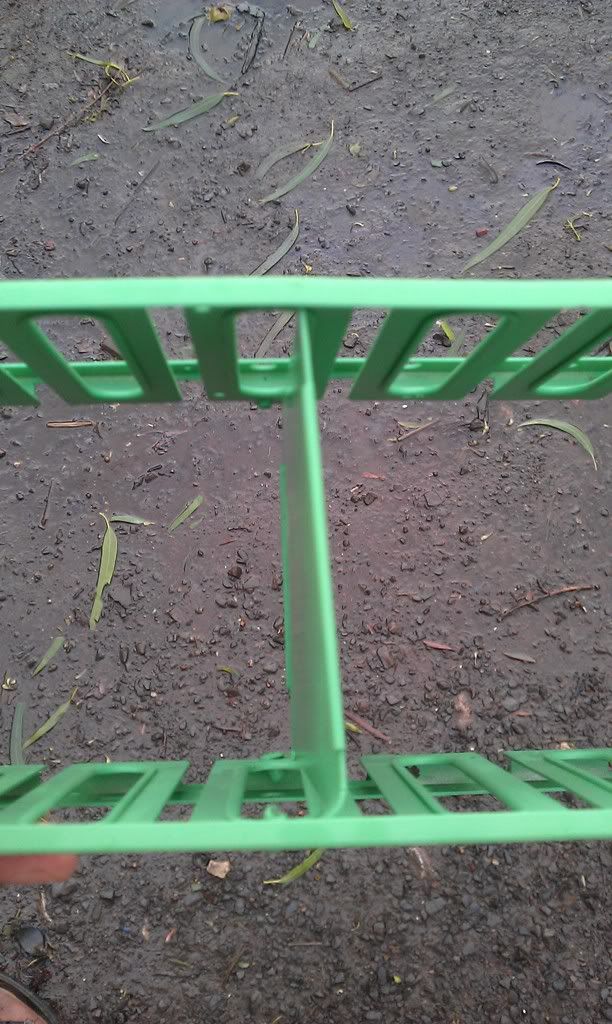

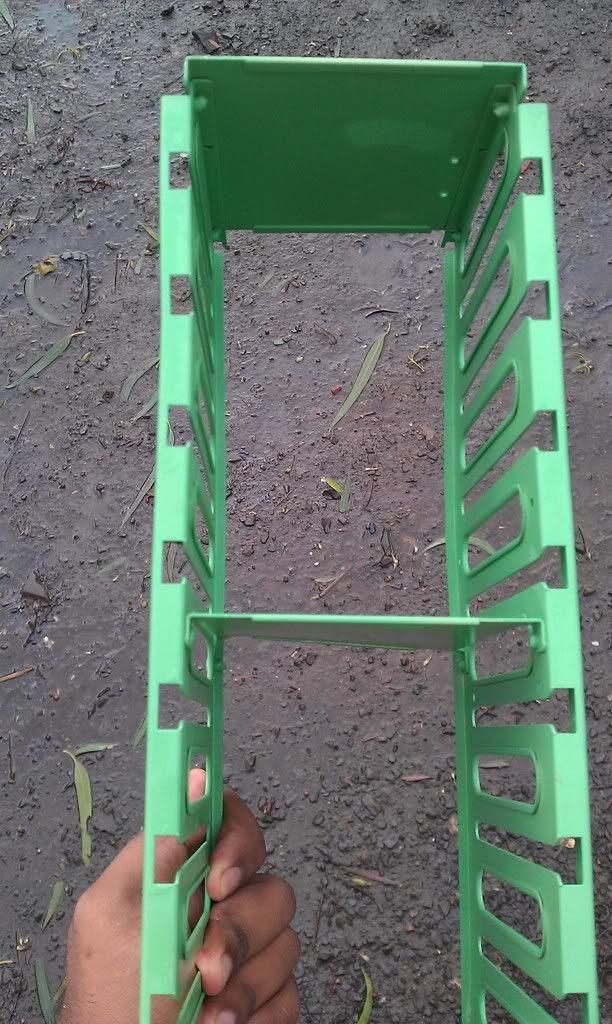

i took the HDD Cage washed it with water & then i was shocked

Fortunately all the other parts were good & needed washing,but now i have one more thing to do,repair the HDD Cage.



[Sudarshan_SMD]

^That was sad. It won't take much of hassles for you to repair the HDD cage.
Good thing is that, paint wasn't damaged.

Great work with that custom aluminium panel, it fits in very well.



[NAV33N]

it's primer not paint & it was scratched from few places,will have to get it redone.



[NAV33N]

here comes the new update -

UPDATE - 21/04/2011

EXHIBITION UP AHEAD

i did reminded the painter to use NC filler a bit on the panels that have minor dents in them but he forgot so i asked him to put the filler & reprime it

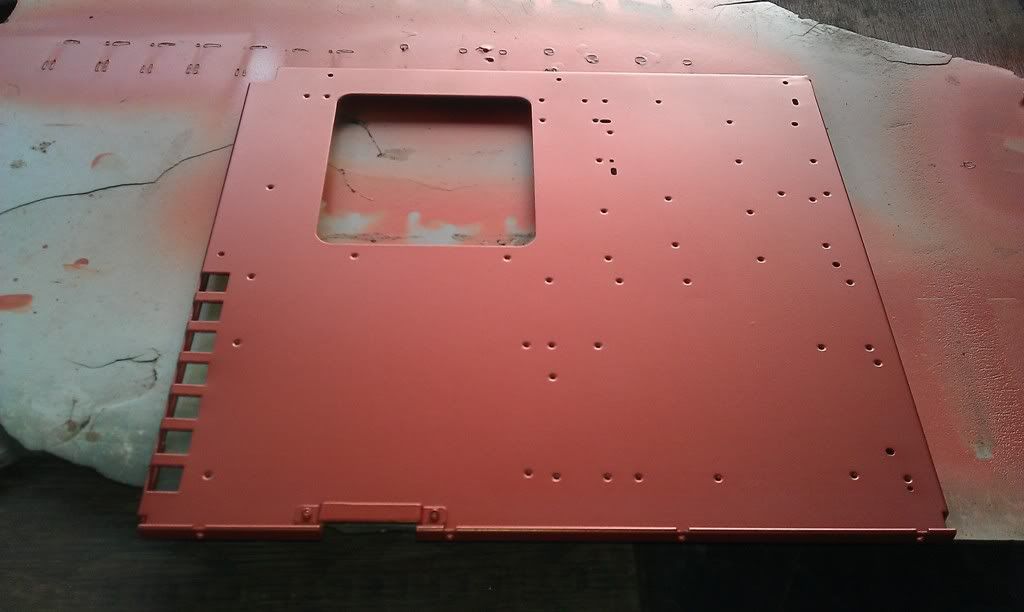

so above is the pic of the panels with NC filler applied.

other panels have been primed as well

& then the painters leaved for vacation for a 2-3 days else the build would have been done sooner.

anyways will wait for two days & get them painted



[NAV33N]

UPDATE - 27/05/2011

sorry for not updating you all in a long time but i have been working on the build,the only thing that i didn't do was update the worklog.

so here goes the update

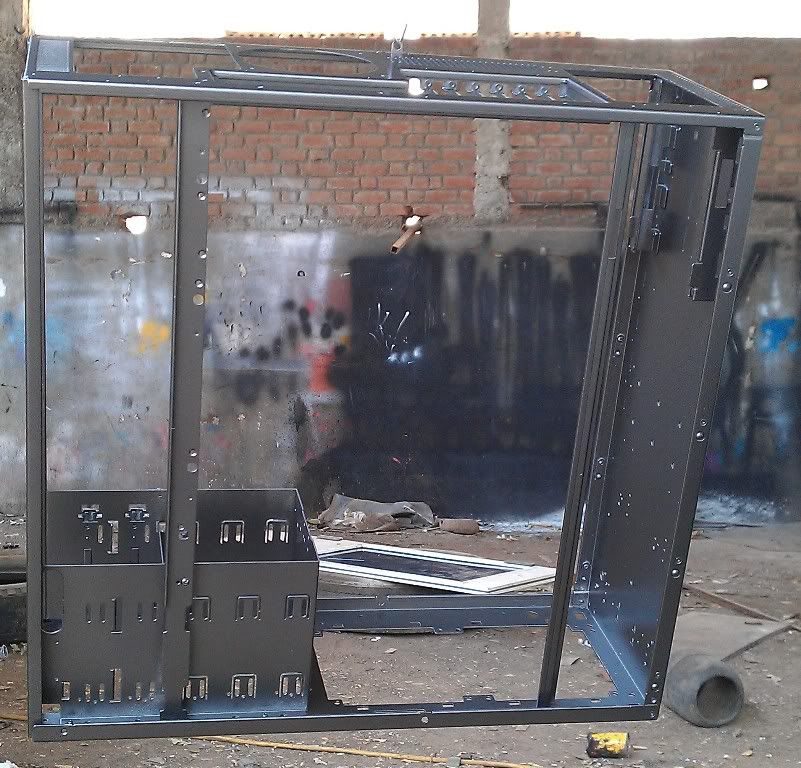

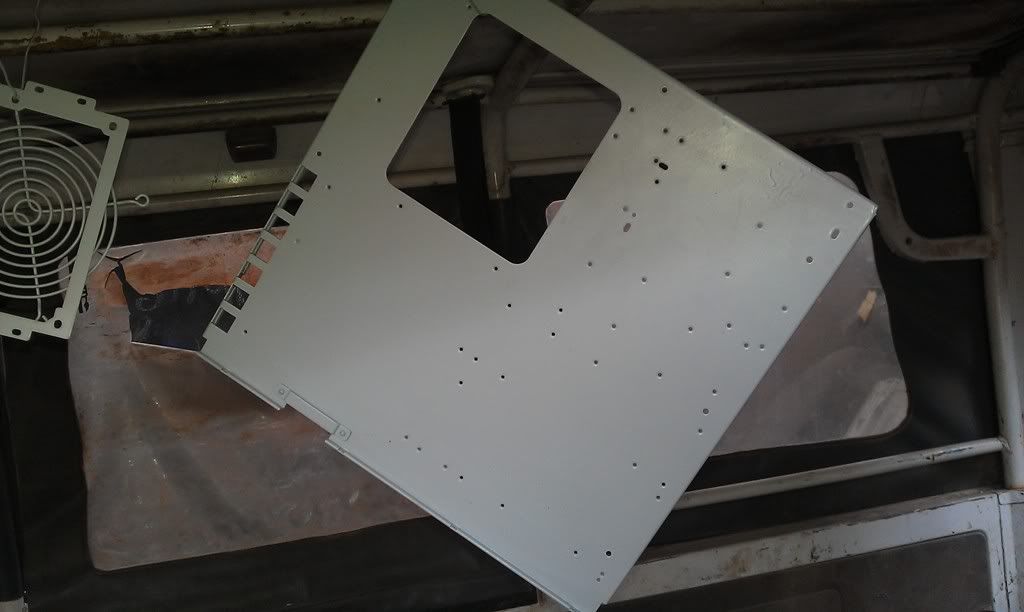

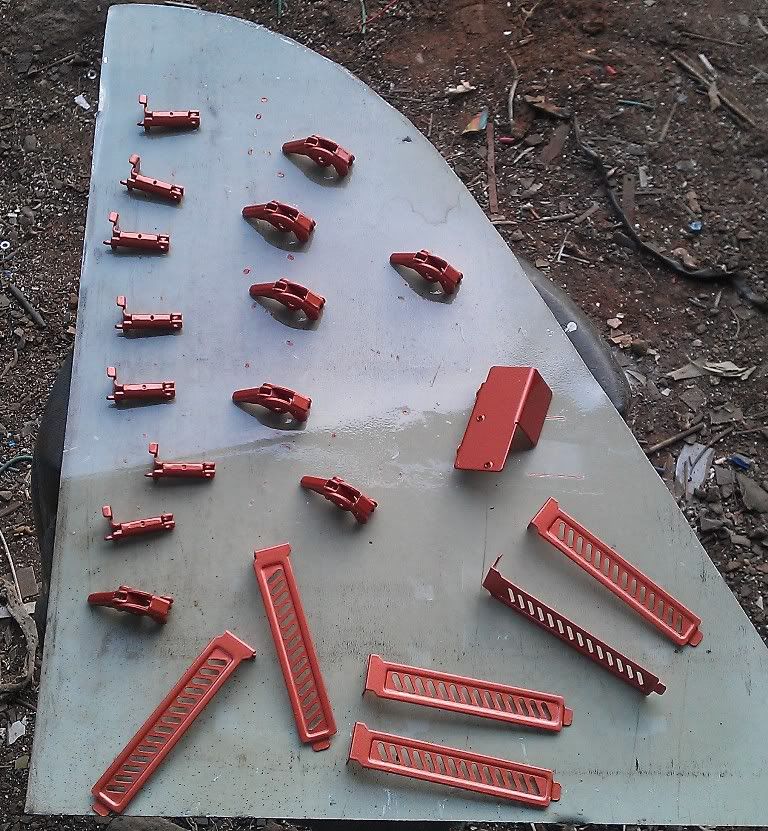

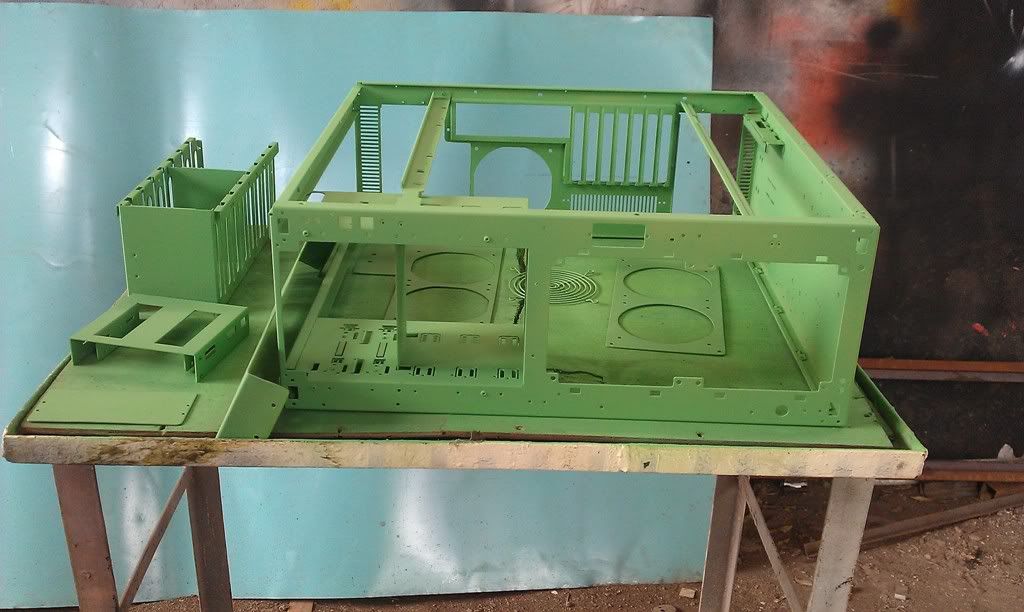

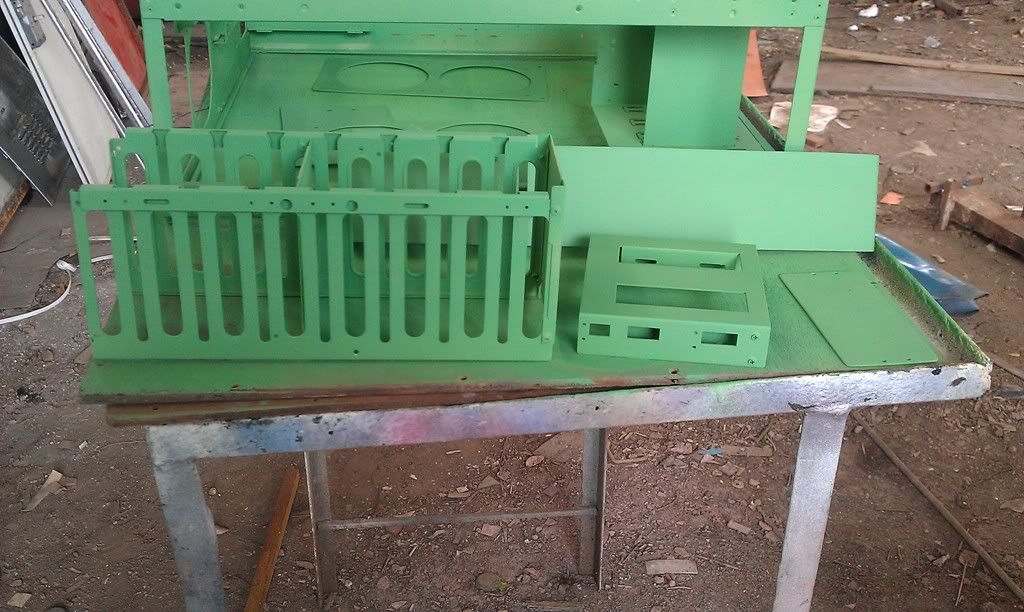

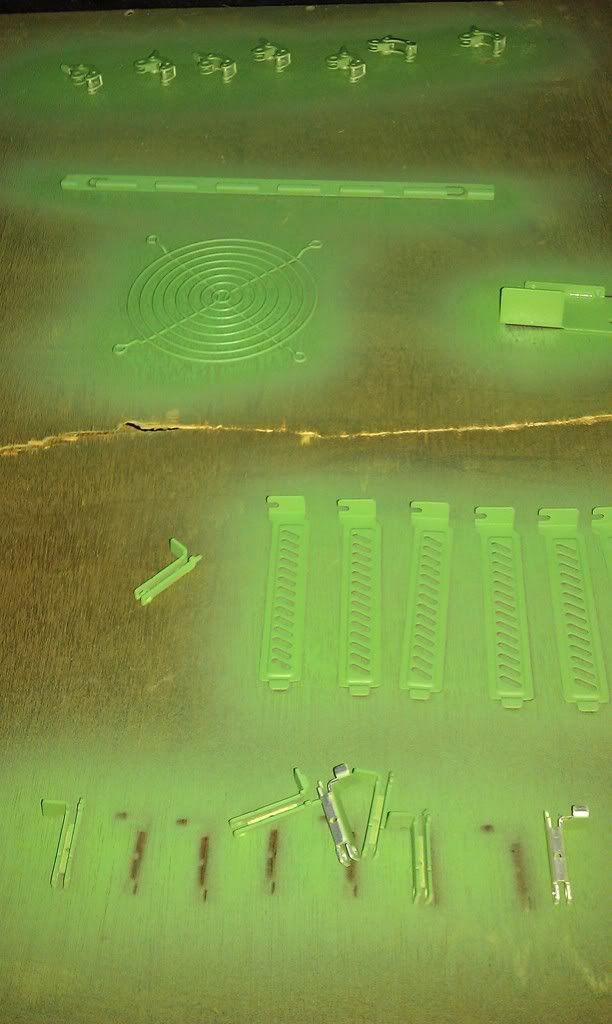

everything has been painted up here goes some pics during the work

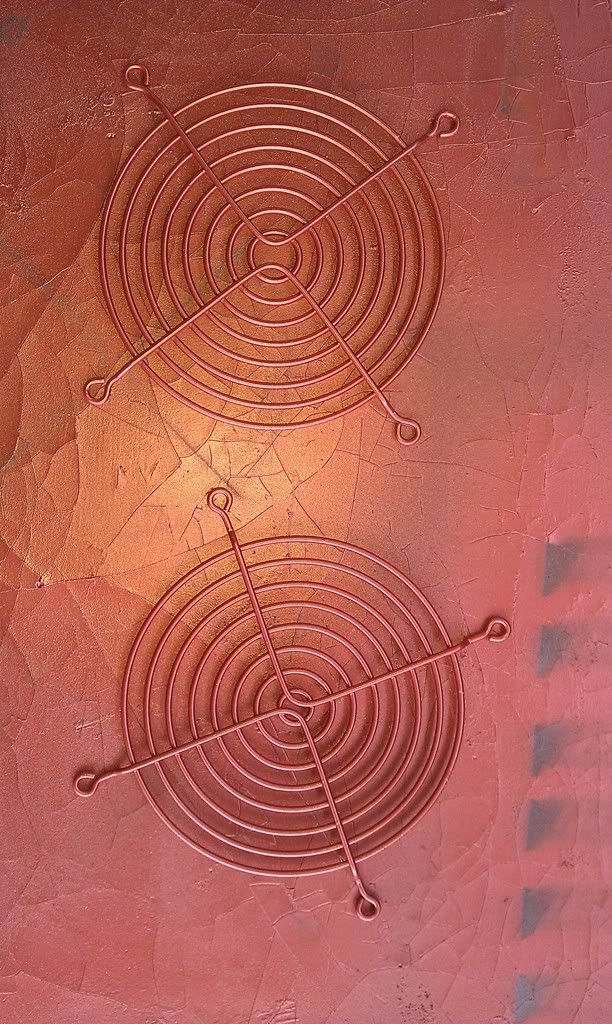

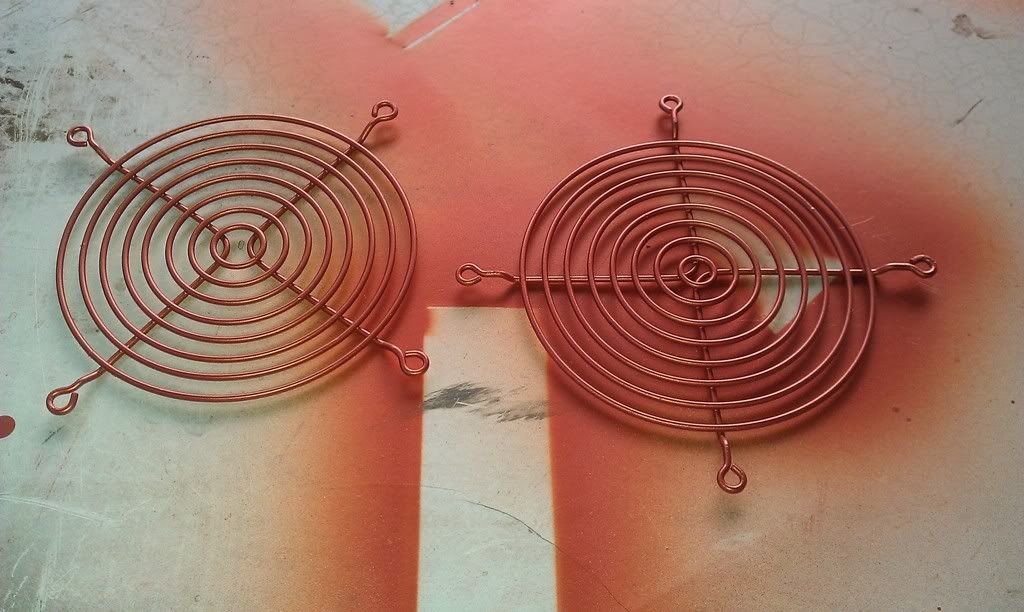

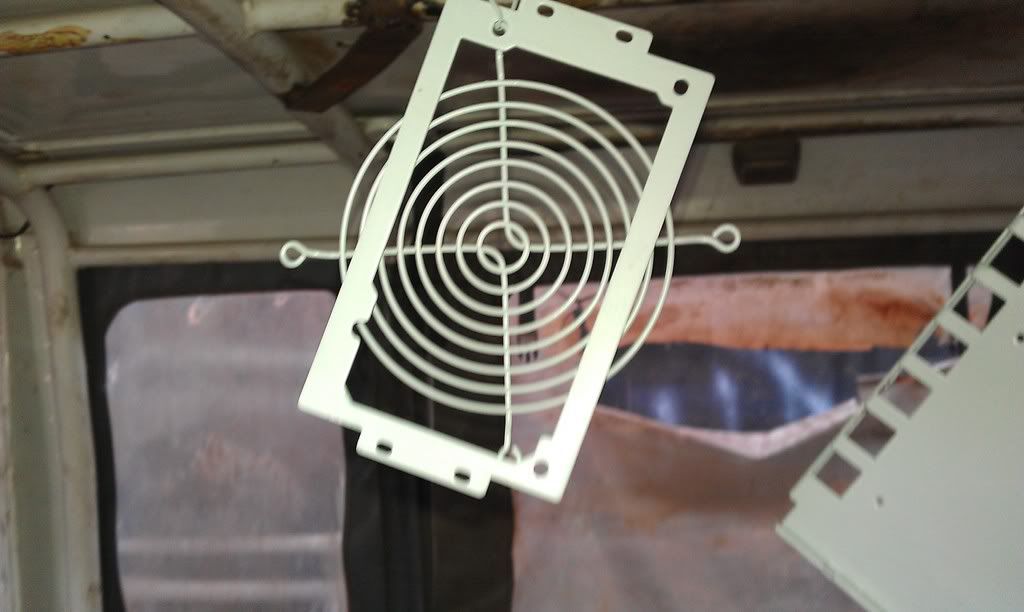

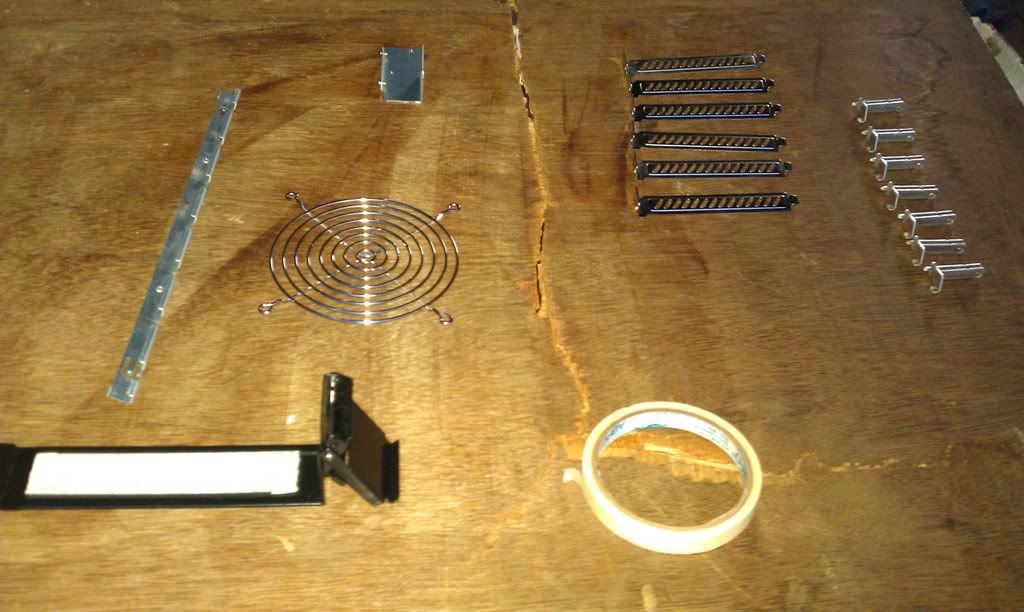

i decided to paint different color on fan grills,motherboard tray & PCI Slot covers for some extra highlights

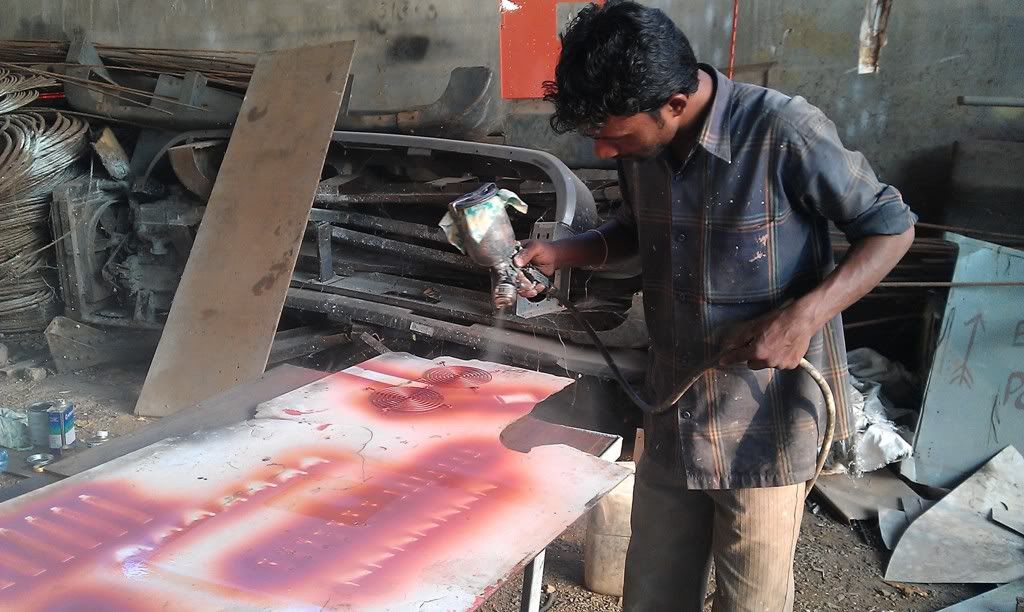

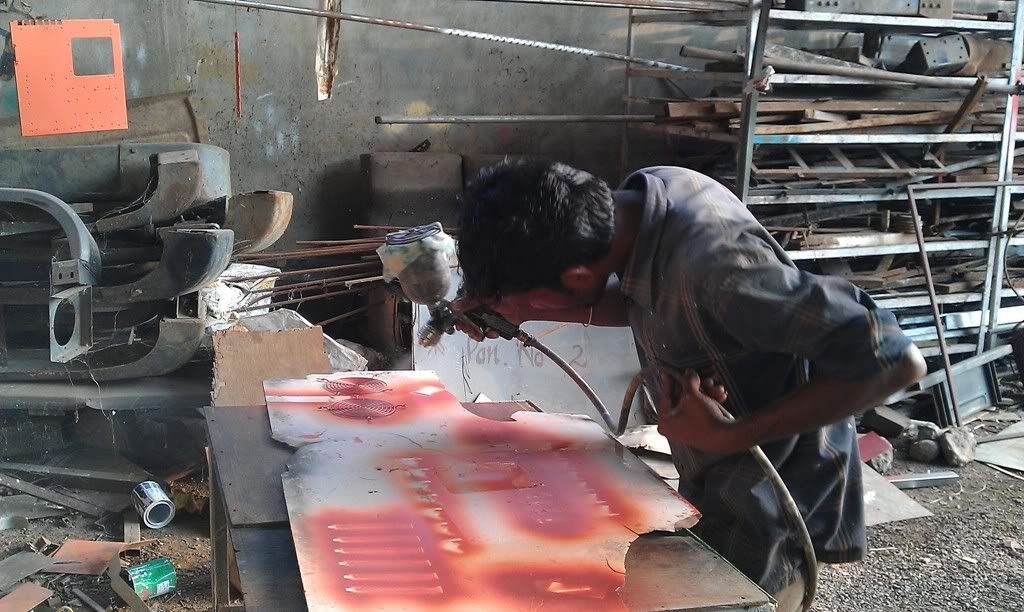

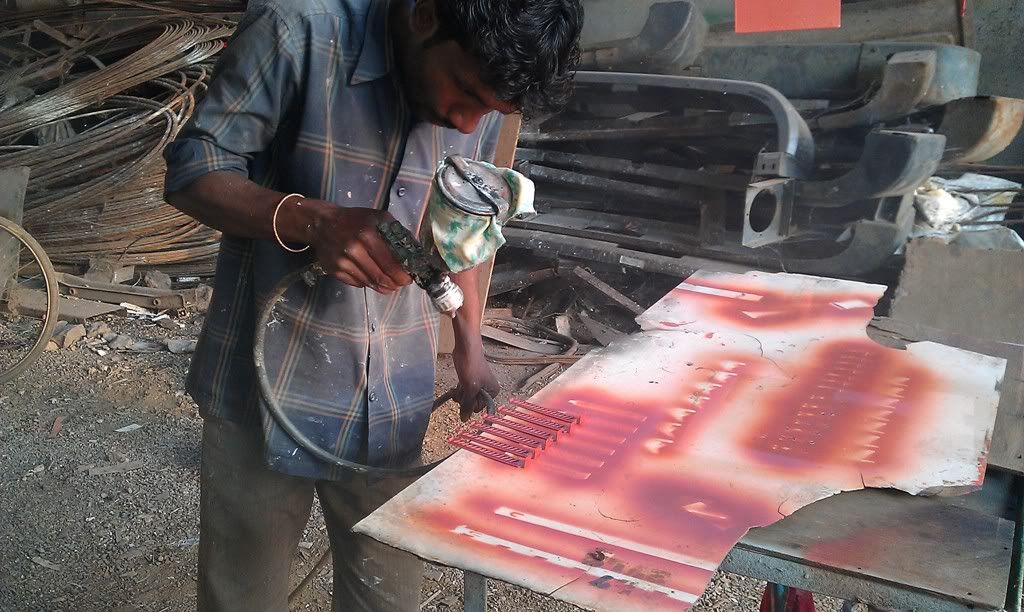

the painter working his magic on the parts

i know he doesn't look professional but he indeed is

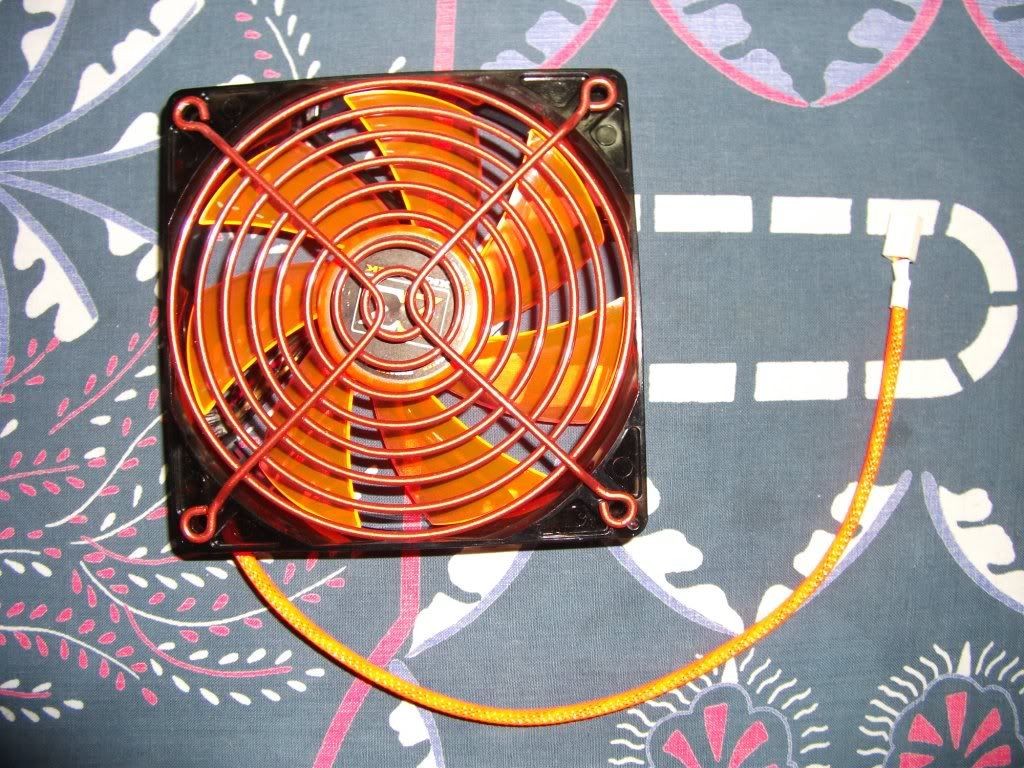

i also tried searching a lot for xigmatek 140mm orange led fans but wasn't able to source them.so,i thought of something & finally ended up on more modding :yeah: i.e.

changing led of 140mm blue led fans to white,visited a local store & got hold on some white leds

so i started the work here is one pic to be precise

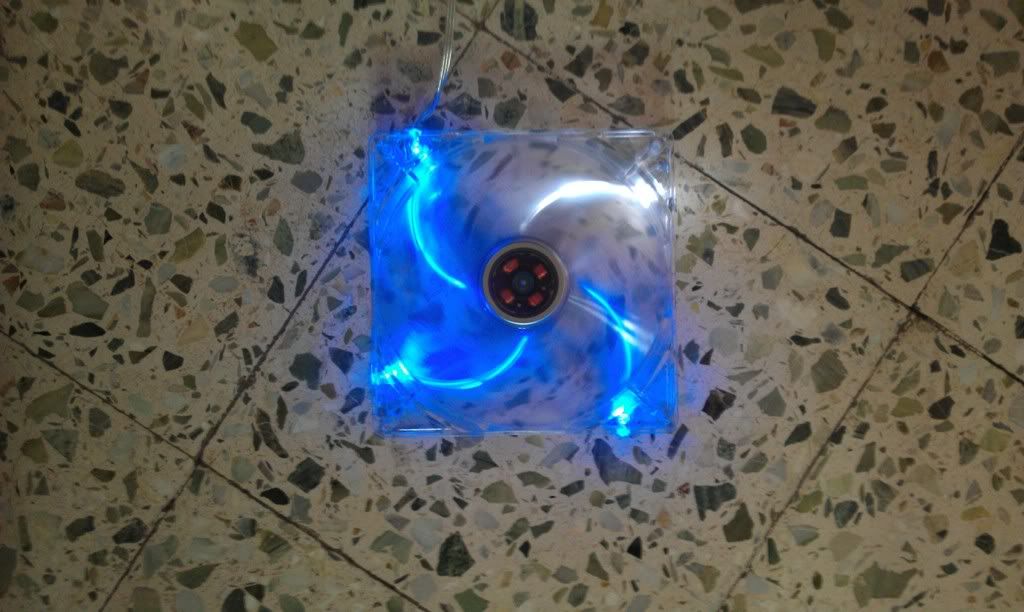

changed one led & tested it unfortunately all the leds were of different shade in white & they were not as bright as blue.

so,i've ordered some high brightness white led off ebay,will wait till they arrive.

some teaser pics of the update that will follow soon



[mrcool63]

dude u should test ur modded version against a lanboy air. see how it matches up
nice one by the way



[cyberwarfare]

MDPC-X OMG

nice stuff man



[NAV33N]

dude u should test ur modded version against a lanboy air. see how it matches up

nice one by the way

i know that lanboy air is a very good air cooling case but here's a thing.

if you & i buy lanboy air then we'll end up with the same case,when i'm done with this build i'm sure i can claim it for being a different PC-A70F.



[NAV33N]

sorry everyone for leaving this build in the middle of nowhere.

the fact is i was busy preparing for competitive exams for past few months,so had to leave it.

i have started the work again & the build should be complete within the next 3-4 days,since only sleeving & assembling is remaining.

watch this space for updates on the build starting tonight.

UPDATE - 23/12/2011

Well,I'm Back & this time to finish this build.. yeah for Sure.

so,here goes the update....

as all the modding & painting work was done earlier,all that remains now is sleeving & assembling.

Sleeving first -

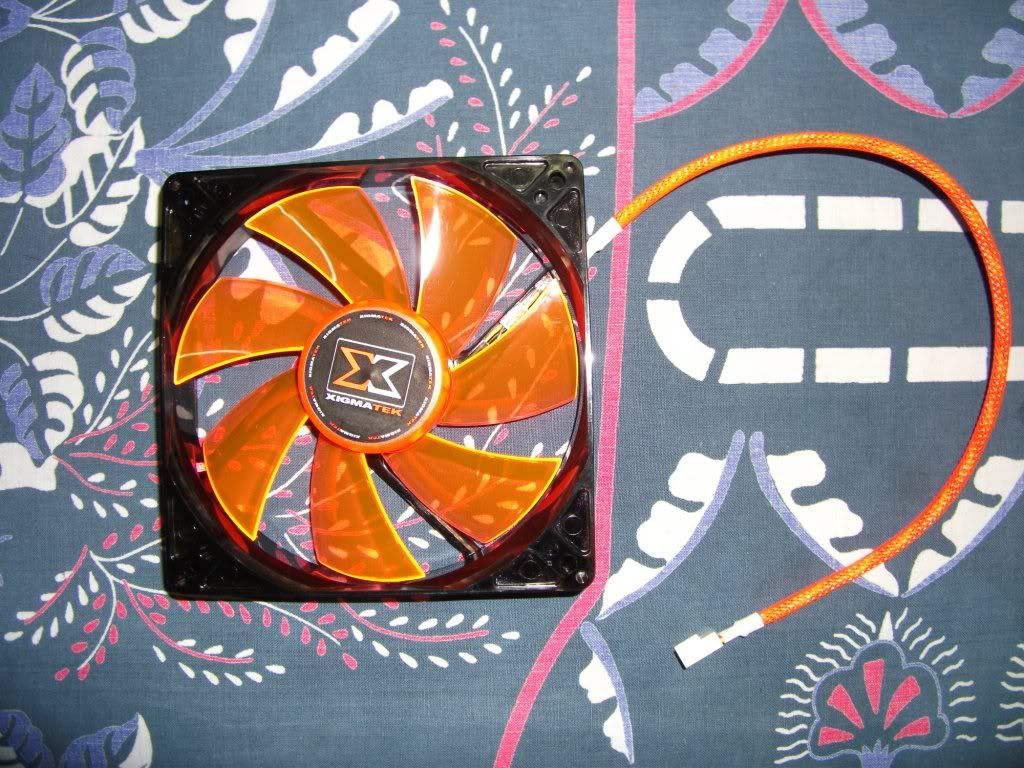

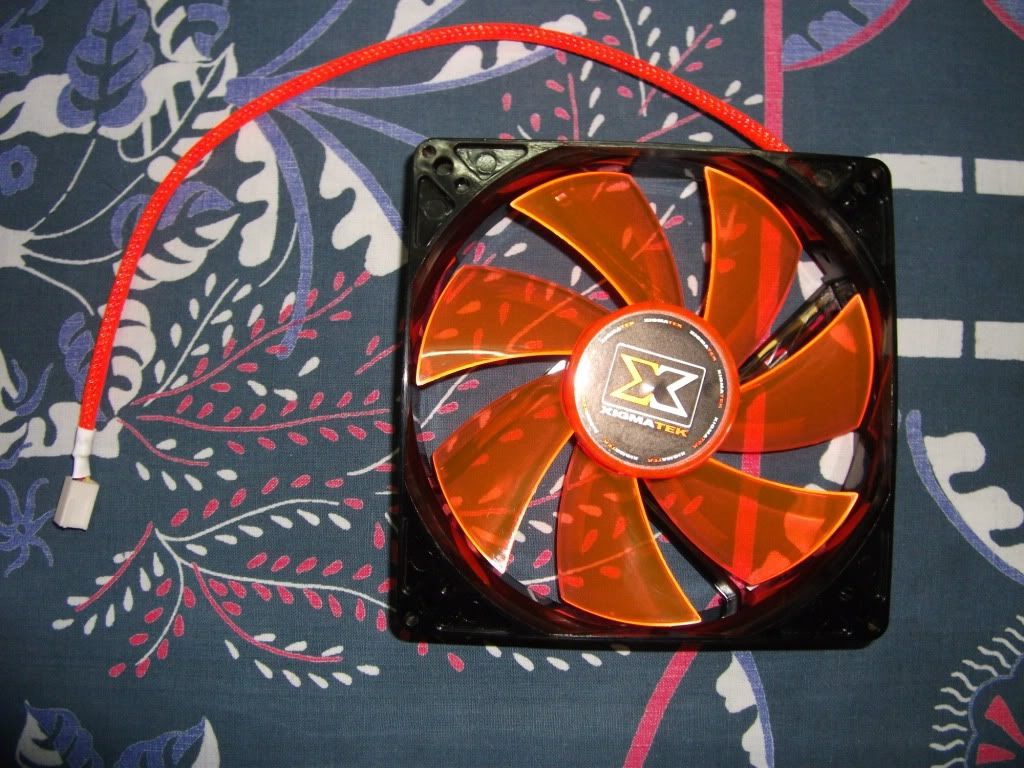

Xigmatek Fan Sleeved

Same fan with Painted Grill on it

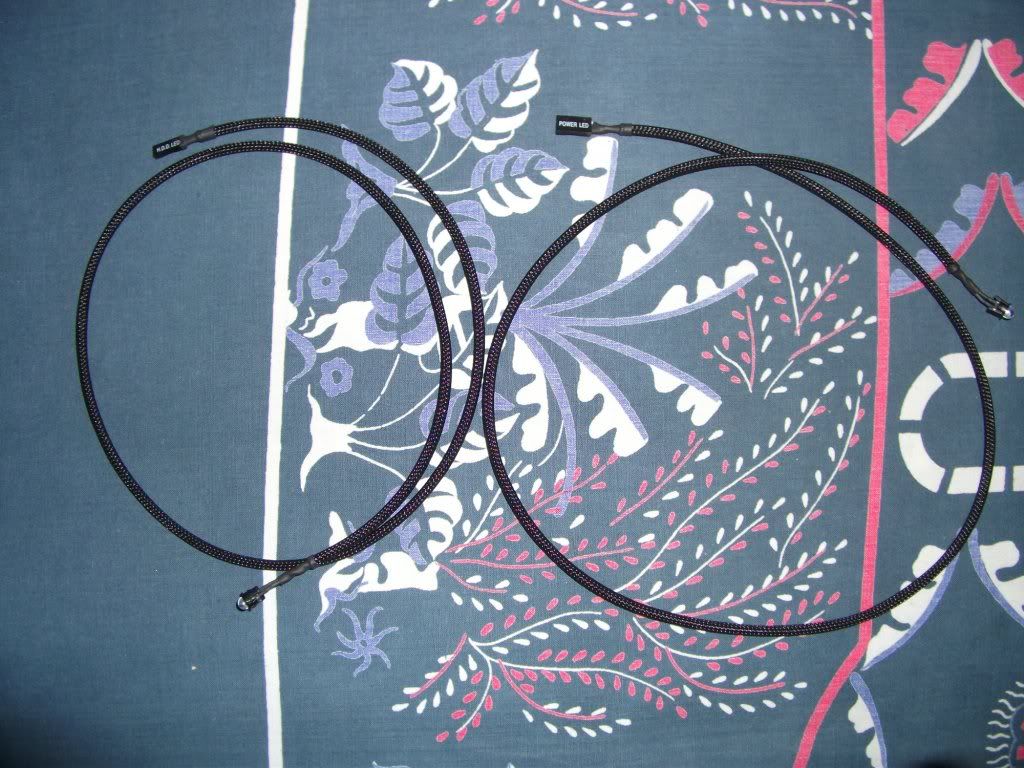

Power Led & HDD Led

Power Switch & Reset Switch

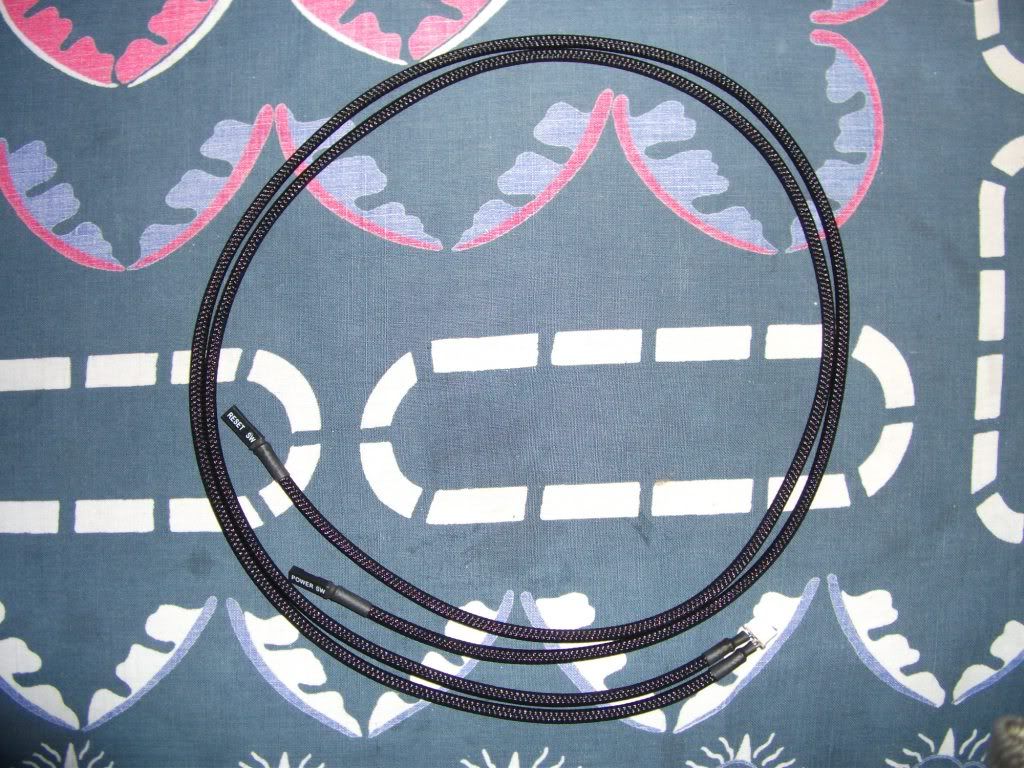

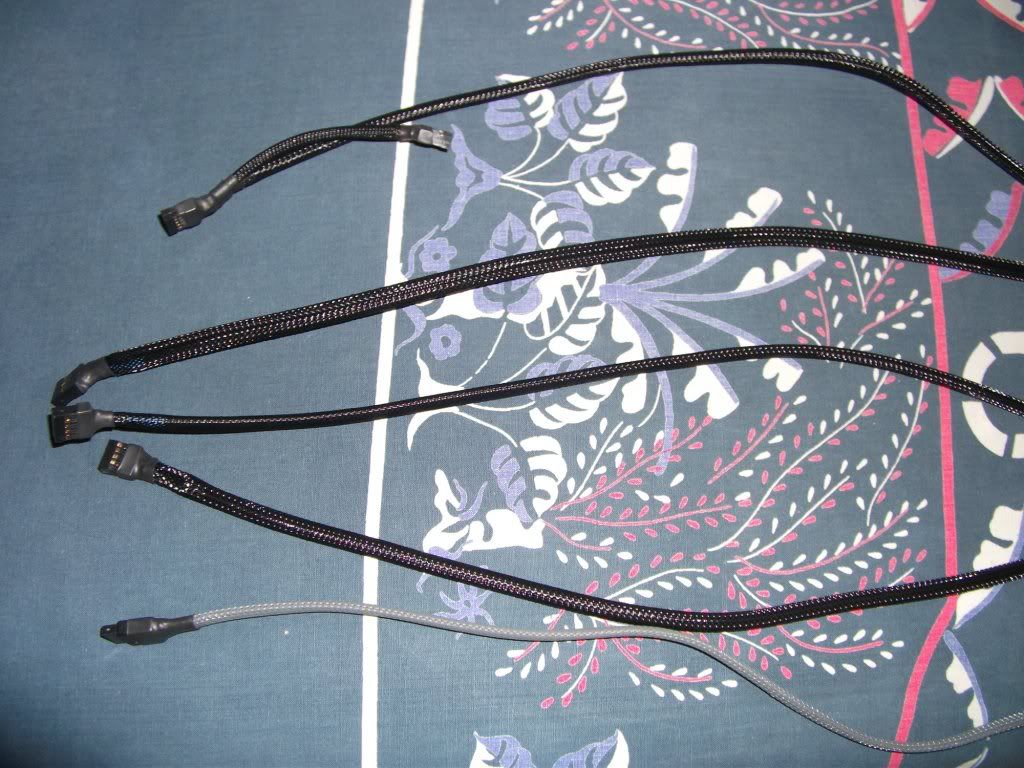

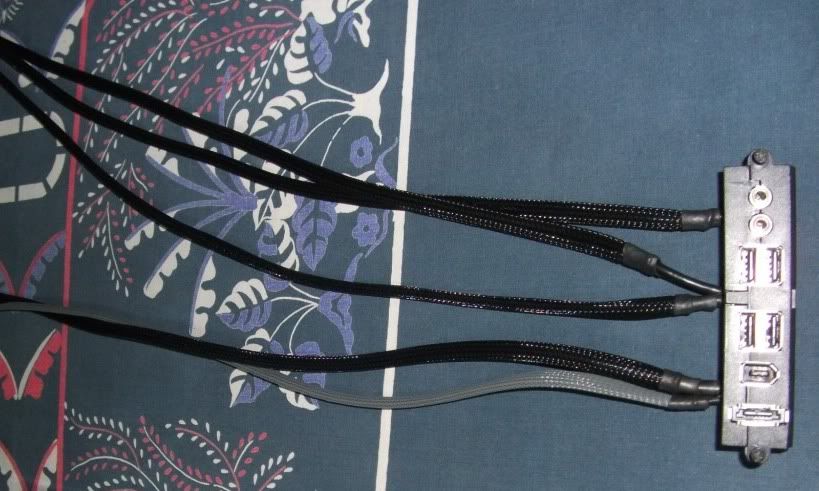

Front Panel Connectors - as this was my first time with sleeving it was real PITA to sleeve these connectors,time & patience got me through here.

other end

Now,time to finish up the top panel - it was hard getting power buttons & reset buttons on the top panel,so a little bit of sanding the holes with sand paper & the buttons are in & working.

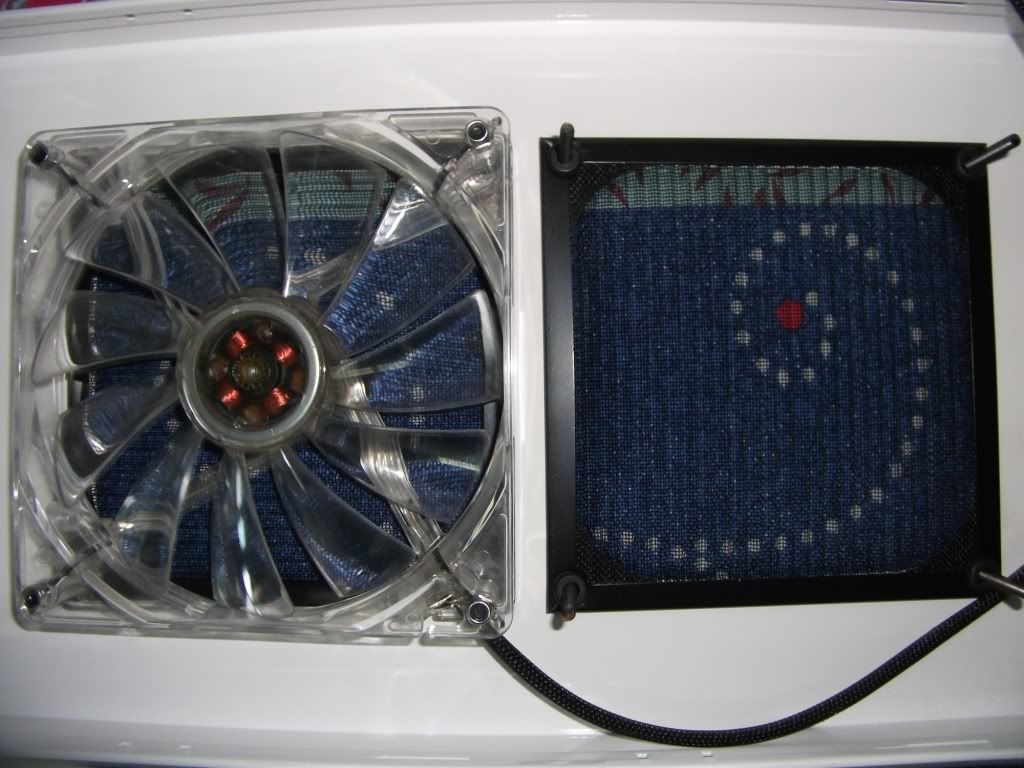

next is the 140mm fans (already sleeved),i've swapped all Blue Led's with White Ones,i'm sorry as i forgot to take pictures of the fan while sleeving & changing the leds.

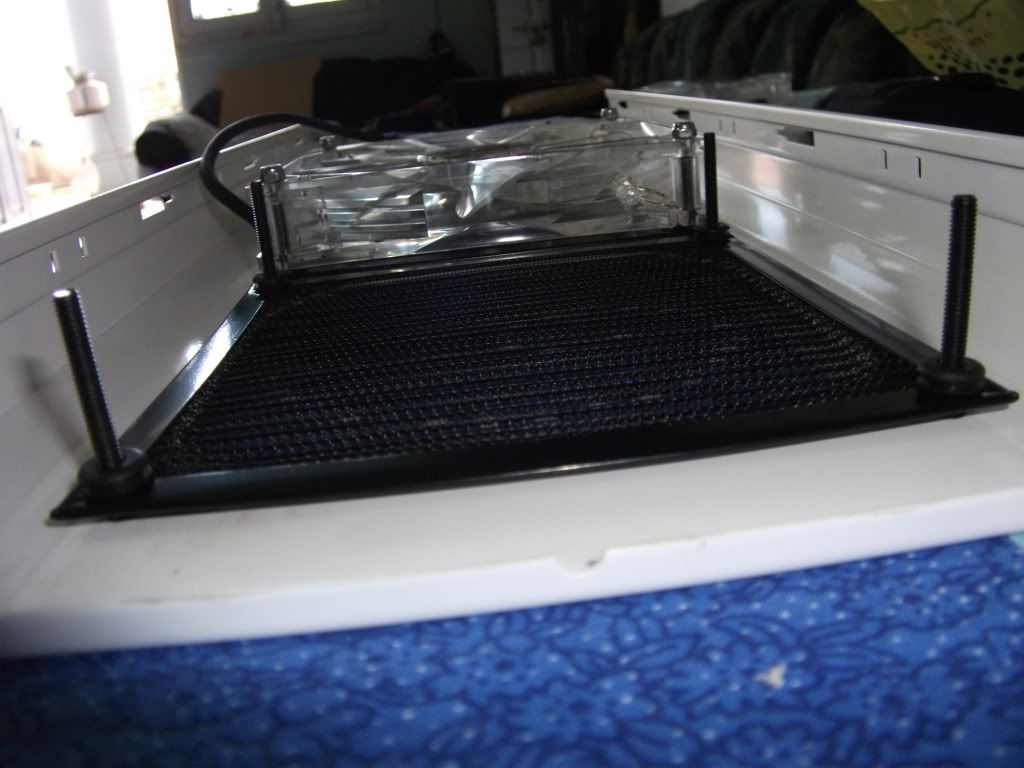

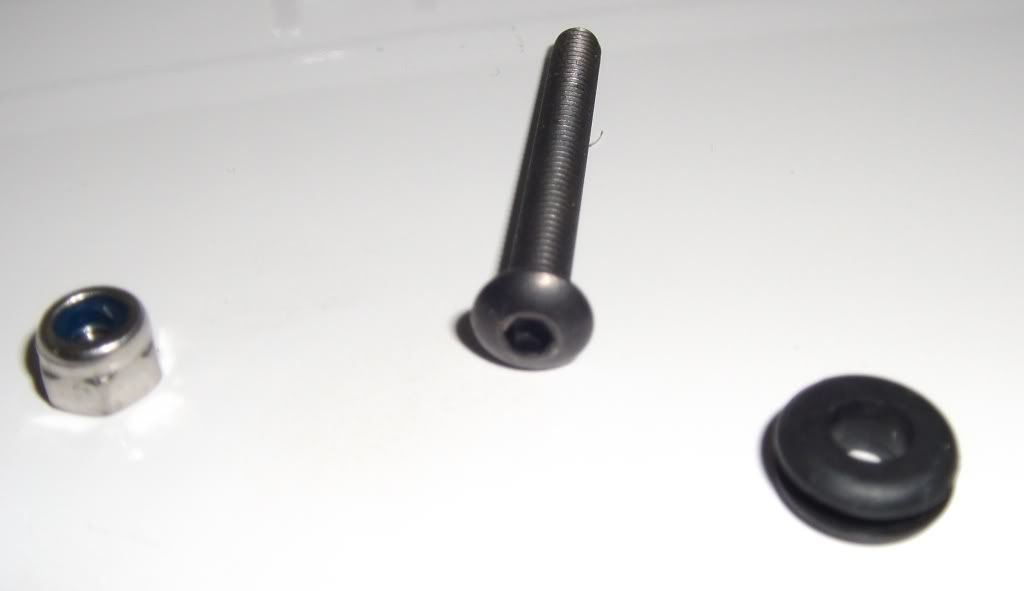

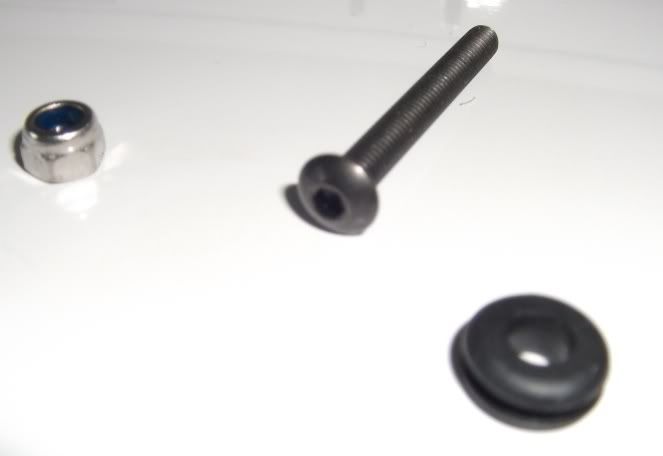

Fans are secured using 35mm long black M4 Button head screws,M4 Nyloc Nuts & to dampen the vibrations of the fan i've used the rubber grommets that came in with the case for HDD's.

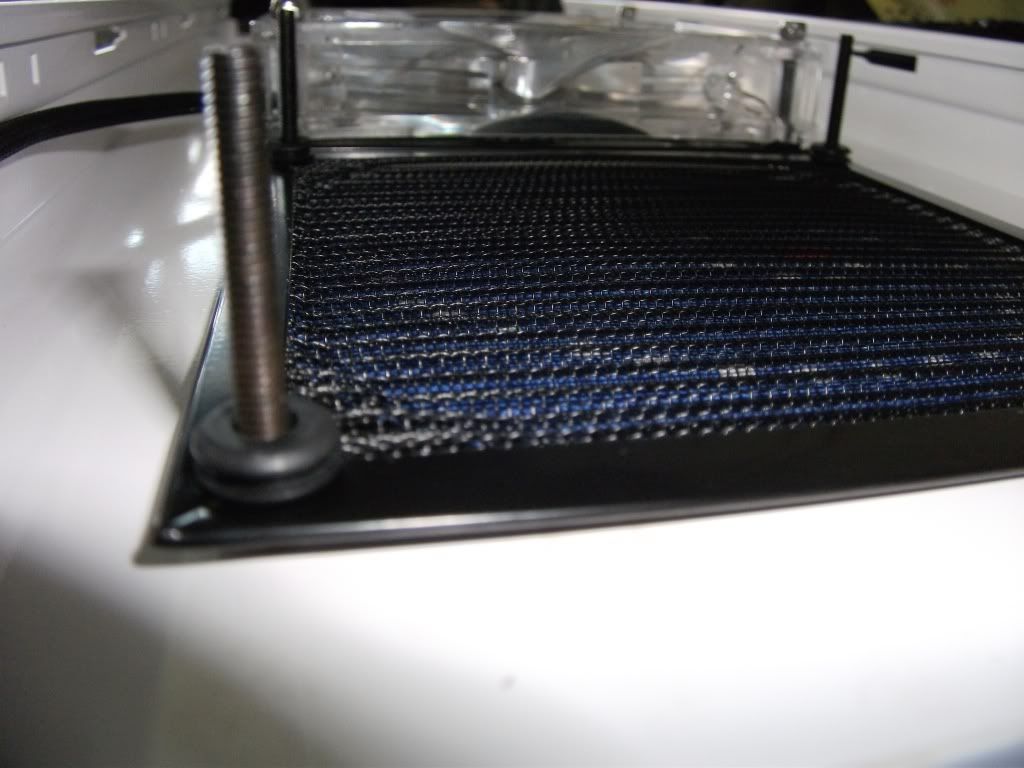

this is how i placed rubber grommet to dampen the vibration of the fan

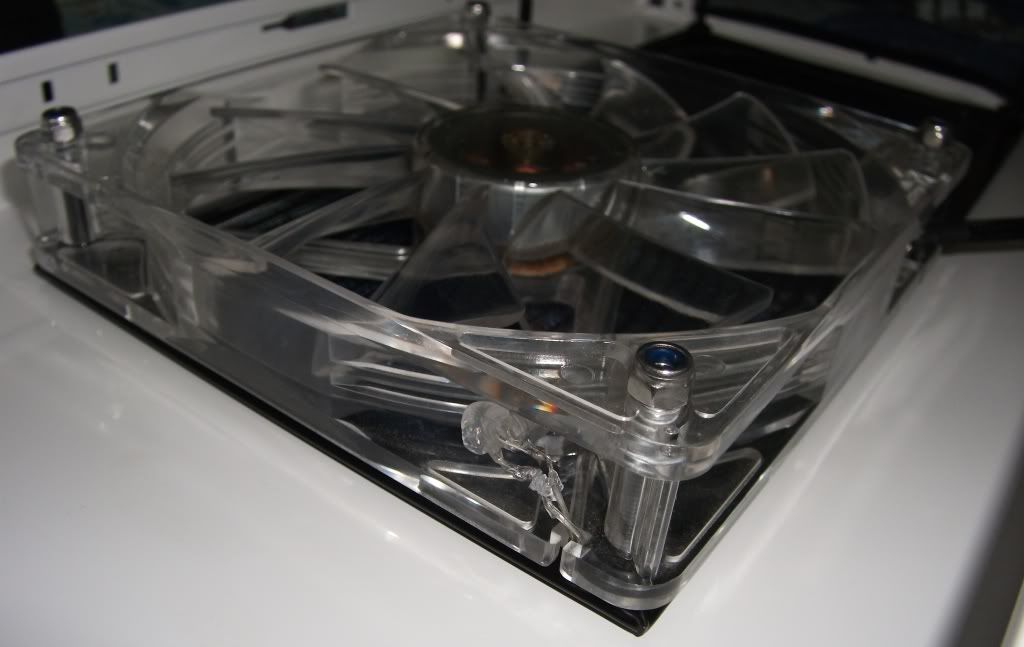

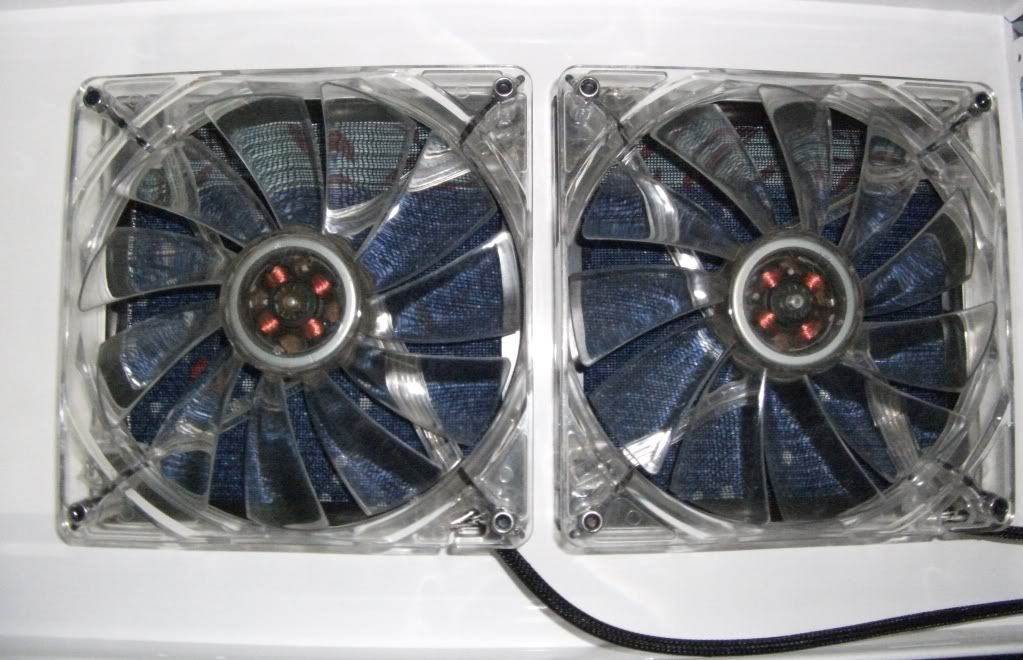

both fans in the place

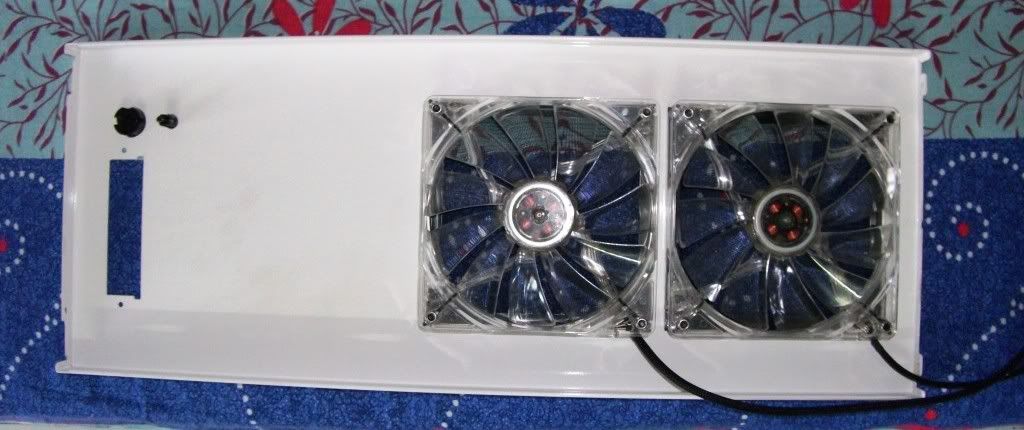

Inside View

Top View

The Center of 140mm Lian Li Fan doesn't have any sticker,the copper winding in the center was not looking good.

Time for a Quick Fix

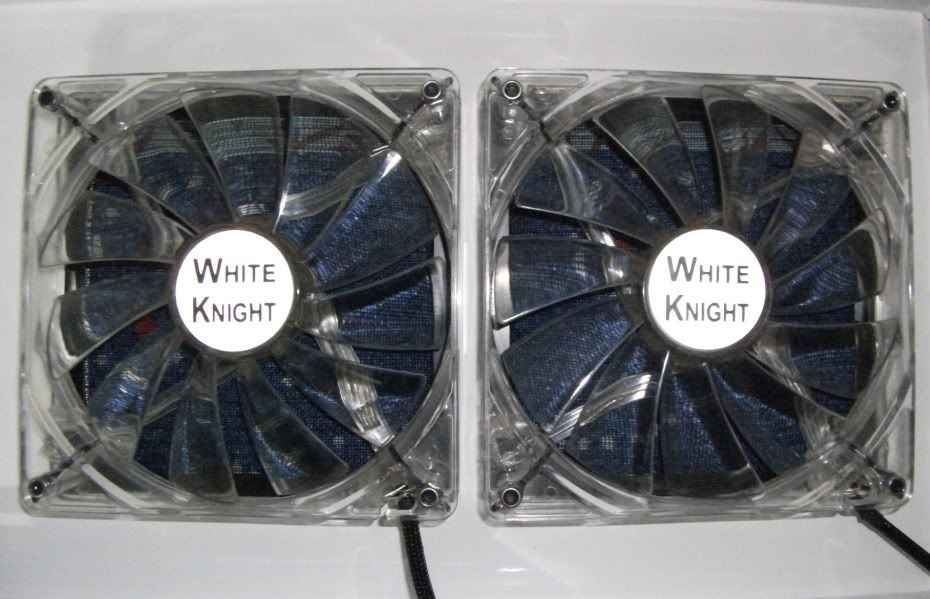

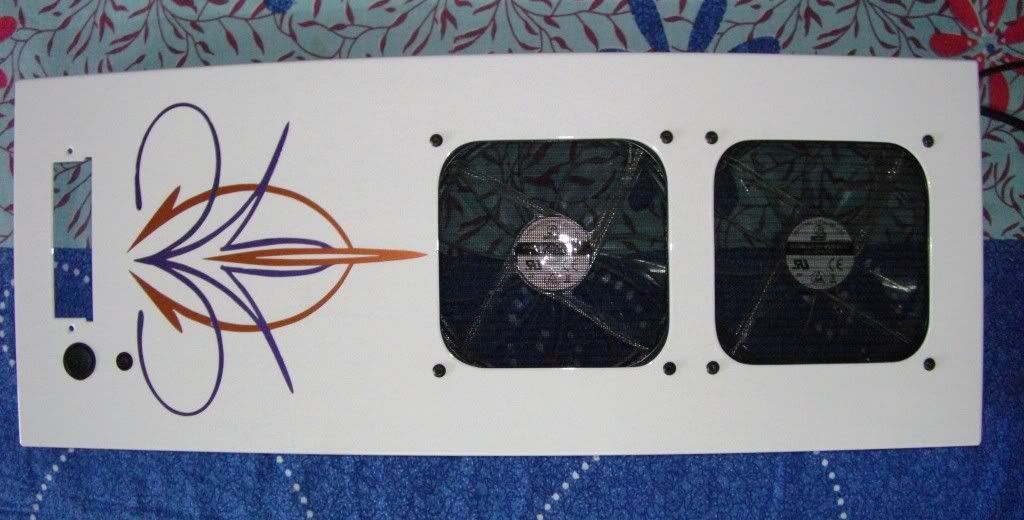

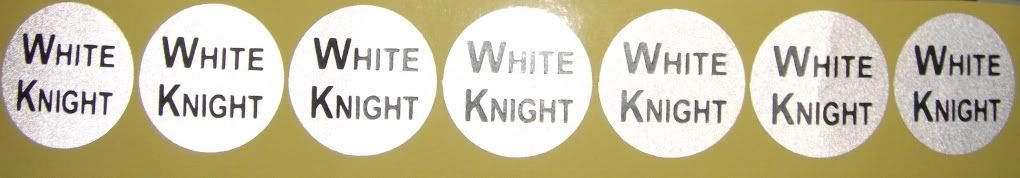

got all these plotted in no time,my mind was not working on what to plot so i went with the Project Title,if any of you have any image(s) that can be plotted on a 4x4 sq cm area without any distortion then it would be great.

Oh & here's how the fan looks before & after the sticker

applied on one fan,

and on both

that's all for tonight..

next to come is PSU Sleeving & Reassembly.



[NAV33N]

UPDATE - 25/12/2011

MERRY CHRISTMAS [TE]IANS

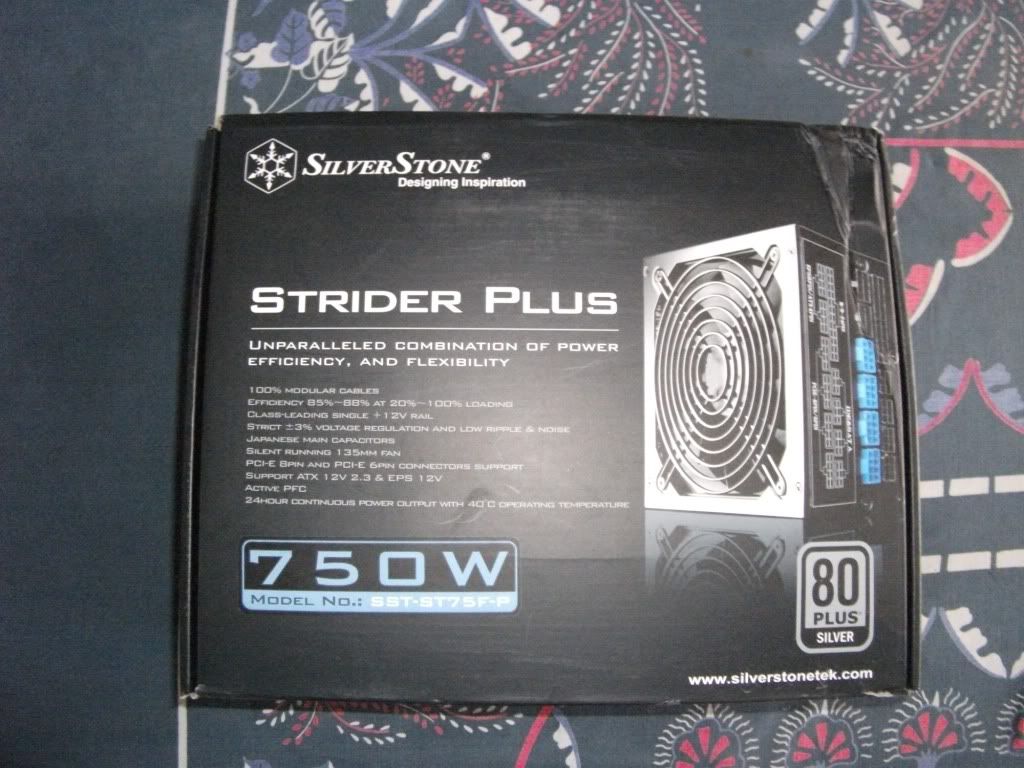

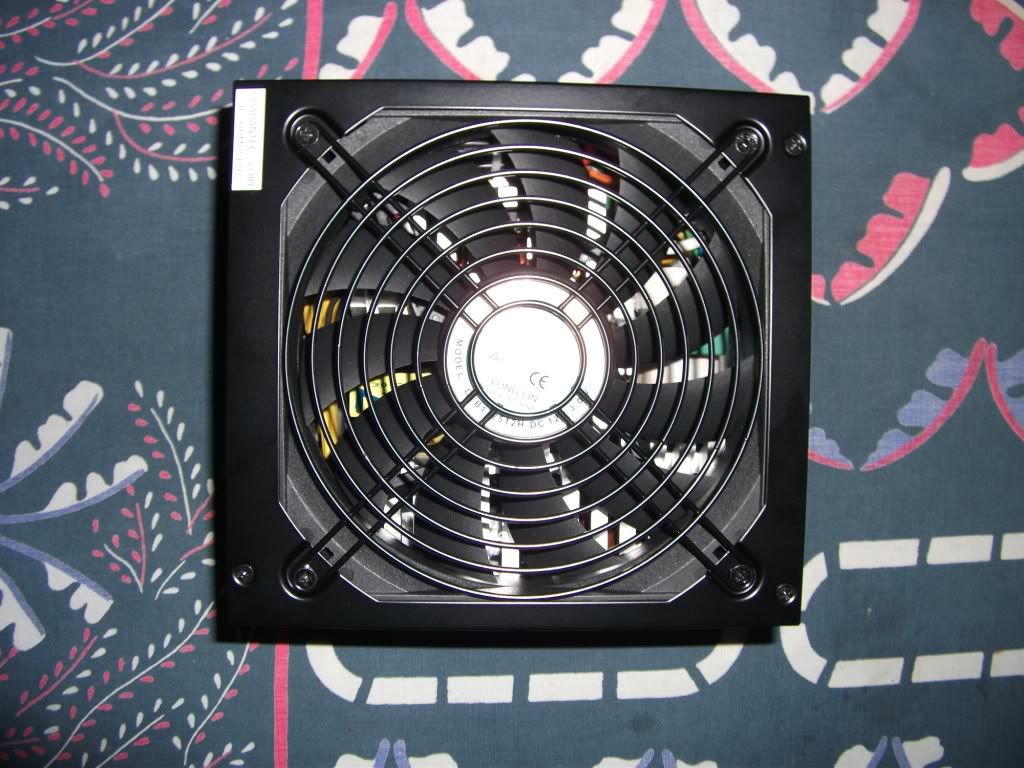

From the beginning of this project my Parents noticed the hard work that i've put into this project & they also heard me saying 100% Modular PSU blah blah all the time,so my Parents Sponsored me one & here it goes

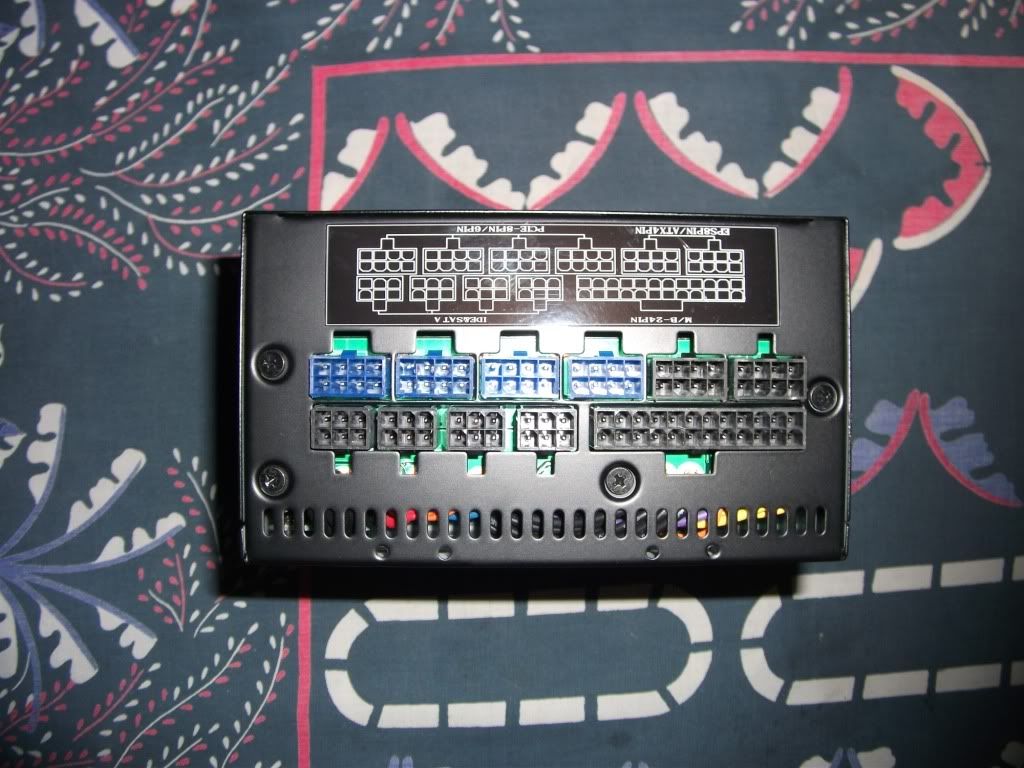

Look Maa no Cables

so,where are the cables?

ohh, here they are

PSU is not the only thing that my Parents Sponsored,there's more.....

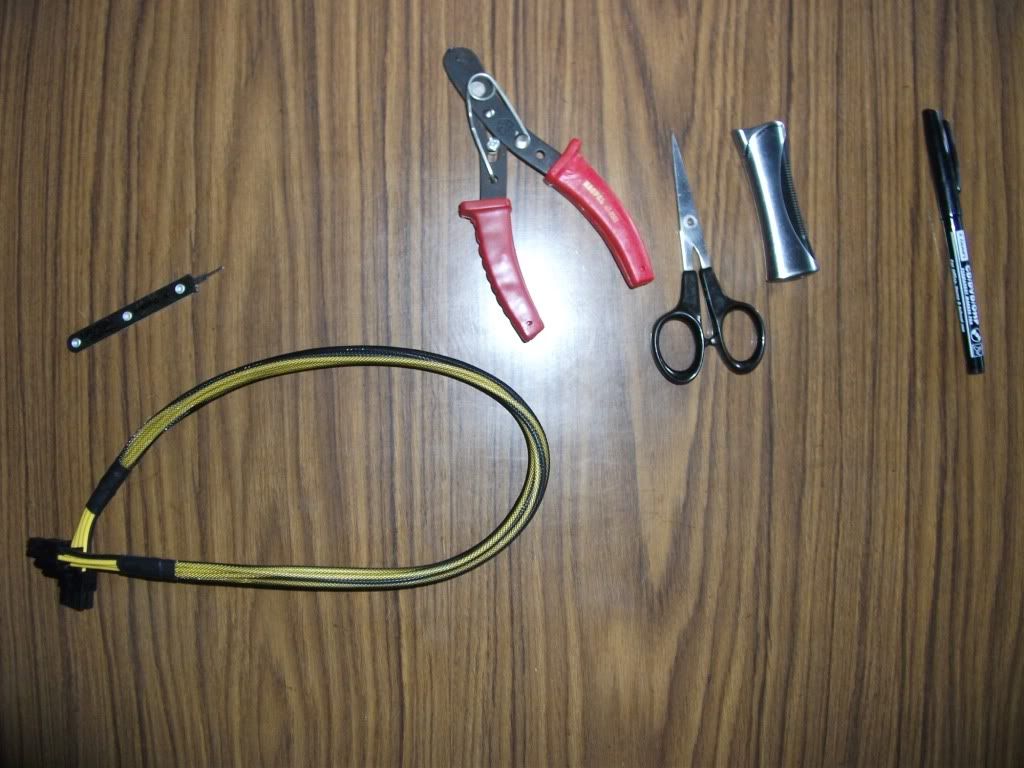

Time to Sleeve MDPC Style

it took me near about 2 hours to get the first cable out as i was using about 10% of the pulling force required to pull the cable

but as soon as the first one got out the others didn't took long

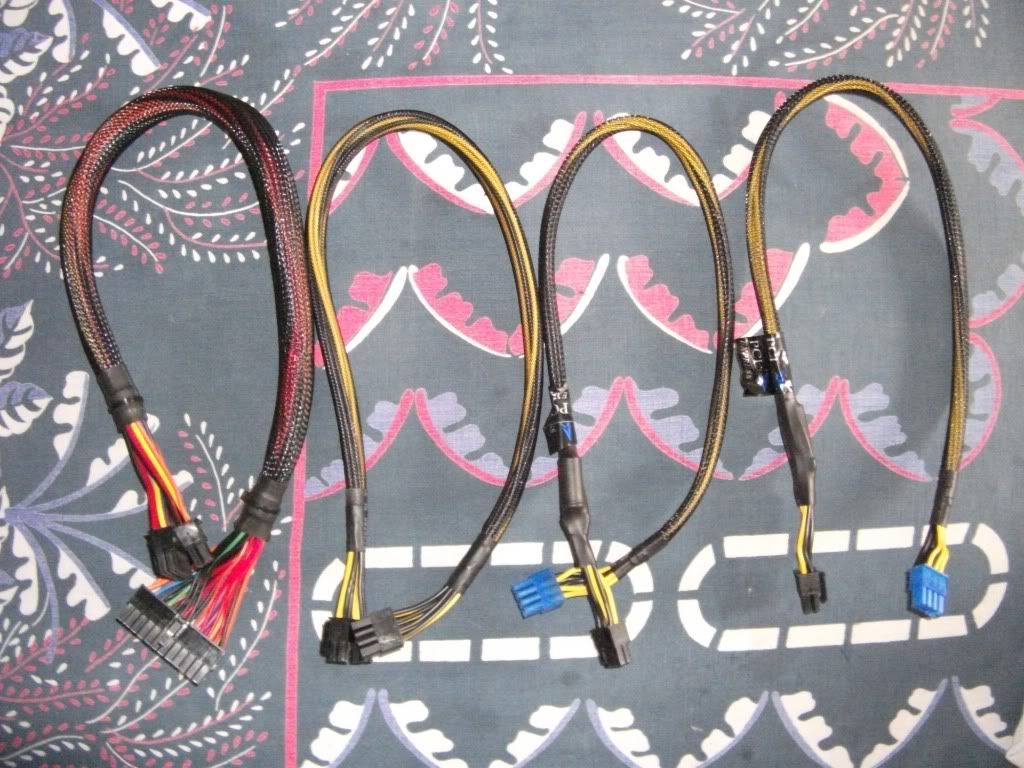

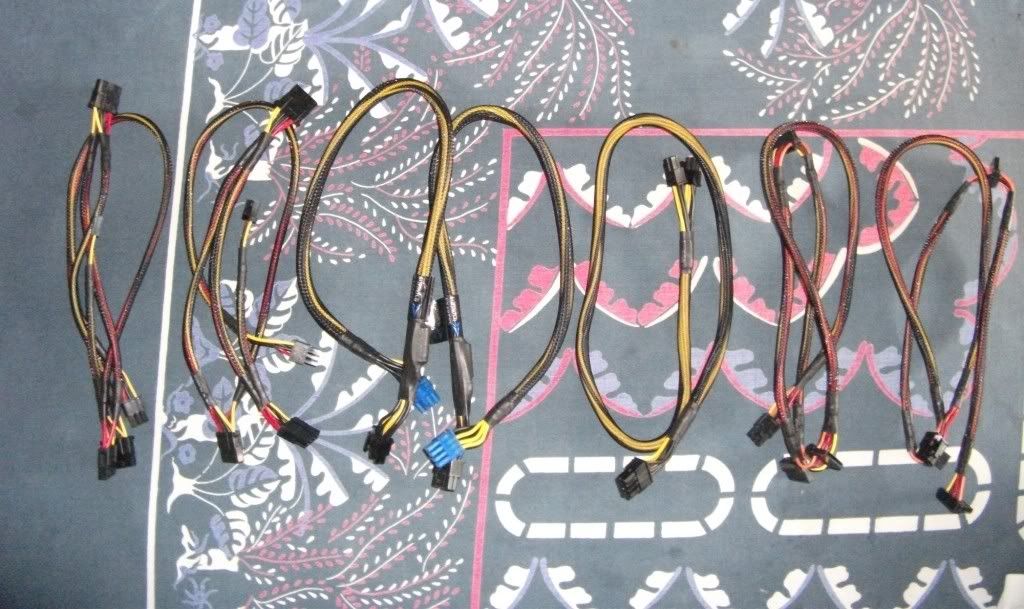

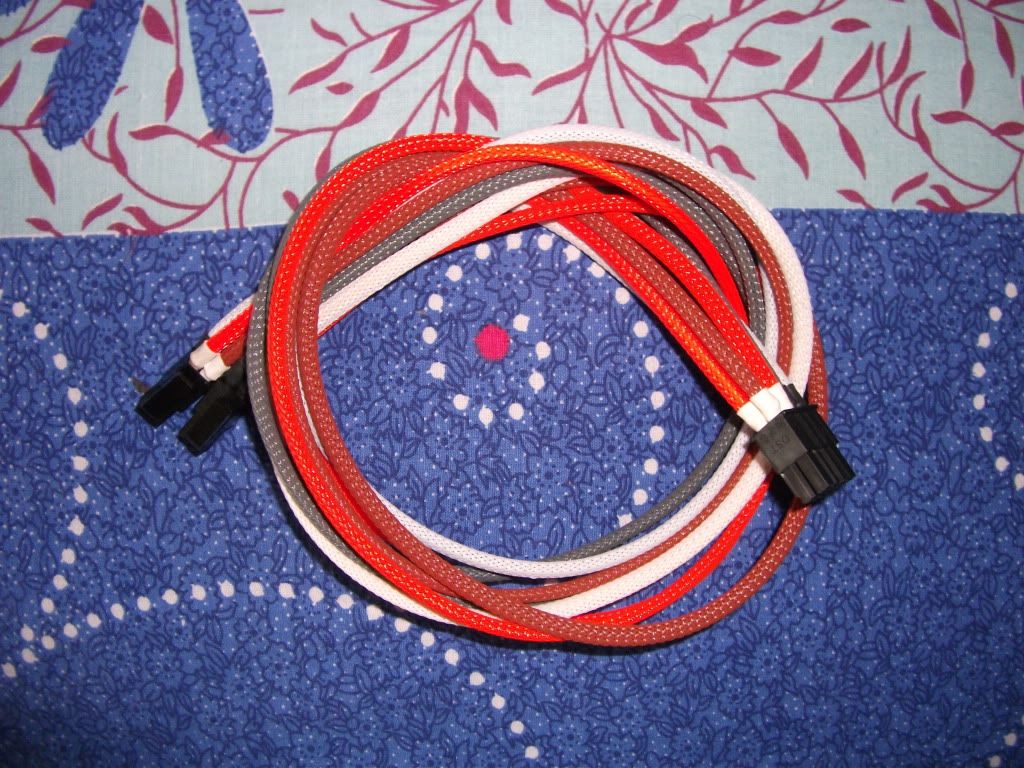

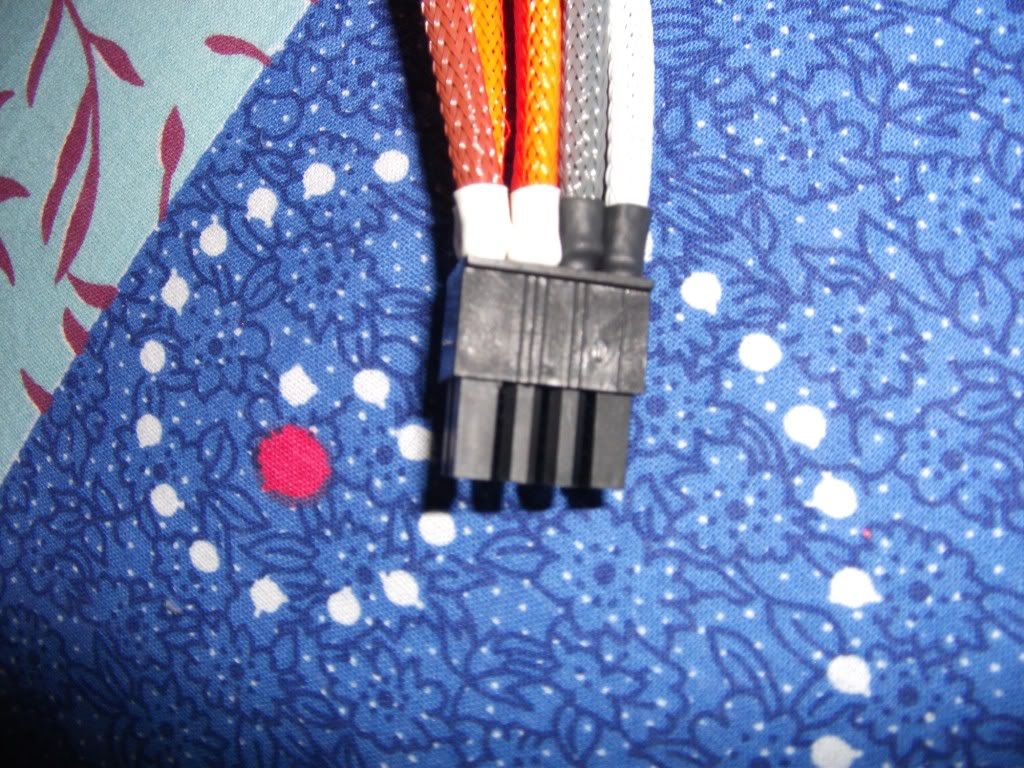

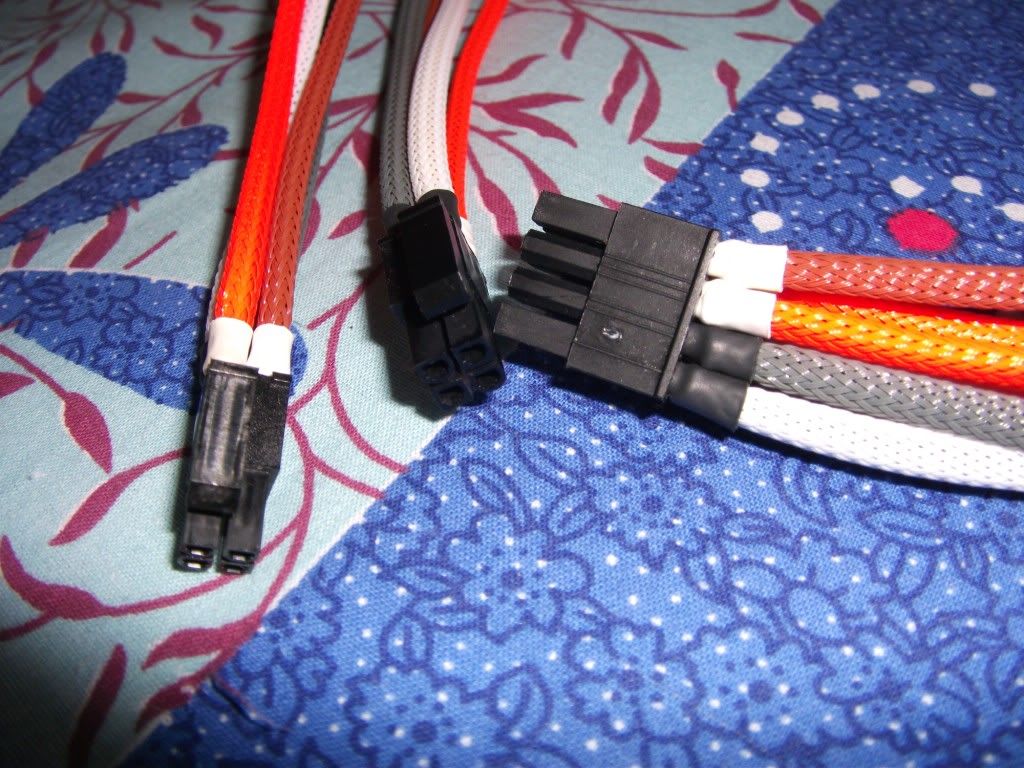

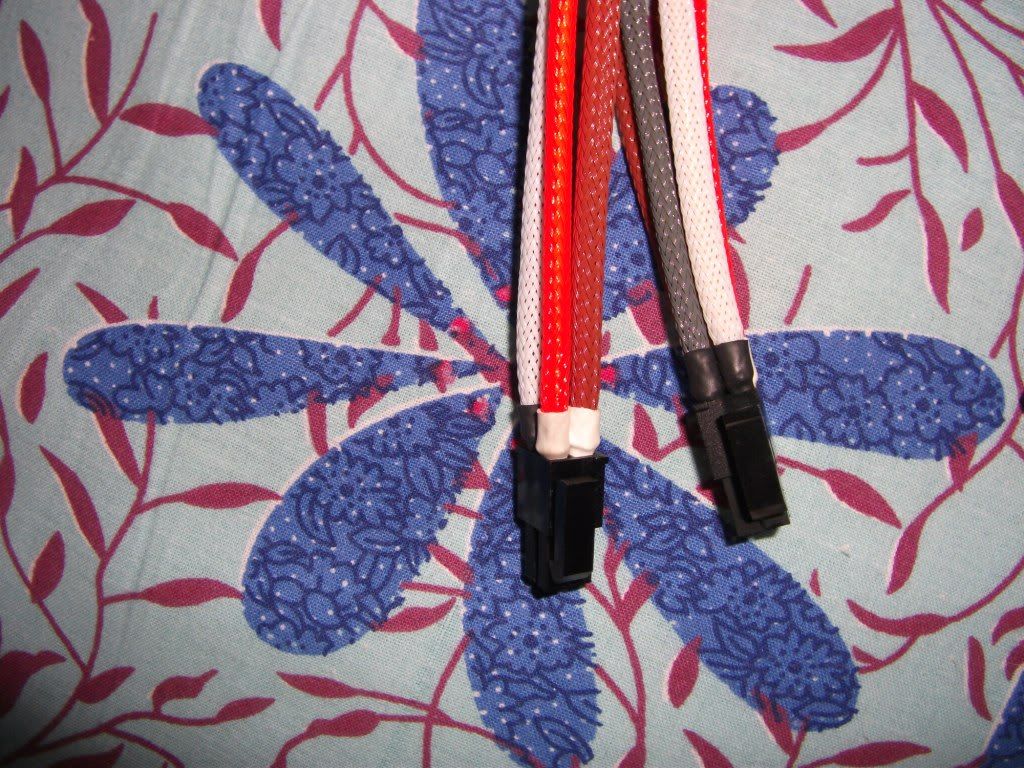

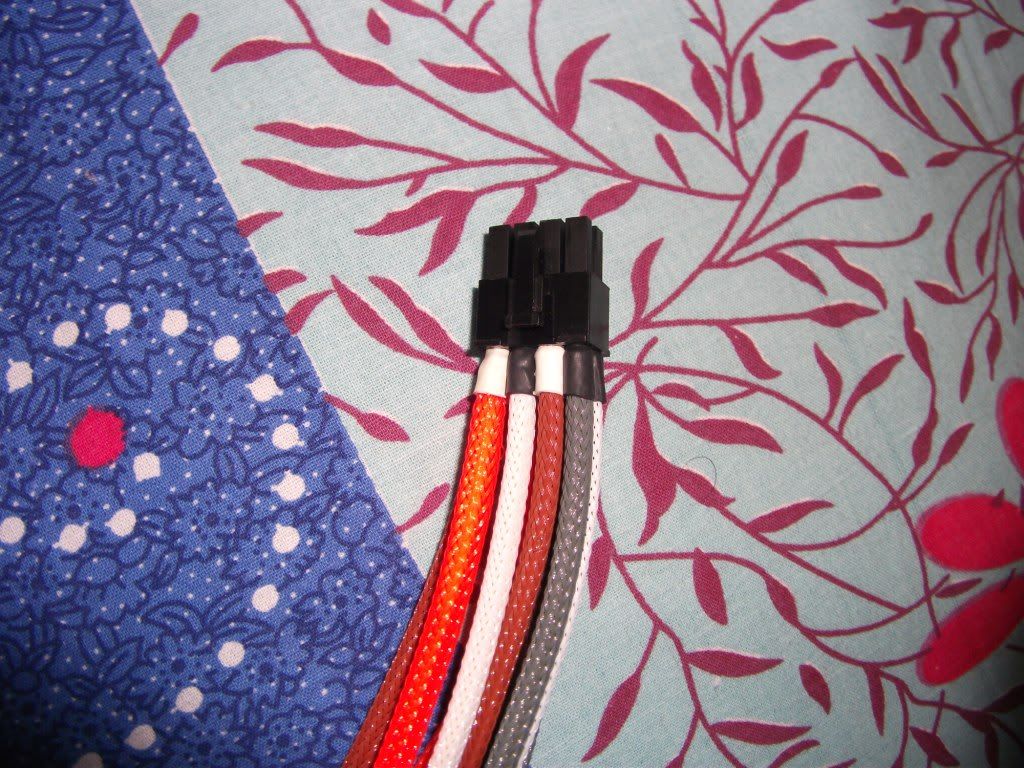

The 8 Pin Cable after Sleeving (My First Ever PSU Cable Sleeved)

I'm Lovin it



[princeoo7]

Great Update Bro

merry christmas ^_^

--- Updated Post - Automerged ---

Great Update Bro

merry christmas ^_^



[RD274]

Great job on the sleeving. Very neat. Keep the updates coming ....

oh and Merry Christmas
