Marcus Fenix
Level H
A Pi Zero W should be enough. I used to run mine off the USB port on a Asus RT-AC68U router.
The Raspberry Pi Thread
- Thread starter raksrules
- Start date
Party Monger
Level I
To put it in short, the phone chargers are chargers not powersupplies, their current is not even, it goes up and down. Everything from wire guage, to the quality of components inside decide the voltage & current it will out put. Plus its not an exact fit, so you dont know what level is the charger providing to the Pi.
RPI4 is uniquely sensitive about power. You can check the voltage being provided.

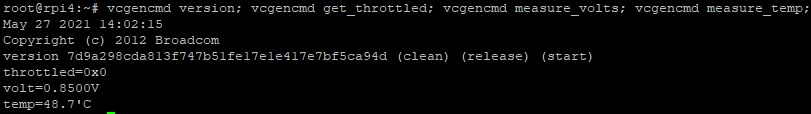

Check if these commands can help you diagnose the issue -> https://www.raspberrypi.org/forums/viewtopic.php?t=190584
The reason I tell you this is cause when i bought the pi4 in 2019, I had done extensive research as I was going to make a NAS with it. I tried it with other powesupplies from Amazon plus current ones I had. The cpu was throttled and voltage varied a lot. Even on my Oneplus 3T charger. Also the 4 volt oneplus delivers is in proprietary tech, not sure its reaching the RPI4. I got 2 original powersupplies for both my rpi4s in 2019 and I have my NAS on since 2019, its never had any issue. Its connected to usb hdd all the time.
Check the above, try the commands and see if you find a problem.
Got it. Let me first arrange the official power supply. Thx
Party Monger
Level I
No first run those commands and check the voltage and if its being throttled.
Oneplus dash charger + raspbian lite on samsung evo 64gb sdcard.
2nd charger

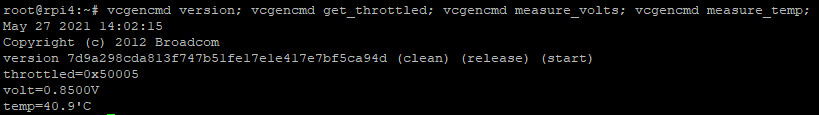

Update .. the throttling shown above happens when I attach a usb tester to the link. It shows fluctuating voltage + current .. Although once I removed it, the vcgencmd shows 0x0 as throttled
Last edited:
Marcus Fenix
Level H

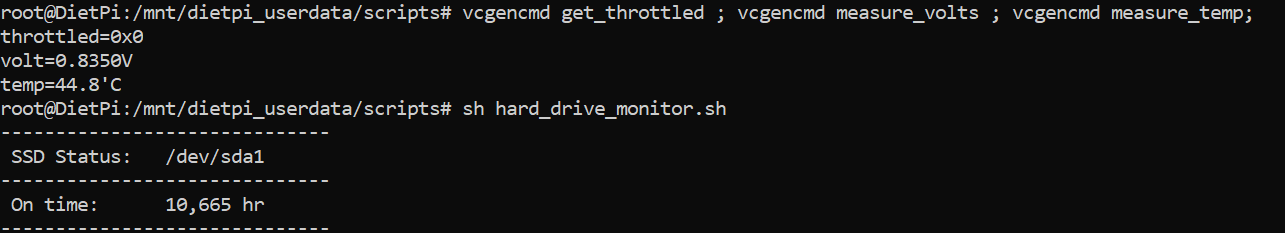

Pi 4 on official Raspberry charger. The total runtime on this Pi+charger should be the same as my SSD's On time value. My 32 GB card is still alive and well.

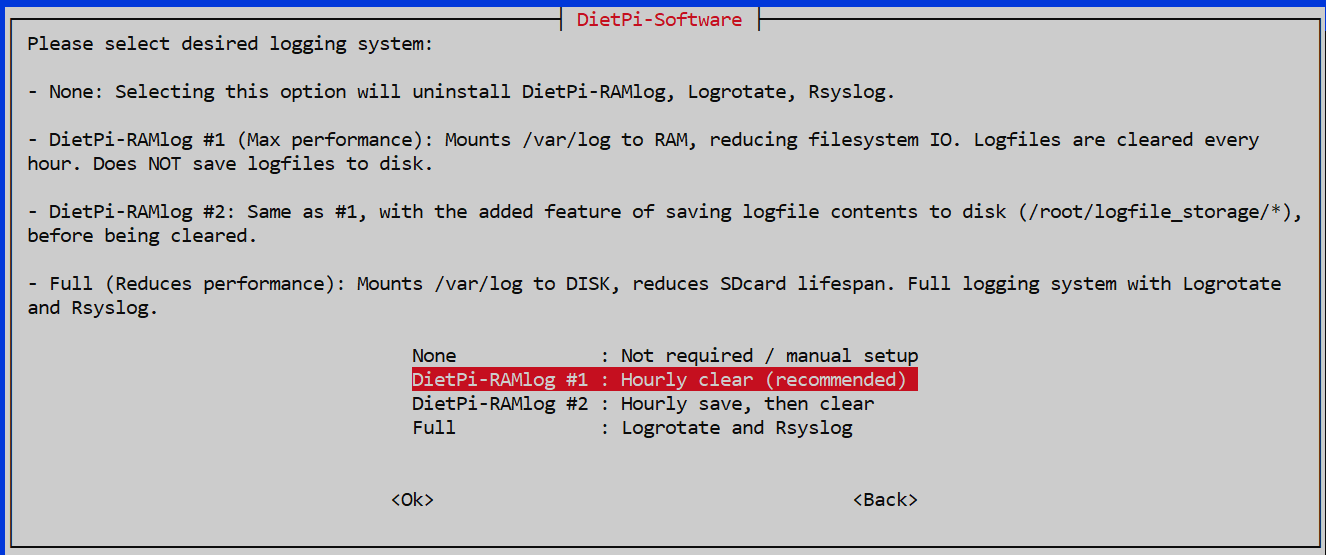

BTW I use dietpi which writes system logs to ramlog by default. Saves a lot of writes to the SD card which adds to the life expectancy as well.
Thx. Will try Dietpi. My future usage will include running
- containers ( pihole + cloud scripts )
- SMB for LAN share
- DLNA
Is this overkill for Pi4 or will it be able to handle it ?
Party Monger
Level I
Simply put one conclusion could be that the headroom for spikes is very less with the charger. So whenever there is a spike, say high cpu usage, or usb drive usage etc, there are power issues.
Get the original power supply, your issues should be gone. It will also be cheaper than any further testing or equipment purchase.
Apart from DLNA, it should handle rest easily. Pihole and smb both take very little power. I would suggest you install Open Media Vault, it has options for containers, use that for pi hole. OMV is by far the least hassle option for creating a NAS. For rest you can use its containers. And if you want hassle free working, just get another PI. These are cheap and very reliable.
DLNA should depend on whether it involves any re-encoding/decoding. If it does, you can forget it.
I think I can skip Dlna. I've an android TV and other having android box. Both have VLC player which can pick up media from SMB.
Will get original power supply.
Have 2 Pi 3B+ running pihole + SMB server.. Need to restructure the entire setup.
Thanks for your inputs.
Party Monger
Level I
Yes, I was going to say that, you just need to point those players to SMB share. I too have 2 Pis, one running NAS, other running webservices. I might retire both and get a proper new Proxmox server.
raksrules
Level N
@codelad @Marcus Fenix
I got the new HDD today and I plugged in to the 2nd USB 3 port of the RPi4 and after reboot, my original external HDD also vanished from the list under drive manager of diet pi. I saw that /etc/fstab, the entry of my original HDD's entry under PHYSICAL DISKS was missing.
So I removed both HDDs and reconnected only the new WD one and it was detected in drive manager as unmounted as expected against /dev/sda1 at which point I could go ahead and reformat it and all.
So now I disconnected everything and reconnected my original HDD but it would not mount so from this thread only, where I had copy pasted my fstab contents, I copied that last line starting with UDID and rebooted Pi and when I got to drive manager, it gets stuck for few minutes at..
and then I get error as
Is the UUID generated at run time the first time we mount the drive and if I remove the fstab line and reconnect the drive and reboot, the drive should still be detected as a new ext4 drive with contents and it should offer me to mount to a certain location right?
I got the new HDD today and I plugged in to the 2nd USB 3 port of the RPi4 and after reboot, my original external HDD also vanished from the list under drive manager of diet pi. I saw that /etc/fstab, the entry of my original HDD's entry under PHYSICAL DISKS was missing.
So I removed both HDDs and reconnected only the new WD one and it was detected in drive manager as unmounted as expected against /dev/sda1 at which point I could go ahead and reformat it and all.
So now I disconnected everything and reconnected my original HDD but it would not mount so from this thread only, where I had copy pasted my fstab contents, I copied that last line starting with UDID and rebooted Pi and when I got to drive manager, it gets stuck for few minutes at..
Code:
[ INFO ] DietPi-Drive_Manager | Detecting drives, please wait...and then I get error as
Code:
df: /mnt/seagatehdd: No such deviceIs the UUID generated at run time the first time we mount the drive and if I remove the fstab line and reconnect the drive and reboot, the drive should still be detected as a new ext4 drive with contents and it should offer me to mount to a certain location right?
Marcus Fenix
Level H
You are using a combination of manually editing fstab which has messed up drive_manager.
Not an issue as your old drive still has the full data.
Try restarting without any drive connected, clean up the entries in drive_manager and then add the old drive and set it to seagatehdd mountpoint.
Once this is done, attach the new HDD and add it as say/mnt/newhdd.
Then rsync the full /mnt/seagatehdd to /mnt/newhdd.
Once you are done with these steps remove the seagatehdd from drive_manager and reboot.
Then in drive_manager again rename newhdd to seagatehdd and reboot.
raksrules
Level N
How do I exactly clean up entries in drive manager? I did refresh inside drive manager and this is how my fstab looks now...
I did as you said, attached the old HDD again and rebooted the Pi and went to drive manager but that drive isn't being detected at all. I keep doing refresh under drive manager but nothing changes. Also nothing is changed in fstab file.
Code:
root@DietPi:~# root@DietPi:~# cat /etc/fstab
# You can use "dietpi-drive_manager" to setup mounts.
# NB: It overwrites and re-creates physical drive mount entries on use.
#----------------------------------------------------------------
# NETWORK
#----------------------------------------------------------------
#----------------------------------------------------------------
# TMPFS
#----------------------------------------------------------------
tmpfs /tmp tmpfs size=1938M,noatime,lazytime,nodev,nosuid,mode=1777
tmpfs /var/log tmpfs size=50M,noatime,lazytime,nodev,nosuid,mode=1777
#----------------------------------------------------------------
# MISC: ecryptfs, vboxsf (VirtualBox shared folder), gluster, bind mounts
#----------------------------------------------------------------
#----------------------------------------------------------------
# SWAP SPACE
#----------------------------------------------------------------
#----------------------------------------------------------------
# PHYSICAL DRIVES
#----------------------------------------------------------------
PARTUUID=9730496b-02 / ext4 noatime,lazytime,rw 0 1
PARTUUID=9730496b-01 /boot vfat noatime,lazytime,rw 0 2
root@DietPi:~#I did as you said, attached the old HDD again and rebooted the Pi and went to drive manager but that drive isn't being detected at all. I keep doing refresh under drive manager but nothing changes. Also nothing is changed in fstab file.
Last edited:
Marcus Fenix
Level H
It seems that your drives are already cleaned up.
This is my fstab
The PARTUUID entries are for the SD card partitions.
This one is the external drive and I guess you can copy permissions from here if you want to edit fstab directly but I would suggest you to do it via drive_manager.
UUID=0ec34982-1152-4226-9e39-e4674fa3e5b0 /mnt/usb1 ext4 noatime,lazytime,rw,nofail,noauto,x-systemd.automount
raksrules
Level N
@Marcus Fenix after editing fstab manually using my own entry (posted on this thread's page 7), the initialization of drive manager get stuck for few minutes and then I get df:/mnt/seagatehdd not found.
It is as if the drive is no longer being recognized at all by the Pi somehow.
It is as if the drive is no longer being recognized at all by the Pi somehow.
Marcus Fenix
Level H
. This is something that will be tricky for me to debug remotely.This seems like a hail Mary.
Open /boot/config.txt.
You will see a line like this.
Enter the following line.
max_usb_current=1
Reboot and run lsusb with the drive attached and paste output here.
Then run lsblk and paste the output here.
Last edited:
raksrules
Level N
Here you go...as you can see the disk attached is not displayed anywhere.
In order to attempt and read the contents of the HDD, on my windows laptop, when I attach the HDD, it obviously does not show under explorer due to its format but even under disk management it does not show up. But I can eject the drive from task bar right side small USB icon.
But if I don't do anything, it automatically get ejected after few minutes. I even downloaded couple of tools for windows 10 that supposedly can read ext4 but those don't work and drive doesn't show up.
Code:
root@DietPi:~# lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 002: ID 2109:3431 VIA Labs, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
root@DietPi:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
mmcblk0 179:0 0 14.9G 0 disk
├─mmcblk0p1 179:1 0 256M 0 part /boot
└─mmcblk0p2 179:2 0 14.6G 0 part /
root@DietPi:~#But if I don't do anything, it automatically get ejected after few minutes. I even downloaded couple of tools for windows 10 that supposedly can read ext4 but those don't work and drive doesn't show up.
Last edited:
Marcus Fenix
Level H
Check under Device Manager if the drive shows up in Windows. If yes then the drive is okay.
Then you can restart from scratch i.e. format the drive to FAT32 from Windows. Then attach to Pi, boot Pi up and check if it shows up there.
If it doesn't show up set max usb current parameter.
If all is good then you can format the drive to ext4,mount it and copy your stuff over.
